1-2. Opening, closing and locking the doors and trunk
■ Electronic key battery depletion
●The standard battery life is 1 to 2 years.
● If the battery charge becomes low, a buzzer will sound in the cabin and a
message will be displayed on the multi-information display when the
engine is stopped. (→P. 411)
1
● As the electronic key always receives radio waves, the battery will
become depleted even if the electronic key is not used. The following
symptoms indicate that the electronic key battery may be depleted.
Replace the battery when necessary. (→P. 360)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key close to
any of the following electrical appliances that produce a magnetic field:
• TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Induction cookers
• Table lamps
■ When the electronic key battery is fully depleted
→P. 360
■ If the smart entry & start system has been deactivated in a customized
setting
● Locking and unlocking the doors, unlocking the trunk: Use the wireless
remote control or mechanical key. (→P. 52, 455)
● Starting the engine and changing
“ENGINE START STOP” switch
modes: →P. 456
● Stopping the engine: →P. 458
■ Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e. g. smart entry & start system) can be changed.
(Customizable features: →P. 487)
45
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk

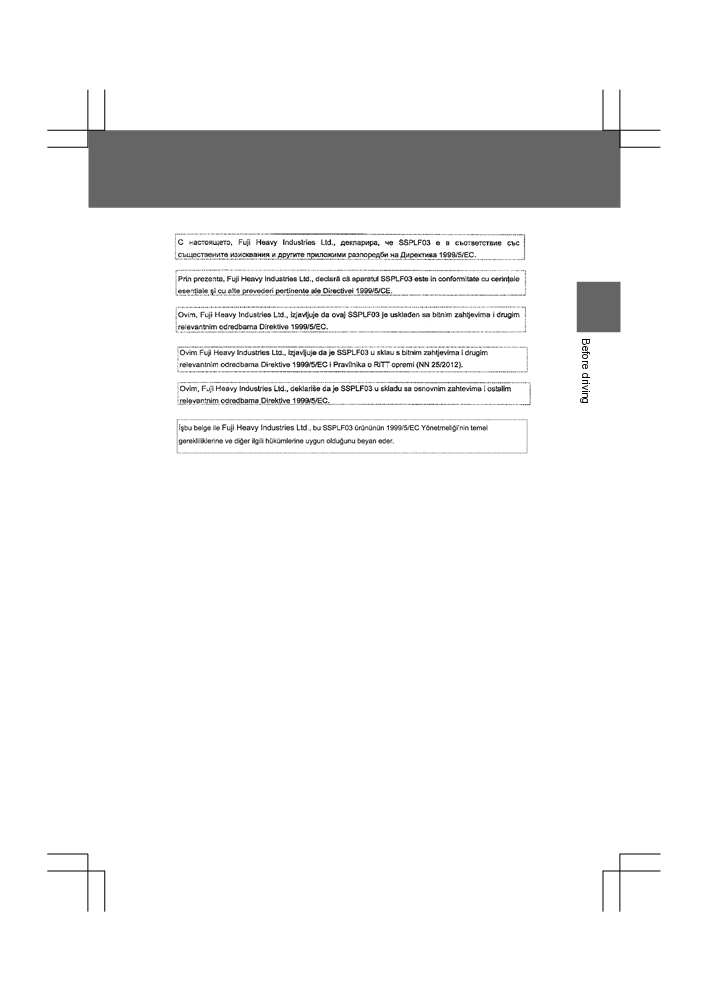

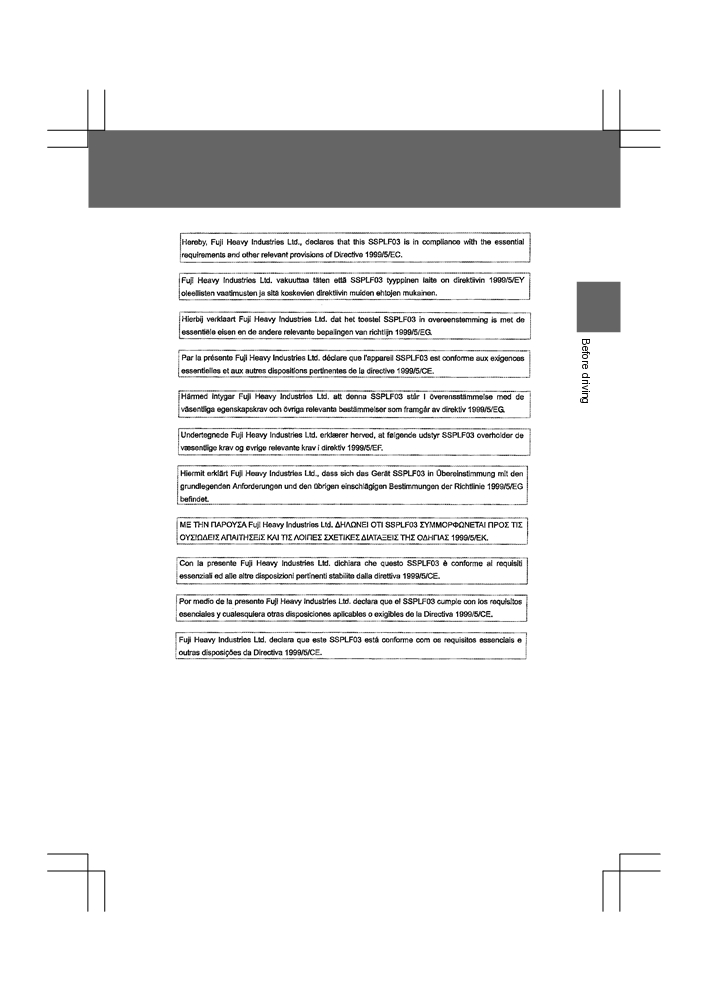

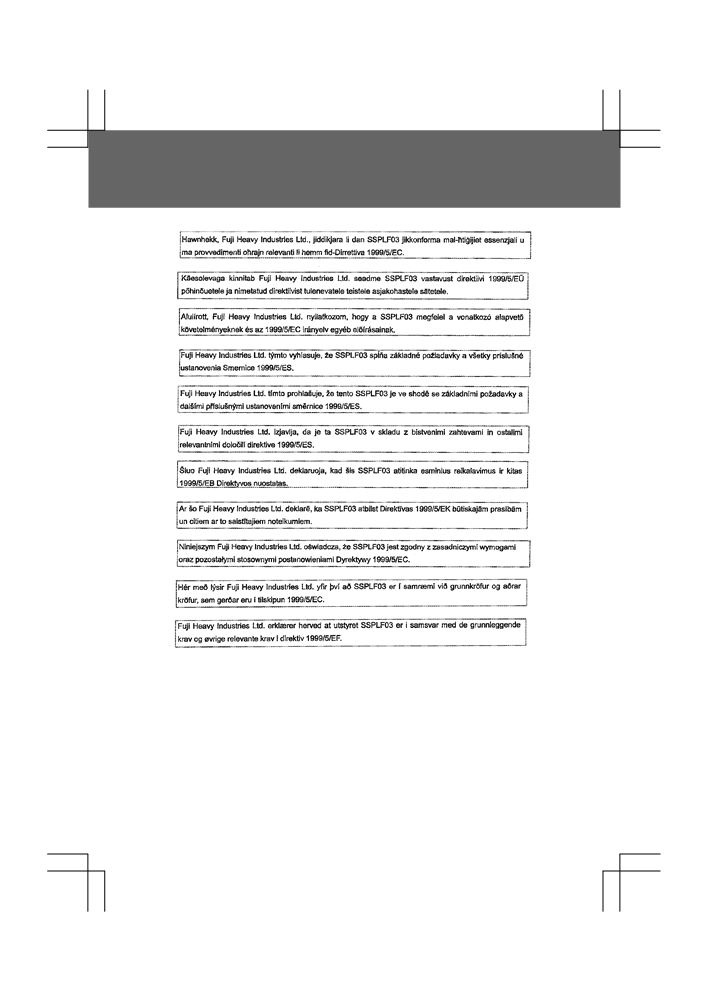

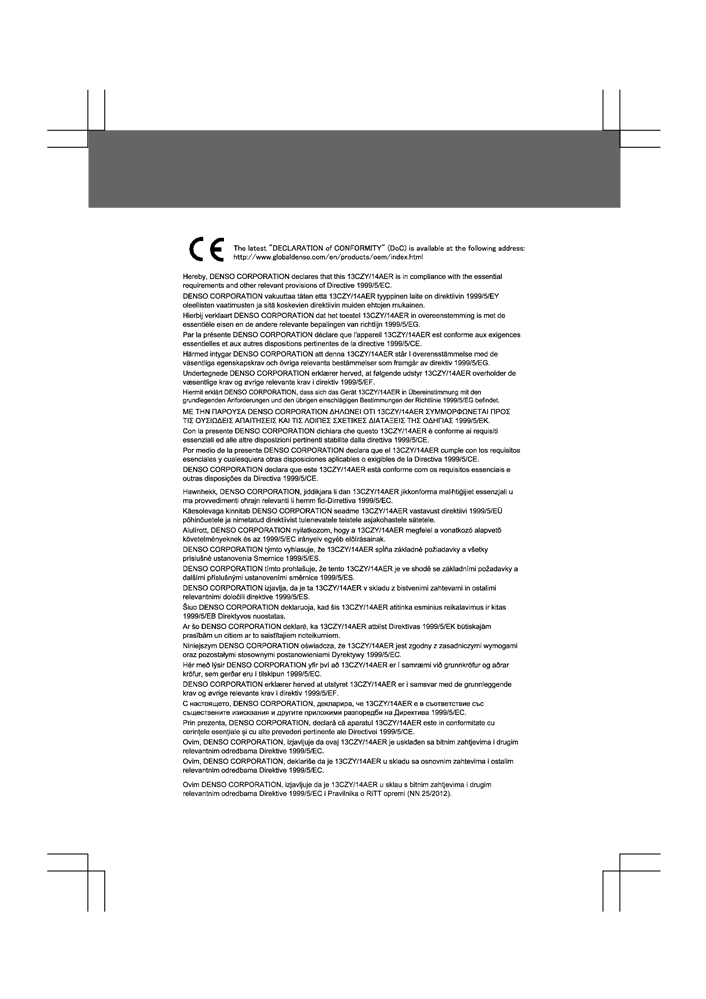

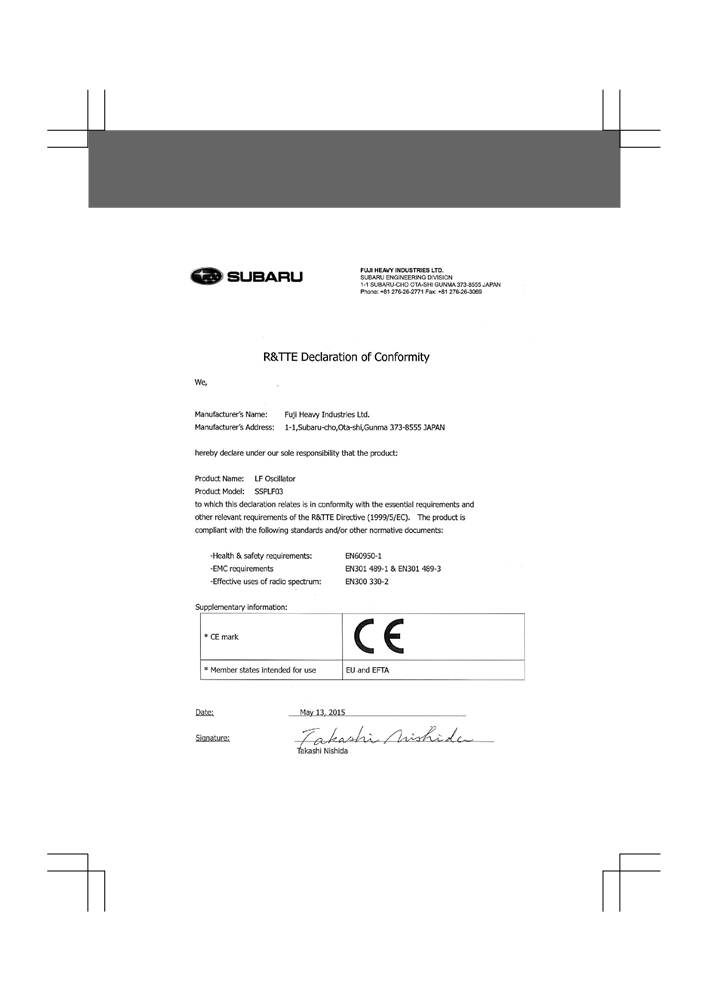

■ Certification for smart entry & start system
46
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk
1
47
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk
48
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk
1
-Replace only with the same or equivalent type recommended by the manufacturer.
-Dispose of used batterites according to the local laws.
49
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk
50
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk
WARNING
■ Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should main-
1
tain a reasonable distance between themselves and the smart entry &
start system antennas. (→P. 37)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details,
such as the frequency of radio waves and timing of the emitted radio
waves. Then, consult your doctor to see if you should disable the entry
function.
●User of any electrical medical device other than implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details for disabling the entry function.
51
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk
Wireless remote control
The wireless remote control can be used to lock and unlock the vehi-
cle.
Vehicles without
a smart entry & start system
Locks both side doors*1
Check that the door is securely
locked.
Locks driver’s door*2
Check that the door is securely
locked.
Unlocks both side doors*1
Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.
Unlocks both side door*2
Unlocks the trunk
(press and hold)
52
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk
Vehicles with a smart entry & start system
Locks both side doors*1
Check that the door is securely
locked.
1
Locks driver’s door*2
Check that the door is securely
locked.
Unlocks both side doors*1
Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.
Unlocks both side door*2
Unlocks the trunk
(press and hold)
*1: Vehicles with a double locking system
*2: Vehicles without a double locking system
53
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk
■ Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
■ Door lock buzzer (vehicles with a smart entry & start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■ Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ Conditions affecting operation
Vehicles without a smart entry & start system
The wireless remote control function may not operate normally in the follow-
ing situations:
●When the wireless key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
● When carrying a portable radio, cellular phone or other wireless commu-
nication devices
● When the wireless key is in contact with, or is covered by a metallic
object
● When other wireless key (that emit radio waves) is being used nearby
●If window tint with a metallic content or metallic objects are attached to
the rear window
Vehicles with a smart entry & start system
→P. 41
54
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk
■ If the wireless remote control does not operate properly (vehicles with
a smart entry & start system)
Locking and unlocking the doors, unlocking the trunk: Use the mechanical
key. (→P. 455)
■ Key battery depletion
1
Vehicles without a smart entry & start system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (→P. 360)
Vehicles with a smart entry & start system
→P. 45
■ When the electronic key battery is fully depleted
→P. 360
■ Confirmation of the registered key number (vehicles with a smart entry
& start system)
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
■ Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. wireless remote control system) can be changed.
(Customizable features →P. 487)
55
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk

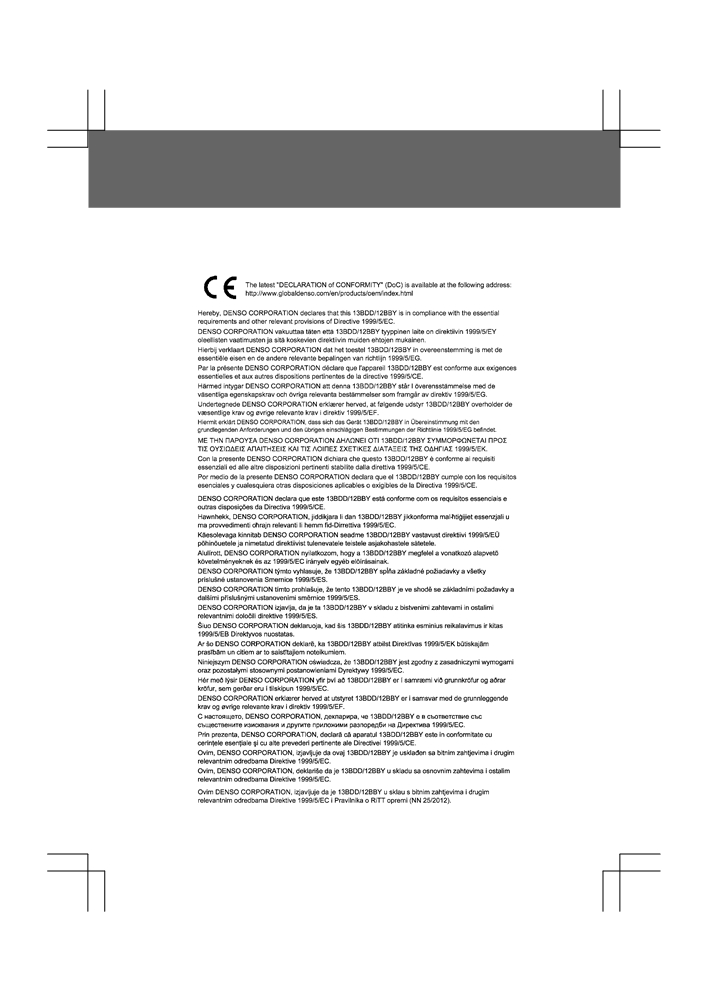

■ Certification for wireless remote control
-Replace only with the same or equivalent type recommended by the manufacturer.
-Dispose of used batterites according to the local laws.
56
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk
Doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control, key or door lock switch.
■ Entry function (vehicles with a smart entry & start system)
→P. 36
1
■ Wireless remote control
→P. 52
■ Key
Turning the key operates the doors as follows:
Vehicles without a smart entry & start system
Locks both side doors*1
Locks driver’s door*2
Unlocks both side doors*1
Turning the key unlocks the
driver’s door. Turning the key
again unlocks the other doors.
Unlocks driver’s door*2
*1: Vehicles with a double locking system
*2: Vehicles without a double locking system
Vehicles with a smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. (→P. 455)
57
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk
■ Door lock switch
Locks both side doors
Unlocks both side doors
■ Inside lock button
Locks the door
Unlocks the door
Locking the doors from the outside without a key
STEP
1
Move the inside lock button to the lock position.
STEP
2
Close the door while pulling the door handle.
Vehicles with a smart entry & start system
The door cannot be locked if the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.
The key may not be detected correctly and the door may be locked.
58
86_EE (OM18071E)
1-2. Opening, closing and locking the doors and trunk
■ Window open/close function linked to door operation
In order to make opening and closing the doors easier, completely closed
windows are linked to door operations. Therefore, when a door is opened, its
window opens slightly. When a door is closed, its window closes completely.
1
However, if the battery has discharged or is disconnected, this function will
not operate. (→P. 463)
■ If a wrong key is used (vehicles with a double locking system)
The key cylinder rotates freely to isolate inside mechanism.
■ If the smart entry & start system has been deactivated in a customized
setting (vehicles with a smart entry & start system)
Use the wireless remote control or mechanical key. (→P. 52, 455)
WARNING
■ To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seat belt.
● Ensure that both side doors are properly closed.
●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
