2-2. Instrument cluster
Multi-information display
The multi-information display presents the driver with a variety of
driving-related data.
Odometer
(P. 199)
Trip meter
(P. 199)
Stop & Start system opera-
tion time (if equipped)
(P. 199)
Stop & Start system total
operation time (if equipped)
(P. 200)
Trip information
(P. 211)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
Meter light control(P. 200)
Eco Driving Indicator Light
customization (if equipped)
(P. 201)
210
2-2. Instrument cluster
Changing the display
Items displayed can be switched
by pressing the display change
button.
2
Display items
Odometer
P. 199
Trip meter
P. 199
Stop & Start system operation time (if equipped)
P. 199
Stop & Start system total operation time (if equipped)
P. 200

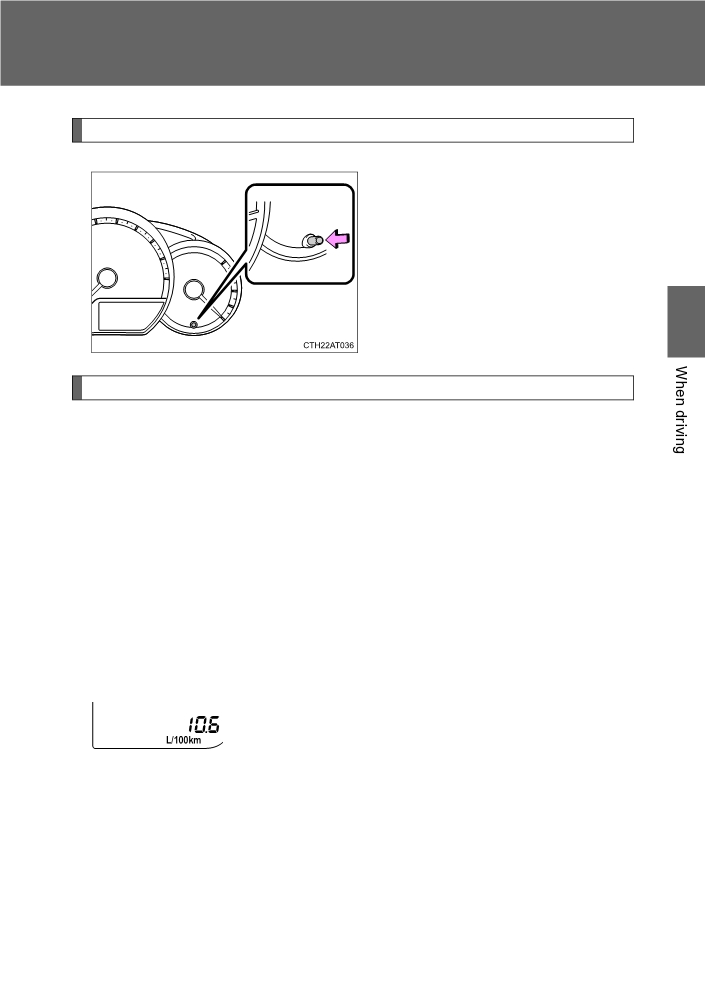

Instantaneous fuel consumption
Displays instantaneous fuel consumption.
211
2-2. Instrument cluster

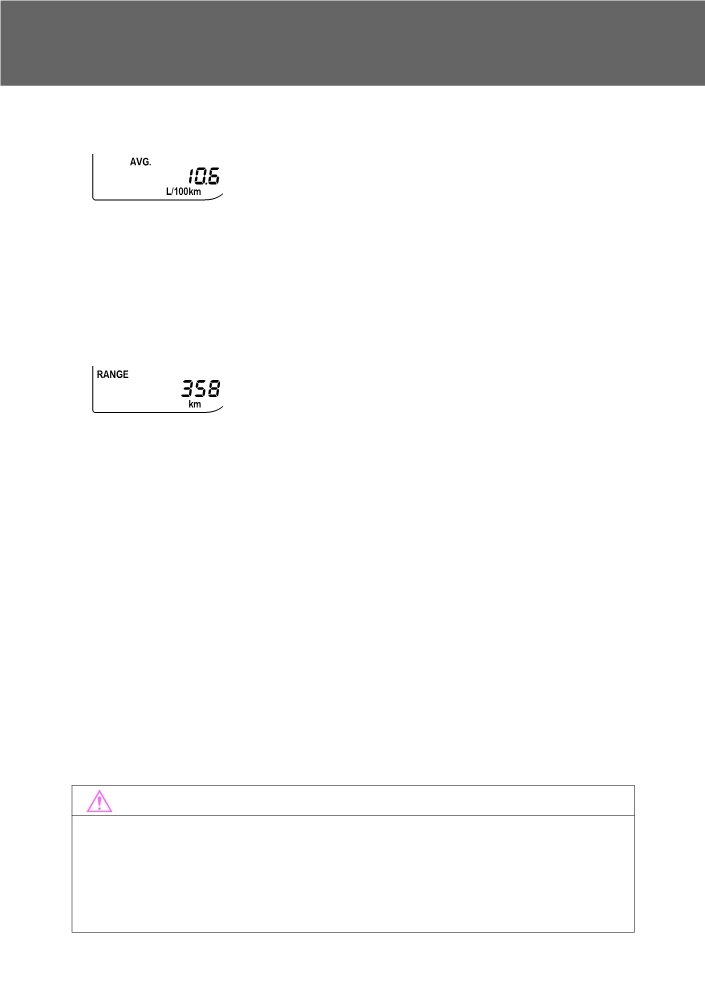

Average fuel consumption
Displays the average fuel consumption since the
function was reset
• The function can be reset by pressing and holding
the display change button when the average fuel
consumption is displayed.
• Use the displayed average fuel consumption as a
reference.

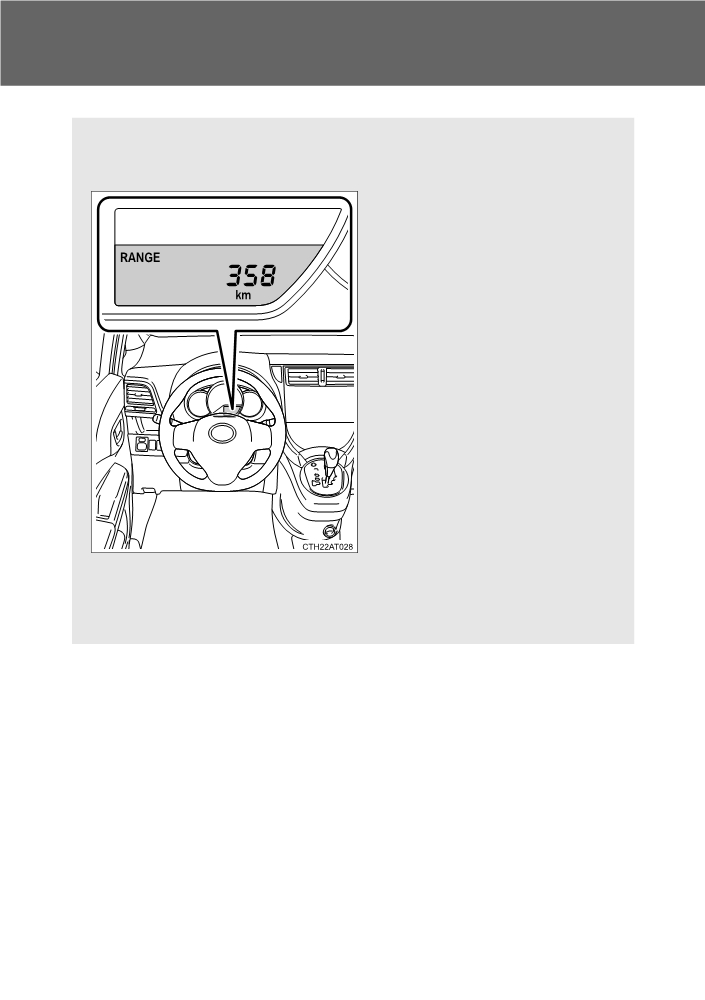

Driving range
Displays the estimated maximum distance that
can be driven with the quantity of fuel remaining
•
This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
•
When only a small amount of fuel is added to the
tank, the display may not be updated.
Vehicles with a smart entry & start system: When
refueling, turn the “ENGINE START STOP” switch
off. If the vehicle is refueled without turning the
“ENGINE START STOP” switch off, the display
may not be updated.
Vehicles without a smart entry & start system:
When refueling, turn the engine switch off. If the
vehicle is refueled without turning the engine
switch off, the display may not be updated.
Meter light control
P. 200
NOTICE
The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
212
2-3. Operating the lights and wipers
Headlight switch
The headlights can be operated manually or automatically.

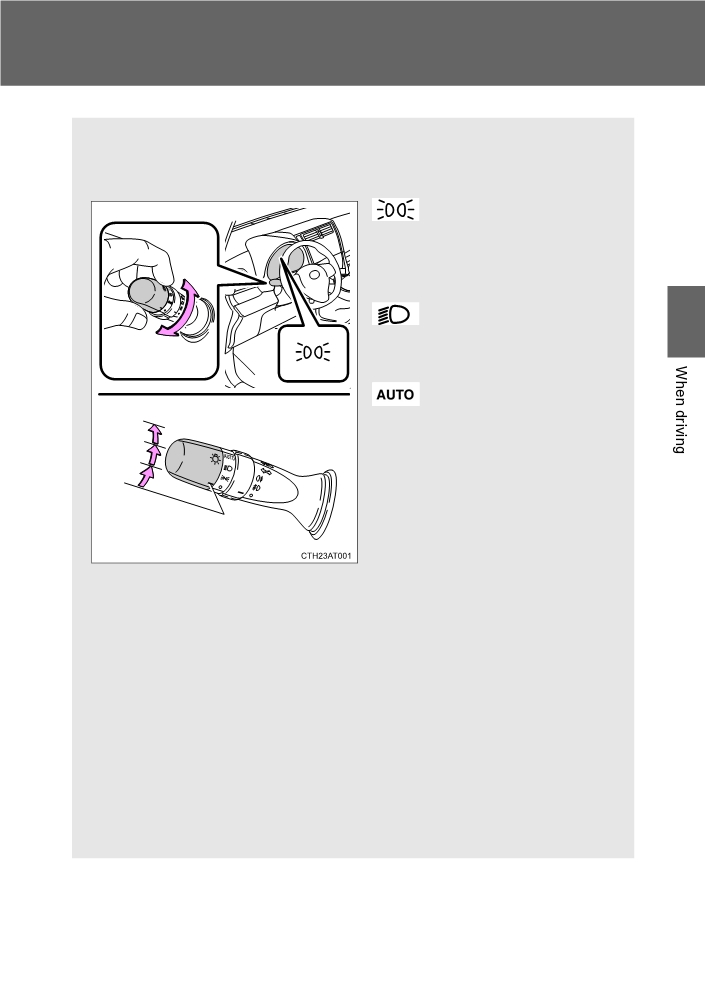

Turning the end of the lever turns on the lights as follows:
The front position, tail,
license plate and
instrument panel lights
turn on.
The headlights and all
2
the lights listed above
turn on.
(If equipped)
Vehicles without a
smart entry & start
(If equipped)
system: The head-
lights, front position
lights and so on turn
on and off automati-
cally
(when the engine
switch is in the “ON”
position.)
Vehicles with a smart
entry & start system:
The headlights, front
position lights and so
on turn on and off
automatically
(when
the
“ENGINE START
STOP” switch is in
IGNITION ON mode.)
213
2-3. Operating the lights and wipers

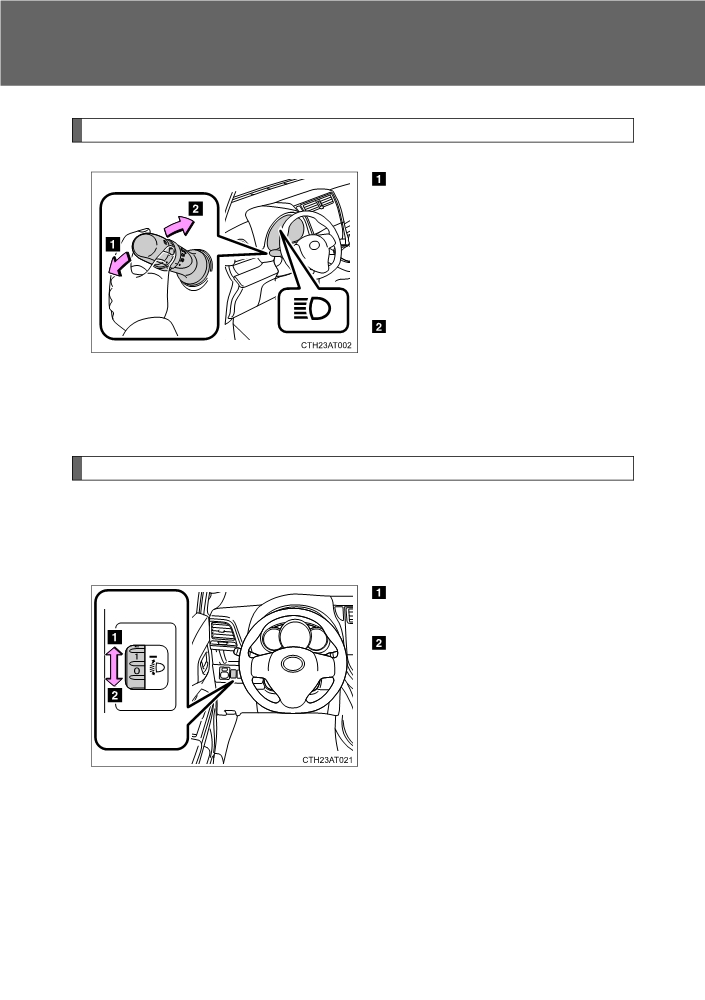

Turning on the high beam headlights
With the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.

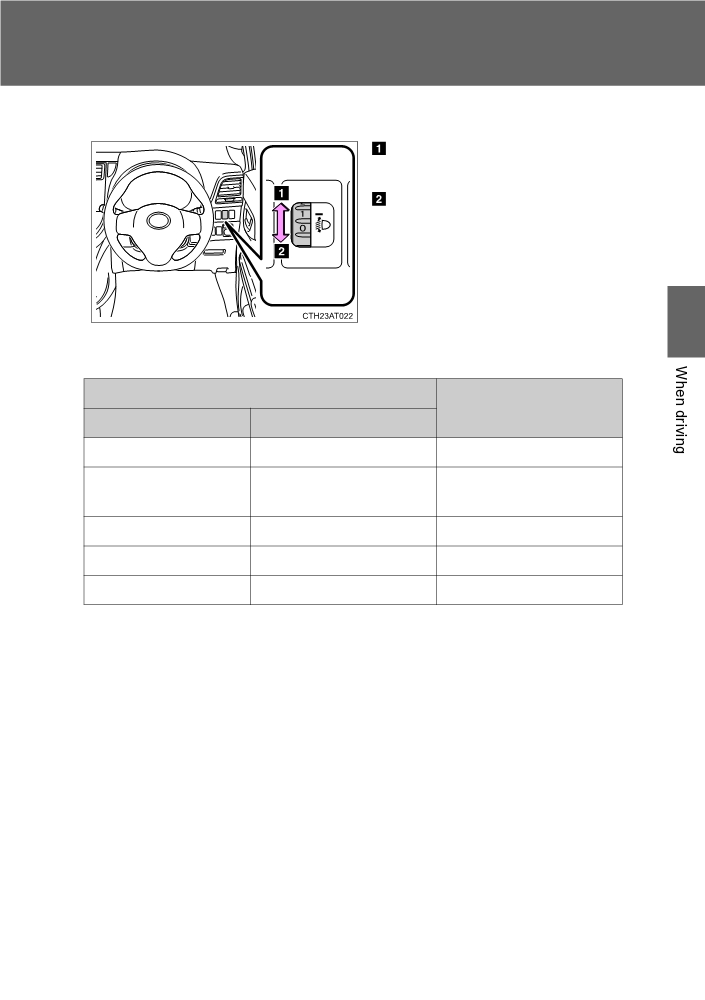

Manual headlight leveling dial
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Left-hand drive vehicles
Raises the level of the head-
lights
Lowers the level of the head-
lights
214
2-3. Operating the lights and wipers
Right-hand drive vehicles
Raises the level of the head-
lights
Lowers the level of the head-
lights
2
Guide to dial settings
Occupancy and luggage load conditions
Dial position
Occupants
Luggage load
Driver
None
0
Driver and front pas-
None
0
senger
All seats occupied
None
1.5
All seats occupied
Full luggage loading
2.0
Driver
Full luggage loading
4.0
215
2-3. Operating the lights and wipers
Daytime running light system
To make your vehicle more visible to other drivers, the daytime running lights
turn on automatically whenever the engine is started and the parking brake
is released. Daytime running lights are not designed for use at night.

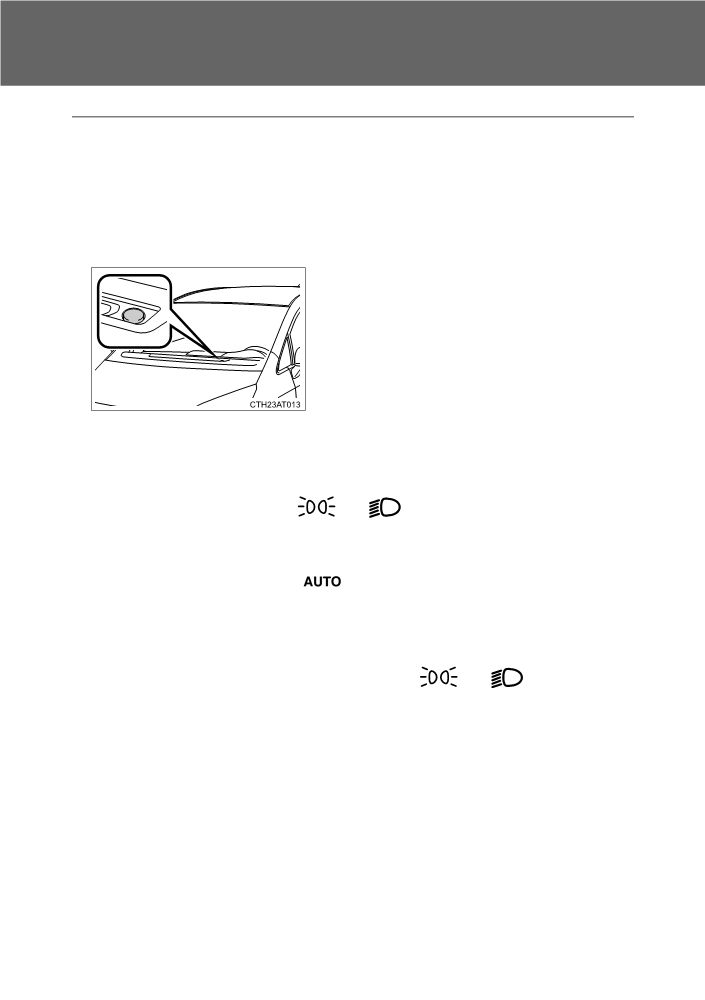

Headlight control sensor (if equipped)
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
Automatic light off system (if equipped)
Vehicles without a smart entry & start system
When the light switch is in
or
: The headlights and front fog
lights turn off automatically when the engine switch is turned to the
“LOCK” position.
When the light switch is in
: The headlights and all the lights turn
off automatically when the engine switch is turned to the “LOCK” posi-
tion.
To turn the lights on again, turn the engine switch to the “ON” position, or
turn the light switch off once and then back to
or
216
2-3. Operating the lights and wipers
Vehicles with a smart entry & start system
When the light switch is in
or
: The headlights and front fog
lights turn off automatically when the “ENGINE START STOP” switch is
turned off.
When the light switch is in
: The headlights and all the lights turn
off automatically when the “ENGINE START STOP” switch is turned off.
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-
TION ON mode, or turn the light switch off once and then back to
or
2
Light reminder buzzer
Vehicles without a smart entry & start system
A buzzer sounds when the engine switch is turned “LOCK” or to “ACC” posi-
tion and the driver's door is opened while the lights are turned on.
Vehicles with a smart entry & start system
A buzzer sounds when the “ENGINE START STOP” switch is turned off or
turned to ACCESSORY mode and the driver's door is opened while the
lights are turned on.
Battery-saving function
In the following conditions, the headlights and the other remaining lights will
go off automatically after 20 minutes in order to prevent the vehicle battery
from being discharged:
The headlights and/or tail lights are on.
The engine switch is in the “LOCK” position (vehicles without a smart
entry & start system) or the “ENGINE START STOP” switch is turned off
(vehicles with a smart entry & start system).
The light switch is in
or
This function will be canceled in any of the following situations:
When the engine switch is turned to the “ON” position (vehicles without a
smart entry & start system) or the “ENGINE START STOP” switch is
turned to IGNITION ON mode (vehicles with a smart entry & start sys-
tem)
When the light switch is operated
When the door is opened or closed
217
2-3. Operating the lights and wipers
Turning on the low beam headlights when the vehicle is parked in dark
areas
Turn off the engine with the light switch
in
or off, and pull the light switch
toward you and release it. The low
beam headlights will turn on for about
30 seconds to light up the area around
the vehicle.
The lights are turned off in the following
situations.
Vehicles without a smart entry &
start system: The engine switch is
turned to the “ON” position.
Vehicles with a smart entry & start
system: The
“ENGINE START
STOP” switch is turned to IGNITION
ON mode.
The light switch is turned on.
The light switch is pulled toward you
and then released.
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 540)
NOTICE
To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.
218
2-3. Operating the lights and wipers
Fog light switch
The fog lights secure excellent visibility in difficult driving condi-
tions, such as in rain and fog.

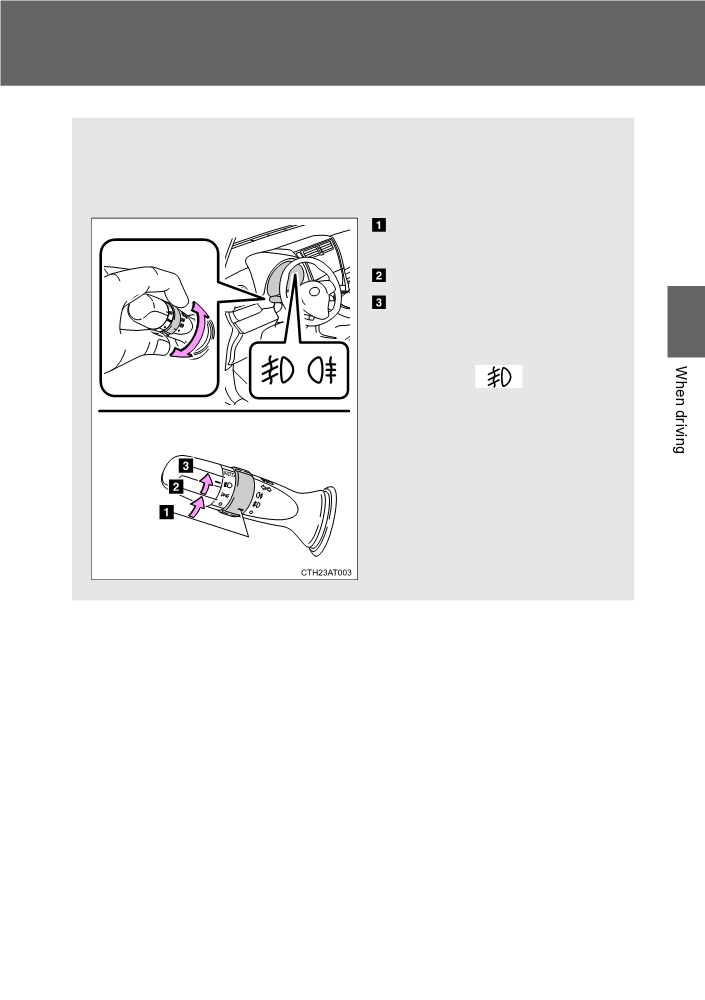

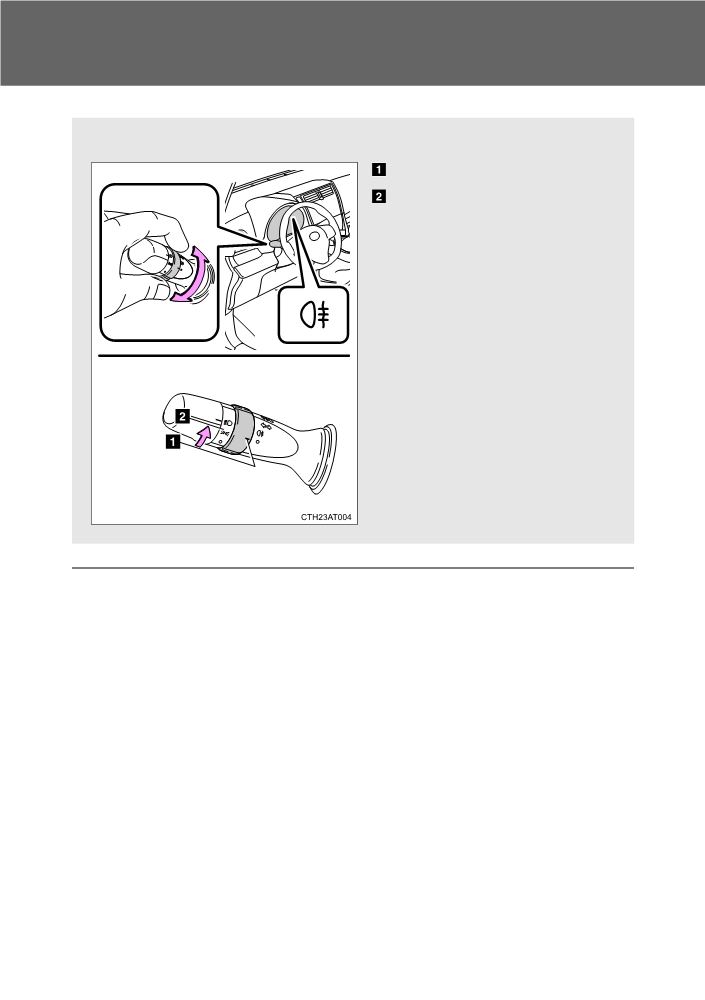

Front and rear fog light switch
Turns the front and rear fog
lights off
Turns the front fog lights on
Turns both front and rear
2
fog lights on
Releasing the switch ring
returns it to
Operating the switch ring again
turns only the rear fog lights
off.
219
2-3. Operating the lights and wipers
Rear fog light switch
Turns the rear fog light off
Turns the rear fog light on
Releasing the switch ring
returns it to the original posi-
tion.
Operating the switch ring again
turns the light off.
Fog lights can be used when
Vehicles with front and rear fog light switch
Front fog lights: The headlights or front position lights are turned on.
Rear fog lights: The front fog lights are turned on.
Vehicles with rear fog light switch
The headlights are turned on.
220
2-3. Operating the lights and wipers
Windshield wiper and washer
Intermittent windshield wiper

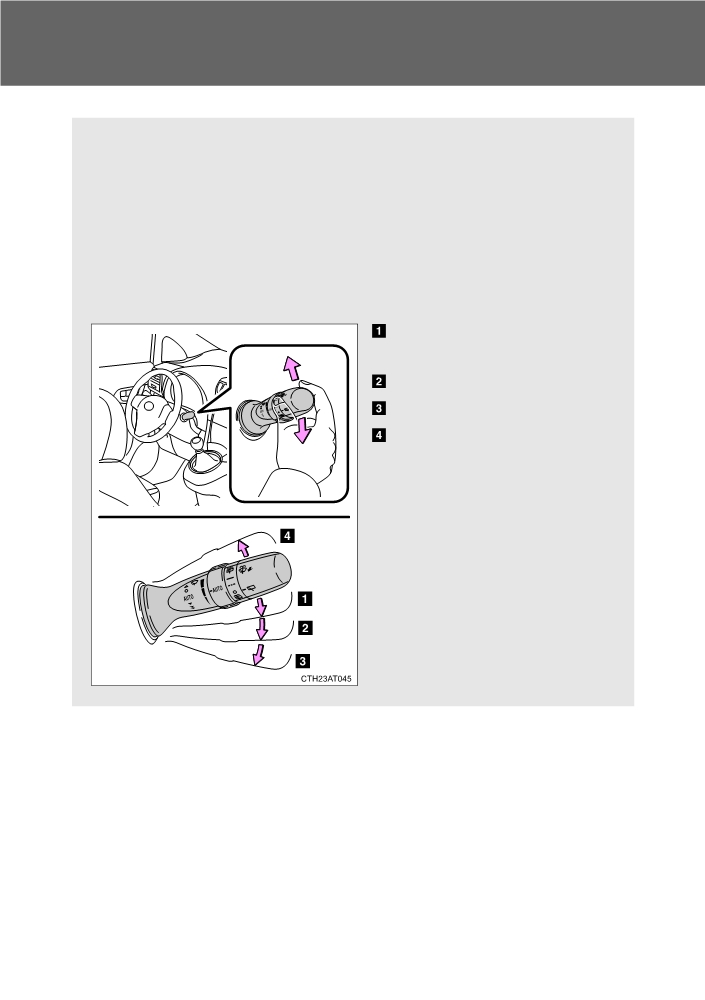

The wiper operation is selected by moving the lever as follows.
Intermittent
windshield
wiper operation
Low speed windshield wiper
operation
High speed windshield
2
wiper operation
Temporary operation
Washer/wiper dual opera-
tion
The wiper will automatically
operate a couple of times after
the washer squirts.
221
2-3. Operating the lights and wipers
Rain-sensing windshield wiper

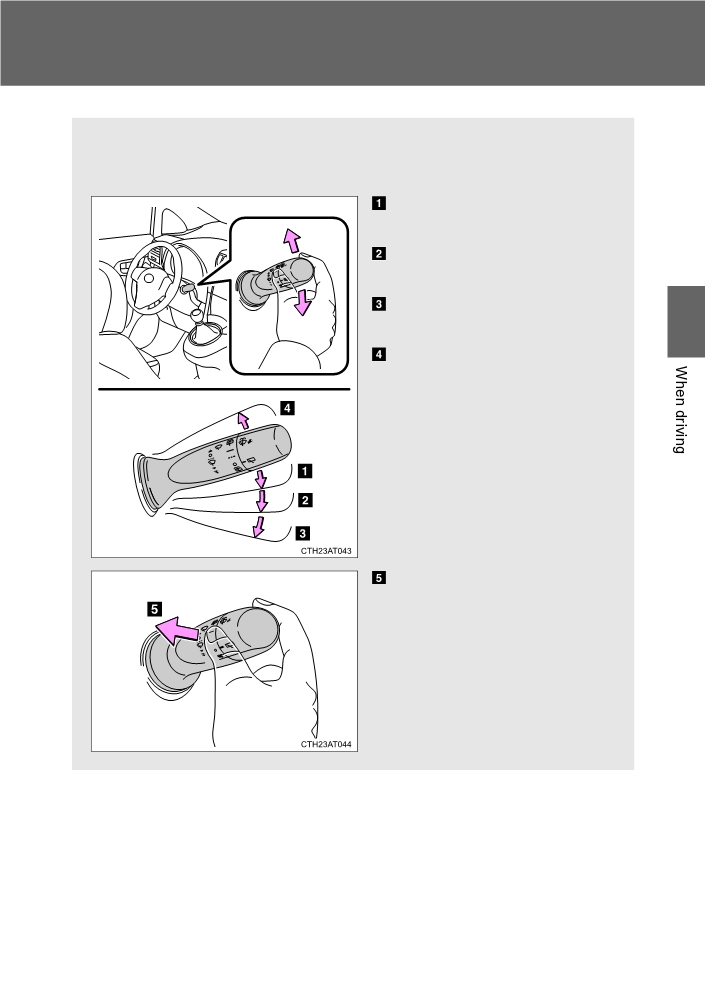

When “AUTO” is selected, the wiper will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume and vehicle
speed.

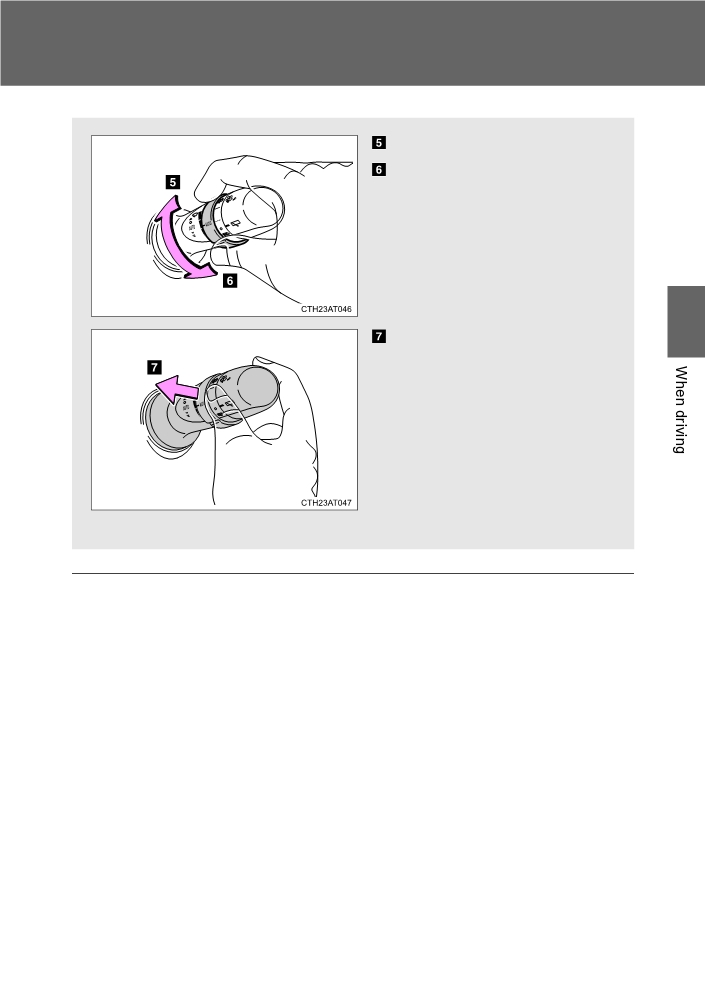

When “AUTO” is selected, the sensor sensitivity can be adjusted
as follows by turning the switch ring:
Rain-sensing wiper opera-
tion (“AUTO”)
Low speed wiper operation
High speed wiper operation
Temporary operation
222
2-3. Operating the lights and wipers
Increases the sensitivity
Decreases the sensitivity
2
Washer/wiper dual opera-
tion
The wiper will automatically
operate a couple of times after
the washer squirts.
(After operating several times,
the wiper operate one more
time after a short delay to pre-
vent dripping.)
The windshield wiper and washer can be operated when
Vehicles without a smart entry & start system: The engine switch is in the
“ON” position.
Vehicles with a smart entry & start system: The “ENGINE START STOP”
switch is in IGNITION ON mode.
223
2-3. Operating the lights and wipers
Raindrop sensor (vehicles with rain-sensing windshield wiper)

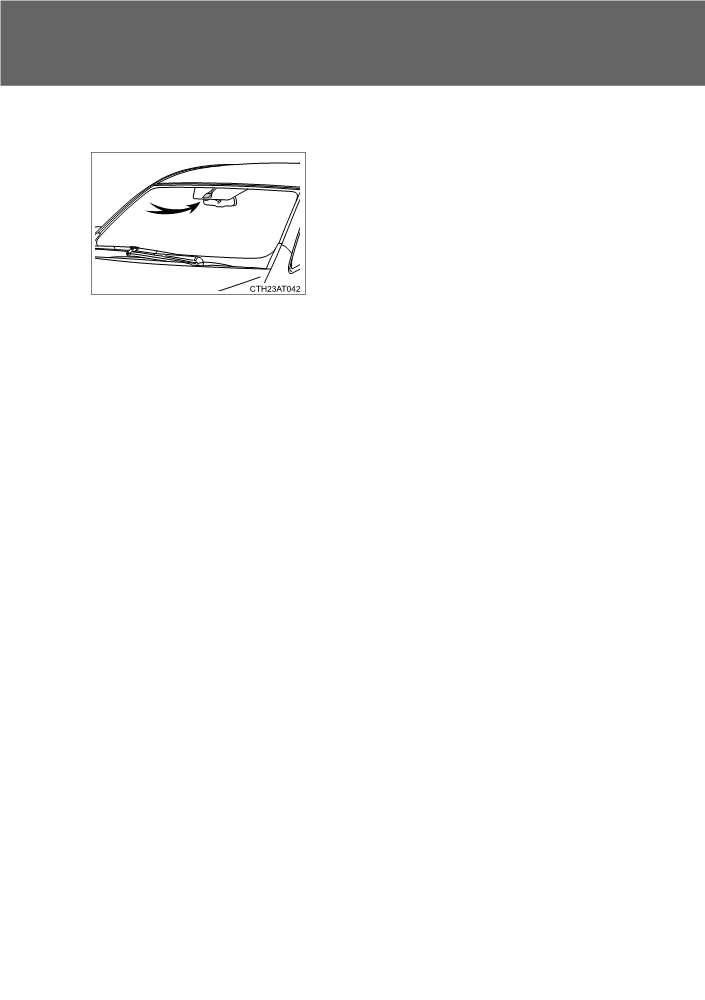

The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc.
are present on the windshield.
Vehicles without a smart entry & start system

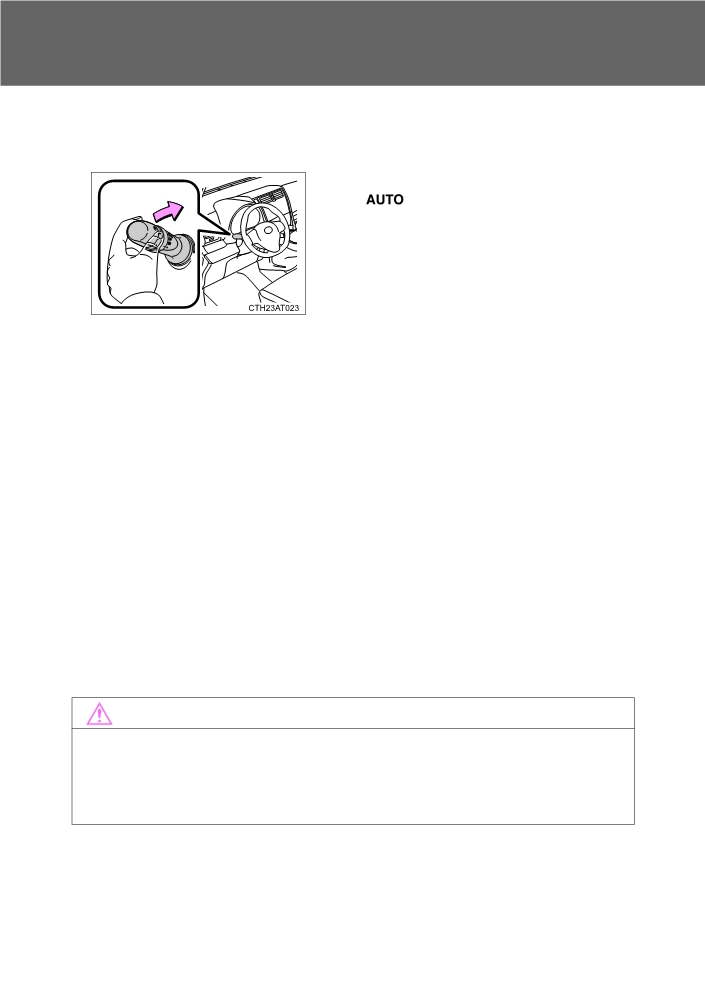

If the wiper switch is turned to the “AUTO” position while the engine
switch is in the “ON” position, the wiper will operate once to show that
“AUTO” mode is activated.
When the sensor sensitivity ring is turned toward high while in “AUTO”
mode, the wiper will operate once to indicate that the sensor sensitivity is
enhanced.
If the temperature of the raindrop sensor is 90C (194F) or higher, or
-15C (5F) or lower, automatic operation may not occur. In this case,
operate the wiper in any mode other than “AUTO”.
224
