Side doors

The vehicle can be locked and unlocked using the entry function,

wireless remote control, key or door lock switch.

 Entry function (vehicles with a smart entry & start system)

P. 34

 Wireless remote control

P. 57

 Keys

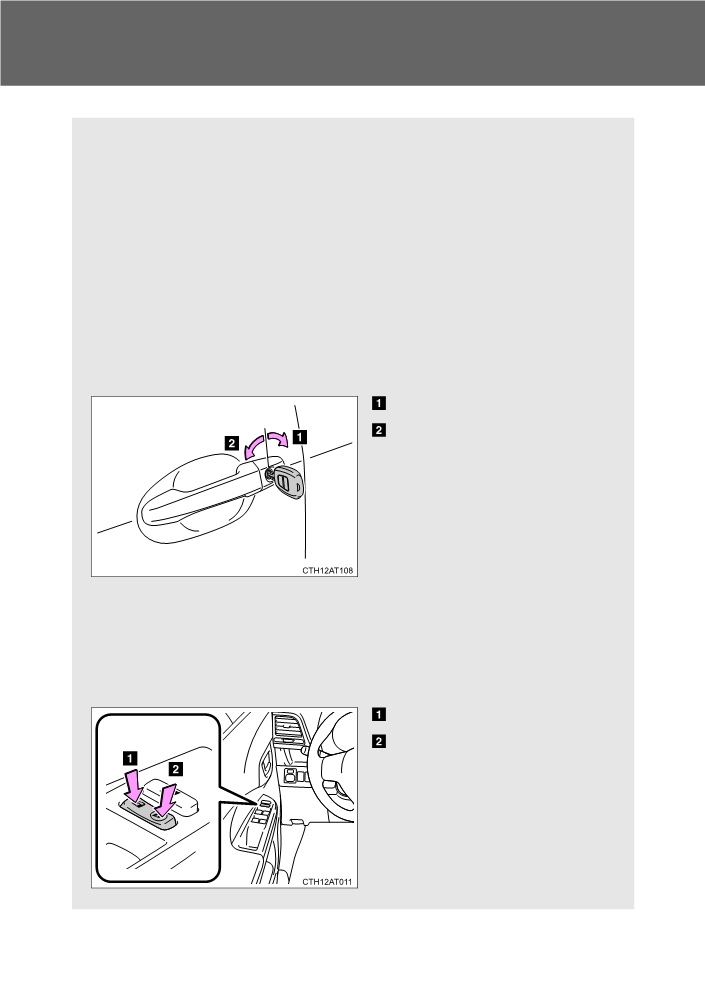

Turning the key operates the doors as follows:

Vehicles without a smart entry & start system

Unlocks all the doors

Locks all the doors

Vehicles with a smart entry & start system

The doors can also be locked and unlocked with the mechanical

key. (P. 497)

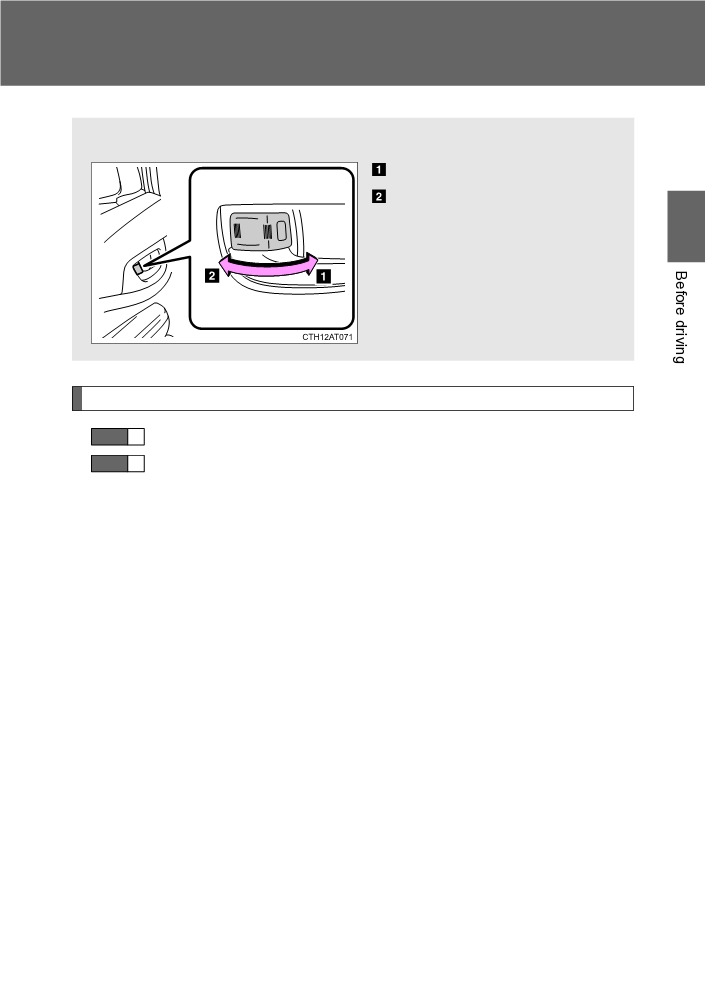

 Door lock switch

Unlocks all the doors

Locks all the doors

66

1-2. Opening, closing and locking the doors

 Inside lock buttons

Locks the door

Unlocks the door

The front doors can be opened

1

by pulling the inside handle

even if the lock button is in the

lock position.

Locking the front doors from the outside without a key

STEP

1

Move the inside lock button to the lock position.

STEP

2

Close the door while pulling the door handle.

Vehicles without a smart entry & start system

The door cannot be locked if the key is in the engine switch.

Vehicles with a smart entry & start system

The door cannot be locked if the “ENGINE START STOP” switch is in

ACCESSORY or IGNITION ON mode, or the electronic key is left

inside the vehicle.

The key may not be detected correctly and the door may be locked.

67

1-2. Opening, closing and locking the doors

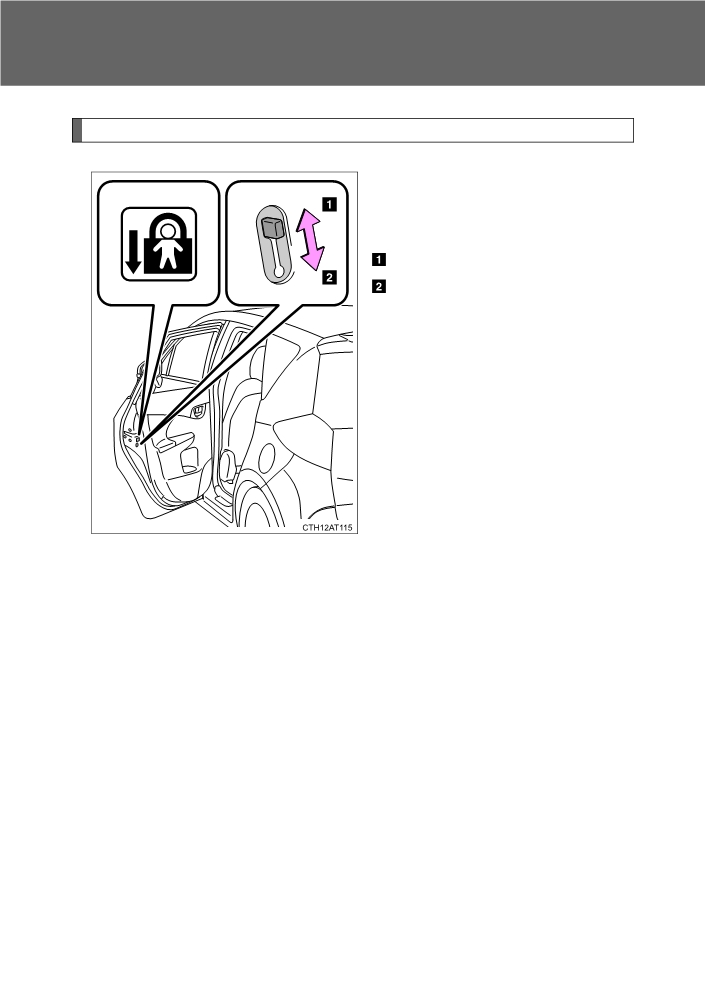

Rear door child-protector lock

The door cannot be opened from

inside the vehicle when the lock

is set.

Unlock

Lock

These locks can be set to prevent

children from opening the rear

doors. Push down on each rear

door switch to lock both rear

doors.

68

1-2. Opening, closing and locking the doors

Automatic door locking and unlocking systems

The following functions can be set or canceled:

Function

Operation

1

Shift position linked

Shifting the shift lever out of P locks all the

door locking function*

doors.

Shift position linked

Shifting the shift lever to P unlocks all the

door unlocking func-

doors.

tion*

All the doors are locked when the vehicle

Speed linked door lock-

speed is approximately 20 km/h (12 mph) or

ing function

higher.

Driver's door linked door

unlocking function

All the doors are unlocked when the driver's

(vehicles without a

door is opened within 10 seconds after turning

smart entry & start sys-

the engine switch to “ACC” or “LOCK”.

tem)

Driver's door linked door

All the doors are unlocked when the driver's

unlocking function

door is opened within 10 seconds after turning

(vehicles with a smart

the “ENGINE START STOP” switch off.

entry & start system)

*: Vehicles with a Multidrive only

 Setting and canceling the functions

To switch between setting and canceling, follow the procedure

below.

STEP

1

Vehicles without a smart entry & start system

Close all the doors and turn the engine switch to the “ON”

position. (Perform step 2 within 20 seconds.)

Vehicles with a smart entry & start system

Close all the doors and turn the “ENGINE START STOP”

switch to IGNITION ON mode. (Perform step 2 within 20 sec-

onds.)

69

1-2. Opening, closing and locking the doors

STEP

2

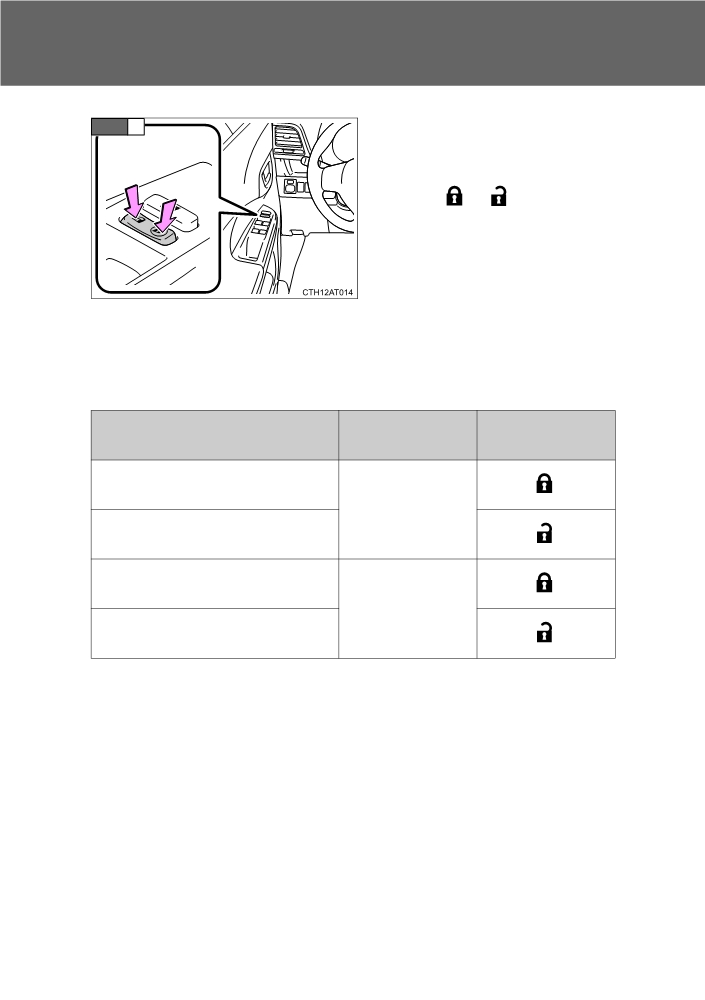

Shift the shift lever to P (vehicles

with a Multidrive only) or N, and

press and hold the door lock

switch

(

or

) for approxi-

mately

5 seconds and then

release.

The shift lever and switch posi-

tions corresponding to the

desired function to be set are

shown in the following table.

Use the same procedure to can-

cel the function.

Shift lever

Door lock switch

Function

position

position

Shift position linked door lock-

ing function*

P

Shift position linked door

unlocking function*

Speed linked door locking func-

tion

N

Driver's door linked door unlock-

ing function

*: Vehicles with a Multidrive only

When the setting or canceling operation is complete, all doors are

locked and then unlocked.

70

1-2. Opening, closing and locking the doors

 Impact detection door lock release system

In the event that the vehicle is subject to a strong impact, all the doors are

unlocked. Depending on the force of the impact or the type of accident, how-

ever, the system may not operate.

1

 Using the mechanical key (vehicles with a smart entry & start system)

The doors can also be locked and unlocked with the mechanical key.

(P. 497)

 If a wrong key is used (left-hand drive vehicles with smart entry & start

system and right-hand drive vehicles)

The key cylinder rotates freely to isolate inside mechanism.

 If the smart entry & start system has been deactivated in a customized

setting (vehicles with a smart entry & start system)

Use the wireless remote control or mechanical key. (P. 57, 497)

 Customization that can be configured at any authorized Toyota dealer

or repair, or another duly qualified and equipped professional

Settings (e.g. speed linked door locking function) can be changed.

(Customizable features: P. 540)

CAUTION

 To prevent an accident

Observe the following precautions while driving the vehicle.

Failing to do so may result in a door opening and an occupant falling out,

resulting in death or serious injury.

 Always use a seat belt.

 Ensure that all the doors are properly closed.

 Do not pull the inside handle of the doors while driving.

The doors may be opened and the passengers are thrown out of the vehi-

cle and it may result in serious injury or death.

Be especially careful for the front doors, as the doors may be opened even

if the inside lock buttons are in locked position.

 Set the rear door child-protector locks when children are seated in the rear

seats.

71

1-2. Opening, closing and locking the doors

Back door

The back door can be locked/unlocked and opened by the following

procedures.

 Locking and unlocking the back door

Keys

P. 66

Wireless remote control

P. 57

Door lock switch

P. 66

Entry function (vehicles with a smart entry & start system)

P. 33

 Opening the back door from outside the vehicle

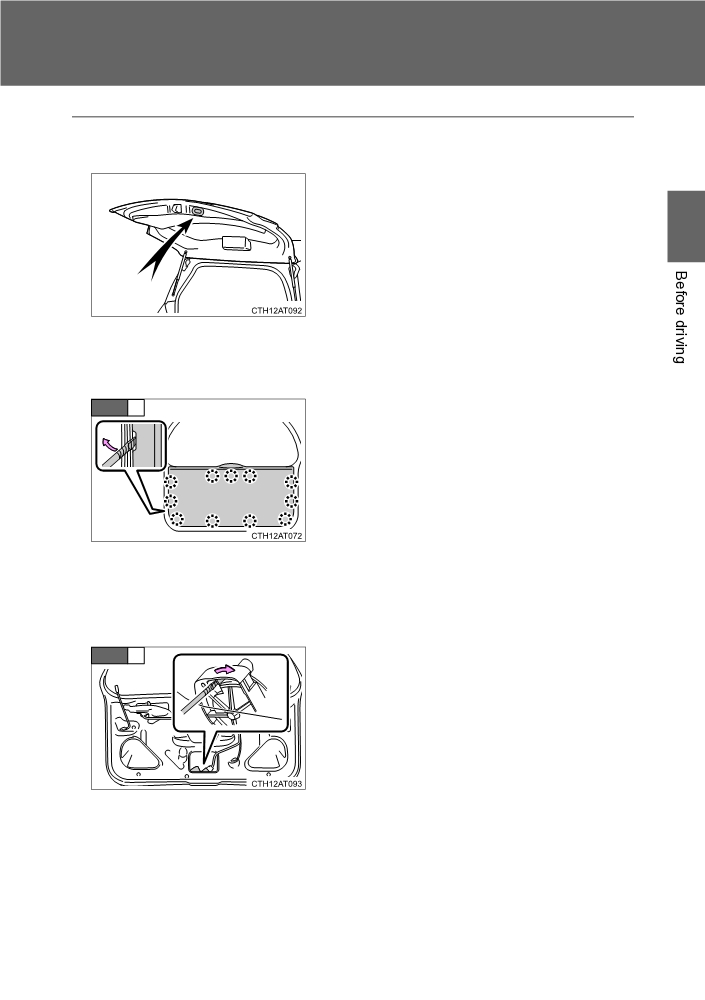

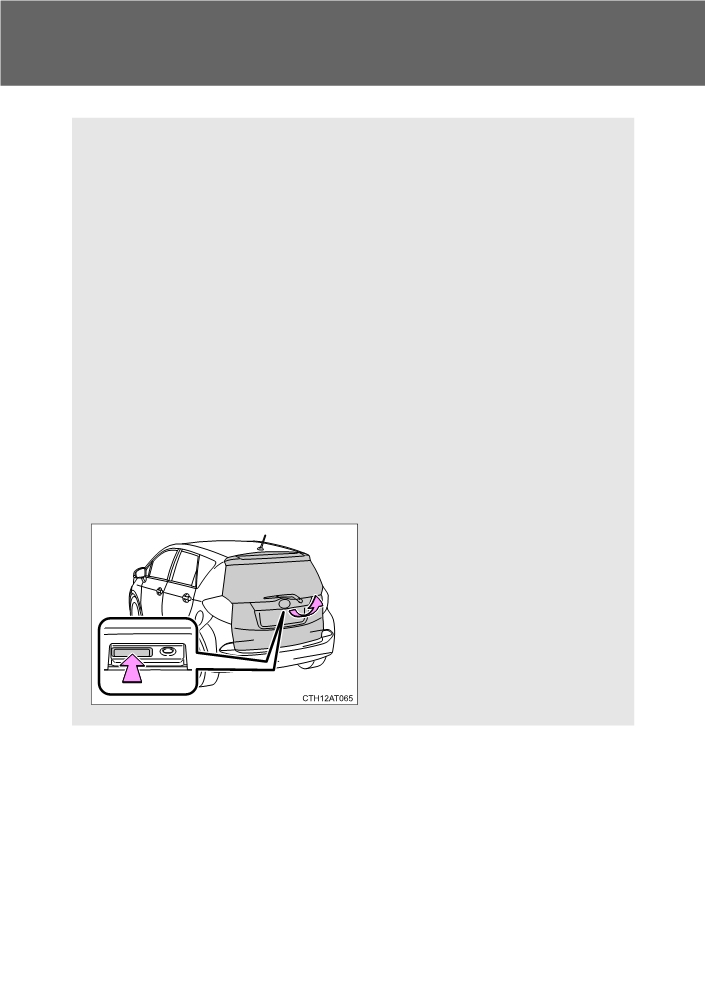

Back door opener

Raise the back door while

pushing up the back door

opener switch.

The back door cannot be

closed immediately after the

back door opener switch is

pushed.

72

1-2. Opening, closing and locking the doors

 When closing the back door

Lower the back door using the back door

handle, and make sure to push the back

door down from the outside to close it.

1

 If the back door opener is inoperative

The back door can be operated from the inside.

STEP

1

Insert a flathead screwdriver under the

edge of the trim and then carefully pull

the trim upward to remove it.

There are 11 clips attaching the trim.

 To protect the trim, wrap the flathead

screwdriver in tape and insert it into the

trim cutout as shown in the illustration.

Move the flathead screwdriver in the

direction indicated by the arrow.

 Carefully remove the clips one at a

time.

STEP

2

Move the lever.

73
