Toyota Solara (2008 year). Instruction - part 14

’08 Solara_U (L/O 0802)

D The MP3/WMA player does not play

CD−R and CD−RW discs

back MP3/WMA files from discs record-

D CD−R/CD−RW discs that have not been

er using packet write data transfer

subject to the

“finalizing process”

001.mp3

(UDF format). Discs should be re-

process that allows discs to be played

002.wma

corded using

“pre−mastering” software

on a conventional CD player) cannot

rather than packet−write software.

Folder 1

be played.

003.mp3

D M3u playlists are not compatible with

D It may not be possible to play CD−

the audio player.

Folder 2

R/CD−RW discs recorded on a music

004.wma

D MP3i

(MP3 interactive) and MP3PRO

CD recorder or a personal computer

005.mp3

formats are not compatible with the au-

because of

disc

characteristics,

Folder 3

dio player.

scratches or dirt on the disc, or dirt,

006.mp3

condensation, etc. on the lens of the

D The MP3 player is compatible with

unit.

VBR (Variable Bit Rate).

D The play order of the compact disc

D It may not be possible to play discs

D When playing back files recorded as

with the structure shown on the left is

recorded on a personal computer de-

VBR (Variable Bit Rate) files, the play

as follows:

pending on the application settings and

time will not be correctly displayed if

the environment. Record with the cor-

fast forward or reverse operations are

rect format.

(For details, contact the

used.

appropriate application manufacturers of

D It is not possible to check folders that

the applications.)

do not include MP3/WMA files.

D CD−R/CD−RW discs may be damaged

D MP3/WMA files in folders up to 8 lev-

by direct exposure to sunlight, high

els deep can be played. However, the

temperatures or other storage condi-

start of playback may be delayed when

tions. The unit may be unable to play

using discs containing numerous levels

some damaged discs.

of folders. For this reason, we recom-

mend creating discs with no more than

two levels of folders.

D It is possible to play up to 192 folders

255 files on one disc.

187

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

D If you insert a CD−RW disc into the

TERMS

ISO 9660 format—

MP3/WMA player, playback will begin

Packet write—

This is the international standard for the

more slowly than with a conventional

formatting of CD−ROM folders and files.

This is a general term that describes the

CD or CD−R disc.

For the ISO

9660 format, there are two

process of writing data on−demand to

D Recordings on CD−R/CD−RW cannot

levels of regulations.

CD−R, etc., in the same way that data is

be played using the DDCD

(Double

written to floppy or hard discs.

Level

Density CD) system.

ID3 Tag—

The file name is in 8.3 format

(8 charac-

ter file names, with a

3 character file

This is a method of embedding track−re-

extension. File names must be composed

lated information in an MP3 file. This em-

of one−byte capital letters and numbers.

bedded information can include the track

The “_” symbol may also be included.)

title, the artist’s name, the album title, the

music genre, the year of production, com-

Level

ments and other data. The contents can

The file name can have up to 31 charac-

be freely edited using software with ID3

ters

(including the separation mark

“.” and

tag editing functions. Although the tags

file extension). Each folder must contain

are restricted to the number of characters,

fewer than 8 hierarchies.

the information can be viewed when the

m3u—

track is played back.

Playlists created using “WINAMP” software

WMA Tag—

have a playlist file extension

(.m3u).

WMA files can contain a WMA tag that is

MP3—

used in the same way as an ID3 tag.

WMA tags carry information such as track

MP3 is an audio compression standard

title, artist name.

determined by a working group (MPEG) of

the ISO

(International Standard Organiza-

tion). MP3 compresses audio data to

about 1/10 the size of that on convention-

al discs.

188

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Hands−free phone system—

—Reference

WMA—

Phone Setup (see page 195)

Security (see page 200)

WMA (Windows Media Audio) is an audio

D Pair phone

D Set PIN

compression

format

developed

To use the hands−free system, you

The PIN can be set or changed.

Microsoft. It compresses files into a size

need to register your phone in the sys-

D Phone book lock

smaller than that of MP3 files. The

tem.

decoding formats for WMA files are Ver.

The phone book can be locked.

D Change name

7, 8, and 9.

D Phone book unlock

The registered phone names can be

The locked phone book can be un-

changed.

locked.

D Delete

System Setup (see page 204)

The registered phones can be deleted.

D Adjust Guidance Volume

D List phones

Guidance volume can be adjusted.

The registered phone names can be

D Initialize

checked.

Phone Book (see page 204)

D Select phone

D Add Entry

The registered phones can be selected.

Phone numbers and voice tags can be

D Set passkey

registered.

The passkey can be changed.

D Change Name

The registered names can be changed.

D Delete Entry

The registered names can be deleted.

189

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

—Some basics

D Delete Speed Dial

This system supports Bluetoothr, a

wireless system that allows you to

The registered speed dial can be de-

make or receive calls without taking

leted.

your hands from the steering wheel and

D List names

without using cables to connect the

The registered names can be checked.

phone and system.

D Set Speed Dial

The phone must be paired to the system

Speed dials can be set

before using the hands−free feature. If

your cellular phone does not support

Redial

(see page 212)

Bluetoothr, this system will not function.

Callback (see page 213)

Making a phone call (see page 215)

CAUTION

Receiving a phone call (see page 217)

While you are driving, do not use a

Talking on the phone (see page 218)

cellular

phone or connect the

Bluetoothr phone.

NOTICE

Do not leave your cellular phone in

the car. The temperature indoor may

be high and damage the phone.

190

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

The system may not function in the follow-

When transferring ownership of the ve-

ing conditions and places:

hicle:

FCC ID: HYQBTAU01A

IC ID: 1551A−BTAU01A

D The cellular phone is turned off.

A lot of personal data is registered

MADE IN JAPAN

when you use the hands−free system.

D The current position is outside the

When transferring ownership of the ve-

This device complies with Part 15 of the

communication area.

hicle, initialize the system.

FCC Rules and RSS−210. Operation is

D The cellular phone is not connected.

subject to the following two conditions:

If you initialize it, the former state will

D The cellular phone has a low battery.

(1) This device may not cause harmful

never come back again. Pay much atten-

interference, and

(2) This device must

D The cellular phone is located behind

tion when initializing the data.

accept any interference received, includ-

the seat or in the glove box and con-

You can initialize the following data in the

ing interference that may cause unde-

sole box.

system.

sired operation.

D The cellular phone touches or is cov-

D Phone book data

ered with metal materials.

D Dialed numbers and received calls

This system supports the following ser-

CAUTION

D Speed dial

vice.

D Bluetoothr phone data

Changes or modifications not ex-

D HFP (Hands Free Profile) Ver.1.0

D Security code

pressly approved by the party respon-

D DNP

(Dial−up Networking Profile)

sible for compliance could void the

Ver.1.1

user’s authority to operate the equip-

D OPP (Object Push Profile) Ver.1.1

ment.

If your cellular phone does not support

HFP, you cannot enter the Bluetoothr

phone, and take OPP service individually.

BLUETOOTH is a trademark owned by

Bluetooth SIG. Inc.

191

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

—Control and features

"Steering switches and microphone

NOTE: This equipment has been

CAUTION: Radio Frequency Radiation

tested and found to comply with the

Exposure

limits for a Class B digital device,

This equipment complies with FCC

pursuant to part 15 of the FCC Rules.

radiation exposure limits set forth for

These limits are designed to provide

uncontrolled equipment and meets the

reasonable protection against harmful

FCC radio frequency

(RF) Exposure

interference in a residential installa-

Guidelines in Supplement C to OET65.

tion. This equipment generates, uses

This equipment has very low levels of

and can radiate radio frequency ener-

RF energy that it deemed to comply

gy and, if not installed and used in

without maximum permissive exposure

accordance with the instructions, may

evaluation

(MPE). But it is desirable

cause harmful interference to radio

that it should be installed and oper-

communications. However, there is no

ated with at least

20 cm and more

guarantee that interference will not oc-

between the radiator and person’s

Steering switches

cur in a particular installation. If this

body

(excluding extremities: hands,

equipment does cause harmful inter-

wrists, feet and legs).

ference to radio or television recep-

Co−location: This transmitter must

tion, which can be determined by turn-

not be co−located or operated in con-

ing the equipment off and on, the user

junction with any other antenna or

is encouraged to try to correct the

transmitter.

interference by one or more of the

following measures:

−Reorient or relocate the receiving an-

tenna.

−Increase the separation between the

equipment and receiver.

−Connect the equipment into an outlet

on a circuit different from that to

which the receiver is connected.

−Consult the dealer or an experienced

Microphone

radio/TV technician for help.

192

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

1. Volume control switch

5. Microphone

To increase the volume: Push “+”.

The microphone is used when talking on

To decrease the volume: Push “−”.

the phone or using the speech command

system.

When driving at

80 km/h

(50 mph) or

more, the volume automatically increases

without switch adjustment. When your

speed falls below

70 km/h (43 mph), the

volume automatically returns to its original

level.

Voice guidance volume cannot be changed

by pushing the volume control switch on

the steering wheel.

2. On−hook switch

When the hands−free system is on, push-

ing the on−hook switch turns the hands−

free system off.

Pushing and holding the talk switch ends

the speech command system.

3. Off−hook switch

Pushing the off−hook switch turns the

hands−free system on.

When receiving a call, pushing the off−

hook switch allows you to talk on the

phone.

4. Talk switch

Pushing the talk switch turns the hands−

free system on and initiates the speech

command system.

193

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

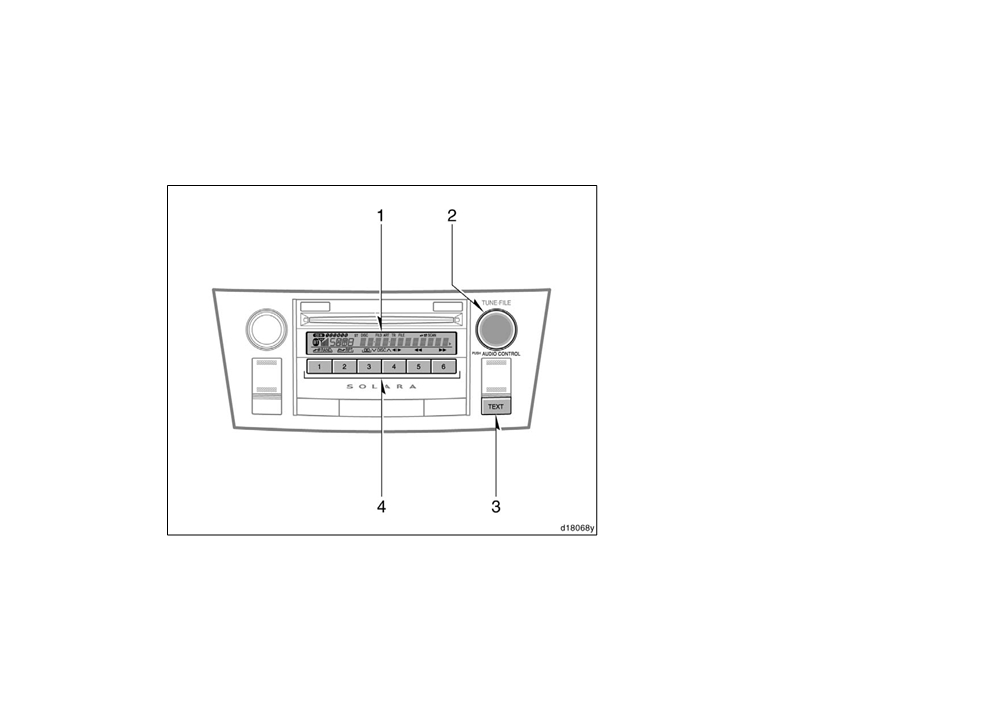

"Audio unit

1. Display

Displays such items as the reception lev-

el, a party’s name and phone number. See

“DISPLAY” described on the following

page for further details about the display.

2. “AUDIO CONTROL” knob

Turning the

“AUDIO CONTROL” knob dis-

plays the menu items, names, numbers,

etc. to be selected. To select an item,

push the “AUDIO CONTROL” knob. Due to

safety concerns, the

“AUDIO CONTROL”

knob does not function while the vehicle

is in motion.

3. “TEXT” button

When the party’s name or phone number

is too long to be displayed, pushing and

holding the “TEXT” button displays the re-

maining characters.

4. Preset buttons

Pushing the preset button displays the

registered speed dial numbers.

194

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

—Phone Setup

2. Reception level display

The phone setup menu includes the fol-

lowing:

Displays the reception level of the

Bluetoothr signals. This may not match

D Pair Phone

the display on the cellular phone. The

To use the hands−free system, you need

reception level of some cellular phones

to register your phone in the system.

may not be displayed.

Once you have registered it, you can

The number of bars is greater when the

make a hands−free call. Up to

6 phones

signal received is stronger.

can be registered.

3. Message display

D Select Phone

Displays phone numbers, names, com-

When the system connects to Bluetoothr,

the phone previously used is automatically

ments, menu items, etc.

selected. Select a different phone if nec-

essary. Only the selected phone can be

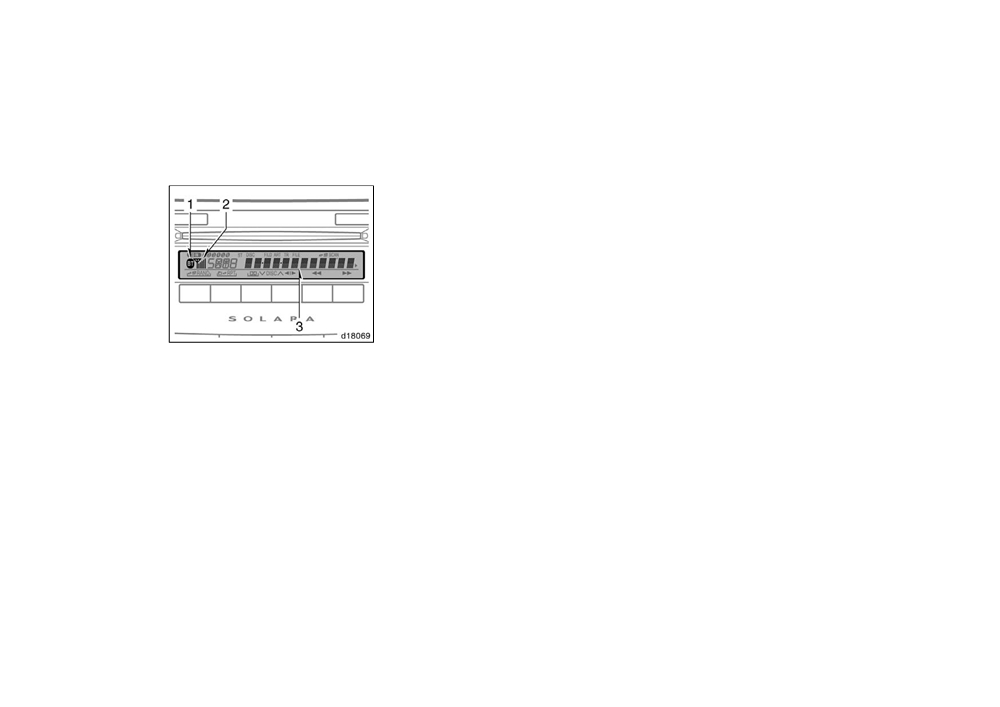

DISPLAY

used with the hands−free system.

1. Bluetoothr display

D Change Name

Displays when a Bluetoothr connection is

The registered phone names can be

made. If there is no display, the

changed.

Bluetoothr connection has not been made

D List Phones

and communication between the phone

The registered phone names can be

and system is not possible. When using

checked.

the hands−free system, make sure that

[BT] is displayed. The display is updated

The following can be performed during the

in real time.

name playback:

D Select phone

D Change name

D Delete

195

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

D Set PassKey

To pair phones

[The phone is paired and ready for use.

Returning to the main menu.] is heard and

The passkey can be changed. A

4 to

1. Push the talk switch and say

[Pair

[Paired] is displayed.

digit code can be input as a passkey.

phone], or turn the “AUDIO CONTROL”

knob until

[Pair Phone] is displayed

The system may not function in the follow-

D Delete

and push the knob.

ing cases:

The registered phones can be deleted.

[Pair. Push the talk switch and say a

D If

6 phones have already been regis-

To enter the phone setup menu

name for the phone.] is heard.

tered.

1. Push the off−hook switch to turn the

2. Follow voice guidance instructions, or

D If the vehicle is moving.

hands−free system on.

turn the

“AUDIO CONTROL” knob until

D If the system cannot communicate with

2. Follow voice guidance instructions, or

[Record Name] is displayed, push the

the phone.

turn the

“AUDIO CONTROL” knob until

knob and say the desired phone name.

∗: Passkey is a password required to reg-

[Setup] is displayed and push the knob.

[Push the talk switch and say confirm.

ister a phone to the system.

[Setup. Please push the talk switch and

Otherwise, say go back.] is heard.

say security, or phone setup.] is heard.

INFORMATION

3. Follow voice guidance instructions, or

turn the

“AUDIO CONTROL” knob until

D To use the hands−free system, you

turn the

“AUDIO CONTROL” knob until

[Confirm] is displayed and push the

need to register your phone in the

[Phone Setup] is displayed and push

knob.

system. Once you have registered

the knob.

[XXX

(desired phone name) Ready for

it, you can make a hands−free call.

[Phone setup. Push the talk switch and

phone pairing. Please use the phone to

Up to 6 phones can be registered.

say pair phone, select phone, change

connect it to the hands−free system. The

D For the operation of the phone, see

name, list phones, set passkey or delete.]

passkey for the phone is

] is heard.

the manual that comes with your

is heard.

After “HANDS FREE” is displayed, a pass-

cellular phone.

[XXX

(phone name) already selected.] is

key∗ is displayed and

[Searching.] is

D The passkey can be changed. See

heard and the phone name is displayed.

heard.

page 199 for changing the passkey.

If no phone has been registered, the sys-

4. Input the displayed passkey into the

tem may not function properly.

phone.

196

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

To select a phone

When the phone is selected by using

To change a name

the knob:

1. Push the talk switch and say

[Select

1. Push the talk switch and say

[Change

phone], or turn the “AUDIO CONTROL”

[XXX selected. Returning to the phone

name], or turn the

“AUDIO CONTROL”

knob until

[Select Phone] is displayed

setup.] is heard.

knob until

[Change Name] is displayed

and push the knob.

The system may not function in the follow-

[Select phone. Push the talk switch and

ing cases:

[Change name. Push the talk switch and

say the phone name or say list phones.]

say the phone name to change.] is heard.

D If the phone is not found.

is heard.

2. Follow voice guidance instructions, or

D If the system does not recognize the

2. Follow voice guidance instructions, or

turn the

“AUDIO CONTROL” knob until

voice command.

turn the

“AUDIO CONTROL” knob until

the phone name that you want to

the desired phone name is displayed

change is displayed and push the

and push the knob.

knob.

When the phone is selected by a voice

command:

[XXX (phone name) Push the talk switch

and say confirm. Otherwise, say go back.]

is heard and the phone name is displayed.

Follow voice guidance instructions, or turn

the

“AUDIO CONTROL” knob until

[Con-

firm] is displayed and push the knob.

[XXX selected. Returning to the phone

setup.] is heard.

197

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

When the phone is selected by a voice

When the phone is selected by using

The system may not function in the follow-

command:

the knob:

ing cases:

[XXX (phone name) Push the talk switch

[XXX Push the talk switch and say con-

D If no phone has been registered.

and say confirm. Otherwise, say go back.]

firm. Otherwise, say go back.] is heard

D If the system does not recognize the

is heard and the phone name is displayed.

and the phone name is displayed.

voice command.

1. Follow voice guidance instructions, or

To list phones

turn the

“AUDIO CONTROL” knob until

turn the

“AUDIO CONTROL” knob until

[Confirm] is displayed and push the

1. Push the talk switch and say

[List

knob.

phones], or turn the

“AUDIO CON-

TROL” knob until

[List Phones] is dis-

[Push the talk switch and say a new

played and push the knob.

name.] is heard.

[List phones. To select a name, push the

2. Follow voice guidance instructions, or

talk switch during the name playback.] is

turn the

“AUDIO CONTROL” knob until

turn the

“AUDIO CONTROL” knob until

heard.

[Record Name] is displayed, push the

2. Follow voice guidance instructions.

knob and say the desired phone name.

[Push the talk switch and say select

[XXX Push the talk switch and say con-

phone, change name, or delete.] is heard.

firm. Otherwise, say go back.] is heard.

Select one of the following:

3. Follow voice guidance instructions, or

turn the

“AUDIO CONTROL” knob until

turn the

“AUDIO CONTROL” knob until

[Confirm] is displayed and push the

knob.

[Name changed. Returning to the phone

setup.] is heard and

[Changed] is dis-

setup.] is heard and

[Changed] is dis-

played.

198

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Select phone

To set a passkey

When using the knob:

Push the talk switch and say

[Select

1. Push the talk switch and say

[Set

1. Turn the

“AUDIO CONTROL” knob to

phone], or turn the

“AUDIO CONTROL”

passkey], or turn the

“AUDIO CON-

select a number. Push the

“AUDIO

knob until

[Select Phone] is displayed and

TROL” knob until [Set Passkey] is dis-

CONTROL” knob to set.

push the knob.

played and push the knob.

2. When the passkey is set, push the

For further details on selecting a phone,

[Set Passkey. The passkey is required for

“AUDIO CONTROL” knob.

see page 197.

the phone pairing process. Push the talk

[Passkey changed. Returning to the phone

Change name

switch and say a new passkey.] is heard

setup.] is heard.

and passkey is displayed.

Push the talk switch and say

[Change

The system does not function in the fol-

2. Follow voice guidance instructions, or

name], or turn the

“AUDIO CONTROL”

lowing cases:

knob until

[Change Name] is displayed

turn the

“AUDIO CONTROL” knob to

select a number.

D If the passkey has less than 4 digits.

and push the knob.

D If the passkey has more than 8 digits.

For further details on changing a name,

When using a voice command:

see page 197.

[XXXX (new passkey) Push the talk switch

Delete

and say confirm. Otherwise, continue add-

ing numbers, or say go back or delete.]

Push the talk switch and say

[Delete], or

is heard and the new passkey is dis-

turn the

“AUDIO CONTROL” knob until

played.

[Delete] is displayed and push the knob.

Follow voice guidance instructions, or turn

For further details on deleting a phone,

the

“AUDIO CONTROL” knob until

see page 200.

[Confirm] is displayed and push the knob.

If no phone has been registered, the sys-

[Passkey changed. Returning to the phone

tem may not function properly.

setup.] is heard.

199

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

—Security

To delete a phone

The system may not function in the follow-

The security menu includes the following:

ing cases:

1. Push the talk switch and say

[Delete],

D Set PIN (Personal Identification Num-

or turn the

“AUDIO CONTROL” knob

D If no phone has been registered.

ber)

until

[Delete] is displayed and push the

D If the system does not recognize the

The PIN can be set or changed.

knob.

voice command.

D Phone book lock

[Delete. Push the talk switch and say the

The phone book can be locked.

phone name to delete.] is heard.

When the phone book is locked, the fol-

2. Follow voice guidance instructions, or

lowing functions cannot be used:

turn the

“AUDIO CONTROL” knob until

the phone name you want to delete is

D Dial by name

displayed and push the knob.

D Redial

When using a voice command:

D Callback

[XXX (desired phone name) Push the talk

D Speed Dial

switch and say confirm. Otherwise, say go

D PhoneBook

back.] is heard and the phone name is

displayed.

D Phone book unlock

Follow voice guidance instructions, or turn

The locked phone book can be unlocked.

the

“AUDIO CONTROL” knob until

[Con-

firm] is displayed and push the knob.

[Deleted. Returning to the phone setup.] is

heard and $[Deleted]$ is displayed.

When using the knob:

[Deleted. Returning to the phone setup.] is

heard and [Deleted] is displayed.

200

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

To enter the security menu

To set a PIN

When using a voice command:

1. Push the off−hook switch to turn the

Push the talk switch and say

[Set PIN],

1. Push the talk switch and say a new

hands−free system on.

or turn the

“AUDIO CONTROL” knob until

PIN number.

[Set PIN] is displayed and push the knob.

2. Follow voice guidance instructions, or

turn the

“AUDIO CONTROL” knob until

[There is no PIN number set. Please reg-

turn the

“AUDIO CONTROL” knob until

[Setup] is displayed and push the knob.

ister a PIN number. Please push the talk

[Confirm] is displayed and push the

switch and say a four−digit PIN number.]

knob.

[Setup. Please push the talk switch and

is heard.

say security, or phone setup.] is heard.

[The PIN number has been set. Returning

to the security.] is heard and

[Completed]

3. Follow voice guidance instructions, or

is displayed.

turn the

“AUDIO CONTROL” knob until

[Security] is displayed and push the

When using the knob:

knob.

1. Turn the

“AUDIO CONTROL” knob to

[Security. Push the talk switch and say

select a number. Push the

“AUDIO

set PIN, phone book lock, or phone book

CONTROL” knob to set.

unlock.] is heard.

2. Repeat the above procedure until the

entire four−digit number is set.

3. When the PIN is set, push the “AUDIO

CONTROL” knob.

4. Follow voice guidance instructions, or

turn the

“AUDIO CONTROL” knob until

[Confirm] is displayed and push the

knob.

[The PIN number has been set. Returning

to the security.] is heard and

[Completed]

is displayed.

201

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

Content .. 12 13 14 15 ..
