Toyota Solara (2008 year). Instruction - part 8

’08 Solara_U (L/O 0802)

D Do not allow the child to lean his/

CAUTION

her head or any part of his/her

body against the door or the area

D Always make sure the shoulder belt

of the seat, front or rear pillar or

is positioned across the center of

roof side rail from which the side

child’s shoulder. The belt should be

airbags or curtain shield airbags

kept away from child’s neck, but

deploy even if the child is seated in

not falling off child’s shoulder.

the child restraint system. It is dan-

Otherwise, the child may be killed

gerous if the side airbag and/or

or seriously injured in case of sud-

curtain shield airbag inflate, and the

den braking or a collision.

impact could cause death or seri-

D Both high−positioned lap belts and

ous injury to the child.

loose−fitting belts could cause

death or serious injuries due to

To install the booster seat:

sliding under the lap belt during a

collision or other unintended event.

Sit the child on a booster seat. Run the

Keep the lap belt positioned as low

lap and shoulder belt through or around

on a child’s hips as possible.

the booster seat and across the child fol-

lowing the instructions provided by its

D For child’s safety, do not place the

manufacturer and insert the tab into the

shoulder belt under child’s arm.

buckle taking care not to twist the belt.

D After inserting the tab, make sure

Make sure the shoulder belt is correctly

the tab and buckle are locked and

across the child’s shoulder and that the

that the lap and shoulder portions

lap belt is positioned as low as possible

of the belt are not twisted.

on the child’s hips. See

“Seat belts” on

D Do not insert coins, clips, etc. in

page 52 in this Section for details.

the buckle as this may prevent your

child from properly latching the tab

and buckle.

97

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

—Using a top strap (coupe)

D If the seat belt does not function

normally, it cannot protect your

child from death or serious injury.

Contact your Toyota dealer immedi-

ately. Do not install the child

restraint system on the seat until

the seat belt is fixed.

To remove the booster seat:

Follow the procedure below for a child

restraint system that requires the use

Press the buckle release button and allow

of a top strap.

the belt to retract.

98

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Symbol

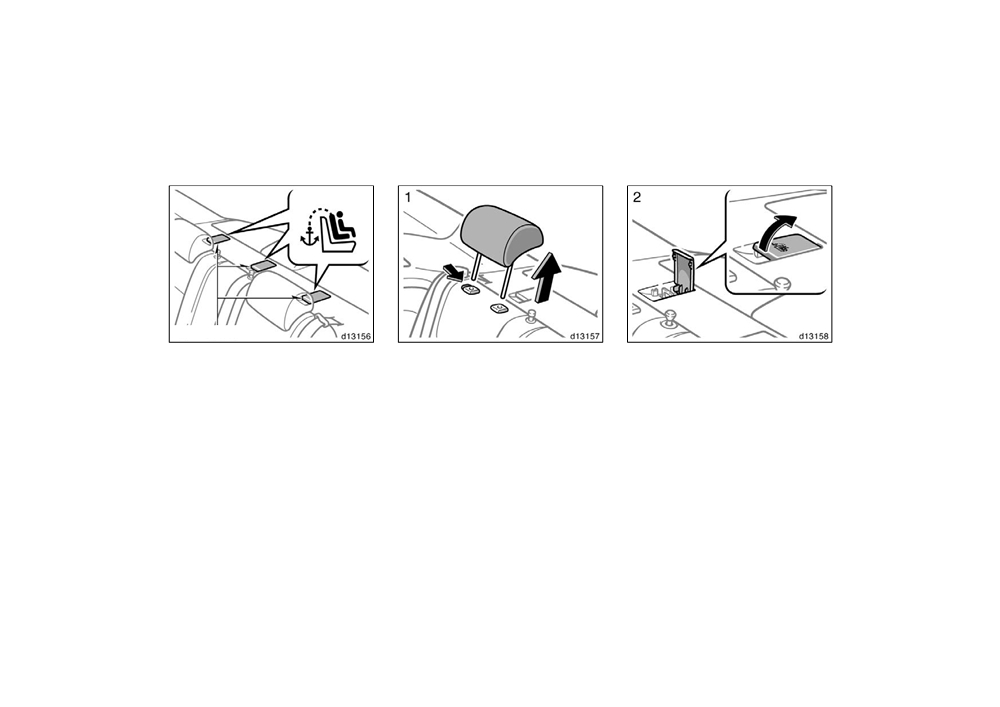

Anchor brackets

Use the anchor brackets on the package

TO USE THE ANCHOR BRACKET:

2. Open the lid of the anchor bracket.

tray behind the rear seat to attach the top

1. Outside anchor brackets only—

strap.

Remove the head restraint.

Anchor brackets are installed for each

rear seating position.

This symbol indicates the locations of the

anchor brackets.

99

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

—Using a top strap

(convertible)

3. Securely fasten the child restraint

4. Outside anchor brackets only—

Follow the procedure below for a child

system with the seat belt.

Replace the head restraint.

restraint system that requires the use

of a top strap.

Latch the hook onto the anchor

bracket and tighten the top strap.

For instructions to install the child re-

straint system, see

“Child restraint” on

page 85 in this Section.

CAUTION

Make sure the top strap is securely

latched, and check that the child re-

straint system is secure by pushing

and pulling it in different directions.

Follow all the installation instructions

provided by its manufacturer.

100

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Anchor brackets

Symbol

Use the anchor brackets on the back of

TO USE THE ANCHOR BRACKET:

2. Securely fasten the child restraint

the rear seat head restraints to attach the

system with the seat belt.

1. Remove the cover for the anchor

top strap.

bracket.

Latch the hook onto the anchor

Anchor brackets are installed for each

bracket and tighten the top strap.

rear seating position.

For instructions to install the child re-

This symbol indicates the locations of the

straint system, see

“Child restraint” on

anchor brackets.

page 85 in this Section.

CAUTION

Make sure the top strap is securely

latched, and check that the child re-

straint system is secure by pushing

and pulling it in different directions.

Follow all the installation instructions

provided by its manufacturer.

101

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

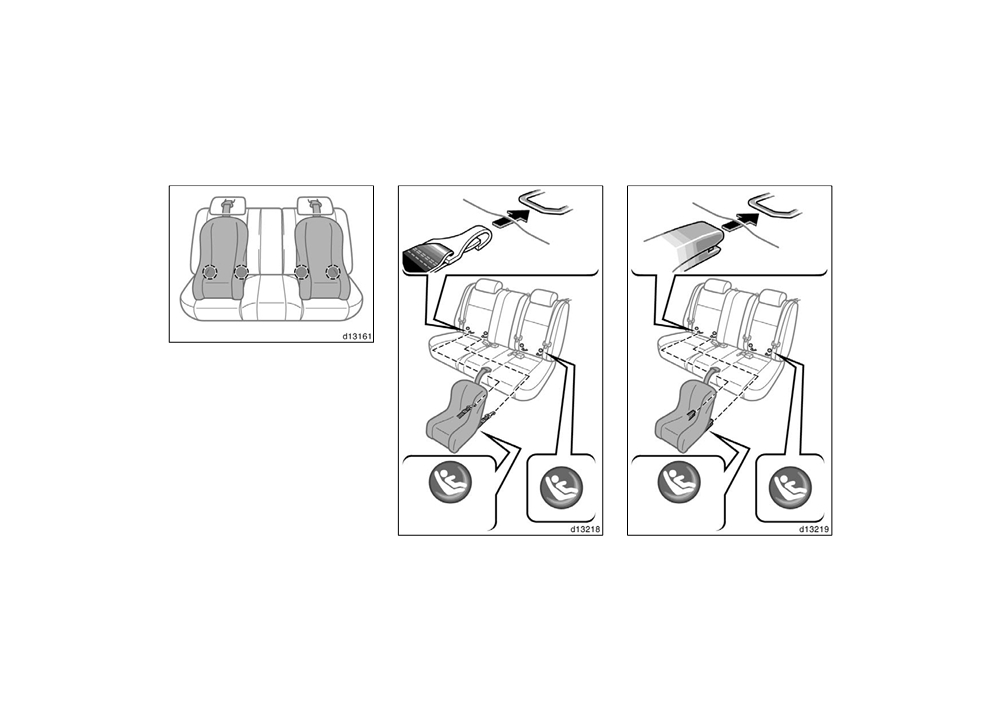

—Installation with child

restraint lower anchorages

(coupe)

Lower anchorages for the child restraint

systems complying with the FMVSS225

or CMVSS210.2 specifications are

installed in the rear seat.

The anchorages are installed in the gap

between the seat cushion and seatback of

both outside rear seats.

Child restraint systems complying with the

FMVSS213 or CMVSS213 specification

can be fixed to these anchorages. In this

case, it is not necessary to fix the child

restraint system with a seat belt on the

vehicle.

Canada only

Canada only

Type A

Type B

102

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

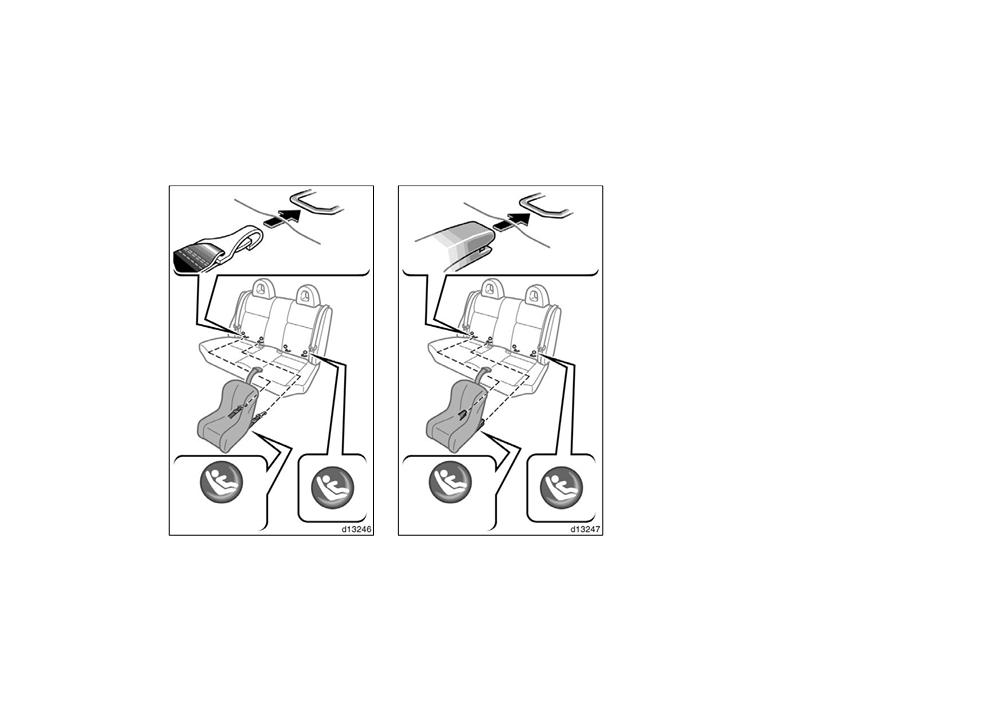

—Installation with child

restraint lower anchorages

(convertible)

CHILD

RESTRAINT

SYSTEM

INSTALLATION

CAUTION

1. Widen the gap between the seat

D When using the lower anchorages

cushion and seatback slightly and

for the child restraint system, be

confirm the position of the lower an-

sure that there are no irregular ob-

chorages near the button on the

jects around the anchorages or that

seatback.

the seat belt is not caught.

2. Type A—Latch the hooks of lower

D Push and pull the child restraint

straps onto the anchorages and

system in different directions to be

tighten the lower straps.

sure it is secure. Follow all the

Type B—Latch the buckles onto the

installation instructions provided by

anchorages.

its manufacturer.

For owners in Canada—The symbol on

D Do not install a child restraint sys-

Lower anchorages for the child restraint

a child restraint system indicates the pres-

tem on the rear seat if it interferes

systems complying with the FMVSS225

ence of a lower connector system.

with the lock mechanism of the

or CMVSS210.2 specifications are

front seats. Otherwise, the child or

If your child restraint system has a top

installed in the rear seat.

front seat occupant(s) may be killed

strap, it should be anchored.

(For the

installation of the top strap, see

“—Using

or seriously injured in case of sud-

The anchorages are installed in the gap

a top strap” on page 98 in this Section.)

den braking or a collision.

between the seat cushion and seatback of

both rear seats.

For installation details, refer to the instruc-

Child restraint systems complying with the

tion manual equipped with each product.

FMVSS213 or CMVSS213 specification

can be fixed to these anchorages. In this

case, it is not necessary to fix the child

restraint system with a seat belt on the

vehicle.

103

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

CHILD

RESTRAINT

SYSTEM

INSTALLATION

1. Widen the gap between the seat

cushion and seatback slightly and

confirm the position of the lower an-

chorages near the button on the

seatback.

2. Type A—Latch the hooks of lower

straps onto the anchorages and

tighten the lower straps.

Type B—Latch the buckles onto the

anchorages.

For owners in Canada—The symbol on

a child restraint system indicates the pres-

ence of a lower connector system.

If your child restraint system has a top

strap, it should be anchored.

(For the

installation of the top strap, see

“—Using

a top strap” on page 100 in this Section.)

For installation details, refer to the instruc-

tion manual equipped with each product.

Canada only

Canada only

Type A

Type B

104

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

CAUTION

D When using the lower anchorages

for the child restraint system, be

sure that there are no irregular ob-

jects around the anchorages or that

the seat belt is not caught.

D Push and pull the child restraint

system in different directions to be

sure it is secure. Follow all the

installation instructions provided by

its manufacturer.

D Do not install a child restraint sys-

tem on the rear seat if it interferes

with the lock mechanism of the

front seats. Otherwise, the child or

front seat occupant(s) may be killed

or seriously injured in case of sud-

den braking or a collision.

105

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Tilt and telescopic steering

wheel

CAUTION

D Do not adjust the steering wheel

while the vehicle is moving. Doing

so may cause the driver to mishan-

dle the vehicle and an accident may

occur resulting in death or serious

injuries.

D After adjusting the steering wheel,

try moving it up and down or for-

ward and rearward to make sure it

is locked in position.

TILT STEERING WHEEL

TELESCOPIC STEERING WHEEL

To change the steering wheel angle,

To change the steering wheel column

hold the steering wheel, pull the tilt

length, hold the steering wheel, push

lock release lever, tilt the steering

down the telescopic lock release lever,

wheel to the desired angle and release

push or pull the steering wheel to the

the lever.

desired length and return the lever to

its original position.

When the steering wheel is in a low posi-

tion, it will spring up as you release the

lock release lever.

108

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Outside rear view mirrors—

With auto anti−glare inside rear view mir-

ror—

CAUTION

When the inside rear view mirror darkens

D Do not adjust the mirror while the

in automatic function mode, the driver’s

vehicle is moving. Doing so may

outside rear view mirror also darkens to

cause the driver to mishandle the

reduce the reflection of the headlights of

vehicle and an accident may occur

the following vehicle. For details, see

resulting in death or serious inju-

“Auto anti−glare inside rear view mirror”

ries.

on page 111 in this Section.

D With auto anti−glare inside rear

When you push the rear window defogger

view mirror: Since the outside rear

switch, the heater panels in the outside

view mirror surfaces can get hot,

rear view mirrors will quickly clear the

do not touch them when the defog-

mirror surface.

(See

“Rear window and

ger switch is on.

outside rear view mirror defoggers” on

Adjust the mirror so that you can just

page 127 in Section 1−5.)

see the side of your vehicle in the mir-

ror.

NOTICE

Be careful when judging the size or dis-

The outside rear view mirrors are

tance of any object seen in the outside

fixed in place. Do not try to fold the

rear view mirror on the passenger’s side

mirrors. It may damage the mirrors.

because it is a convex mirror. Any object

seen in a convex mirror will look smaller

and farther away than when seen in a flat

mirror.

109

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

—Power rear view mirror

Anti−glare inside rear view

control

mirror

NOTICE

If ice should jam the mirror, do not

operate the control or scrape the mir-

ror face. Use a spray de−icer to free

the mirror.

To adjust a mirror, use the switches.

Adjust the mirror so that you can just

see the rear of your vehicle in the mir-

1. Master switch—To select the mirror to

ror.

be adjusted

Push the switch to

“L”

(left) or

“R”

To reduce glare from the headlights of

(right).

the vehicle behind you during night

driving, operate the lever on the lower

2. Control switch—To move the mirror

edge of the mirror.

Push the switch in the desired direc-

tion.

Daylight driving—Lever at position

1

Mirrors can be adjusted when the engine

The reflection in the mirror has greater

switch is in the

“ACC” or “ON” position.

clarity at this position.

Night driving—Lever at position 2

Remember that by reducing glare you also

lose some rear view clarity.

110

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

’08 Solara_U (L/O 0802)

Auto anti−glare inside rear

view mirror

In automatic function mode, if the mirror

CAUTION

detects light from the headlights of the

vehicle behind you, the mirror surface

Do not adjust the mirror while the

darkens slightly to reduce the reflected

vehicle is moving. Doing so may

light.

cause the driver to mishandle the ve-

To turn off and on the automatic function,

hicle and an accident may occur re-

push the “AUTO” switch.

sulting in death or serious injuries.

Adjust it before driving so that the rear

view is in the best condition.

When the inside air temperature is low, it

may take a little longer for the mirror to

darken in response to the detection of

headlights.

Adjust the mirror so that you can just

see the rear of your vehicle in the mir-

CAUTION

ror.

Do not adjust the mirror while the

This mirror is equipped with auto anti−

vehicle is moving. Doing so may

glare function. The function is designed

cause the driver to mishandle the ve-

to reduce glare from the headlights of

hicle and an accident may occur re-

the vehicle behind you during night

sulting in death or serious injuries.

driving.

When the engine switch is in

“ON” posi-

tion, the inside rear view mirror always

turns on in the automatic function mode.

The indicator illuminates to show you that

the function is on.

111

2008 CAMRY SOLARA from Feb. ’08 Prod. (OM33810U)

Content   ..  6  7  8  9   ..
