Toyota Celica (2005 year). Instruction - part 5

’05MY CELICA U (L/O 0409)

CAUTION

D After inserting the tab, make sure

the tab and buckle are locked and

that the lap and shoulder portions

of the belt is not twisted.

D Do not insert coins, clips, etc. in

the buckle as this can prevent your

child from properly latching the tab

and buckle.

D If the seat belt does not function

normally, it cannot protect your

child from death or serious injury.

1. Run the lap and shoulder belt through

2. Fully extend the shoulder belt to put it

Contact your Toyota dealer immedi-

or around the infant seat following the

in the lock mode. When the belt is

ately. Do not install the child

instructions provided by its manufactur-

then retracted even slightly, it cannot

restraint system on the seat until

er and insert the tab into the buckle

be extended.

the seat belt is fixed.

taking care not to twist the belt. Keep

To hold the infant seat securely, make

the lap portion of the belt tight.

sure the belt is in the lock mode before

letting the belt retract.

52

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

3. While pressing the infant seat firmly

4. To remove the infant seat, press the

against the seat cushion and seatback,

CAUTION

buckle release button and allow the

let the shoulder belt retract as far as

belt to retract completely. The belt will

Push and pull the child restraint sys-

it will go to hold the infant seat secure-

move freely again and be ready to

ly.

tem in different directions to be sure

work for an adult or older child passen-

it is secure. Follow all the installation

ger.

instructions provided by its manufac-

turer.

53

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

Move seat

fully back

(B) CONVERTIBLE SEAT INSTALLATION

CAUTION

D A forward−facing child restraint sys-

A convertible seat must be used in for-

tem should be allowed to be

ward−facing or rear−facing position de-

D Never install a rear−facing child re-

installed on the front passenger

pending on the age and size of the

straint system on the front passen-

seat only when it is unavoidable.

child. When installing, follow the

ger seat. In the event of an acci-

Always move the seat as far back

manufacturer’s instructions about the

as possible, because the front pas-

dent, the force of the rapid inflation

applicable age and size of the child as

senger airbag could inflate with

of the front passenger airbag can

well as directions for installing the

considerable speed and force.

cause death or serious injury to the

child restraint system.

Otherwise, the child may be killed

child if the rear−facing child re-

or seriously injured.

straint system is installed on the

front passenger seat.

54

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

D On vehicles with side airbags, do

not allow the child to lean his/her

head or any part of his/her body

against the door or the area of the

seat from which the side airbags

deploy even if the child is seated in

the child restraint system. It is dan-

gerous if the side airbag inflate,

and the impact could cause death

or serious injury to the child.

1. Run the lap and shoulder belt through

D Do not install a child restraint sys-

or around the convertible seat following

tem on the rear seat if it interferes

the instructions

provided by its

with the lock mechanism of the

manufacturer and insert the tab into

front seats. Otherwise, the child or

the buckle taking care not to twist the

front seat occupant(s) may be killed

belt. Keep the lap portion of the belt

or seriously injured in case of sud-

tight.

den braking or a collision.

D If the driver’s seat position does

not allow sufficient space for safe

installation, install the child re-

straint system on the rear right

seat.

55

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

CAUTION

D After inserting the tab, make sure

the tab and buckle are locked and

that the lap and shoulder portions

of the belt is not twisted.

D Do not insert coins, clips, etc. in

the buckle as this may prevent your

child from properly latching the tab

and buckle.

D If the seat belt does not function

normally, it cannot protect your

child from death or serious injury.

2. Fully extend the shoulder belt to put it

3. While pressing the convertible seat

Contact your Toyota dealer immedi-

in the lock mode. When the belt is

firmly against the seat cushion and

ately. Do not install the child

then retracted slightly, it cannot be ex-

seatback, let the shoulder belt retract

restraint system on the seat until

tended.

as far as it will go to hold the convert-

the seat belt is fixed.

ible seat securely.

To hold the convertible seat securely,

make sure the belt is in the lock mode

before letting the belt retract.

56

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

4. To remove the convertible seat, press

(C) BOOSTER SEAT INSTALLATION

CAUTION

the buckle release button and allow the

A booster seat must be used in for-

belt to retract completely. The belt will

ward−facing position only.

Push and pull the child restraint sys-

move freely again and be ready to

tem in different directions to be sure

work for an adult or older child passen-

it is secure. Follow all the installation

ger.

instructions provided by its manufac-

turer.

57

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

D On vehicles with side airbags, do

not allow the child to lean his/her

head or any part of his/her body

against the door or the area of the

seat from which the side airbags

deploy even if the child is seated in

the child restraint system. It is dan-

gerous if the side airbag inflates,

and the impact could cause death

or serious injury to the child.

Move seat

fully back

1. Sit the child on a booster seat. Run

CAUTION

the lap and shoulder belt through or

around the booster seat and across the

D A forward−facing child restraint sys-

child following the instructions provided

tem should be allowed to be

by its manufacturer and insert the tab

installed on the front passenger

into the buckle taking care not to twist

seat only when it is unavoidable.

the belt.

Always move the seat as far back

Make sure the shoulder belt is correctly

as possible, because the front pas-

across the child’s shoulder and that the

senger airbag could inflate with

lap belt is positioned as low as possible

considerable speed and force.

on the child’s hips. See

“Seat belts” in

Otherwise, the child may be killed

this Section for details.

or seriously injured.

58

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

CAUTION

D If the seat belt does not function

normally, it cannot protect your

D Always make sure the shoulder belt

child from death or serious injury.

is positioned across the center of

Contact your Toyota dealer immedi-

child’s shoulder. The belt should be

ately. Do not install the child

kept away from child’s neck, but

restraint system on the seat until

not falling off child’s shoulder.

the seat belt is fixed.

Otherwise, the child may be killed

or seriously injured in case of sud-

den braking or a collision.

D Both high−positioned lap belts and

loose−fitting belts could cause

death or serious injuries due to

sliding under the lap belt during a

2.

To remove the child restraint system,

collision or other unintended event.

press the buckle release button and

Keep the lap belt positioned as low

allow the belt to retract.

on a child’s hips as possible.

D For child’s safety, do not place the

shoulder belt under child’s arm.

D After inserting the tab, make sure

the tab and buckle are locked and

that the lap and shoulder portions

of the belt are not twisted.

D Do not insert coins, clips, etc. in

the buckle as this may prevent you

from properly latching the tab and

buckle.

59

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

—Using a top strap

Symbol

Front

of vehicle

Anchor brackets

Follow the procedure below for a child

Use the anchor bracket on the rear of the

TO USE THE ANCHOR BRACKET:

restraint system that requires the use

seatback to attach the top strap.

1. Find the label on the rear of the seat

of a top strap.

Anchor bracket is installed for each rear

back carpet. Tear the slit next to the

seating position.

label by hand.

This symbol indicates the location of an-

chor bracket.

60

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

2. Fix the child restraint system with

the seat belt.

Latch the hook onto the exposed an-

chor bracket and tighten the top

strap.

For instructions to install the child re-

straint system, see “Child restraint” in this

Section.

CAUTION

Make sure the top strap is securely

latched, and check that the child re-

straint system is secure by pushing

Slide the back−plate of the flap under the

and pulling it in different directions.

carpet to cover the anchor bracket when

Follow all the installation instructions

it is not in use.

provided by its manufacturer.

61

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

—Installation with child

restraint lower anchorages

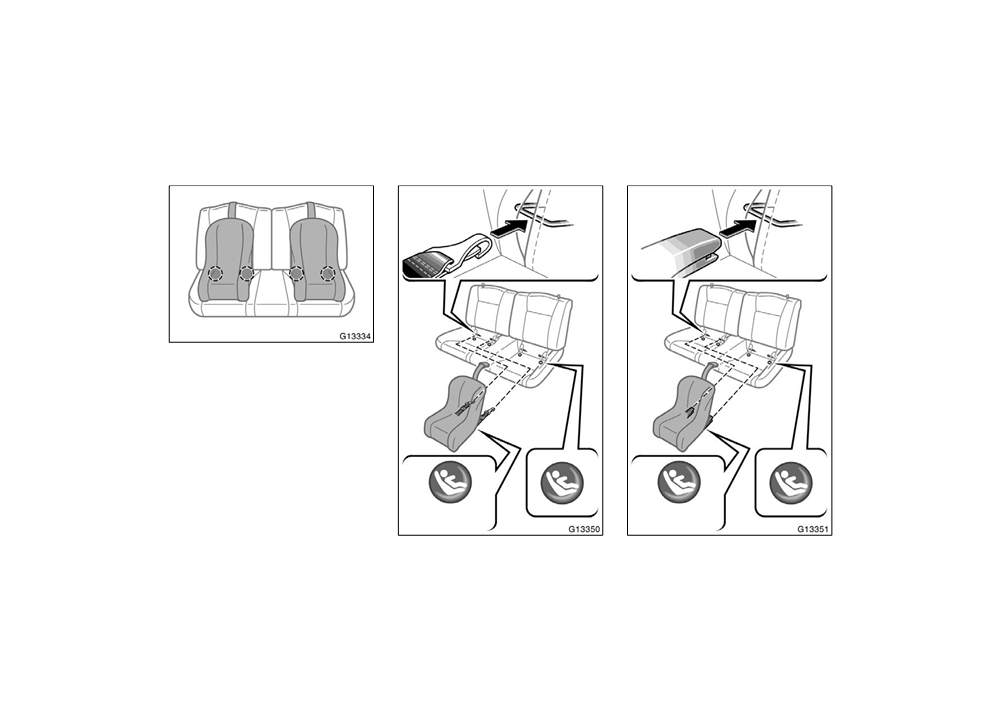

Lower anchorages for the child restraint

systems complying with the FMVSS225

or CMVSS210.2 specifications are

installed in the rear seats.

The anchorages are installed in the seat

cushion of both rear seats.

Child restraint systems complying with the

FMVSS213 or CMVSS213 specification

can be fixed to these anchorages. In this

case, it is not necessary to fix the child

restraint system with a seat belt on the

vehicle.

Canada only

Canada only

Type A

Type B

62

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

For owners in Canada

CAUTION

The symbol on a child restraint system

indicates the presence of a lower connec-

D When using the lower anchorages

tor system.

for the child restraint system, be

CHILD

RESTRAINT

SYSTEM

sure that there are no irregular ob-

INSTALLATION

jects around the anchorages and

Type A—

that the seat belt is not caught.

D Push and pull the child restraint

1. Widen the slits of the seat cushion

slightly and confirm the position of

system in different directions to

the lower anchorages near the but-

make sure it is secure. Follow all

the installation instructions pro-

ton on the seat cushion.

vided by its manufacturer.

2. Latch the hooks of lower straps onto

the anchorages and tighten the lower

D Do not install a child restraint sys-

straps.

tem on the rear seat if it interferes

with the lock mechanism of the

Type B—

front seats. Otherwise, the child or

1. Widen the slits of the seat cushion

front seat occupant(s) may be killed

slightly and confirm the position of

or seriously injured in case of sud-

the lower anchorages near the but-

den braking or a collision.

ton on the seat cushion.

2. Latch the buckles onto the anchor-

ages.

If your child restraint system has a top

strap, it should be anchored.

(For the

installation of the top strap, see

“—Using

a top strap” in this Section.)

For installation details, refer to the instruc-

tion manual equipped with each product.

63

2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)

Tilt steering wheel

Outside rear view mirrors—

CAUTION

D Do not adjust the steering wheel

while the vehicle is moving. Doing

so may cause the driver to mishan-

dle the vehicle and an accident may

occur resulting in death or serious

injuries.

D After adjusting the steering wheel,

try moving it up and down to make

sure it is locked in position.

To change the steering wheel angle,

Adjust the mirror so that you can see

hold the steering wheel, push the lock

the side of your vehicle in the mirror.

release lever, tilt the steering wheel to

Be careful when judging the size or dis-

the desired angle and return the lever

tance of any object seen in the outside

to its original position.

rear view mirror on the passenger’s side

because it is a convex mirror. Any object

seen in a convex mirror will look smaller

and farther away than when seen in a flat

mirror.

66

2005 CELICA from Sep. ’04 Prod. (OM20888U)

Content   ..  3  4  5  6   ..
