’05MY CELICA U (L/O 0409)
Foreword
Welcome to the growing group of value−conscious people who drive Toyotas. We are proud of the advanced engineering and
quality construction of each vehicle we build.
This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble−free motoring. For
important information about this manual and your Toyota, read the following pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle very well and is interested in your complete
satisfaction. Your Toyota dealer will provide quality maintenance and any other assistance you may require.
If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number:
D U.S. OWNERS:
Toyota Customer Assistance Center
Toll−free:
1−800−331−4331
D CANADIAN OWNERS: Toyota Canada Customer Interaction Centre
Toll−free:
1−888−TOYOTA−8 (1−888−869−6828)
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
© 2004 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota
Motor Corporation.
i
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
Important information about this manual
Safety and vehicle damage warnings
Safety symbol
Throughout this manual, you will see safety and vehicle dam-
age warnings. You must follow these warnings carefully to
avoid possible injury or damage.
The types of warnings, what they look like, and how they are
used in this manual are explained as follows:
CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to reduce the risk of injury to yourself and
others.
When you see the safety symbol
shown above, it means:
“Do not...”;
NOTICE
“Do not do this”; or
“Do not let this
happen”.
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
ii
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
Important information about your Toyota
The purpose of all occupant restraint systems is to help
Occupant restraint systems
reduce the possibility of death or serious injury in the
Toyota encourages you and your family to take the time to
event of a collision. None of these systems, either individ-
read Section
1−3 of this Owner’s Manual carefully. In
ually or together, can ensure that there is no injury in the
terms of helping you understand how you can receive the
event of collision. However, the more you know about
maximum benefit of the occupant restraint systems this
these systems and how to use them properly, the greater
vehicle provides, Section
1−3 of this Owner’s Manual is
your chances become of surviving an accident without
the most important Section for you and your family to
death or serious injury.
read.
Seat belts provide the primary restraint to all occupants of
Section 1−3 describes the function and operation concern-
the vehicle, and every occupant of the vehicle should wear
ing seats, seat belts, SRS airbags and child restraint sys-
seat belts properly at all times. Children should always be
tems of this vehicle and some potential hazards you
secured in child restraint systems that are appropriate for
should be aware of. These systems work together along
their age and size. SRS (Supplemental Restraint System)
with the overall structure of this vehicle in order to provide
airbags are, as their names imply, designed to work with,
occupant restraint in the event of a crash. The effect of
and be supplemental to, seat belts and are not substitutes
each system is enhanced when it is used properly and
for them. SRS airbags can be very effective in reducing
together with other systems. No single occupant restraint
the risk of head and chest injuries by preventing contact of
system can, by itself, provide you or your family with the
the head and chest with interior portions of the vehicle.
equal level of restraint which these systems can provide
when used together. That is why it is important for you and
your family to understand the purpose and proper use of
each of these systems and how they relate to each other.
iii
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
In order to be effective, the SRS airbags must deploy with
New vehicle warranty
tremendous speed. The rapid deployment of the SRS air-
bags makes the SRS airbags themselves potential sources
Your new vehicle is covered by the following Toyota limited
of serious injury if an occupant is too close to an airbag,
warranties:
or if an object or some part of his or her body has been
D New vehicle warranty
placed between the occupant and the airbag at the time of
D Emission control systems warranty
deployment. This is just one example of how the instruc-
D Others
tions in Section 1−3 of this Owner’s Manual will help en-
sure proper use of the occupant restraint systems, and
For further information, please refer to the
“Owner’s
increase the safety they can provide to you and your fami-
Warranty Information Booklet” or
“Owner’s Manual
ly in the event of an accident.
Supplement”.
Toyota recommends you to read the provisions in Section
1−3 carefully and refer to them as needed during your time
of ownership of this vehicle.
Your responsibility for
maintenance
It is owner’s responsibility to make sure that the specified
maintenance is performed. Section 6 gives details of these
maintenance requirements. Also included in Section
6 is
general maintenance. For scheduled maintenance informa-
tion, please refer to the “Scheduled Maintenance Guide” or
“Owner’s Manual Supplement”.
iv
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
Important health and safety
Accessories, spare parts and
information about your Toyota
modification of your Toyota
A wide variety of non−genuine spare parts and accessories
CAUTION
for Toyota vehicles are currently available in the market.
You should know that Toyota does not warrant these prod-
D WARNING: Engine exhaust, some of its constitu-
ucts and is not responsible either for their performance,
ents, and a wide variety of automobile compo-
repair or replacement, or for any damage they may cause
nents contain or emit chemicals known to the
State of California to cause cancer and birth de-
to, or adverse effect they may have on, your Toyota ve-
fects and other reproductive harm. In addition,
hicle.
oils, fuels and fluids contained in vehicles as
This vehicle should not be modified with non−genuine
well as waste produced by component wear con-
Toyota products. Modification with non−genuine Toyota
tain or emit chemicals known to the State of
products could affect its performance, safety or durability,
California to cause cancer and birth defects or
other reproductive harm.
and may even violate governmental regulations. In addi-
tion, damage or performance problems resulting from the
D Battery posts, terminals and related accessories
contain lead and lead compounds. Wash your
modification may not be covered under warranty.
hands after handling. Used engine oil contains
chemicals that have caused cancer in laboratory
animals. Always protect your skin by washing
thoroughly with soap and water.
v
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
Spark ignition system of your
Tires and loading on your
Toyota
Toyota
The spark ignition system in your Toyota meets all require-
Underinflated or overinflated tire pressure and the
ments of the Canadian Interference−Causing Equipment
excess load may result in the deterioration of
Standard.
steering ability and braking ability, leading to an
accident. Check the tire inflation pressure periodi-
cally and be sure to keep the load limits given in
this Owner’s Manual. For details about tire inflation
Installation of a mobile
pressure and load limits, see “Checking tire infla-
tion pressure” in Section 7−2 and “Vehicle load
two−way radio system
limits” in Section 2.
As the installation of a mobile two−way radio system in
your vehicle could affect electronic systems such as multi-
port fuel injection system/sequential multiport fuel injection
system, electronic throttle control system, cruise control
system, anti−lock brake system, SRS airbag system and
seat belt pretensioner system, be sure to check with your
Toyota dealer for precautionary measures or special
instructions regarding installation.
vi
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your
Toyota contain explosive chemicals. If the vehicle is
scrapped with the airbags and pretensioners left as they
are, this may cause an accident such as fire. Be sure to
have the systems of the SRS airbag and seat belt preten-
sioner removed and disposed of by a qualified service
shop or by your Toyota dealer before you dispose of your
vehicle.
vii
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
viii
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
SECTION 1− 1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview
2
Instrument cluster overview
4
Indicator symbols on the instrument panel
5
1
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)

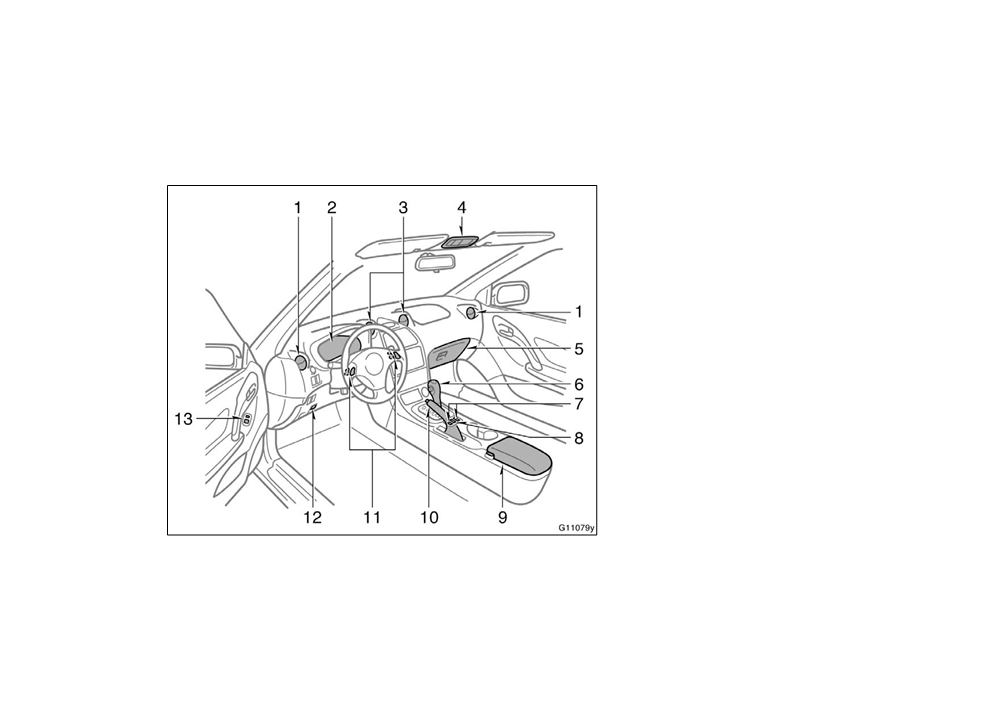

Instrument panel overview
1. Side vents
2. Instrument cluster
3. Center vents
4. Electric moon roof switch and/or
interior light
5. Glove box
6. Automatic transmission selector lever
or manual transmission gear shift lever
7. Power window switches
8. Power door lock switch
9. Auxiliary box
10. Parking brake lever
11. Transmission shift switches
12. Hood lock release lever
13. Power rear view mirror control switches
2
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)

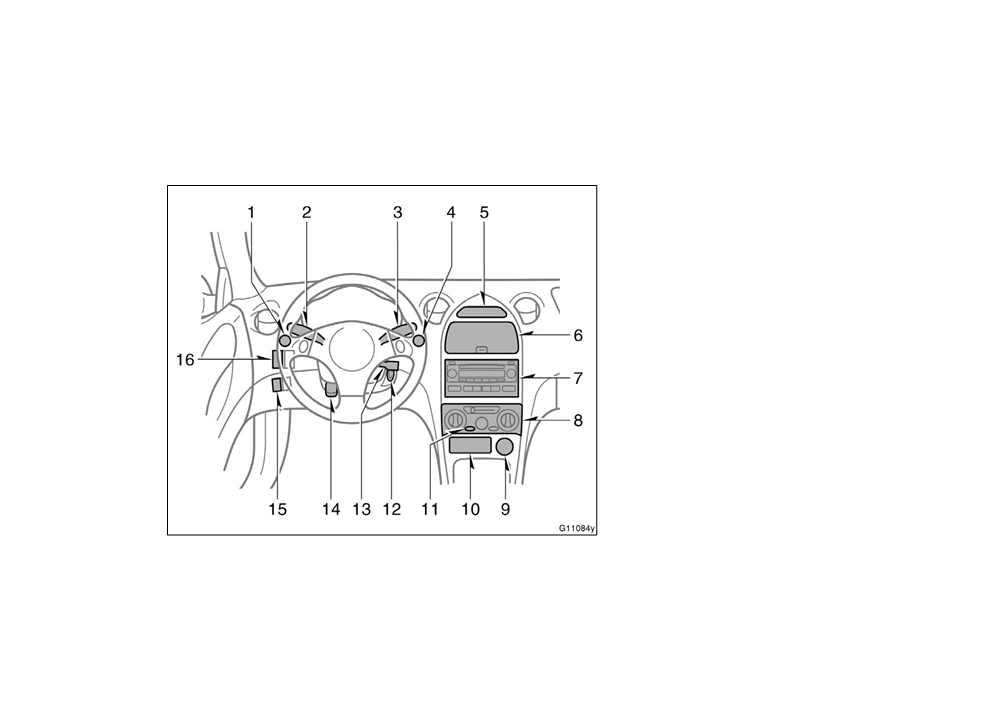

1.
Instrument panel light control knob
2.
Headlight, turn signal and front fog
light switches
3.
Wiper and washer switches
4.
Emergency flasher switch
5.
Clock
6.
Auxiliary box
7.
Audio system
8.
Air conditioning controls
9.
Cigarette lighter
10.
Ashtray
11.
Rear window defogger switch
12.
Ignition switch
13.
Cruise control switch
14.
Tilt steering lock release lever
15.
Headlight beam level control dial
16.
Window lock switch
3
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)

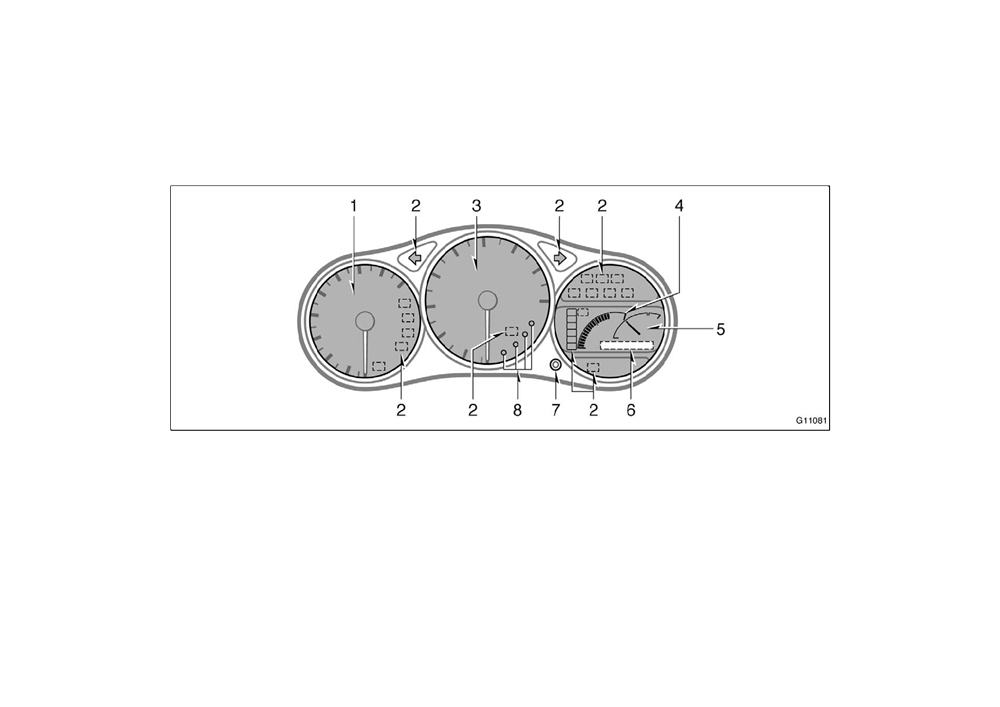

Instrument cluster overview
1. Tachometer
4. Fuel gauge
7. Trip meter reset knob
2. Service reminder indicators and
5. Engine coolant temperature gauge
8. Gear position indicators
indicator lights
6. Odometer and two trip meters
3. Speedometer
4
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
Indicator symbols on the instrument panel
or
or
Brake system warning light∗1
Anti−lock brake system warning light∗1
Driver’s seat belt reminder light∗1
Open door warning light∗1
Front passenger’s seat belt reminder light∗1
SRS warning light∗1
Automatic transmission fluid temperature
Discharge warning light∗1
warning light∗1
Low engine oil pressure warning light∗1
Headlight low beam indicator light
Malfunction indicator lamp∗1
Tail light indicator light
Low fuel level warning light∗1
Headlight high beam indicator light
5
2005 CELICA from Sep. ’04 Prod. (OM20888U)
’05MY CELICA U (L/O 0409)
Turn signal indicator lights
Automatic transmission indicator lights
M mode indicator light∗2
Overdrive−off indicator light
Cruise control indicator light∗3
∗1: For details, see
“Service reminder indicators and warning
buzzers” in Section 1−6.
∗2: If this light flashes, see
“Automatic transmission” in Section
1−7.
∗3: If this light flashes, see “Cruise control” in Section 1−7.
6
2005 CELICA from Sep. ’04 Prod. (OM20888U)
|
|
|
