When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Pull up the lever. For better hold-
ing power, first depress the brake pedal
and hold it while setting the parking
brake.
To release: Pull up the lever slightly,
press the thumb button, and lower.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
85
’99 TERCEL (U)
Car audio system—
—Reference
Part 1
Air conditioning system
OPERATION OF
D Controls
INSTRUMENTS AND
D Air flow selector settings
CONTROLS—
D Operating tips
D Side vents
Chapter 1−7
Car audio system and
Air conditioning
system
Type 1: AM·FM ETR radio/cassette player
Car audio system
D Reference
D Using your audio system: some
basics
D Using your audio system: controls
and features
D Car audio system operating
hints
Type 2: AM·FM ETR radio/cassette player/
compact disc auto changer controller
86
’99 TERCEL (U)
—Using your audio system:
some basics
This section describes some of the basic
TONE AND BALANCE
features on Toyota audio systems. Some
For details about your system’s tone and
information may not pertain to your sys-
balance controls, see the description of
tem.
your own system.
Your audio system works when the ignition
Tone
key is in the
”ACC” or ”ON” position.
How good an audio program sounds to
TURNING THE SYSTEM ON AND OFF
you is largely determined by the mix of
Push ”PWR/VOL” and ”VOL/PWR” to turn
the treble and bass levels. In fact, differ-
the audio system on and off.
ent kinds of music and vocal programs
usually sound better with different mixes
Push
”AM”,
”FM”,
”AM·FM”,
”TAPE” or
of treble and bass.
”CD” to turn on that function without push-
ing
”PWR/VOL” and ”VOL/PWR”.
Balance
Type

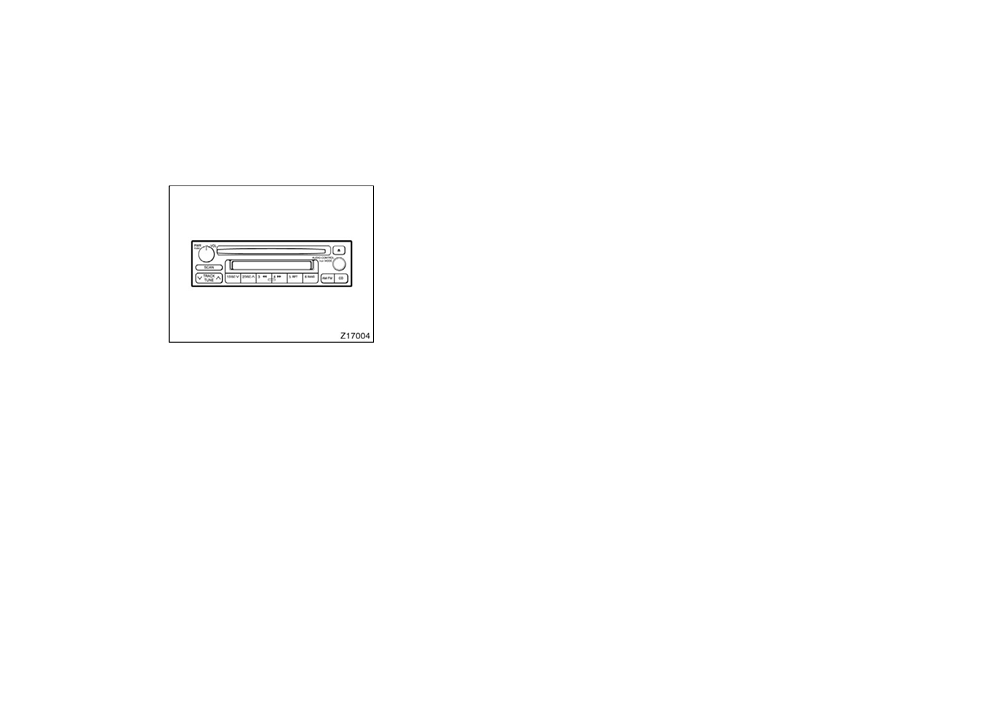

3: AM·FM ETR radio/compact disc
You can turn on each player by inserting
A good balance of the left and right stereo
player/compact disc auto changer control-
a cassette tape or compact disc.
channels and of the front and rear sound
ler
levels is also important.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
Keep in mind that if you are listening to
audio system was previously off, then the
a stereo recording or broadcast, changing
entire audio system will be turned off
the right/left balance will increase the vol-
when you eject the cassette tape or com-
ume of one group of sounds while de-
pact disc. If the another function was pre-
creasing the volume of another.
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push
”AM”,
”FM”,
”AM·FM”,
”TAPE” or
”CD” if the system is already on but you
want to switch from one function to the
other.
87
’99 TERCEL (U)
YOUR RADIO ANTENNA
NOTICE
To lower a manual antenna, carefully push
it down.
Never try to disassemble or oil any
part of the compact disc player. Do
NOTICE
not insert anything except a compact
disc into the slot.
To prevent damage to the antenna,
make sure it is retracted before driv-
8 cm (3 in.) compact disc singles
ing your Toyota through an automatic
car wash.
Your compact disc player does not need
an adaptor to play compact disc singles.
Compact disc singles are about
8 cm (3
YOUR CASSETTE PLAYER
in.) in diameter−smaller than standard
When you insert a cassette, the exposed
discs.
tape should be to the right.
After you eject a compact disc single, do
NOTICE
not insert a standard
12 cm (5 in.) disc
until
”DISC” disappears from the display.
Do not oil any part of the player and
do not insert anything other than cas-
NOTICE
sette tapes into the slot, or the tape
Do not use an adaptor for compact
player may be damaged.
disc singles—it could cause tracking
errors or interfere with the ejection of
YOUR COMPACT DISC PLAYER
compact discs.
When you insert a disc, gently push it in
with the label side up.
(The player will
automatically eject a disc if the label side
is down.) The compact disc player will
play from track
1 through the end of the
disc. Then it will play from track
1 again.
88
’99 TERCEL (U)
—Using your audio system:
controls and features

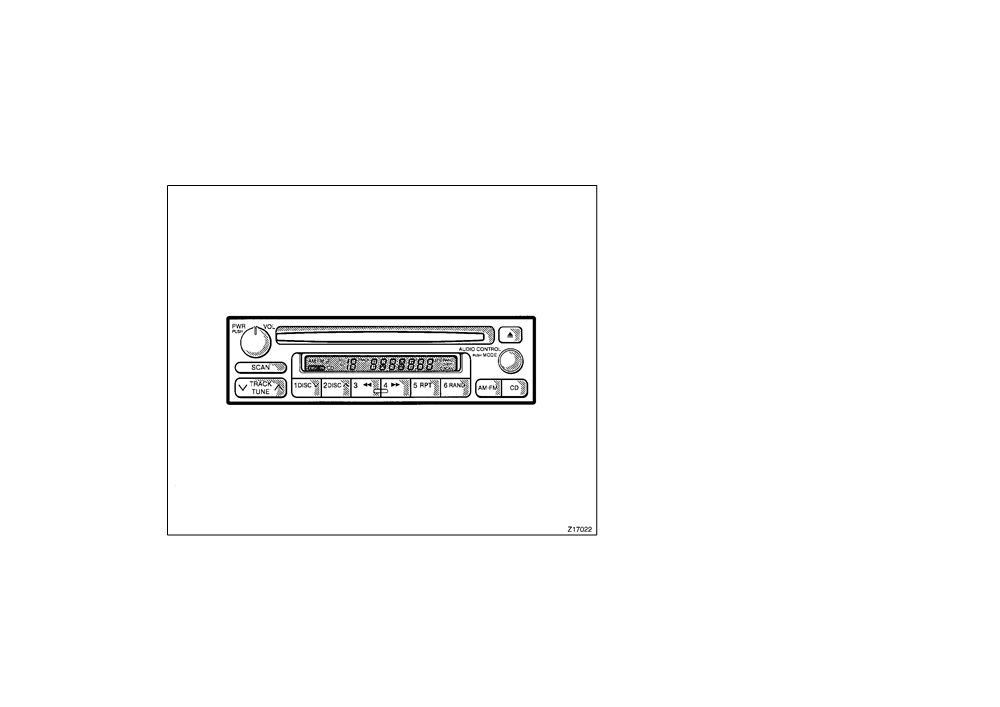

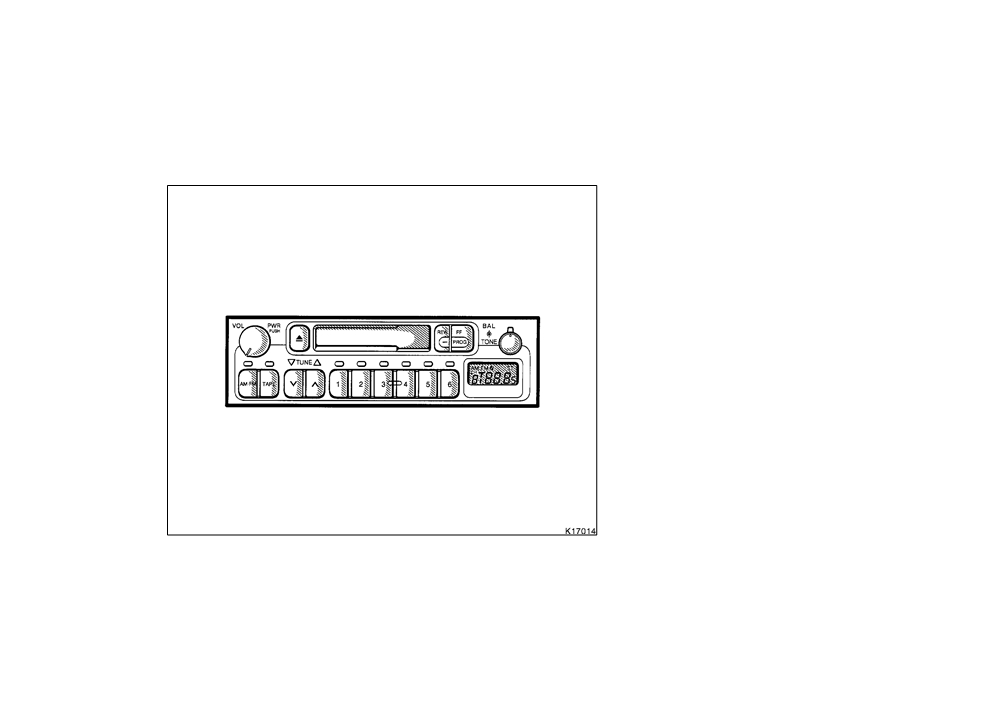

"Type 1
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.
89
’99 TERCEL (U)
1 2 3 4 5 6 (Preset buttons)
BAL (Balance)
ST (Stereo reception) display
These buttons are used to preset and
Move the
”BAL” ring around
”TONE” to
Your radio automatically changes to stereo
tune in radio stations.
adjust the balance between the right and
reception when a stereo broadcast is re-
left speakers
ceived. ”ST” appears on the display. If the
To preset a station to a button: Tune in
signal becomes weak, the radio reduces
the desired station
(see
”TUNE” button).
FF (Fast forward)
the amount of channel separation to prev-
Push and hold down the button until you
Push the ”FF” to fast forward a cassette
ent the weak signal from creating noise.
hear a beep—this will set the station to
tape.
If the signal becomes extremely weak, the
the button. The button number will appear
To stop the tape while it is fast forward-
radio switches from stereo to mono recep-
on the display.
ing, lightly push the
”REW”.
tion.
To tune in to a preset station: Push the
If a tape fast forwards completely, the
TAPE
button for the station you want. The but-
cassette player will play the other side of
ton number and station frequency will ap-
Push ”TAPE” to switch from radio opera-
the tape, using the auto−reverse feature.
pear on the display.
tion to cassette operation. If the audio
PROG (Program)
system is off, you can turn on the cas-
These systems can store one AM and one
sette player by pushing
”TAPE”. In both
FM station for each button. The preset
Push ”PROG” to select the other side of
cases, a cassette must already be loaded
station memory will be canceled out if the
a cassette tape.
in the player.
power source is interrupted
(battery dis-
Auto−reverse feature: After the cassette
connected or fuse blown).
TONE
player reaches the end of a tape side, it
(Eject button)
automatically reverses and begins to play
Turn the ”TONE” knob to adjust the tone.
the other side. This is true whether the
Push this button to eject a cassette.
cassette was playing or fast forwarding.
AM·FM
REW (Rewind)
Push ”AM·FM” to switch between the AM
Push the ”REW” to rewind to a tape.
and FM bands. ”AM” or ”FM” will appear
To stop the tape while it is rewinding,
on the display.
lightly push the
”FF”.
If the audio system is off, you can turn
If a tape side rewinds completely, the cas-
on the radio by pushing
”AM·FM”. Also,
sette player will stop and then play that
push ”AM·FM” to switch from cassette op-
same side.
eration to radio operation.
90
’99 TERCEL (U)
TUNE
Tuning
Your Toyota has an electronic tuning radio
(ETR). Push and release the ”Ɯ”
(up) or
”Ɲ” (down) side of ”TUNE” to step up or
down the station band.
(If you hear a
beep, you held the button too long and
the radio will go into the seek mode.)
Seeking
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, push and hold the ”Ɯ”
or
”Ɲ” side of
”TUNE” until you hear a
beep. Do this again to find another sta-
tion.
VOL/PWR (Volume/Power)
Push ”VOL/PWR” to turn the audio system
on and off. Turn ”VOL/PWR” to adjust the
volume.
91
’99 TERCEL (U)

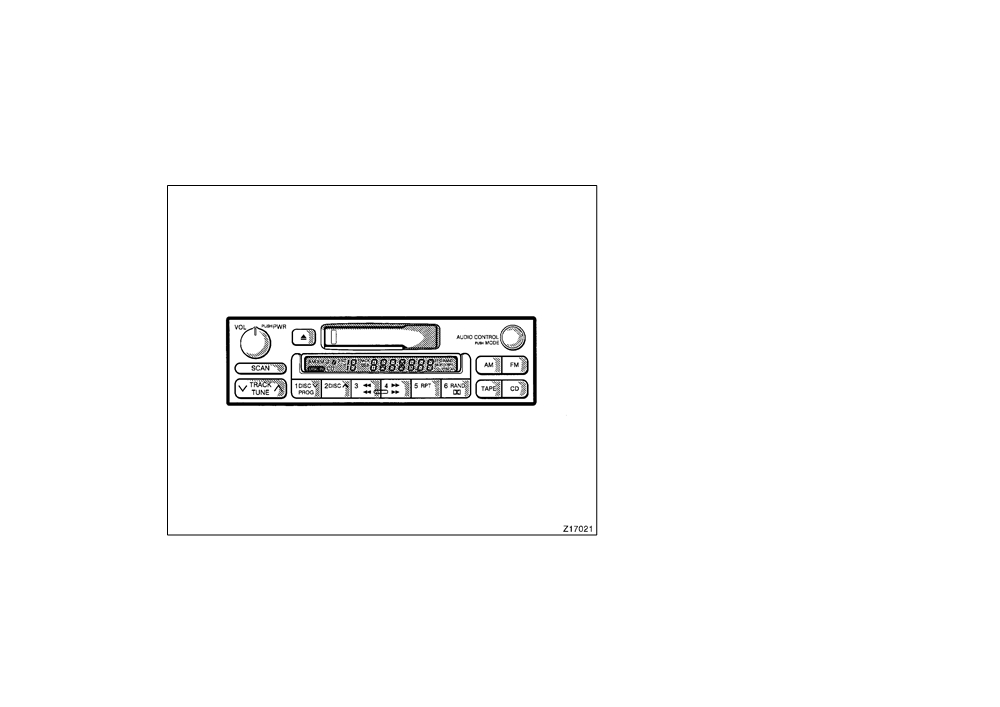

"Type 2
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.
92
’99 TERCEL (U)
1 2 3 4 5 6 (Preset buttons)
AM
(Reverse/Fast forward buttons)
These buttons are used to preset and
Push ”AM” to switch the AM band.
”AM”
Cassette Player
tune in radio stations.
will appear on the display.
Push the fast forward button to fast for-
To preset a station to a button: Tune in
If the audio system is off, you can turn
ward a cassette tape. ”FF” will appear on
the desired station
(see
”TUNE” button).
on the radio by pushing ”AM”. Also, push
the display. Push the reverse button to
Push and hold down the button until you
”AM” to switch from cassette or compact
rewind a tape.
”REW” will appear on the
hear a beep⎯this will set the station to
disc operation to radio operation.
display.
the button. The button number will appear
AUDIO CONTROL / MODE
To stop the tape while it is fast forward-
on the display.
ing, push the fast forward button or
Manual tone adjustment function—
To tune in to a preset station: Push the
”TAPE”; to stop the tape while it is re-
This knob is used to adjust the tone
button for the station you want. The but-
winding, push the reverse button or
manually.
ton number and station frequency will ap-
”TAPE”.
pear on the display.
For low−pitch tone adjustment, push
If a tape side rewinds completely, the cas-
”AUDIO CONTROL
/ MODE” repeatedly
These systems can store one AM and two
sette player will stop and then play that
until
”BAS” appears on the display. Then
FM stations for each button
(The display
same side. If a tape fast forwards com-
turn the knob to suit your preference.
will show ”AM”, ”FM1” or ”FM2” when you
pletely, the cassette player will play the
push ”AM” or ”FM”).
The display will show the range from
other side of the tape, using the auto−re-
”BAS −5” to ”BAS 5”.
verse feature.
(Eject button)
For high−pitch tone adjustment, push
Compact Disc Player
Push this button to eject a cassette.
”AUDIO CONTROL
/ MODE” repeatedly
If you want to fast forward or reverse
After you turn the ignition to
”LOCK”, you
until
”TRE” appears on the display. Then
through a compact disc track, push and
will be able to eject a cassette but you
turn the knob to suit your preference.
hold in the fast forward or reverse button.
will not be able to reinsert it.
The display will show the range from
When you release the button, the compact
”TRE −5” to ”TRE 5”.
disc player will resume playing.
93
’99 TERCEL (U)
Sound balance adjustment function—
CD (Compact Disc)
If
”Err
2” appears on the display, it
indicates no disc is loaded inside the
This knob is also used to adjust the
Push
”CD” to switch from radio or cas-
magazine, insert a disc.
sound balance between the front and rear,
sette operation to compact disc operation.
and the right and left speakers.
If the audio system is off, you can turn
If
”Err
3” or
”Err
4” on the display, it
on the compact disc player by pushing
indicates there is a trouble inside the sys-
For front/rear adjustment, push
”AUDIO
”CD”. In both cases, a disc must already
tem. Eject the disc or magazine. Set the
CONTROL / MODE” repeatedly until ”FAd”
be loaded in the player.
disc or magazine again.
appears on the display. Then turn the
knob to adjust the front/rear balance.
When the audio is set into compact disc
If
”OPEn” appears on the display, it
operation, the display shows the track or,
indicates the compact disc auto changer
The display will show the range from ”FAd
track and disc number currently being
lid is open. Close the compact disc auto
F7” to
”FAd R7”.
played. Each time you push
”CD”, the
changer lid.
For left/right adjustment, push
”AUDIO
system changes between single disc play-
If the malfunction is not rectified, take
CONTROL / MODE” repeatedly until ”BAL”
er and automatic changer.
your vehicle to your Toyota dealer.
appears on the display. Then turn the
If the player malfunctions, your audio sys-
knob to adjust the left/right balance.
DISC ƝƜ
tem will display one of the six following
The display will show the range from ”BAL
Compact disc auto changer only—
error messages.
L7” to
”BAL R7”.
By using this button, you can select a
If
”WAIT” appears on the display, it indi-
disc you wish to listen to.
cates inside the player unit may be too
hot due to the very high ambient tempera-
Push either side of the button until the
ture. Remove the disc or magazine from
number of the disc you want to listen to
the player and allow the player to cool
appears on the display.
down.
If
”Err
1” appears on the display, it
indicates the disc is dirty, damaged, or it
was inserted up−side down. Clean the
disc or insert it correctly.
94
’99 TERCEL (U)
Dolbyr
B NR∗
FM
RAND (Random)
If you are listening to a tape that was
Push ”FM” to switch the FM band. ”FM1”
There are two random features—you can
recorded with Dolbyr B Noise Reduction,
or
”FM2” will appear on the display. This
either listen to the tracks on all the com-
push the button marked with the double−D
system allows you to set twelve FM sta-
pact discs in the magazine in random or-
symbol. The double−D symbol will appear
tions, two for each button.
der, or only listen to the tracks on a
on the display. Push the button again to
specific compact disc in random order.
If the audio system is off, you can turn
turn off Dolbyr B NR.
on the radio by pushing ”FM”. Also, push
Random playing for the tracks on a disc:
The Dolby NR mode reduces tape noise
”FM” to switch from cassette or compact
Quickly push and release ”RAND”. ”RAND”
by about 10 dB. For best sound reproduc-
disc operation to radio operation.
will appear on the display. The disc you
tion, play your tapes with this button on
are listening to will play in random order.
PROG (Program)
or off according to the mode used for
If you hear a beep, you held the button
Push ”PROG” to select the other side of
recording the tape.
too long, and the player will play all the
a cassette tape. The display indicates
∗
tracks in the magazine in random order.
: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. ”DOLBY” and the
which side is currently selected (”
” indi-
To turn off the random feature, push the
double D symbol
are trademarks of Dolby Laboratories
cates top side,
”
” indicates bottom
”RAND” a second time.
Licensing Corporation.
side).
Compact disc auto changer only—
Auto−reverse feature: After the cassette
Random playing for all the tracks in the
player reaches the end of a tape side, it
magazine:
automatically reverses and begins to play
Push and hold
”RAND” until you hear a
the other side. This is true whether the
beep. ”D·RAND” will appear on the display
cassette was playing or fast forwarding.
and the player will perform all the tracks
on all the discs in the magazine in ran-
dom order. To turn off the random feature,
push ”RAND” a second time.
95
’99 TERCEL (U)
RPT (Repeat)
SCAN
Compact disc player
There are two repeat features—you can
Radio
There are two scan features—you can ei-
either replay a disc track or a whole com-
ther scan the tracks on a specific disc or
You can either scan all the frequencies on
pact disc.
scan the first tracks of all the discs in the
a band or scan only the preset stations
magazine.
Repeating a track:
for that band.
Quickly push and release ”RPT” while the
Scanning for the tracks on a disc:
To scan the preset stations:
track is playing.
”RPT” will appear on the
Quickly push and release ”SCAN”. ”SCAN”
Push and hold
”SCAN” until you hear a
display. If you hear a beep, you held the
will appear on the display and the player
beep. The radio will tune in the next pres-
button too long, and the player will repeat
will scan all the tracks on the disc you
et station up the band, stay there for a
the whole disc. When the track ends, it
are listening to. If you hear a beep, you
few seconds, and then move to the next
will automatically be replayed. This pro-
held the button too long, and the player
preset station. To select a station, push
cess will be continued until you push the
will scan the first tracks of all the discs
”SCAN” a second time.
button again to turn off the repeat feature.
in the magazine. To select a track, push
To scan all the frequencies:
the
”SCAN” a second time. If the player
Compact disc auto changer only—
Quickly push and release
”SCAN”. If you
scanned all the tracks on the disc, it will
Repeating a disc:
hear a beep, you held the button too long,
stop scanning.
Push and hold
”RPT” until you hear a
and the radio will scan the preset sta-
Compact disc auto changer only—
beep.
”D·RPT” will appear on the display.
tions. The radio will find the next station
The player will repeat all the tracks on the
up the station band, stay there for a few
Scanning for the first tracks of all the
disc you are listening to. When the disc
seconds, and then scan again. To select
discs in the magazine:
ends, the player will automatically go back
a station, push
”SCAN” a second time.
Push and hold
”SCAN” until you hear a
to the top track of the disc and replay.
beep. ”D·SCAN” will appear on the display
This process will be continued until you
and the player will perform the first track
push the button again to turn off the re-
of the next disc. To select a disc, push
peat feature.
the
”SCAN” a second time. If the player
has scanned all the discs, it will stop
scanning.
96
’99 TERCEL (U)
ST (Stereo reception) display
TUNE
Your radio automatically changes to stereo
Tuning
reception when a stereo broadcast is re-
Your Toyota has an electronic tuning radio
ceived. ”ST” appears on the display. If the
(ETR). Push and release the ”Ɯ”
(up) or
signal becomes weak, the radio reduces
”Ɲ” (down) side of ”TUNE” to step up or
the amount of channel separation to prev-
down the station band.
(If you hear a
ent the weak signal from creating noise.
beep, you held the button too long and
If the signal becomes extremely weak, the
the radio will go into the seek mode.)
radio switches from stereo to mono recep-
Seeking
tion.
In the seek mode, the radio finds and
TAPE
plays the next station up or down the
Push ”TAPE” to switch from radio or com-
station band.
pact disc operation to cassette operation.
To seek a station, push and hold the ”Ɯ”
If the audio system is off, you can turn
or
”Ɲ” side of
”TUNE” until you hear a
on the cassette player by pushing ”TAPE”.
beep. Do this again to find another sta-
In both cases, a cassette must already be
tion.
loaded in the player.
VOL/PWR (Volume/Power)
TRACK
(Track
up/down button):
Compact disc player
Push ”VOL/PWR” to turn the audio system
on and off. Turn ”VOL/PWR” to adjust the
By using this button, you can skip up or
volume.
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, push the down side of the button
one time, quickly.
97
’99 TERCEL (U)
"Type 3
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.
98
’99 TERCEL (U)
1 2 3 4 5 6 (Preset buttons)
AUDIO CONTROL / MODE
(Reverse/Fast forward buttons)
These buttons are used to preset and
Manual tone adjustment function—
If you want to fast forward or reverse
tune in radio stations.
through a compact disc track, push and
This knob is used to adjust the tone
To preset a station to a button: Tune in
hold in the fast forward or reverse button.
manually.
the desired station
(see
”TUNE” button).
When you release the button, the compact
For low−pitch tone adjustment, push
Push and hold down the button until you
disc player will resume playing.
”AUDIO CONTROL
/ MODE” repeatedly
hear a beep—this will set the station to
AM·FM
until
”BAS” appears on the display. Then
the button. The button number will appear
turn the knob to suit your preference.
Push ”AM·FM” to switch between the AM
on the display.
and FM bands. ”AM”, ”FM1” or ”FM2” will
The display will show the range from
To tune in to a preset station: Push the
appear on the display. These systems al-
”BAS −5” to ”BAS 5”.
button for the station you want. The but-
low you to set twelve FM stations, two for
For high−pitch tone adjustment, push
ton number and station frequency will ap-
each button.
”AUDIO CONTROL
/ MODE” repeatedly
pear on the display.
If the audio system is off, you can turn
until
”TRE” appears on the display. Then
These systems can store one AM and two
on the radio by pushing
”AM·FM”. Also,
turn the knob to suit your preference.
FM stations for each button
(The display
push
”AM·FM” to switch from compact
The display will show the range from
will show ”AM”, ”FM1” or ”FM2” when you
disc operation to radio operation.
”TRE −5” to ”TRE 5”.
push ”AM·FM”).
(Eject button)
Push this button to eject a compact disc.
After you turn the ignition to
”LOCK”, you
will be able to eject a disc but you will
not be able to reinsert it.
99
