136

2-2. Charging

■

Hybrid battery (traction battery) warming control (Alaska and
Canada only)
This control operates after the charging cable remains connected to
the vehicle for 3 days and “Traction Battery Heater” automatically
stops. It automatically insulates the hybrid battery (traction battery)
in extremely low temperatures.
● This control stops 31 days after the charging cable is connected,

even if it is still connected to the vehicle.

● When this control operates, timer charging settings are ignored

and charging starts.

■

“Traction Battery Cooler”
When the hybrid battery (traction battery) is hot, this function pro-
tects  it  by  using  the  vehicle  air  conditioning  to  cool  it  before
charging is carried out.
When  the  hybrid  battery  (trac-
tion  battery)  is  above  a  certain
temperature  and  the  power
switch  is  turned  off,  a  check
screen  is  displayed  on  the
multi-information  display  that
indicates whether “Traction Bat-
tery Cooler” is implemented.

When “No” is selected, the hybrid battery (traction battery) cooling sys-
tem does not operate.

137

2-2. Charging

2

Plug-

in hybrid system

■

“Traction Battery Heater”

●

“Traction  Battery  Heater”  may  operate  when  charging  is  not  being  per-
formed.

●

When  “Traction  Battery  Heater”  is  operating,  the  charging  indicator  illumi-
nates.

●

When “Traction Battery Heater” is operating during charging, the charging
time may be longer than normal.

●

If the outside temperature becomes high while “Traction Battery Heater” is
operating,  charging  may  complete  earlier  than  the  “Departure”  time  set.
(

P. 157)

●

“Traction Battery Heater” can be turned on and off in the “Vehicle Settings”
settings on the multi-information display. (

P. 741)

●

“Traction Battery Heater” may operate even when the hybrid battery (trac-
tion battery) is fully charged depending on the temperature of the hybrid bat-
tery (traction battery).
• The remaining charge of the hybrid battery (traction battery) decreases

when  “Traction  Battery  Heater”  operates.  The  charging  operation  may
start again to charge the hybrid battery (traction battery).

• “Charging  Stopped  Due  to  Pulled  Charging  Connector”  may  be  shown

when the charging connector is removed while recharging. (

P. 185)

138

2-2. Charging

■

“Traction Battery Cooler”

●

When  the  hybrid  battery  (traction  battery)  is  above  a  certain  temperature
and the power switch is turned off, a check screen is displayed on the multi-
information display that indicates whether “Traction Battery Cooler” is imple-
mented. Approximately 5 minutes after selecting “Yes” on this screen, sys-
tem operation becomes possible.

●

When charging starts, “Traction Battery Cooler” only operates if the hybrid
battery (traction battery) temperature is hot.

●

The  charging  indicator  is  illuminated  while  “Traction  Battery  Cooler”  is  on
standby or operating.

●

“Traction  Battery  Cooler”  is  implemented  for  a  maximum  of  approximately
30 minutes. However, when the “Departure” time is set (

P. 157) and there

is not sufficient time between the current time and the time that charging will
complete, “Traction Battery Cooler” operation time may become shorter.

●

When  there  is  a  small  amount  of  remaining  charge  in  the  hybrid  battery
(traction battery), even if the hybrid battery (traction battery) is hot, “Traction
Battery Cooler” may not be implemented.

●

When the following operations are performed while “Traction Battery Cooler”
is operating, the hybrid battery (traction battery) cooling operation stops.
• A door is opened
• The hood is opened
• The power switch is turned to any mode other than off
• The shift position is changed to any position other than P
• The Remote Air Conditioning System is operated (

P. 522)

• “Charge Now” is implemented (

P. 158)

• The amount of remaining charge in the hybrid battery (traction battery) is

below a certain amount

●

When  the  power  switch  is  turned  off,  a  check  screen  is  displayed  on  the
multi-information display that indicates whether “Traction Battery Cooler” is
implemented. This check screen can be turned on and off in the “Meter Cus-
tomize” settings on the multi-information display (

P. 246). However, when

the check screen is set to “Off”, “Traction Battery Cooler” is no longer oper-
ates.

●

“Traction Battery Cooler” uses the power of the hybrid battery (traction bat-
tery) and external power source.
• While “Traction Battery Cooler” is operating, the amount of the remaining

charge of the hybrid battery (traction battery) increases and decreases in
a certain range, and does not increase as in normal charging.

• The operation of “Traction Battery Cooler” is recognized as charging by a

charging  equipment.  The  charging  equipment  that  calculates  the  fee
according to charging time causes a charging fee.

139

2-2. Charging

2

Plug-

in hybrid system

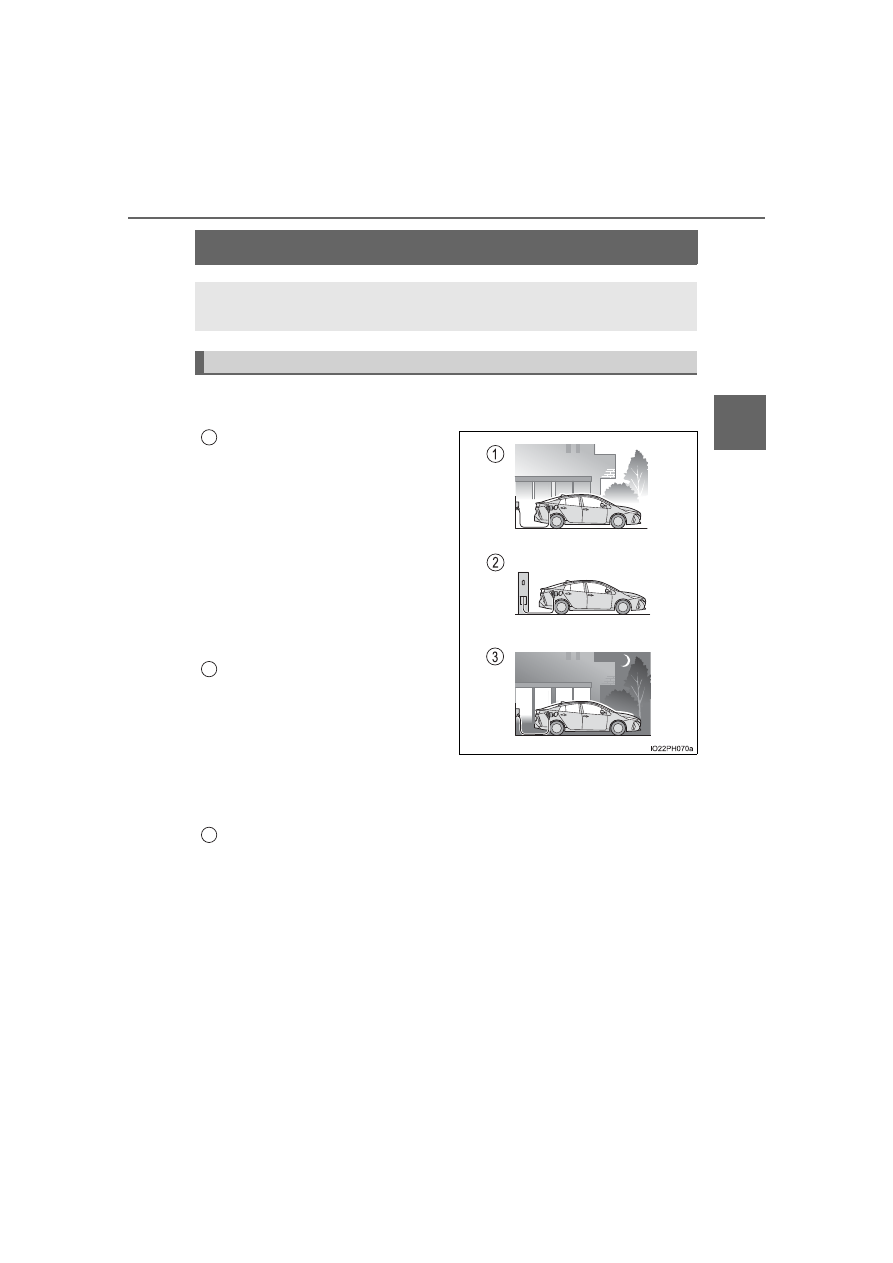

Charging tips

To  enable  the  use  of  EV  mode,  we  recommend  systematically
charging the vehicle.

Before leaving home

In  order  to  use  EV  mode,  charge
the hybrid battery (traction battery)
at home before leaving.
The charging timer function
(

P.  157)  can  be  used  to  set  the

system  to  automatically  fully
charge  the  hybrid  battery  (traction
battery) before your desired depar-
ture time. It is also possible to set
the  air  conditioning  to  make  the
interior  in  a  comfortable  state
before your desired departure time.

At your destination

Use  a  public  charging  station  to
charge  the  hybrid  battery  (traction
battery).
If there are no charging facilities at
your destination, the hybrid battery
(traction  battery)  can  be  charged
using  the  hybrid  battery  (traction
battery) charge mode. (

P. 89)

*

After returning home

In order to drive the next time, charge the hybrid battery (traction battery).
Settings the charge schedule allows you to charge the hybrid battery (trac-
tion battery) at the desired time such as late at night or early in the morn-
ing. Furthermore, the charging timer can be set to automatically charge the
hybrid battery (traction battery) every day or at the same time on certain
days. (

P. 157)

*

: When using the hybrid battery (traction battery) charge mode while parked,

make sure that no flammable objects are near the vehicle and the vehicle
is parked in a well-ventilated area. (

P. 97)

This  section  explains  methods  for  using  the  charging  function
for this vehicle and checking information related to charging.

Systematically charging

1

2

3

140

2-2. Charging

■

Searching charging stations (vehicles with 11.6-inch display)
After applying to Entune, it is possible to use the smartphone application to
search the nearby charging stations.
For details about Entune, refer to http://www.toyota.com/entune/.

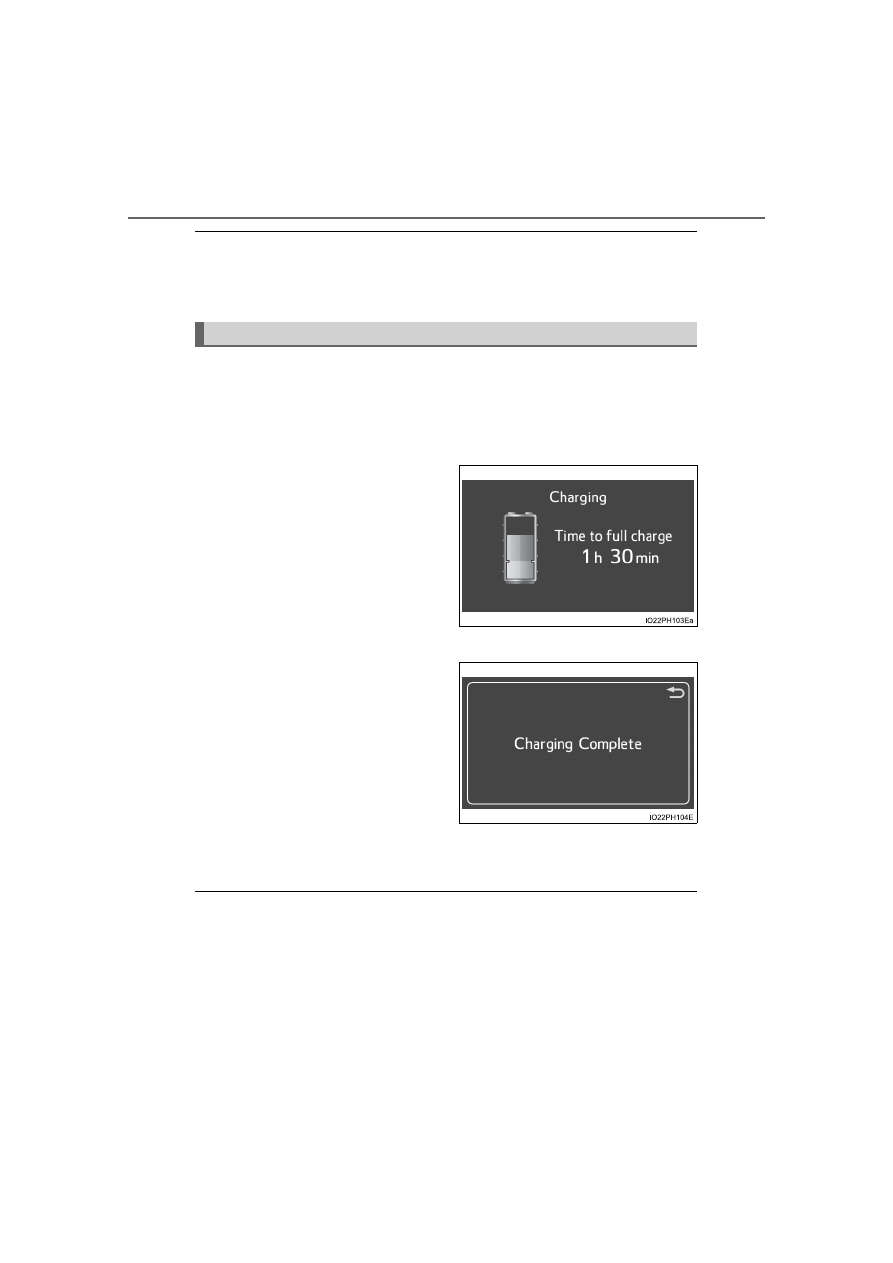

Information related to charging can be displayed and checked on the
vehicle’s multi-information display or 11.6-inch display (if equipped).

Refer to P. 265 for details on the screen display for the 11.6-inch display (if
equipped).

■

While charging
When  any  door  is  opened
during  charging,  the  current
charging condition and remain-
ing  time  until  charging  is  com-
plete can be checked.

■

After charging is complete
After  charging  is  complete,  the
first time that the hybrid system
is  started,  a  message  detailing
the  results  of  the  charging  is
displayed.  Also,  a  message  is
displayed  if  an  operation  that
stops  charging  is  performed  or
a situation where charging can-
not be performed occurs.

When a message is displayed, follow the instructions displayed on the
screen. (

P. 185)

■

Combination meter display during charging
If approximately 100 seconds elapse after the power switch is turned to ON
mode during charging, the power switch will automatically turn off and the dis-
play will disappear.

Checking information related to charging

141

2-2. Charging

2

Plug-

in hybrid system

Things to know before charging

This  vehicle  has  been  designed  to  allow  charging  from  an  external
power source using a charging cable for exclusive use with standard
household AC outlets.
However, the vehicle differs greatly from standard household electri-
cal goods in the following ways, and incorrect usage could cause fire
or electric shock, possibly leading to death or serious injury.
● The charging operation is designed to operate at 12A continuously

for the charge duration (up to 5 hours 10 minutes). (

P. 134)

● Charging can be conducted outdoors.
To charge properly, follow the procedure after reading the explanation
below. Charging is intended to be carried out by licensed drivers only
who properly understand the charging procedure.
● Charging should not be carried out by children.
● When charging with a charging equipment, follow the procedures

for using each equipment.

● When charging using a public charging facility, check the setting of

the charging timer function.

• When the charge schedule is registered, temporarily turn off the

function or turn “Charge Now” on. (

P. 164, 166, 174, 175)

• When  the  charge  schedule  is  set  to  ON,  charging  will  not  start

even if the charging cable is connected. Also, charging fee may
occur due to connection of the charging cable.

Make sure to read the following precautions before connecting
the charging cable to the vehicle and charging the hybrid battery
(traction battery).

Charging precautions

142

2-2. Charging

Before charging, always check the following items.
● The parking brake is applied. (P. 349)
● The headlights are switched off or set to AUTO, and lights such as

the emergency flashers and interior lights etc. are switched off.

If  these  light  switches  are  turned  ON,  then  these  features  will  consume
electricity, and charging time will increase.

● The power switch is off. (P. 336)

Before charging, make sure that each part of the charging cable is in
good condition. (

P. 120)

■

Safety functions

●

The hybrid system will not start while the charging cable is attached to the
vehicle, even if the power switch is operated.

●

If  the  charging  cable  is  connected  while  the  “READY”  indicator  is  illumi-
nated, the hybrid system will stop automatically and driving will not be possi-
ble.

●

When the charging cable is connected to the vehicle, the shift position can-
not be changed from P to another position.

■

During charging
The followings occur, however, it does not indicate a malfunction.

●

The charging starting time may differ depending on the state of the vehicle.

●

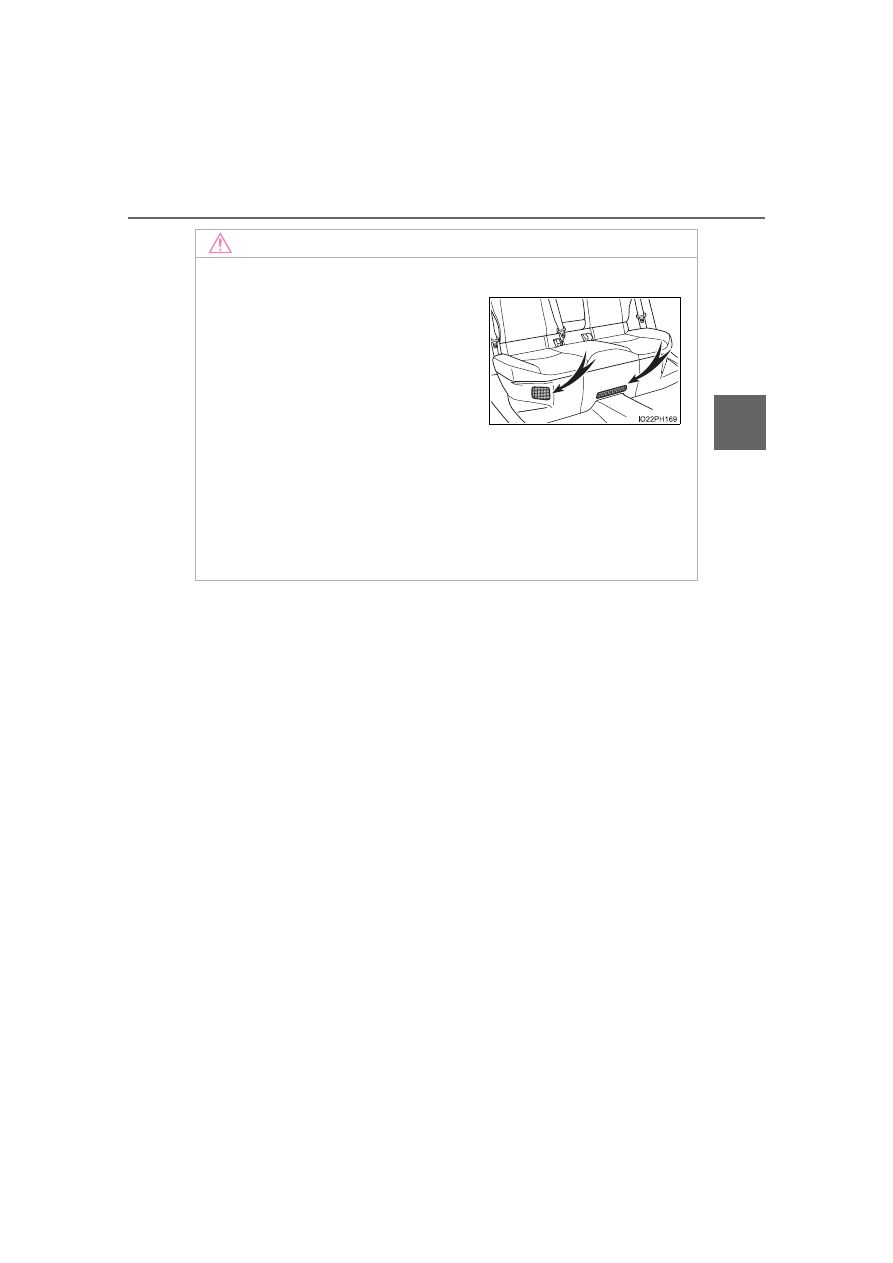

During  charging,  the  sound  of  the  fan  may  be  heard  from  the  charging
equipment cooling air intake vents. (

P. 145)

●

During and after charging, the rear seat and its surrounding area in which
the charging equipment is installed may get warm.

Confirm the following before charging

Inspecting the charging cable

143

2-2. Charging

2

Plug-

in hybrid system

■

Capacity reduction of the hybrid battery (traction battery)
The  capacity  of  the  hybrid  battery  (traction  battery)  will  decline  gradually
when  the  hybrid  battery  (traction  battery)  is  in  use.  The  rate  at  which  it
declines will differ in accordance with environmental conditions and the way
in which the vehicle is used. Observing the following can help suppress bat-
tery capacity decline.

●

Avoid parking the vehicle in areas with a high temperature under direct sun-
light when the hybrid battery (traction battery) is fully charged.

●

Avoid accelerating and decelerating frequently and suddenly when EV driv-
ing.

●

Avoid frequent driving near the top speed for EV driving. (

P. 95)

●

Leave  a  low  level  of  charge  in  the  hybrid  battery  (traction  battery)  when
leaving the vehicle undriven for a long period of time.
After  confirming  that  EV  mode  has  switched  to  HV  mode,  turn  the  power
switch off.

●

Use  the  charging  timer  function  as  much  as  possible  in  order  to  fully
charge  the  hybrid  battery  (traction  battery)  immediately  before  starting
off. (

P. 157)

Also, if the hybrid battery (traction battery) capacity reduces, the distance that
can  be  driven  in  EV  mode  decreases.  However,  vehicle  performance  does
not significantly become worse.

■

When the remaining charge of the hybrid battery (traction battery) is low
after charging
In the following situations, the remaining charge of the hybrid battery (traction
battery) after charging completes may be less than normal in order to protect
the  system  (the  EV  driving  range  after  the  battery  is  fully  charged  may  be
shorter).

*

●

Charging is carried out when the outside temperature is low or high

●

Charging  is  carried  out  immediately  after  high-load  driving  or  in  extreme
heat

When none of the above situations apply and there is a drastic drop in the
remaining charge of the hybrid battery (traction battery) after charging com-
pletes, have the vehicle inspected by your Toyota dealer.

*

: When this occurs, even if the remaining charge display of the hybrid battery

(traction battery) shows that it is fully charged, the remaining charge rapidly
decreases faster than normal.

■

When the charging amount sent to the hybrid battery (traction battery)
decreases
When  the  amount  of  power  supplied  by  the  charging  equipment  is  low  or
operation of the “Traction Battery Heater”, etc., reduces the charging power
sent to the hybrid battery (traction battery), the charging amount sent to the
hybrid battery (traction battery) may decrease.

144

2-2. Charging

■

Certification
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference

that may cause undesired operation.

WARNING

■

Caution when charging
People with implantable cardiac  pacemakers or cardiac resynchronization
therapy-pacemakers  should  not  carry  out  the  charging  procedure.  Ask
someone else to do it.

●

Do  not  approach  the  charging  equipment  and  charging  cable  while
charging.
Charging procedure may affect the operation of such devices.

●

Do not remain in the vehicle during charging.
Charging procedure may affect the operation of such devices.

●

Do not enter the vehicle even to take something out of the luggage com-
partment.
Charging procedure may affect the operation of such devices.

■

When the charging cable is connected to the vehicle
Do not operate the shift lever.
In the unlikely event that the charging cable has been damaged, the shift
position may change from P to another position and the vehicle could move,
possibly leading to an accident.

NOTICE

■

Precautions when handling charging cable
Make  sure  to  observe  the  following  precautions.  Failure  to  observe  these
precautions may result in damage to the charging cable and charging inlet.

●

Insert the charging connector straight into the charging inlet.

●

After inserting the charging connector, do not apply excessive force to or
twist the connector. Also, do not lean on the connector or hang any objects
from it.

●

Do not step on or trip over the charging cable.

●

Vehicles with smart lid & connector locking system: Before removing the
charging connector, make sure that it is unlocked. (

P. 152)

●

After removing the charging cable, promptly return it to its proper location.

●

After removing the charging connector, securely install the charging inlet
cap.

145

2-2. Charging

2

Plug-

in hybrid system

NOTICE

■

Charging equipment cooling air intake vents

●

Do not block the air intake vents with seat covers or luggage

●

If  the  air  intake  vents  are  clogged  with  dust,  clean  them  with  a  vacuum
cleaner

●

Do not allow water or foreign matter to enter the air intake vents

●

Do not spill large amounts of water near the air intake vents
If water is spilled, have the vehicle inspected by your Toyota dealer and do
not charge the hybrid battery (traction battery) before the inspection.

The  grilles  under  the  rear  seats  are  the
cooling  air  intake  vents  for  the  charging
equipment installed under the seats.
Make  sure  to  observe  the  following  pre-
cautions regarding the cooling  air intake
vents.  Failure  to  observe  these  precau-
tions  may  result  in  a  charging  system
malfunction.

146

2-2. Charging

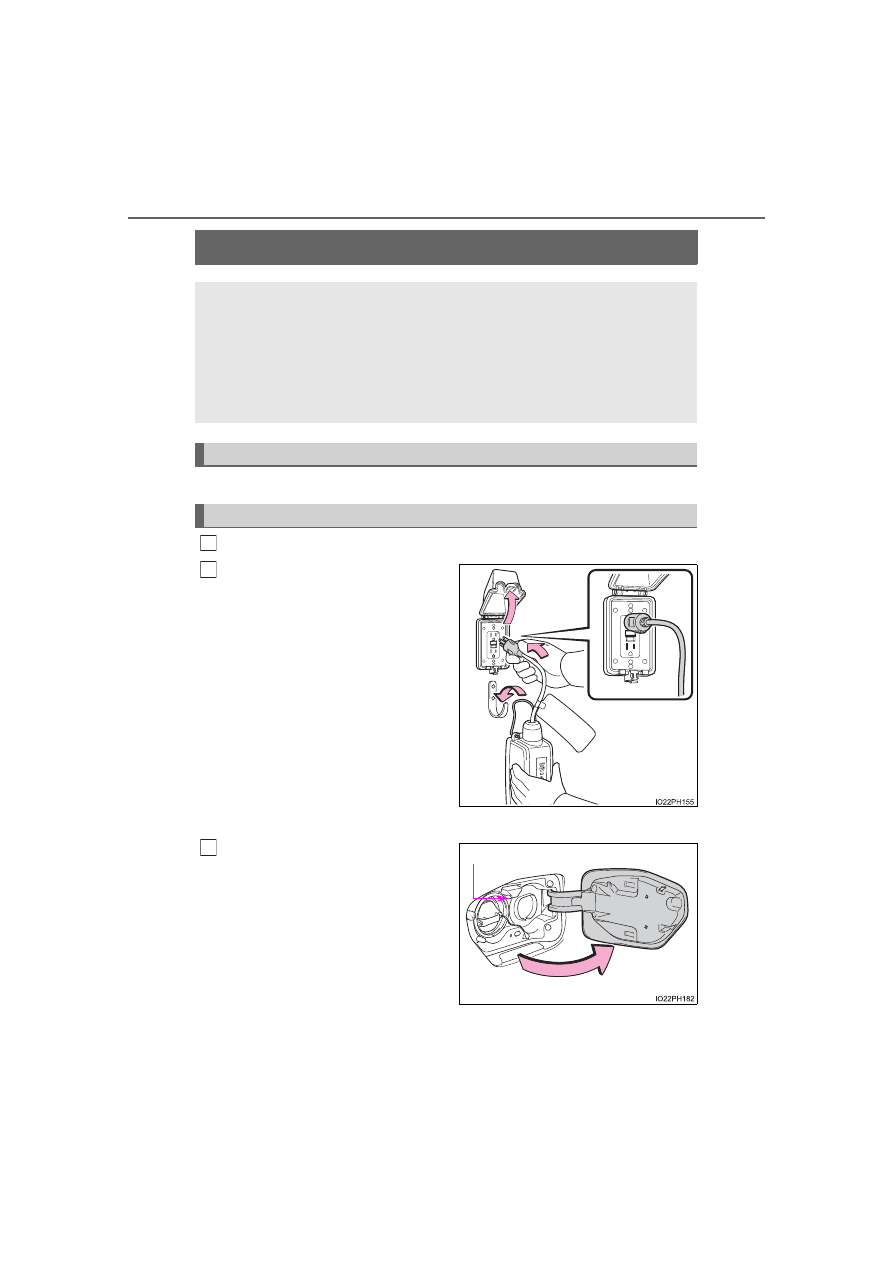

How to charge

P. 142

Prepare the charging cable.
Insert  the  charging  cable  into
the outlet of the external power
source.

Make sure to hold the body of the
plug and insert it firmly into the out-
let.
Check  that  the  power  indicator  on
the  CCID  (Charging  Circuit  Inter-
rupting Device) is illuminated. (If it
is not illuminated, refer to P. 180)
In order to reduce the load on the
outlet and plug, when inserting the
plug, use a string, etc. to hang the
CCID (Charging Circuit Interrupting
Device) on a hook or equivalent.

Open  the  charging  port  lid.
(

P. 111)

The  charging  inlet  light  will  illumi-
nate.

This section explains the procedure for charging the hybrid bat-
tery (traction battery) with the equipped charging cable.
When using a charging station, make sure to check the opera-
tion instructions on the charging station.

When the charge schedule is registered, make sure “Charge Now”
is turned on before charging. (

P. 166, 175)

Confirm the following before charging

When charging

1

2

Charging inlet light

3

147

2-2. Charging

2

Plug-

in hybrid system

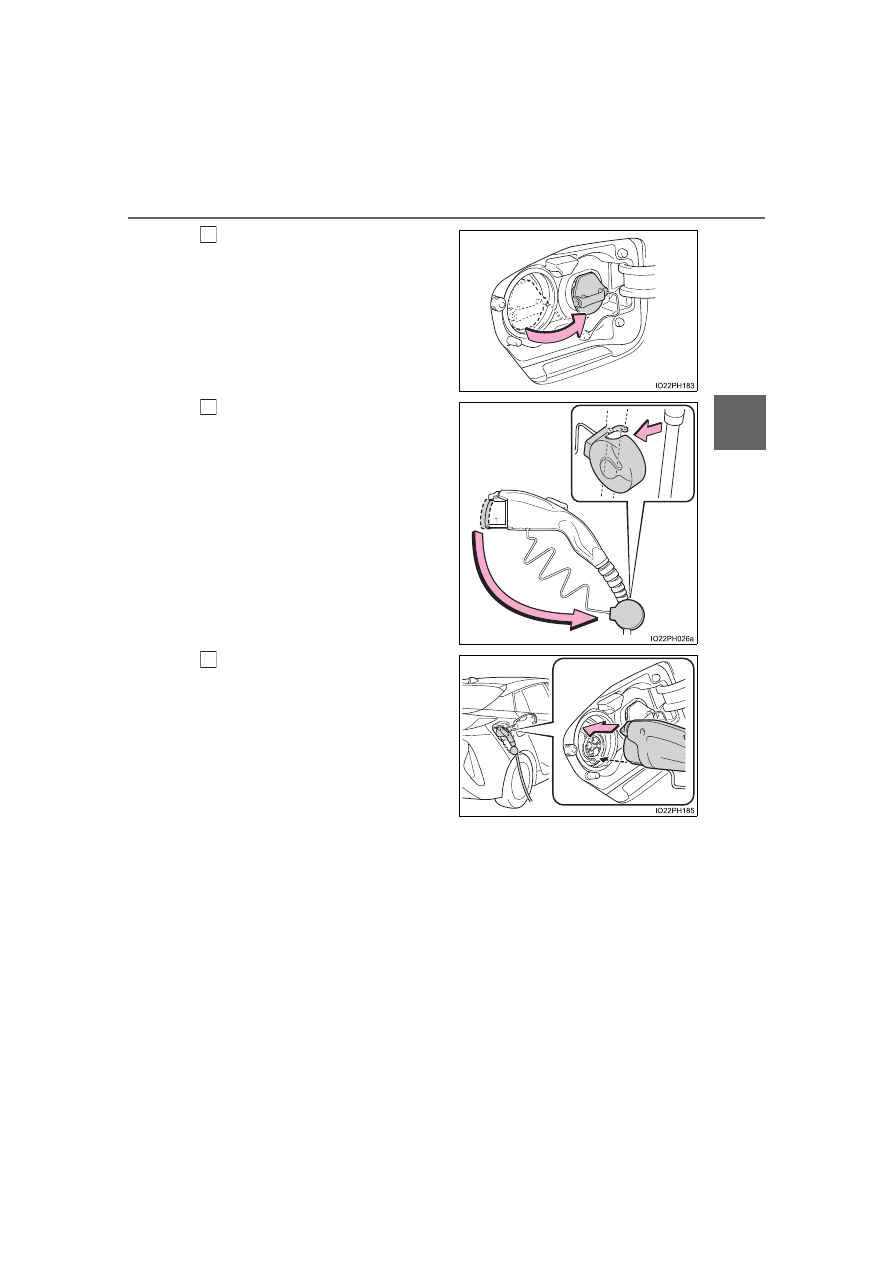

Remove  the  charging  inlet  cap
and  secure  it  as  shown  in  the
illustration.

Remove  the  protective  cap  of
the  charging  connector  and
secure it to the cable.

Insert  the  charging  connector
into the charging inlet.

Align the guide position on the bot-
tom of the charging connector, and
push  the  charging  connector
straight  into  the  charging  inlet  as
far as possible.
Once  a  “click”  sound  is  heard,
check  that  the  charging  connector
is securely locked.

4

5

6

148

2-2. Charging

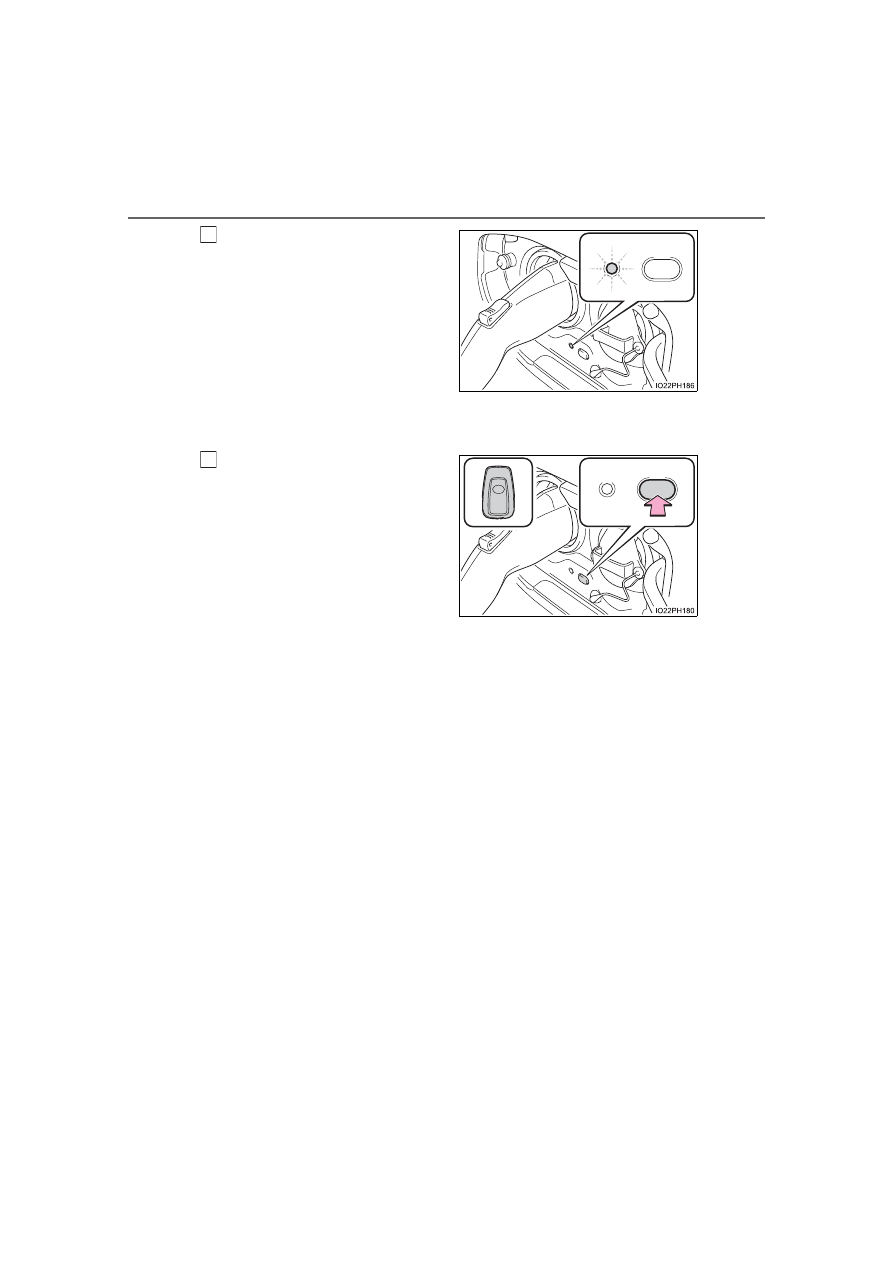

Confirm  that  the  charging  indi-
cator is illuminated.

Charging  will  not  start  if  the
charging  indicator  does  not  illumi-
nate  when  the  charging  connector
is inserted. (

P. 181)

If the charging indicator is flashing,
the  charge  schedule  is  registered.
(

P. 149)

If  the  error  warning  indicator  on  the  CCID  (Charging  Circuit  Interrupting
Device)  flashes  during  charging,  check  P.  118  and  follow  the  correction
procedure.

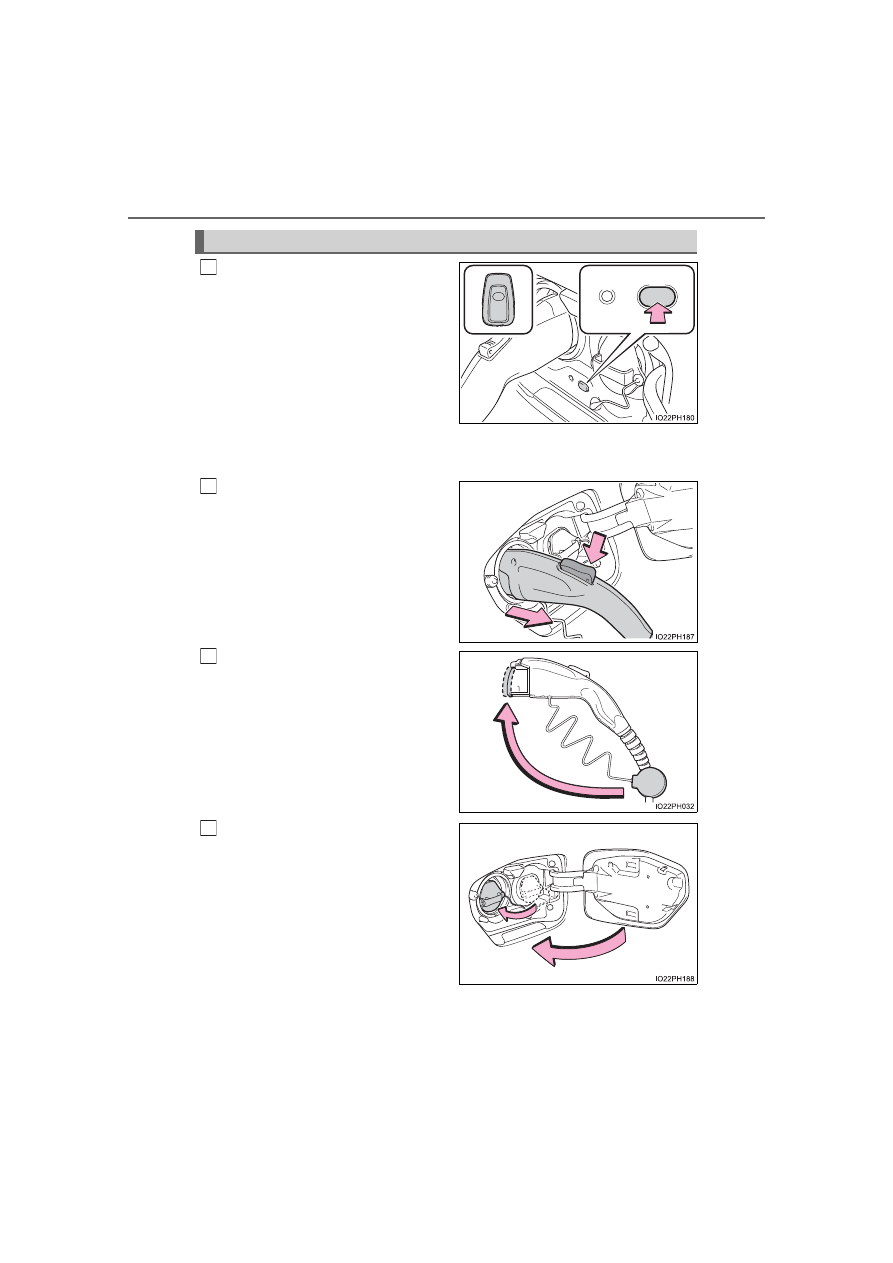

Vehicles  with  smart  lid  &  con-
nector locking system:
When  you  wish  to  lock  the
charging  connector,  carry  an
electronic  key  and  press  the
charging connector lock switch.

The  charging  connector  will  be
locked by the smart lid & connector
locking  system. After  the  charging
connector  is  locked,  the  charging
connector  cannot  be  unlocked  by
pressing  the  charging  connector
lock  switch  if  the  electronic  key  is
not  in  detection  area  of  charging
port lid. (

P. 291)

The charging indicator will turn off when charging is completed.

7

8

149

2-2. Charging

2

Plug-

in hybrid system

■

During charging

●

The surface of the CCID (Charging Circuit Interrupting Device) may become
hot, but this does not indicate a malfunction.

●

Depending  on  radio  wave  conditions,  interference  may  be  heard  on  the
radio.

●

The  current  charging  condition  and  the  estimated  time  until  charging  will
complete can be checked on the multi-information display or 11.6-inch dis-
play (if equipped). (

P. 140, 271)

●

During charging, the hybrid battery (traction battery) status indicator illumi-
nates and flashes, and changes according to the charging amount.
(

P. 112)

■

If the charging indicator flashes after connecting the charging cable
The  charge  schedule  (

P.  157)  is  registered  and  charging  cannot  be  per-

formed. To cancel charging using the timer and start charging, perform any of
the following procedures.

●

Turn “Charge Now” on (

P. 166, 175)

●

While the charging indicator is flashing, remove and reconnect the charging
connector within 5 seconds

■

When the charging connector cannot be inserted into the charging inlet
(vehicles with smart lid & connector locking system)
P. 127

150

2-2. Charging

Vehicles  with  smart  lid  &  con-
nector locking system:
When the charging connector is
locked,  carry  an  electronic  key
and press the charging connec-
tor lock switch.

The

charging

connector

is

unlocked  by  the  smart  lid  &  con-
nector locking system.
Carrying an electronic key and moving near the charging inlet will cause
the charging inlet light to illuminate.

Pull  the  charging  connector
towards you while pressing the
latch release button.

If the charging connector is discon-
nected  during  charging  (while  the
charging  indicator  is  on),  charging
will be interrupted.

Attach  the  charging  connector
cap.

Attach  the  charging  inlet  cap
and close the charging port lid.

After charging

1

2

3

4

151

2-2. Charging

2

Plug-

in hybrid system

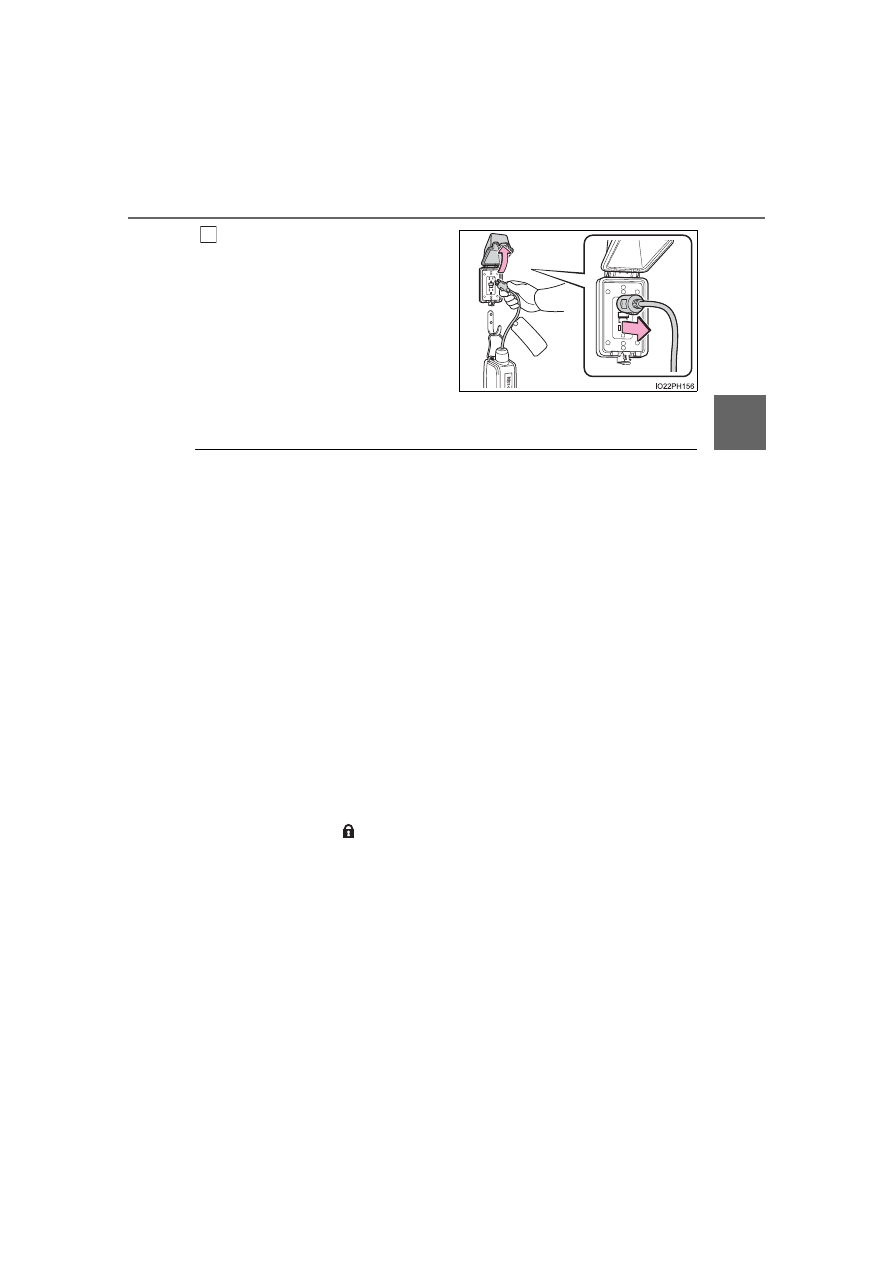

Remove the plug from the out-
let  when  the  charging  equip-
ment  will  not  be  used  for  a
prolonged period of time.

Hold  the  body  of  the  plug  when
removing.
Make  sure  to  put  the  cable  away
immediately  after  disconnecting.
(

P. 155)

When  leaving  the  plug  inserted,  inspect  the  plug  and  connector  once  a
month to check if dirt or dust has accumulated.

■

Charging time
P. 134

■

Safety function
If  the  latch  release  button  is  pressed,  charging  will  not  begin  even  if  the
charging cable is connected.
Also, charging will be stopped if the latch release button is pressed and held
for several seconds during charging. When restarting charging,  reinsert the
charging connector after pulling it out, and check that the charging indicator
illuminates.

■

When the outside temperature is low or high
The level shown on the remaining charge display (

P. 229) may drop slightly

when the power switch is turned to ON mode, even if charging has been com-
pleted and the hybrid battery (traction battery) is fully charged. However, this
does not indicate a malfunction.

■

Charging time may increase
P. 135

■

While charging
When  the  power  switch  is  turned  to  ON  mode  and  the  energy  monitor  dis-
plays, the charging connector is displayed on the energy monitor and the flow
of electricity during charging is displayed (

P. 221). Also, when the charging

connector is locked,

 is displayed.

*

*

: Vehicles with smart lid & connector locking system only

5
