8-2. Steps to take in an emergency

cleared. When the battery is

depleted, have the vehicle

inspected at your Toyota dealer.

●

Some systems may require initial-

ization. (P.556)

■

When removing the battery ter-

minals

When the battery terminals are

removed, the information stored in

the ECU is cleared. Before remov-

ing the battery terminals, contact

your Toyota dealer.

■

Charging the battery

The electricity stored in the battery

will discharge gradually even when

the vehicle is not in use, due to nat-

ural discharge and the draining

effects of certain electrical appli-

ances. If the vehicle is left for a long

time, the battery may discharge,

and the engine may be unable to

start. (The battery recharges auto-

matically during driving.)

■

When recharging or replacing

the battery (vehicles with a

smart key system)

●

In some cases, it may not be pos-

sible to unlock the doors using the

smart key system when the bat-

tery is discharged. Use the wire-

less remote control or the

mechanical key to lock or unlock

the doors.

●

The engine may not start on the

first attempt after the battery has

recharged but will start normally

after the second attempt. This is

not a malfunction.

●

The engine switch mode is memo-

rized by the vehicle. When the

battery is reconnected, the system

will return to the mode it was in

before the battery was dis-

charged. Before disconnecting the

battery, turn the engine switch off.

If you are unsure what mode the

engine switch was in before the

battery discharged, be especially

careful when reconnecting the

battery.

■

When replacing the battery

●

Use a battery that conforms to

European regulations.

●

Use a battery with the same case

size as the previous battery and

an equivalent 20 hour rate capac-

ity (20HR) or greater.

• If the sizes differ, the battery can-

not be properly secured.

• If the 20 hour rate capacity is low,

even if the time period where the

vehicle is not used is a short time,

the battery may discharge and the

engine may not be able to start.

●

For details, consult your Toyota

dealer.

WARNING

■

When removing the battery

terminals

Always remove the negative (-)

terminal first. If the positive (+) ter-

minal contacts any metal in the

surrounding area when the posi-

tive (+) terminal is removed, a

spark may occur, leading to a fire

in addition to electrical shocks

and death or serious injury.

■

Avoiding battery fires or

explosions

Observe the following precautions

to prevent accidentally igniting the

flammable gas that may be emit-

ted from the battery:

●

Make sure each jumper cable is

connected to the correct termi-

nal and that it is not unintention-

ally in contact with any other

than the intended terminal.

●

Do not allow the other end of

the jumper cable connected to

the “+” terminal to come into

contact with any other parts or

metal surfaces in the area, such

as brackets or unpainted metal.

519

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

1

Stop the vehicle in a safe
place and turn off the air con-
ditioning system, and then
stop the engine.

2

If you see steam: Carefully lift
the hood after the steam sub-
sides.
If you do not see steam:
Carefully lift the hood.

3

After the engine has cooled
down sufficiently, inspect the

WARNING

●

Do not allow the + and - clamps

of the jumper cables to come

into contact with each other.

●

Do not smoke, use matches,

cigarette lighters or allow open

flame near the battery.

■

Battery precautions

The battery contains poisonous

and corrosive acidic electrolyte,

while related parts contain lead

and lead compounds. Observe

the following precautions when

handling the battery:

●

When working with the battery,

always wear safety glasses and

take care not to allow any bat-

tery fluids (acid) to come into

contact with skin, clothing or the

vehicle body.

●

Do not lean over the battery.

●

In the event that battery fluid

comes into contact with the skin

or eyes, immediately wash the

affected area with water and

seek medical attention. Place a

wet sponge or cloth over the

affected area until medical

attention can be received.

●

Always wash your hands after

handling the battery support,

terminals, and other bat-

tery-related parts.

●

Do not allow children near the

battery.

NOTICE

■

When handling jumper cables

When connecting the jumper

cables, ensure that they do not

become entangled in the cooling

fan or engine drive belt.

If your vehicle over-

heats

The following may indicate
that your vehicle is over-
heating.



The engine coolant tem-
perature gauge (P.77, 81)
is in the red zone or a loss
of engine power is experi-
enced. (For example, the
vehicle speed does not
increase.)



“Engine Coolant Temp High
Stop in a Safe Place See
Owner’s Manual” is shown
on the multi-information dis-
play.



Steam comes out from
under the hood.

Correction procedures

520

8-2. Steps to take in an emergency

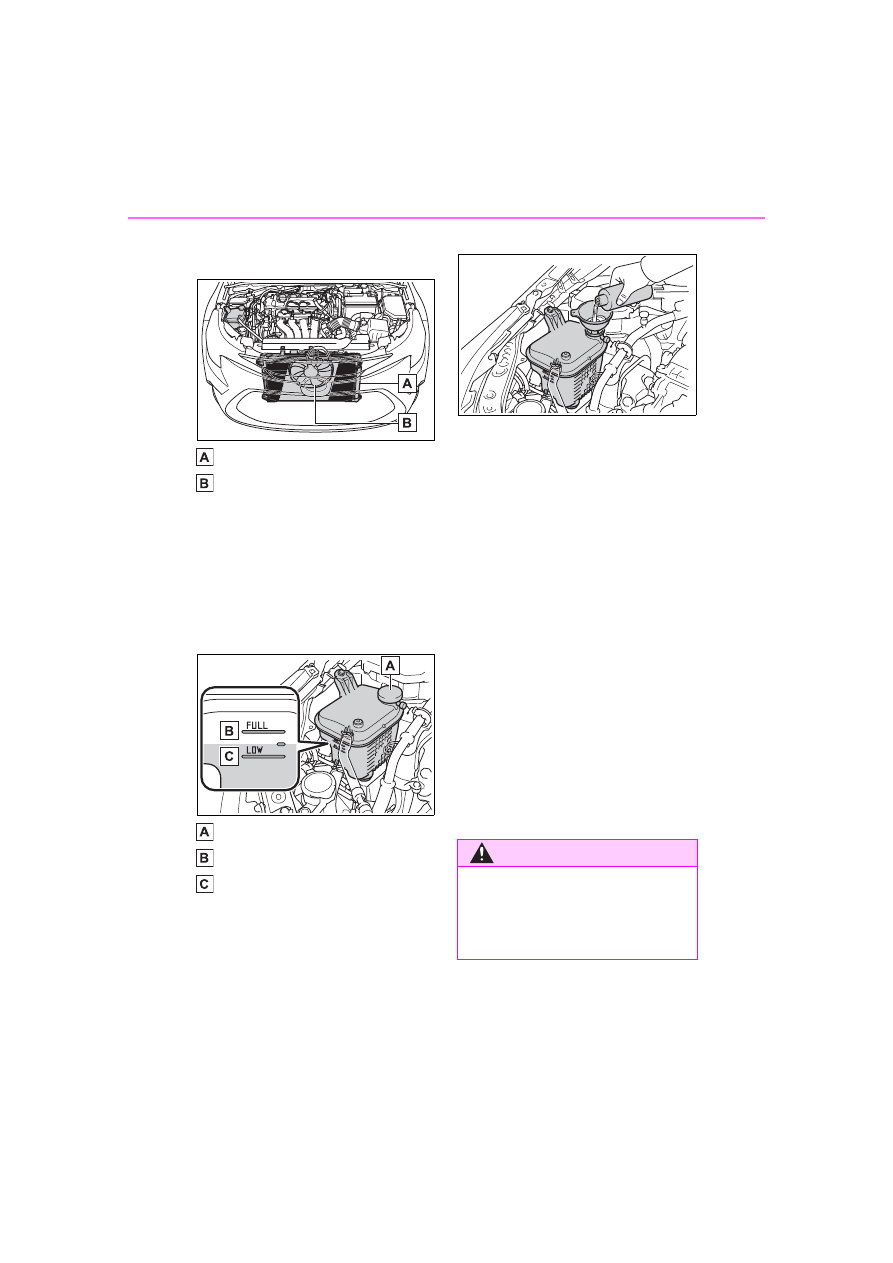

hoses and radiator core (radi-
ator) for any leaks.

Radiator
Cooling fan

If a large amount of coolant leaks,
immediately contact your Toyota
dealer.

4

The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.

Reservoir
“FULL” line
“LOW” line

5

Add engine coolant if neces-
sary.

Water can be used in an emer-

gency if engine coolant is unavail-

able.

6

Start the engine and turn the
air conditioning system on to
check that the radiator cool-
ing fan operates and to check
for coolant leaks from the
radiator or hoses.

The fan operates when the air con-

ditioning system is turned on imme-

diately after a cold start. Confirm

that the fan is operating by check-

ing the fan sound and air flow. If it is

difficult to check these, turn the air

conditioning system on and off

repeatedly. (The fan may not oper-

ate in freezing temperatures.)

7

If the fan is not operating:
Stop the engine immediately
and contact your Toyota
dealer.
If the fan is operating: Have
the vehicle inspected at the
nearest Toyota dealer.

WARNING

■

When inspecting under the

hood of your vehicle

Observe the following precau-

tions. Failure to do so may result

in serious injury such as burns.

521

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 ar

ises

1

Stop the engine. Set the
parking brake and shift the
shift lever to P (continuously
variable transmission) or N
(manual transmission).

2

Remove the mud, snow or
sand from around the front
wheels.

3

Place wood, stones or some
other material under the front
wheels to help provide trac-
tion.

4

Restart the engine.

5

Shift the shift lever to D or R
(continuously variable trans-
mission) or 1 or R (manual
transmission) and release
the parking brake. Then,
while exercising caution,
depress the accelerator
pedal.

■

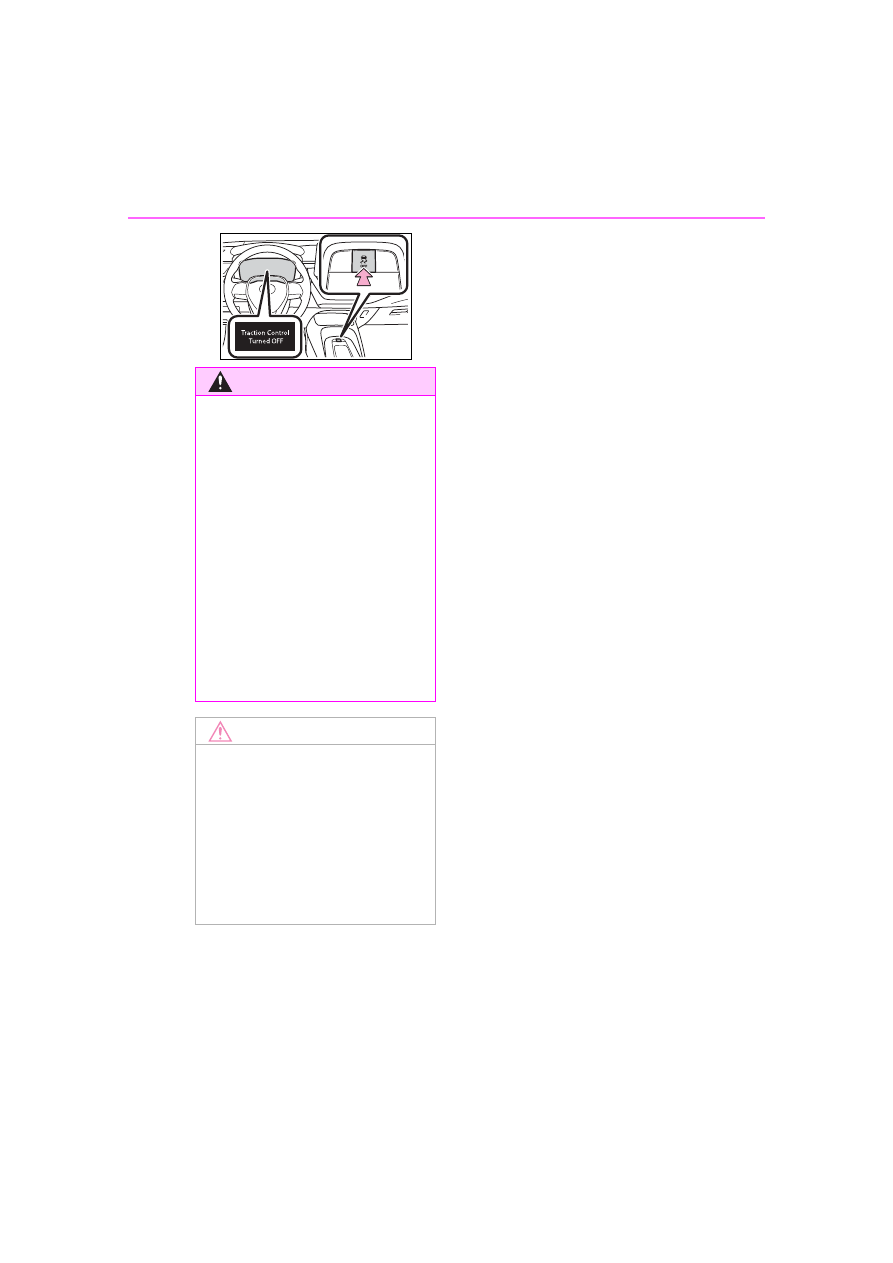

When it is difficult to free the

vehicle

Press the

 switch to turn off

TRAC.

WARNING

●

If steam is seen coming from

under the hood, do not open the

hood until the steam has sub-

sided. The engine compart-

ment may be very hot.

●

Keep hands and clothing (espe-

cially a tie, a scarf or a muffler)

away from the fan and belts.

Failure to do so may cause the

hands or clothing to be caught,

resulting in serious injury.

●

Do not loosen the coolant reser-

voir cap while the engine and

radiator are hot.

High temperature steam or

coolant could spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the

engine has cooled down suffi-

ciently. Adding cool coolant to a

hot engine too quickly can cause

damage to the engine.

■

To prevent damage to the

cooling system

Observe the following precau-

tions:

●

Avoid contaminating the coolant

with foreign matter (such as

sand or dust etc.).

●

Do not use any coolant additive.

If the vehicle becomes

stuck

Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:

Recovering procedure

522

8-2. Steps to take in an emergency

WARNING

■

When attempting to free a

stuck vehicle

If you choose to push the vehicle

back and forth to free it, make

sure the surrounding area is clear

to avoid striking other vehicles,

objects or people. The vehicle

may also lunge forward or lunge

back suddenly as it becomes free.

Use extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift

lever with the accelerator pedal

depressed.

This may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident

resulting in death or serious injury.

NOTICE

■

To avoid damaging the trans-

mission and other compo-

nents

●

Avoid spinning the front wheels

and depressing the accelerator

pedal more than necessary.

●

If the vehicle remains stuck

even after these procedures are

performed, the vehicle may

require towing to be freed.

523

9

9

Vehicle

 specificatio

ns

Vehicle specifications

.

9-1. Specifications

Maintenance data (fuel, oil

level, etc.)..................

524

Fuel information ..........

535

Tire information ...........

537

9-2. Customization

Customizable features

..................................

548

9-3. Initialization

Items to initialize .........

556

524

9-1. Specifications

9-1.Specifications

*1

:Unladen vehicles

*2

:1.8 L 4-cylinder (2ZR-FAE) engine

*3

:2.0 L 4-cylinder (M20A-FKS) engine

■

Vehicle identification num-
ber

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.
This number is stamped under
the right-hand front seat.

This number is also stamped on
the top left of the instrument
panel.

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

182.3 in. (4630 mm)

*2

182.5 in. (4635 mm)

*3

Overall width

70.1 in. (1780 mm)

Overall height

*1

56.5 in. (1435 mm)

Wheelbase

106.3 in. (2700 mm)

Tread

Front

60.3 in. (1531 mm)

Rear

60.8 in. (1544 mm)

Vehicle capacity weight
(Occupants + luggage)

825 lb. (375 kg)

*2

860 lb. (390 kg)

*3

Vehicle identification

525

9-1. Specifications

9

Vehicle

 specificatio

ns

This number is also on the Certi-
fication Label.

■

Engine number

The engine number is stamped
on the engine block as shown.



1.8 L 4-cylinder (2ZR-FAE)
engine



2.0 L 4-cylinder (M20A-FKS)
engine

Engine

Model

1.8 L 4-cylinder (2ZR-FAE)

2.0 L 4-cylinder
(M20A-FKS)

Type

4-cylinder in line, 4-cycle,
gasoline

4-cylinder in line, 4-cycle,
gasoline

Bore and stroke

3.17  3.48 in. (80.5  88.3
mm)

3.17  3.84 in. (80.5  97.6
mm)

Displacement

109.7 cu. in. (1798 cm

3

)

121.3 cu. in. (1987 cm

3

)

Valve clearance

Automatic adjustment

Drive belt tension Automatic adjustment

526

9-1. Specifications

■

Oil capacity (Drain and refill
[Reference

*

])

*

: The engine oil capacity is a refer-

ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 5 minutes, and check the oil
level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-5 multi-
grade engine oil
Recommended viscosity: SAE
0W-20
SAE 0W-20 is the best choice
for good fuel economy and good

starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Recommended viscosity (SAE):

Outside temperature

Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates

the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.

• The 20 in 0W-20 indicates the

viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

87 (Research Octane Number 91) or
higher

Fuel tank capacity
(Reference)

13.2 gal. (50.0 L, 11.0 Imp. gal.)

Lubrication system (1.8 L
4-cylinder [2ZR-FAE]
engine)

With filter

4.4 qt. (4.2 L, 3.7 Imp.
qt.)

Without
filter

4.1 qt. (3.9 L, 3.4 Imp.
qt.)

527

9-1. Specifications

9

Vehicle

 specificatio

ns

value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.

How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you
should use.

■

Oil capacity (Drain and refill
[Reference

*

])

*

: The engine oil capacity is a refer-

ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 5 minutes, and check the oil
level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is

used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: API SN/RC multi-
grade engine oil
Recommended viscosity: SAE
0W-16

Outside temperature

SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.
However, it must be replaced
with SAE 0W-16 at the next oil
change.
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates

the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.

• The 16 in 0W-16 indicates the

viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher

Lubrication system (2.0 L
4-cylinder [M20A-FKS]
engine)

With filter

4.9 qt. (4.6 L, 4.0 Imp.
qt.)

Without

filter

4.5 qt. (4.3 L, 3.8 Imp.
qt.)

528

9-1. Specifications

viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.

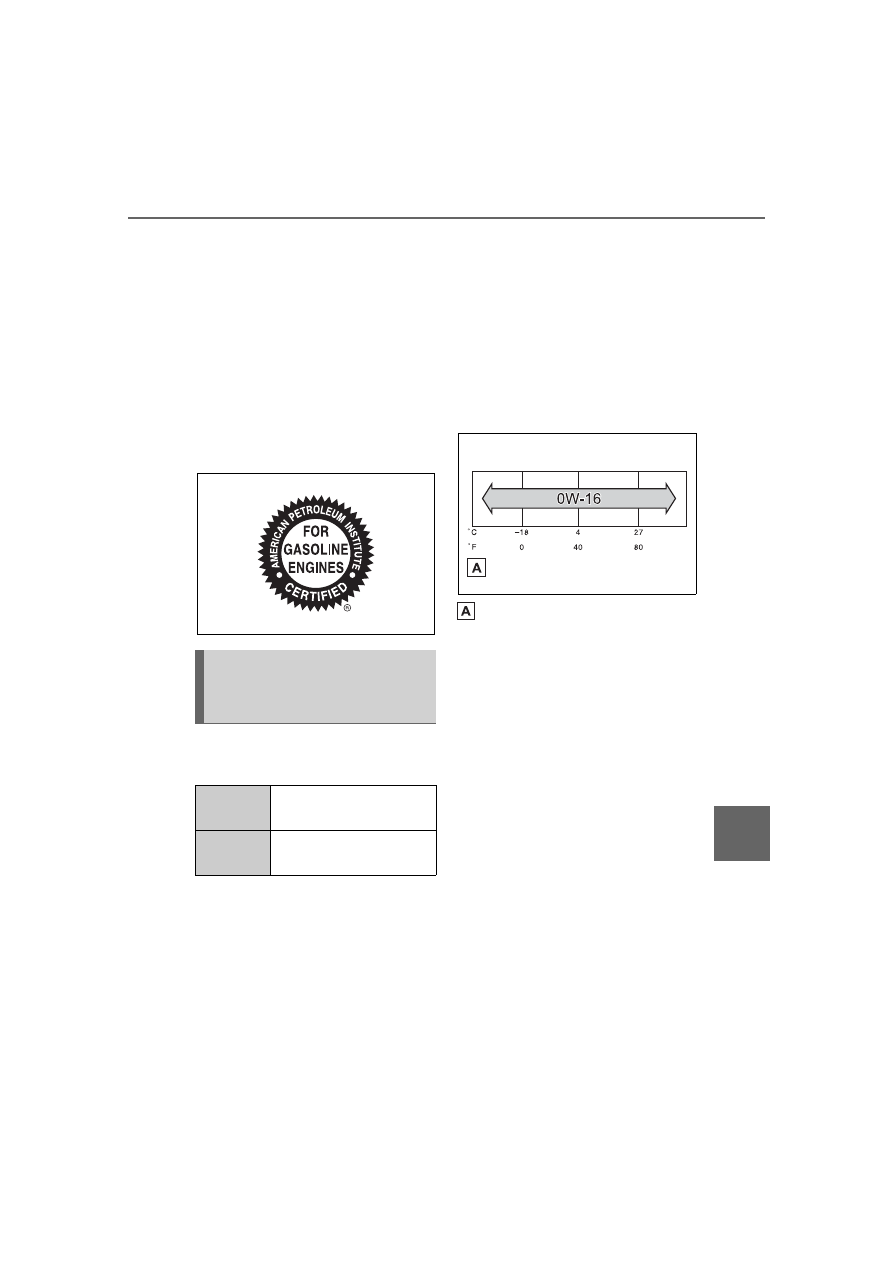

How to read oil container label:
API registered marks is added
to some oil containers to help
you select the oil you should

use.

Cooling system

Capacity (Reference)



1.8 L 4-cylinder (2ZR-FAE) engine

Continuously variable transmission:
6.1 qt. (5.8 L, 5.1 Imp. qt.)
Manual transmission:
5.9 qt. (5.6 L, 4.9 Imp. qt.)



2.0 L 4-cylinder (M20A-FKS) engine

Continuously variable transmission:
6.6 qt. (6.2 L, 5.5 Imp. qt.)
Manual transmission:
6.2 qt. (5.9 L, 5.2 Imp. qt.)

Coolant type

Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-based

non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid organic
acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make



1.8 L 4-cylinder (2ZR-FAE) engine

DENSO FC16HR-Q8



2.0 L 4-cylinder (M20A-FKS) engine

DENSO FC20HR-Q8

Gap

0.032 in. (0.8 mm)

529

9-1. Specifications

9

Vehicle

 specificatio

ns

*

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (battery)

Open voltage at 68°F (20°C):

12.3 V or higher
(Turn the engine switch off and turn on the
high beam headlights for 30 seconds.)

Charging rates
Quick charge
Slow charge

15 A max.
5 A max.

Continuously variable transmission

Fluid capacity

*



1.8 L 4-cylinder (2ZR-FAE) engine

7.9 qt. (7.5 L, 6.6 Imp. qt.)



2.0 L 4-cylinder (M20A-FKS) engine

9.0 qt. (8.5 L, 7.5 Imp. qt.)

Fluid type

Toyota Genuine CVT Fluid FE

NOTICE

■

Continuously variable transmission fluid type

Using continuously variable transmission fluid other than “Toyota Genuine

CVT Fluid FE” may cause deterioration in shift quality, locking up of trans-

mission accompanied by vibration and, ultimately, damage to the vehicle’s

transmission.

Manual transmission

Gear oil capacity (Reference)



1.8 L 4-cylinder (2ZR-FAE) engine

2.5 qt. (2.4 L, 2.1 Imp. qt.)



2.0 L 4-cylinder (M20A-FKS) engine

1.6 qt. (1.5 L, 1.3 Imp. qt.)

Gear oil type

“TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” or equivalent

530

9-1. Specifications

NOTICE

■

Manual transmission gear oil type

●

Please be aware that depending on the particular characteristics of the

gear oil used or the operating conditions, idle sound, shift feeling and/or

fuel efficiency may be different or affected and, in the worst case, dam-

age to the vehicle’s transmission.

Toyota recommends to use “TOYOTA Genuine Manual Transmission

Gear Oil LV GL-4 75W” to achieve optimal performance.

●

Your Toyota vehicle is filled with “TOYOTA Genuine Manual Transmis-

sion Gear Oil LV GL-4 75W” at the factory.

Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oil

LV GL-4 75W” or an equivalent oil of matching quality that satisfies the

above specifications.

Please contact your Toyota dealer for further details.

Clutch

Pedal free play

0.1  0.6 in. (3  15 mm)

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

Brakes

Pedal clearance

*1

4.1 in. (105 mm) Min.

Pedal free play

0.04  0.24 in. (1  6 mm)

Parking brake lever travel

*2, 3

5  8 clicks

Brake pad wear limit



Front

0.06 in. (1.5 mm)



Rear

Vehicles without a electric parking brake:
0.06 in. (1.5 mm)
Vehicles with a electric parking brake:
0.08 in. (2.0 mm)

531

9-1. Specifications

9

Vehicle

 specificatio

ns

*1

:Minimum pedal clearance when depressed with a force of 67.4 lbf (300

N, 30.6 kgf) while the engine is running.

*2

:If equipped

*3

:Parking brake lever travel when pulled up with a force of 45.0 lbf (200 N,

20.4 kgf)

*4

:Make sure to confirm that the brake system warning light (yellow) does

not illuminate. (If the brake system warning light illuminates, refer to
P.481.)



Type A

Parking brake indicator

*4

When pulling the parking brake switch for
1 to 2 seconds: comes on
When pushing the parking brake switch for
1 to 2 seconds: turns off

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

195/65R15 91S, T125/70D17 98M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

38 psi (260 kPa, 2.6 kgf/cm

2

 or bar)



Rear

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

15  6 1/2J, 17  4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

532

9-1. Specifications



Type B



Type C



Type D

Tire size

205/55R16 91H, T125/70D17 98M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)



Rear

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

16  7J, 17  4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

205/55R16 91V, T125/70D17 98M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

32 psi (220 kPa, 2.2 kgf/cm

2

 or bar)



Rear

32 psi (220 kPa, 2.2 kgf/cm

2

 or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

16  7J, 17  4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

225/40R18 88V, T125/70D17 98M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)



Rear

30 psi (210 kPa, 2.1 kgf/cm

2

 or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

18  8J, 17  4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

533

9-1. Specifications

9

Vehicle

 specificatio

ns



Type E



Type F

Tire size

195/65R15 91S

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

38 psi (260 kPa, 2.6 kgf/cm

2

 or bar)



Rear

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)



Spare

None

Wheel size

15  6 1/2J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

205/55R16 91H

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)



Rear

33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)



Spare

None

Wheel size

16  7J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Light bulbs

Light bulbs

Bulb No.

W

Type

Exterior

Front side marker lights

—

5

A

Front turn signal /parking lights
(vehicles without side turn signal
lights)

7444NA

28/8

B

Rear side marker lights (bulb
type)

—

5

A

Rear turn signal lights

—

21

B

Back-up lights

—

16

A
