2-1. Instrument cluster

■

Display



4.2-inch display

Driving support system status
display area

Displays an image when the follow-
ing systems are operating and a
menu icon other than

 is

selected:
• LTA (Lane Tracing Assist) (if

equipped)

• LDA (Lane Departure Alert with

steering control) (if equipped)

• Dynamic radar cruise control (if

equipped)

• Dynamic radar cruise control with

full-speed range (if equipped)

• RSA (Road Sign Assist) (if

equipped) (P.233)

Content display area

By selecting menu icons on the
multi-information display, a variety
of driving-related information can
be displayed. The multi-information
display can also be used to change
display settings and other vehicle
settings.
Warning or advice pop-up displays

are also displayed in certain situa-
tions.



7-inch display

Driving support system status
display area

Displays an image when the follow-
ing systems are operating and a
menu icon other than

 is

selected:
• LTA (Lane Tracing Assist)
• Dynamic radar cruise control with

full-speed range

• RSA (Road Sign Assist) (if

equipped) (P.233)

Content display area

By selecting menu icons on the
multi-information display, a variety
of driving-related information can
be displayed. The multi-information
display can also be used to change
display settings and other vehicle
settings.
Warning or advice pop-up displays
are also displayed in certain situa-
tions.

■

Menu icons

The menu icons will be dis-
played by pressing the

 or



meter control switch.

Multi-information dis-

play

Display and menu icons

87

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

The multi-information display is
operated using the meter control
switches.

/

: Select menu icons

/

: Change displayed

content, scroll up/down the
screen and move the cursor
up/down
Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items
Return to the previous screen
Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

■

Display items



Speedometer display/Driving
range (4.2-inch display)



Fuel economy



Eco Driving Indicator/Driving
range (if equipped)

Driving information display
(P.87)
Driving support system
information display
(P.89)
Audio system-linked dis-
play (P.90)
Vehicle information dis-
play (P.90)

Settings display (P.90)

Warning message display
(P.490)

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures

P.78, 83

Changing the meter dis-
play

Content of driving infor-
mation

88

2-1. Instrument cluster

■

Speedometer display/Driv-
ing range (4.2-inch display)



Speedometer display



Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.
This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

■

Fuel economy

Use the displayed values as a ref-
erence only.

Average fuel economy (after
reset)

To reset the average fuel economy

display, press and hold the



meter control switch.

Current fuel consumption

Displays instantaneous current fuel
consumption.

Driving range

Displays driving range with remain-
ing fuel.
This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

The average fuel economy dis-
play can be changed in

.

(P.90)


Average fuel economy (after
start)

Displays the average fuel con-
sumption since engine start.



Average fuel economy (after
refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

■

Eco Driving Indicator/Driv-
ing range (if equipped)



Eco Driving Indicator

89

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

Eco Driving Indicator Light

During Eco-friendly acceleration
(Eco driving), the Eco Driving Indi-
cator Light will turn on. When the
acceleration exceeds the Zone of
Eco driving, or when the vehicle is
stopped, the light turns off.

Eco Driving Indicator Zone
Display

Suggests the Zone of Eco driving
with current Eco driving ratio based
on acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds the
Zone of Eco driving, the right side
of the Eco Driving Indicator Zone
Display will illuminate.
At this time, the Eco Driving Indica-
tor Light will turn off.

Zone of Eco driving



Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.

This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

■

Eco Driving Indicator

Eco Driving Indicator will not oper-

ate under the following conditions:

●

The shift lever is in any position

other than D.

●

A paddle shift switch is operated.

(If equipped)

●

The driving mode is set to sport

mode. (If equipped)

●

The vehicle speed is approxi-

mately 80 mph (130 km/h) or

higher.

■

Driving support system
information

Select to display the operational
status of the following systems:


LTA (Lane Tracing Assist) (if
equipped) (P.195)



LDA (Lane Departure Alert
with steering control) (if
equipped) (P.205)



Dynamic radar cruise control
(if equipped) (P.223)



Dynamic radar cruise control

Driving support system
information display

90

2-1. Instrument cluster

with full-speed range (if
equipped) (P.213)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation:


Route guidance to destination



Compass display (head-
ing-up display)

Select to enable selection of an
audio source or track on the
meter using the meter control
switches.

This menu icon can be set to be
displayed/not displayed in

.

■

Drive information

Displays drive information such as
the following:

Drive information type
Drive information items

Displays the following depend-
ing on which drive information
type and drive information items
were selected in

. (P.90)



After start

• Distance: Displays the distance

driven since engine start

• Elapsed time: Displays the

elapsed time since engine start

• Average vehicle speed: Displays

the average vehicle speed since
engine start



After reset

• Distance: Displays the distance

driven since the display was
reset

*

• Elapsed time: Displays the

elapsed time since the display
was reset

*

• Average vehicle speed: Displays

the average vehicle speed since
the display was reset

*

*

: To reset, display the desired item

and press and hold the



meter control switch.

■

Meter display settings that
can be changed



Language

Select to change the language dis-
played.



Units

Select to change the units of mea-
sure displayed.



Speedometer display (7-inch

Audio system-linked dis-
play

Vehicle information dis-
play

Settings display

91

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

display)

Select to set the display of the
speedometer to analog/digital.



Eco Driving Indicator Light (if
equipped)

Select to enable/disable the Eco
Driving Indicator Light.



• Fuel economy display
Select to change the average fuel
consumption display between after
start/after reset. (P.88)



Select to display/not display the
audio system linked display.



Select to change the displayed con-
tent of the following:
• Drive information type
Select to change the drive informa-
tion type display between after
start/after reset.
• Drive information items
Select to set the first and second
items of the drive information dis-
play to any of the following: aver-
age vehicle
speed/distance/elapsed time.



Pop-up display

Select to enable/disable pop-up
displays for each relevant system.



Multi-information display off

Select to turn the multi-information
display off.
To turn the multi-information display
on again, press any of the following
meter control switches

/

/

/

/

/

.



Default setting

Select to reset the meter display
settings to the default setting.

■

Vehicle functions and set-
tings that can be changed

P.548

■

Suspension of the settings dis-

play

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe

place.

●

If a warning message is displayed,

operation of the settings display

will be suspended.

WARNING

■

Cautions during setting up

the display

If the engine is running when

changing the display settings,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge,

ensure that the engine is running

while setting up the display fea-

tures.

92

2-1. Instrument cluster

Audio system screen

■

Trip information



Entune Audio without
DCM/Entune Audio Plus with-
out DCM

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

If a screen other than “Trip Informa-
tion” is displayed, select “Trip Infor-
mation”.



Entune Audio with
DCM/Entune Audio Plus with
DCM/Entune Premium Audio

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

3

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “Trip Informa-
tion” is displayed, select “Trip Infor-
mation”.

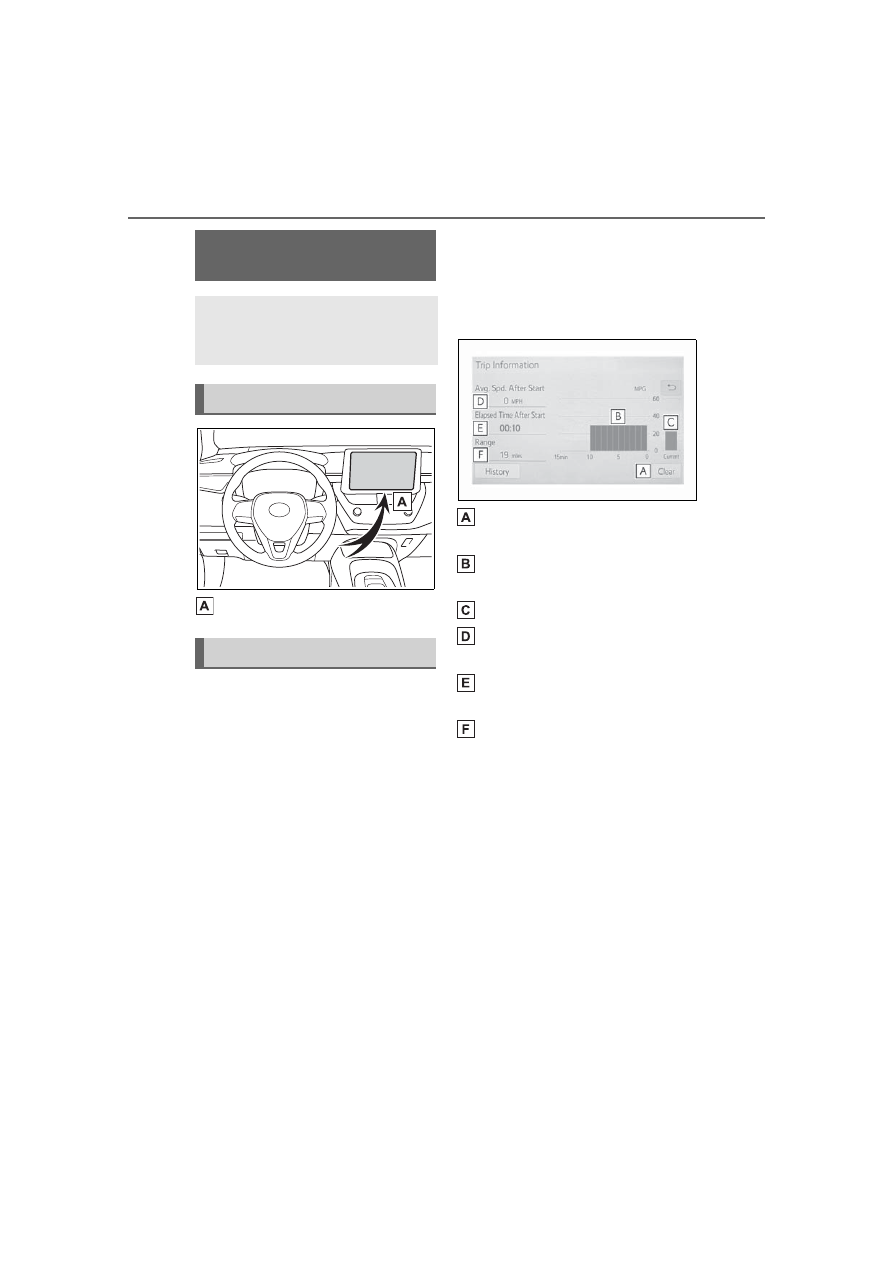

Resetting the consumption
data
Fuel consumption in the past
15 minutes
Current fuel consumption
Average vehicle speed since
the engine was started.
Elapsed time since the
engine was started.
Cruising range

Average fuel consumption for
the past 15 minutes is divided
by color into past averages and
averages attained since the
engine switch was last turned to
ON. Use the displayed average
fuel consumption as a refer-
ence.

The image is an example only, and
may vary slightly from actual condi-
tions.

Fuel consumption

information

Fuel consumption informa-
tion can be displayed on the
audio system screen.

System components

Consumption

93

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

■

History



Entune Audio without
DCM/Entune Audio Plus with-
out DCM

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

If a screen other than “History” is
displayed, select “History”.



Entune Audio with
DCM/Entune Audio Plus with
DCM/Entune Premium Audio

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

3

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “History” is
displayed, select “History”.

Best recorded fuel consump-
tion
Latest fuel consumption
Previous fuel consumption
record
Resetting the history data
Updating the latest fuel con-
sumption data

The average fuel consumption

history is divided by color into
past averages and the average
fuel consumption since the last
updated. Use the displayed
average fuel consumption as a
reference.

The image is an example only, and
may vary slightly from actual condi-
tions.

■

Updating the history data

Update the latest fuel consumption

by selecting “Clip” to measure the

current fuel consumption again.

■

Resetting the data

The fuel consumption data can be

deleted by selecting “Clear”.

■

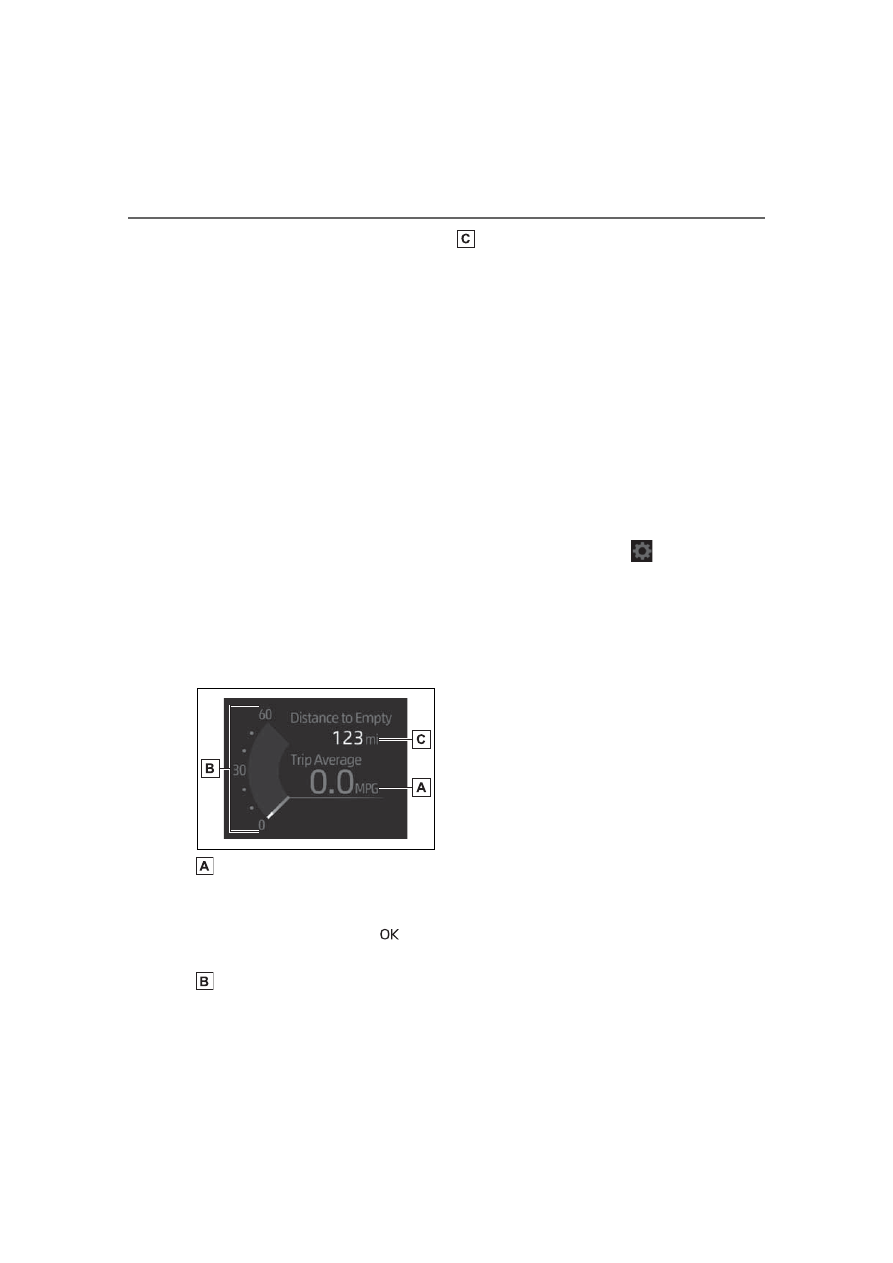

Cruising range

Displays the estimated maximum

distance that can be driven with the

quantity of fuel remaining.
This distance is computed based on

your average fuel consumption.

As a result, the actual distance that

can be driven may differ from that

displayed.

94

2-1. Instrument cluster

95

3

3

Before driv

ing

Before driving

.

3-1. Key information

Keys ...............................

96

3-2. Opening, closing and

locking the doors

Doors ..........................

103

Trunk ...........................

108

Smart key system .......

111

3-3. Adjusting the seats

Front seats ..................

118

Rear seats...................

119

Head restraints............

121

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ............

123

Inside rear view mirror

..................................

124

Outside rear view mirrors

..................................

125

3-5. Opening and closing the

windows

Power windows ...........

127

Moon roof....................

130

96

3-1. Key information

3-1.Key information

The following keys are provided
with the vehicle.



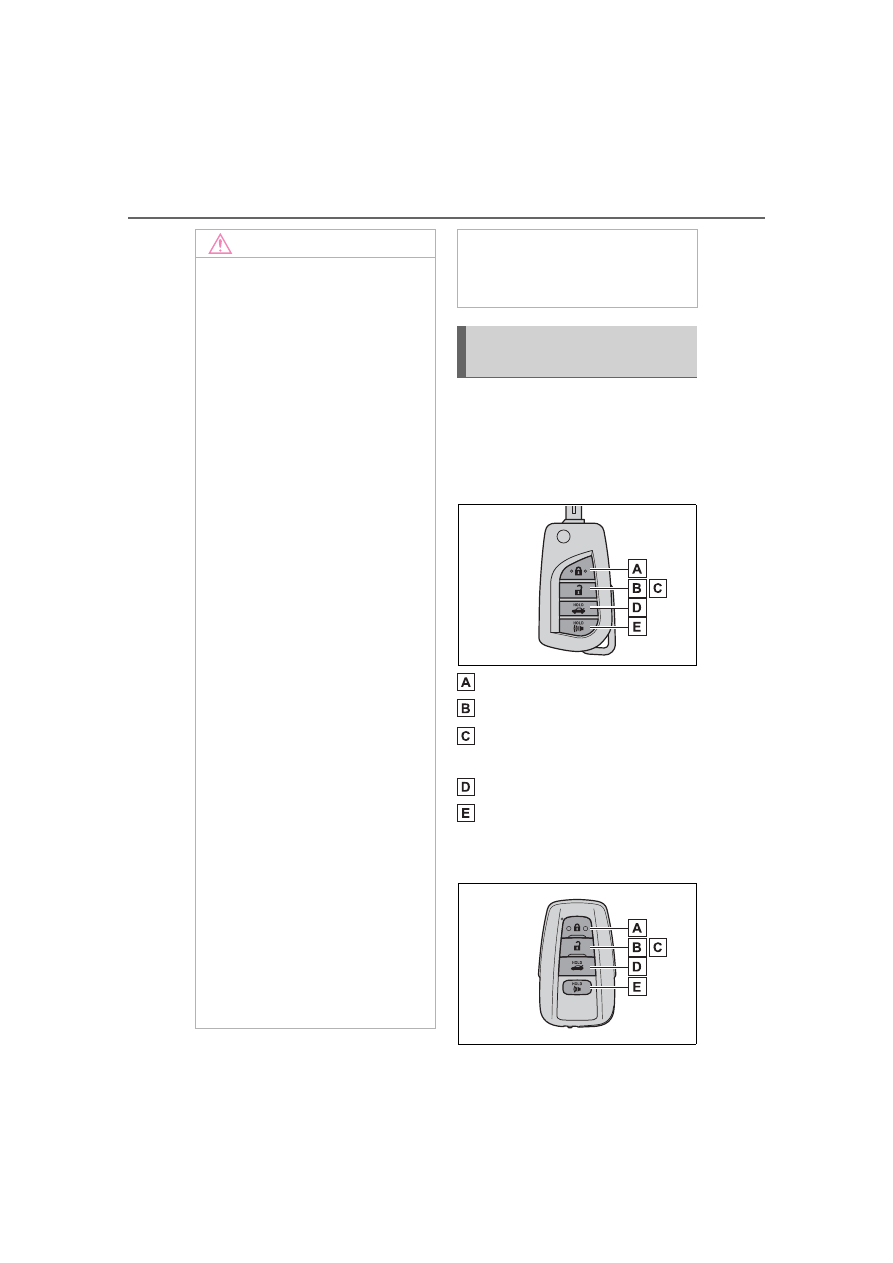

Type A

Keys (without a wireless
remote control function)
 Key number plate



Type B

Key (with a wireless remote
control function)

Operating the wireless remote con-
trol function (→P.98)

Keys (without a wireless
remote control function)
 Key number plate



Type C

Keys (with a wireless remote
control function)

Operating the wireless remote con-
trol function (→P.98)

 Key number plate



Type D

 Electronic keys

• Operating the smart key system

(

P.111

)

• Operating the wireless remote

control function (

P.98

)

 Mechanical keys
 Key number plate

■

When riding in an aircraft (with

a wireless remote control func-

tion)

When bringing a key with wireless

remote control function onto an air-

craft, make sure you do not press

any buttons on the key while inside

the aircraft cabin. If you are carrying

Keys

The keys

97

3-1. Key information

3

Before driv

ing

the key in your bag, etc., ensure that

the buttons are not likely to be

pressed accidentally. Pressing a

button may cause the key to emit

radio waves that could interfere with

the operation of the aircraft.

■

Key battery depletion (with a

wireless remote control func-

tion)



Vehicles without a smart key sys-

tem

●

The standard battery life is 1 to 2

years.

●

The battery will become depleted

even if the key is not used. The

following symptoms indicate that

the key battery may be depleted.

Replace the battery when neces-

sary. (P.458)

• The wireless remote control does

not operate.

• The detection area becomes

smaller.



Vehicles with a smart key system

●

The standard battery life is 1 to 2

years.

●

If the battery becomes low, an

alarm will sound in the cabin and a

message will be shown on the

multi-information display when the

engine is stopped.

●

To reduce key battery depletion

when the electronic key is to not

be used for long periods of time,

set the electronic key to the bat-

tery-saving mode. (P.113)

●

As the electronic key always

receives radio waves, the battery

will become depleted even if the

electronic key is not used. The fol-

lowing symptoms indicate that the

electronic key battery may be

depleted. Replace the battery

when necessary. (P.458)

• The smart key system or the wire-

less remote control does not oper-

ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

●

To avoid serious deterioration, do

not leave the electronic key within

3 ft. (1 m) of the following electri-

cal appliances that produce a

magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones

and battery chargers

• Recharging cellular phones or

cordless phones

• Table lamps

• Induction cookers

●

If the electronic key is near the

vehicle for longer than necessary,

even if the smart key system is not

operated, the key battery may

become depleted faster than nor-

mal.

■

Replacing the battery (with a

wireless remote control func-

tion)

P.458

■

If “A New Key has been Regis-

tered Contact Your Dealer for

Details” is shown on the

multi-information display (vehi-

cles with a smart key system)

This message will be displayed

each time the driver’s door is

opened when the doors are

unlocked from the outside for

approximately 10 days after a new

electronic key has been registered.

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer to

check if an unknown electronic key

(other than those in your posses-

sion) has been registered.

■

If a wrong key is used (with a

wireless remote control func-

tion)

The key cylinder rotates freely, iso-

lated from the internal mechanism.

98

3-1. Key information

The keys are equipped with the
following wireless remote con-
trol:



Vehicles without a smart key
system

Locks the doors (P.103)
Unlocks the doors (P.103)
Opens the windows

*1

 and

moon roof

*1, 2

 (P.103)

Opens the trunk (P.110)
Sounds the alarm (P.99)



Vehicles with a smart key sys-
tem

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks or bend

them.

●

Do not expose the keys to high

temperatures for long periods of

time.

●

Do not get the keys wet or wash

them in an ultrasonic washer

etc.

●

Vehicles with a smart key sys-

tem: Do not attach metallic or

magnetic materials to the keys

or place the keys close to such

materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or any-

thing else to the surface of the

key.

●

Vehicles with a smart key sys-

tem: Do not place the keys near

objects that produce magnetic

fields, such as TVs, audio sys-

tems and induction cookers, or

medical electrical equipment,

such as low-frequency therapy

equipment.

■

Carrying the electronic key

on your person (vehicles with

a smart key system)

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other

key-related problems (vehi-

cles with a smart key system)

P.513

■

When an electronic key is lost

(vehicles with a smart key

system)

P.513

Wireless remote control
(if equipped)

99

3-1. Key information

3

Before driv

ing

Locks the doors (P.103)
Unlocks the doors (P.103)
Opens the windows

*1

 and

moon roof

*1, 2

 (P.103)

Opens the trunk (P.110)
Sounds the alarm (P.99)

*1

:This setting must be customized

at your Toyota dealer.

*2

:If equipped

■

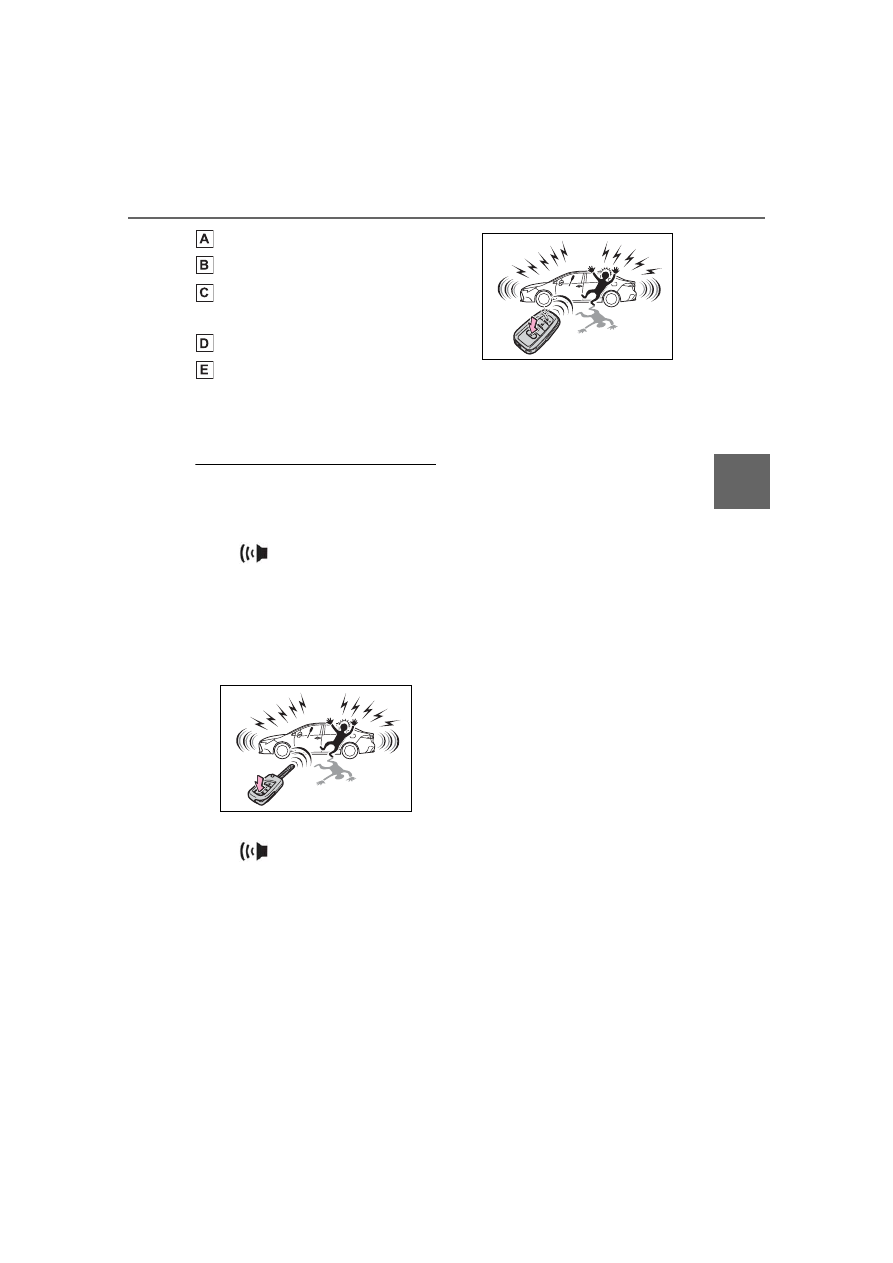

Panic mode (with a wireless

remote control function)



Vehicles without a smart key sys-

tem

When

 is pressed for longer

than about one second, an alarm

will sound intermittently and the

vehicle lights will flash to deter any

person from trying to break into or

damage your vehicle.
To stop the alarm, press any button

on the wireless remote control.



Vehicles with a smart key system

When

 is pressed for longer

than about one second, an alarm

will sound intermittently and the

vehicle lights will flash to deter any

person from trying to break into or

damage your vehicle.
To stop the alarm, press any button

on the electronic key.

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control (with a

wireless remote control func-

tion)



Vehicles without a smart key sys-

tem

The wireless remote control function

may not operate normally in the fol-

lowing situations:

●

When the wireless key battery is

depleted

●

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

●

When carrying a portable radio,

cellular phone or other wireless

communication devices

●

When the wireless key is in con-

tact with, or is covered by a metal-

lic object

●

When a wireless key (that emits

radio waves) is being used nearby

●

If window tint with a metallic con-

tent or metallic objects are

attached to the rear window



Vehicles with a smart key system

P.113

100

3-1. Key information

1

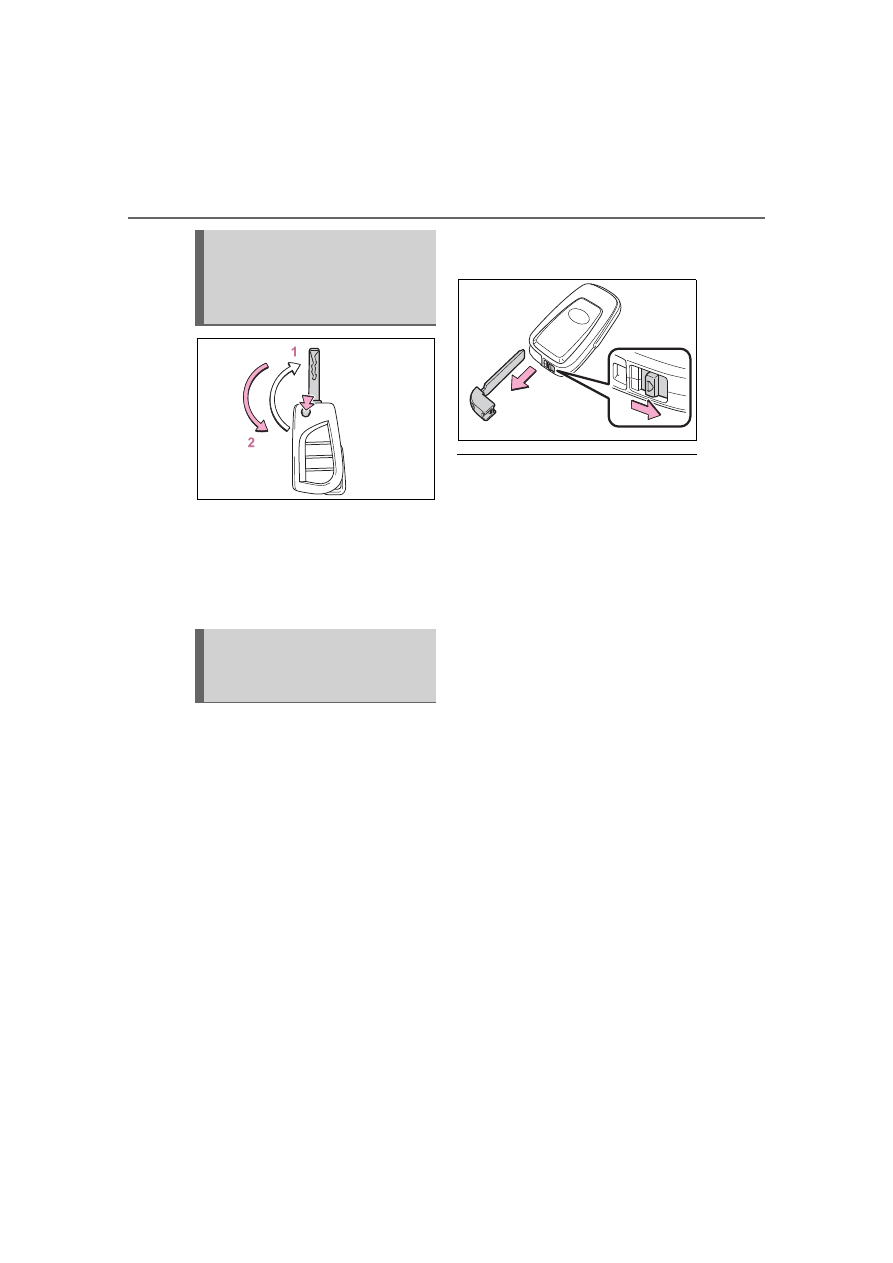

 Releasing

To release the key, press the button

2

 Folding

To stow the key, press the button
then fold the key.

To take out the mechanical key,
slide the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one
side. If the key cannot be
inserted in a lock cylinder, turn it
over and re-attempt to insert it.
After using the mechanical key,
store it in the electronic key.
Carry the mechanical key
together with the electronic key.
If the electronic key battery is
depleted or the entry function
does not operate properly, you

will need the mechanical key.
(P.513)

■

If you lose your mechanical

keys

P.513

Using the key (vehicles
without a smart key sys-
tem and with a wireless
remote control function)

Using the mechanical key
(vehicles with a smart key
system)

101

3-1. Key information

3

Before driv

ing

■

Certification for the wireless remote control (vehicles without a

smart key system)



Except for vehicles sold in Canada



For vehicles sold in Canada
