Locking Arm

Hold back
rib to pull
connector

back ribs

B–53

TERMINAL AND CONNECTOR REPAIR–HOW TO INSTALL AND REMOVE SPECIAL CONNECTORS

69

Wire Harness Repair Manual

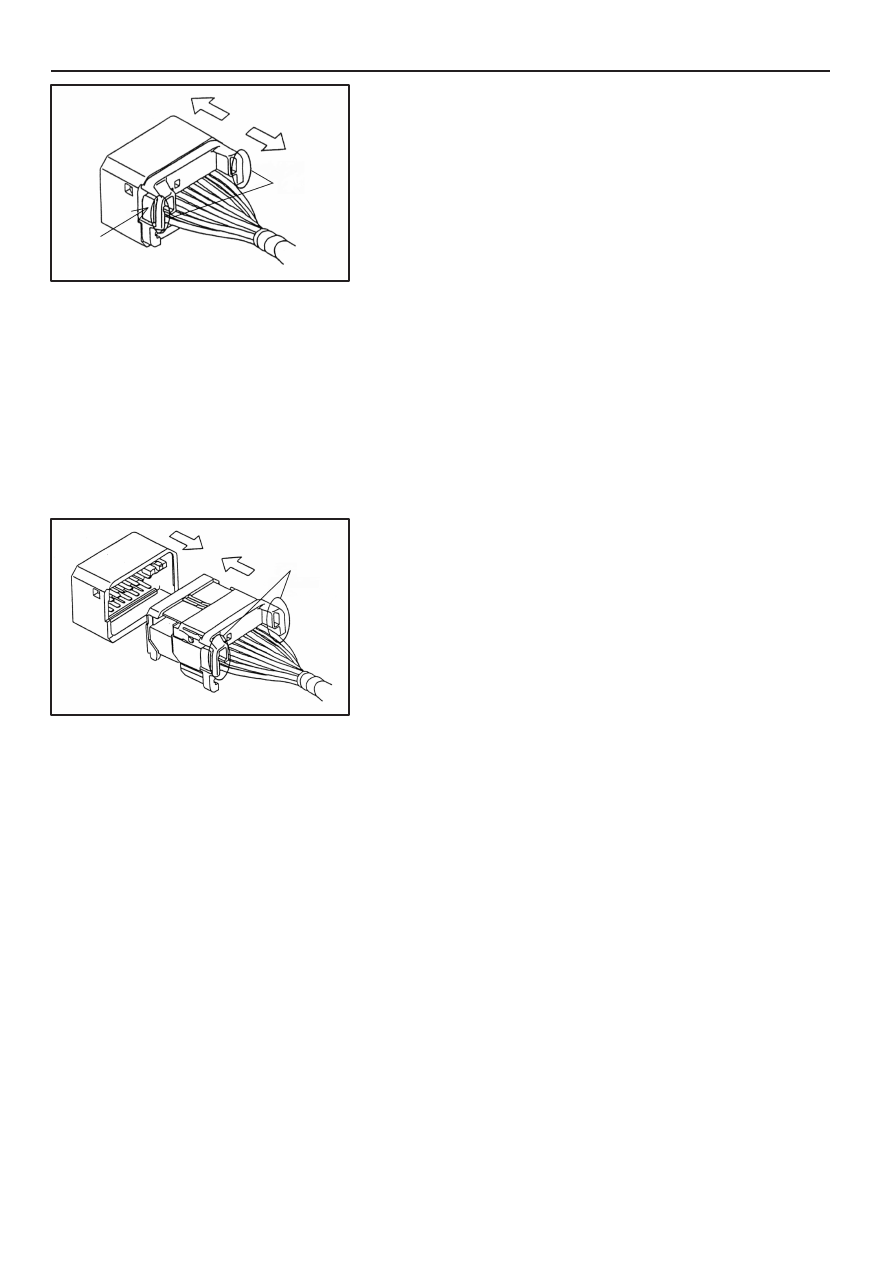

1.

Cut the connection of the connector

(1)

Push down on locking arm to unlock. Then hold the
back ribs of connector to remove connector.

(2)

Cut the Connection of the connector.

NOTICE:
Do not hold the wire harness to pull it.

2.

Connect the Connector

(1)

Align the direction of locking feature in same direction
and mate the connector holding the back ribs in
straight direction.

(2)

Insert it until a lock securely locks, and pull the
connector lightly after the insertion, and confirm that
a lock is enabled.

memo

70

Wire Harness Repair Manual

Wire Harness Repair Manual

71

TABLE OF HOUSING CROSS SECTION

C

72

Wire Harness Repair Manual

C

C–1

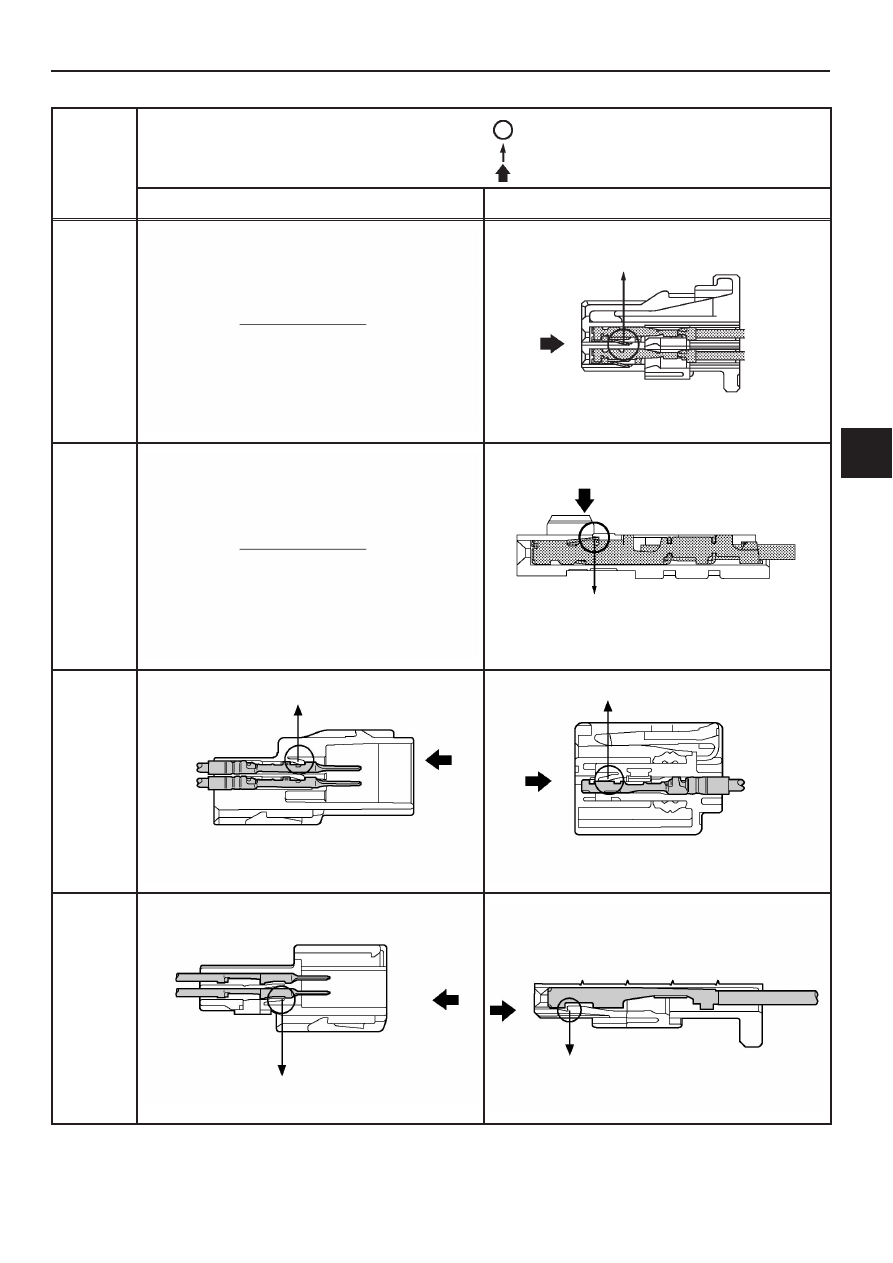

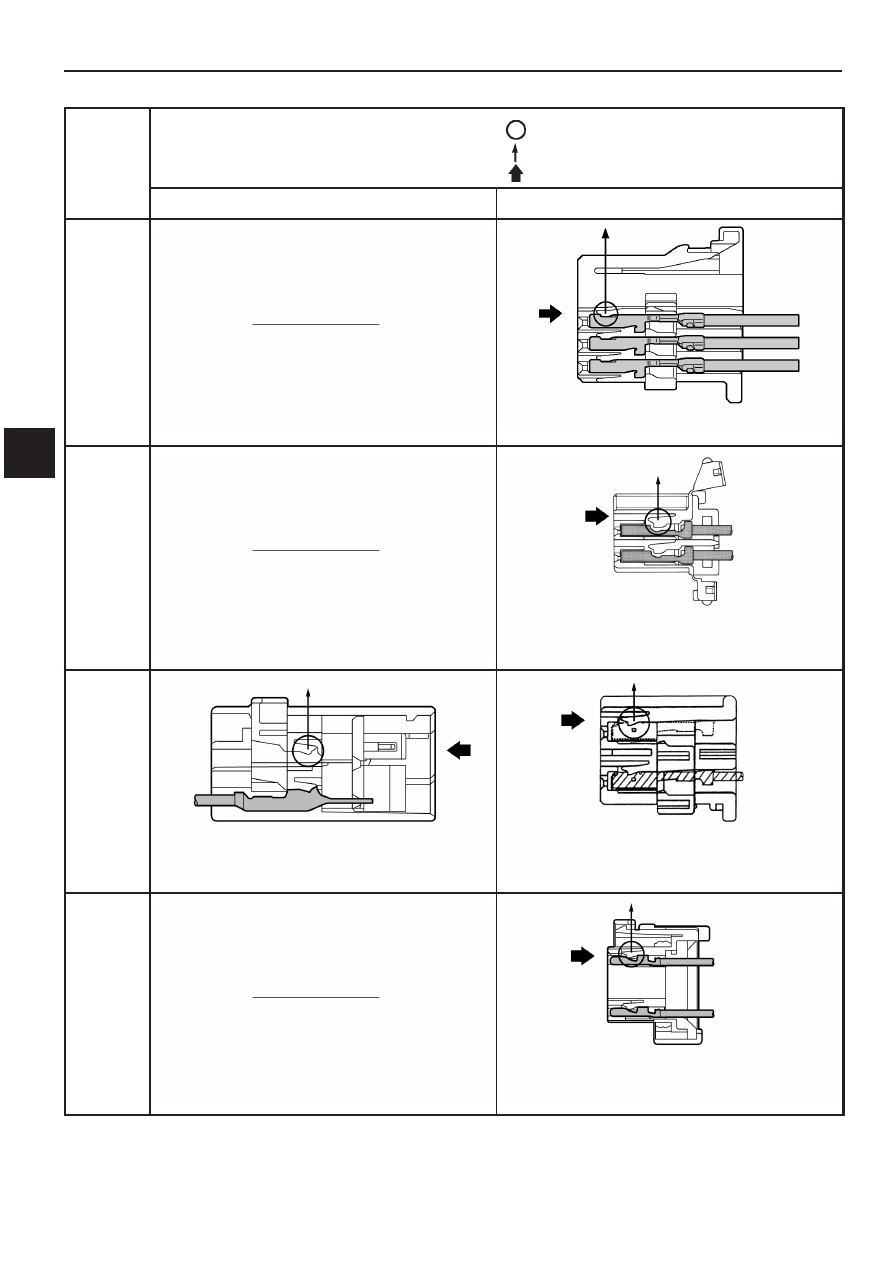

TABLE OF HOUSING SHAPE

Wire Harness Repair Manual

73

Type

: Position of the lance
: Direction of lock released
: Direction of the special tool inserted

Male

Female

0.64

Non–
waterproof
Type

(Double Lock Type)

[Terminal Lance]

0.64

IDC

[Terminal Lance]

0.64

Waterproof
Type

(Double Lock Type)

[Housing Lance]

(Double Lock Type)

[Housing Lance]

0.64II

(Double Lock Type)

[Housing Lance]

(Double Lock Type)

[Housing Lance]

C

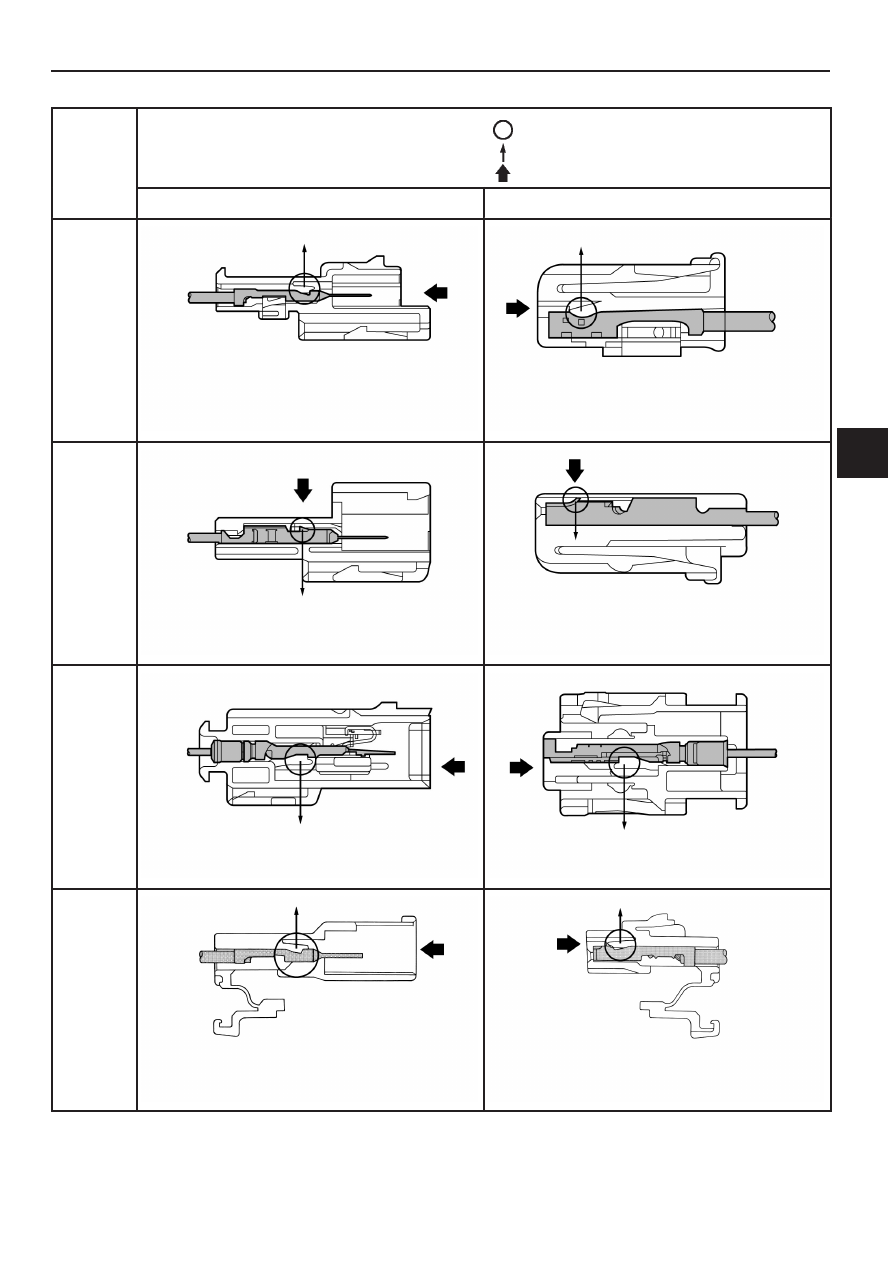

TABLE OF HOUSING SHAPE

C–2

74

Wire Harness Repair Manual

Type

: Position of the lance
: Direction of lock released
: Direction of the special tool inserted

Male

Female

0.64III

(Double Lock Type)

[Housing Lance]

1.0

(Double Lock Type)

[Housing Lance]

1.0II

Non–
waterproof
Type

90980–11223

(Double Lock Type)

[Housing Lance]

(Double Lock Type)

[Housing Lance]

1.0II

Waterproof
Type

90980–11566

[Housing Lance]

C

C–3

TABLE OF HOUSING SHAPE

Wire Harness Repair Manual

75

Type

: Position of the lance
: Direction of lock released
: Direction of the special tool inserted

Male

Female

1.0III

1.0IV

Non–
waterproof
Type

90980–11889

(Double Lock Type)

[Housing Lance]

90980–11987

(Double Lock Type)

[Housing Lance]

1.0III

IDC

90980–12004

[Terminal Lance]

90980–11919

[Terminal Lance]

1.0III

Waterproof
Type

90980–11863

(Double Lock Type)

[Housing Lance]

90980–11856

(Double Lock Type)

[Housing Lance]

1.3

Non–
waterproof
Type

(Double Lock Type)

[Housing Lance]

(Double Lock Type)

[Housing Lance]

C

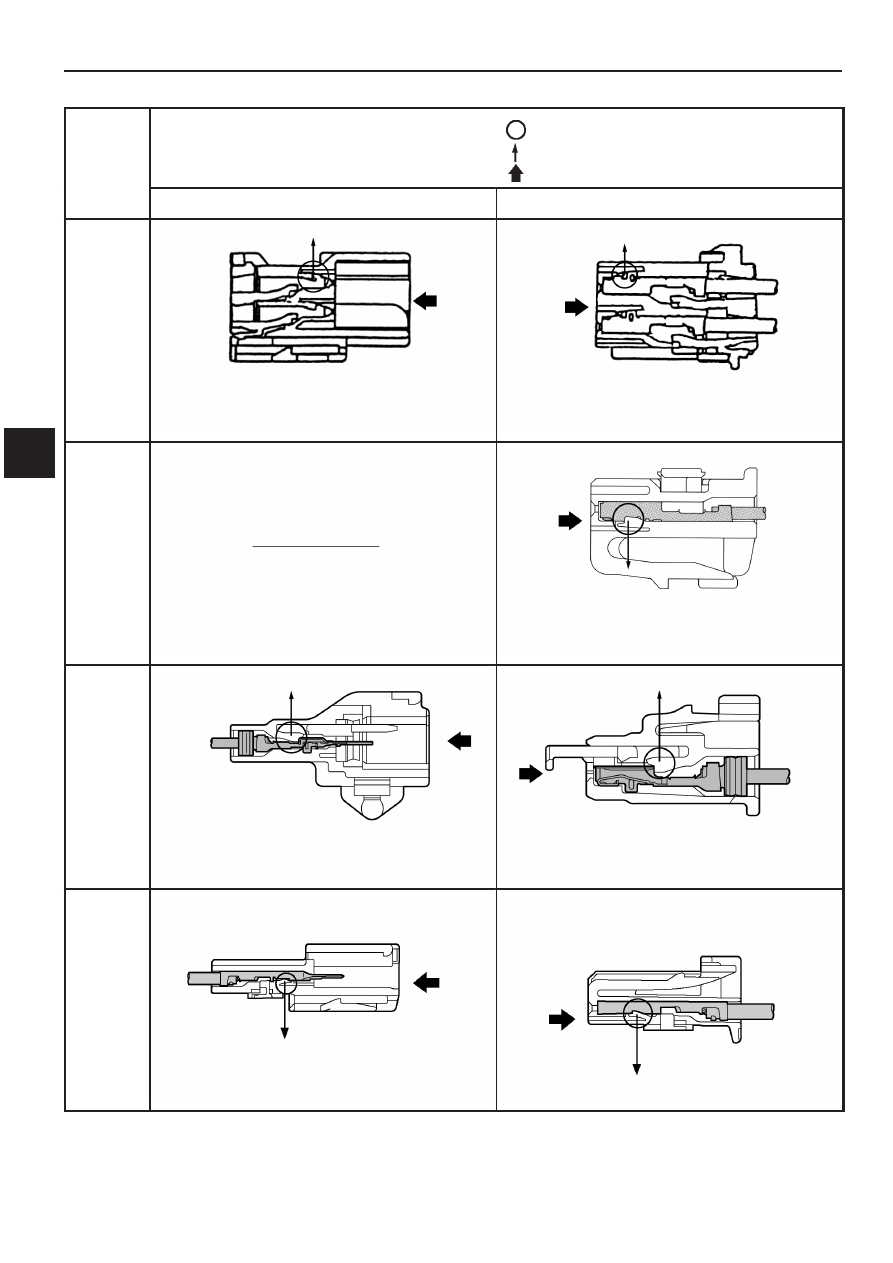

TABLE OF HOUSING SHAPE

C–4

76

Wire Harness Repair Manual

Type

: Position of the lance
: Direction of lock released
: Direction of the special tool inserted

Male

Female

1.3

Non–
waterproof
Type

(Double Lock Type)

[Housing Lance]

(Double Lock Type)

[Housing Lance]

1.3

Non–
waterproof
Type

(Double Lock Type)

[Housing Lance]

1.3

Waterproof
Type

90980–11188

(Double Lock Type)

[Housing Lance]

90980–11189

(Double Lock Type)

[Housing Lance]

1.5

[Housing Lance]

[Housing Lance]

C
