Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 411

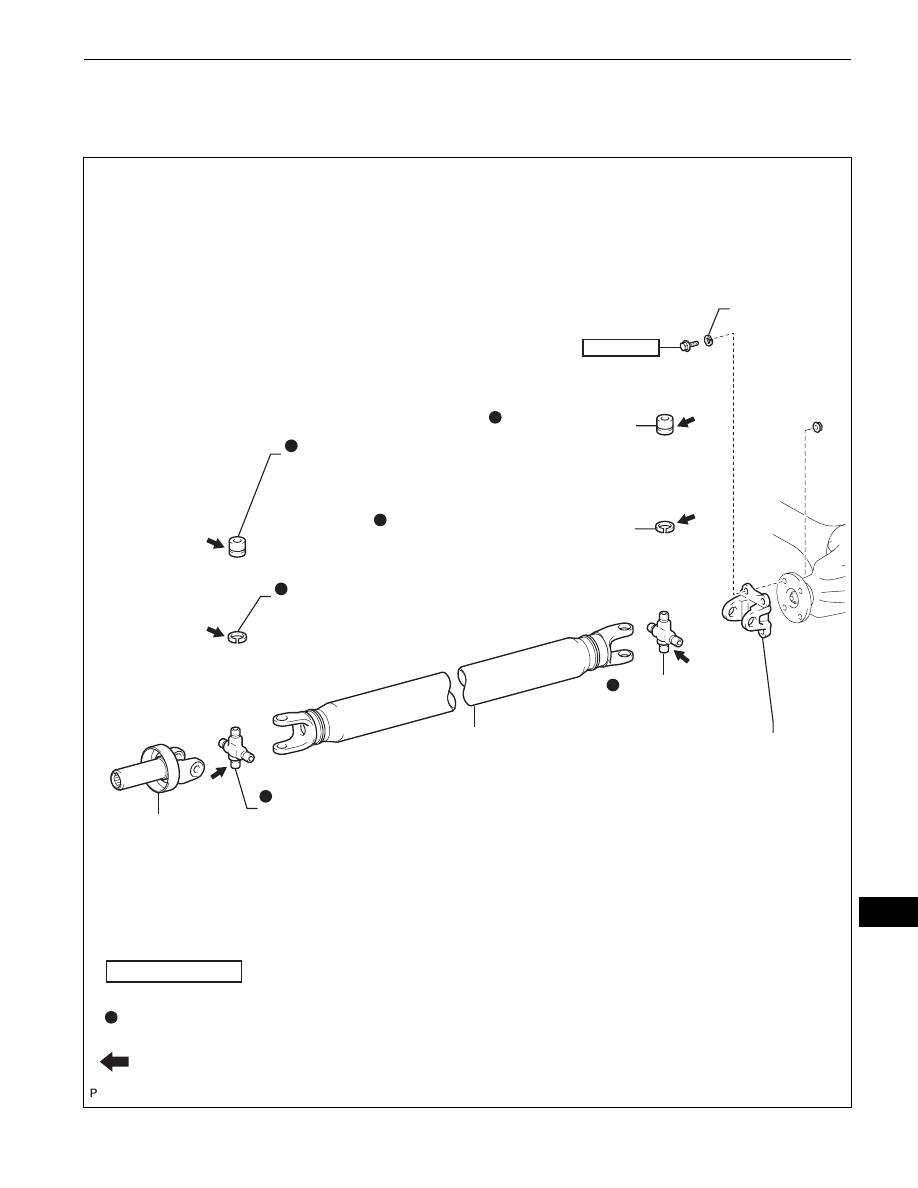

PROPELLER SHAFT – FRONT PROPELLER SHAFT ASSEMBLY (for 4WD)
PR–5
PR

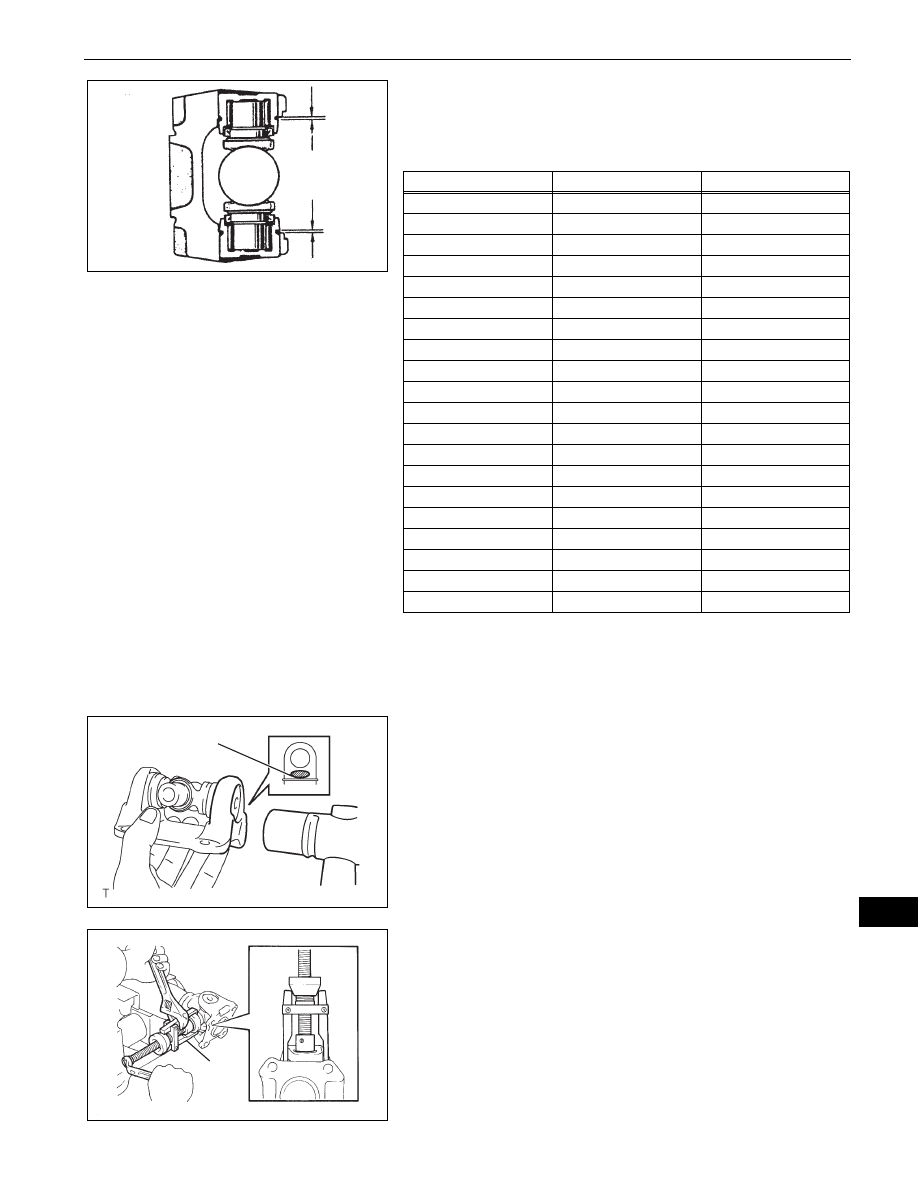

(e) Install 4 new snap rings of equal thickness which
will allow no axial play.
HINT:
Do not reuse the snap rings.
Thickness of snap ring
NOTICE:
•
Use a new snap ring.
•
Use snap rings as close as possible to the
same thickness on both ends.
(f)
Using a hammer, tap the yoke until there is no
clearance between the spider bearing outer race
and the snap ring.
HINT:
Install a new spider bearing on the sleeve side in the
procedure described above.

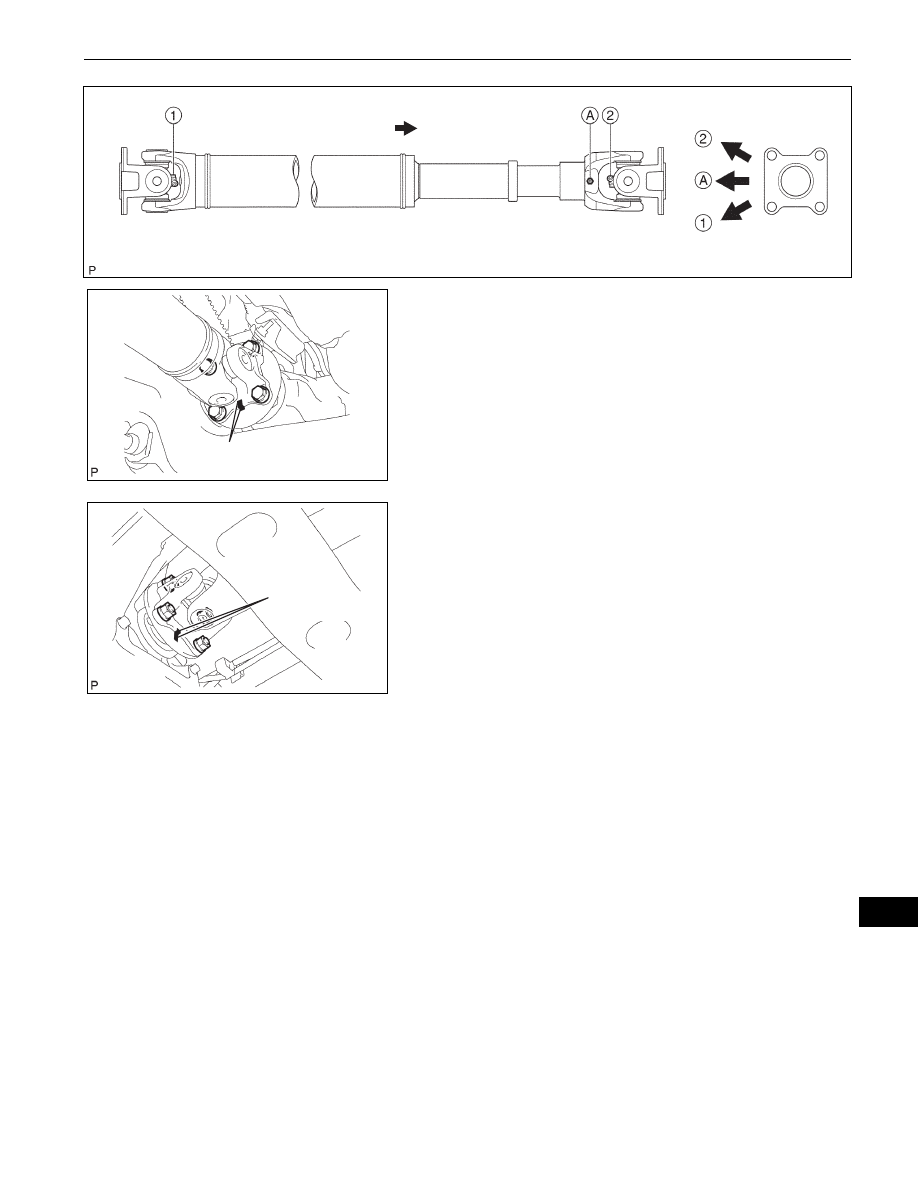

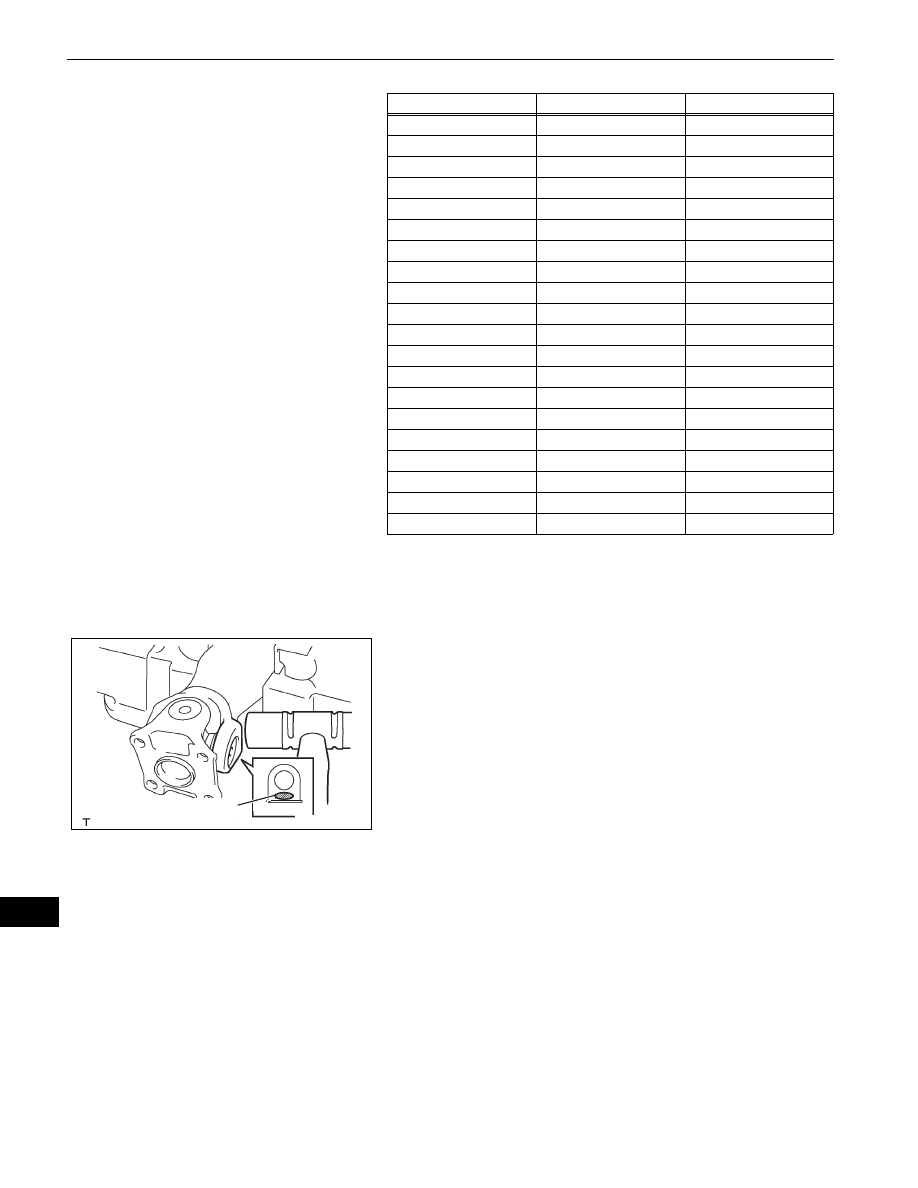

(g) Align the matchmarks on the flange yoke and the
sleeve yoke.
(h) Using SST, install the spider bearings onto the
spider.
SST
09332-25010
(i)
Using SST, adjust both bearings so that the snap
ring grooves are at maximum and equal in width.
SST
09332-25010
(j)
Install 4 new snap rings of equal thickness which
will allow no axial play.
HINT:
Do not reuse the snap rings.
G020755
Parts No.
Thickness mm (in.)
Mark
90520-25039
2.28 to 2.30
1
90520-25040
2.30 to 2.32
2
90520-25041
2.32 to 2.34
-
90520-25042
2.34 to 2.36
Brown
90520-25043
2.36 to 2.38
Blue
90520-25044
2.38 to 2.40
6
90520-25045
2.40 to 2.42
7
90520-25046
2.42 to 2.44
8
90520-25047
2.44 to 2.46
9
90520-25048
2.46 to 2.48
10
90520-25049
2.48 to 2.50
A
90520-25050
2.50 to 2.52
B
90520-25051
2.52 to 2.54
C
90520-25052
2.54 to 2.56
D
90520-25053
2.56 to 2.58
E
90520-25054
2.18 to 2.20
J
90520-25055
2.20 to 2.22
K
90520-25056
2.22 to 2.24
F
90520-25057
2.24 to 2.26
G
90520-25058
2.26 to 2.28
H
Hammering Point
G022297E02
SST
F044258E01
