ME–4

METER  –  METER / GAUGE SYSTEM

ME

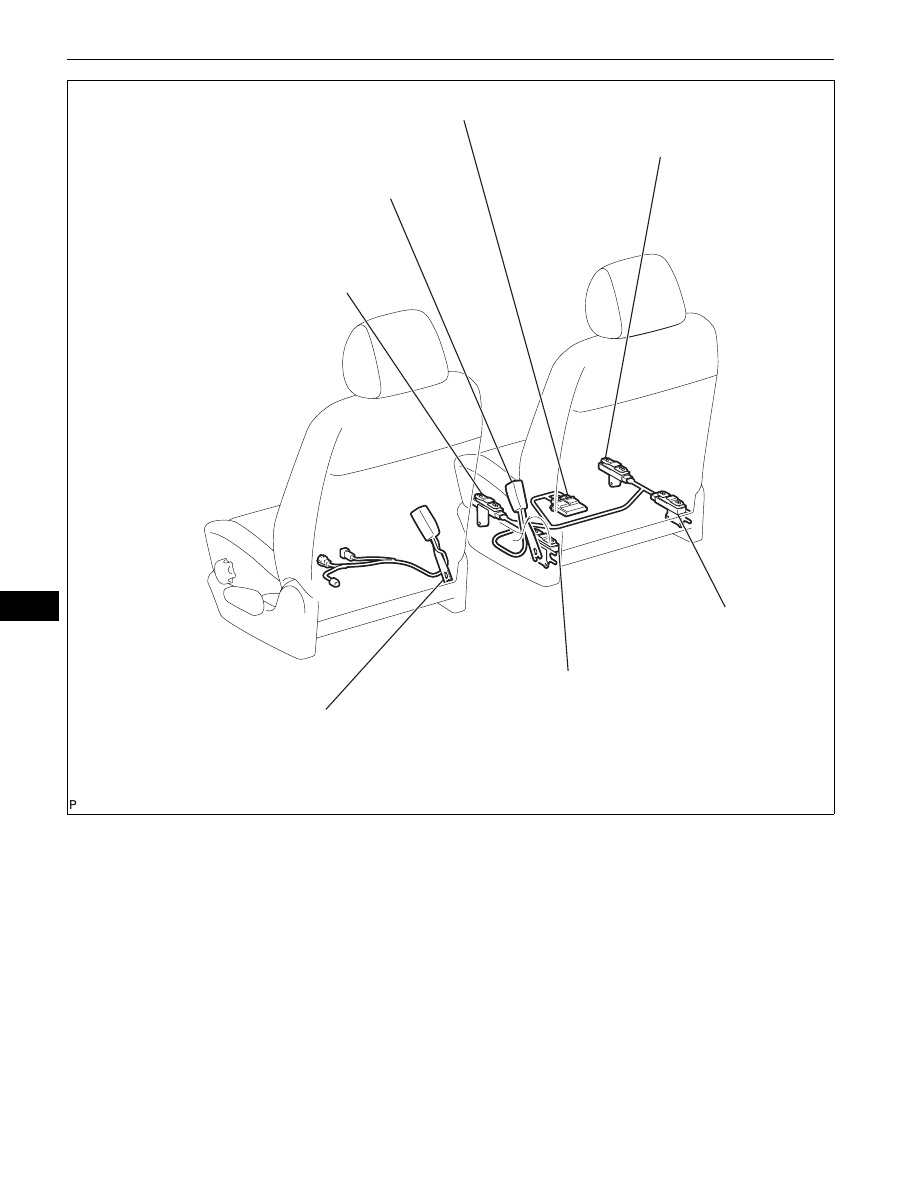

OCCUPANT CLASSIFICATION ECU

FRONT SEAT INNER BELT
ASSEMBLY (DRIVER SIDE)

FRONT OCCUPANT CLASSIFICATION
SENSOR LH

FRONT OCCUPANT
CLASSIFICATION
SENSOR RH

REAR OCCUPANT
CLASSIFICATION
SENSOR LH

REAR OCCUPANT
CLASSIFICATION
SENSOR RH

FRONT SEAT INNER BELT ASSEMBLY
(PASSENGER SIDE)

B137706E01

METER  –  METER / GAUGE SYSTEM

ME–5

ME

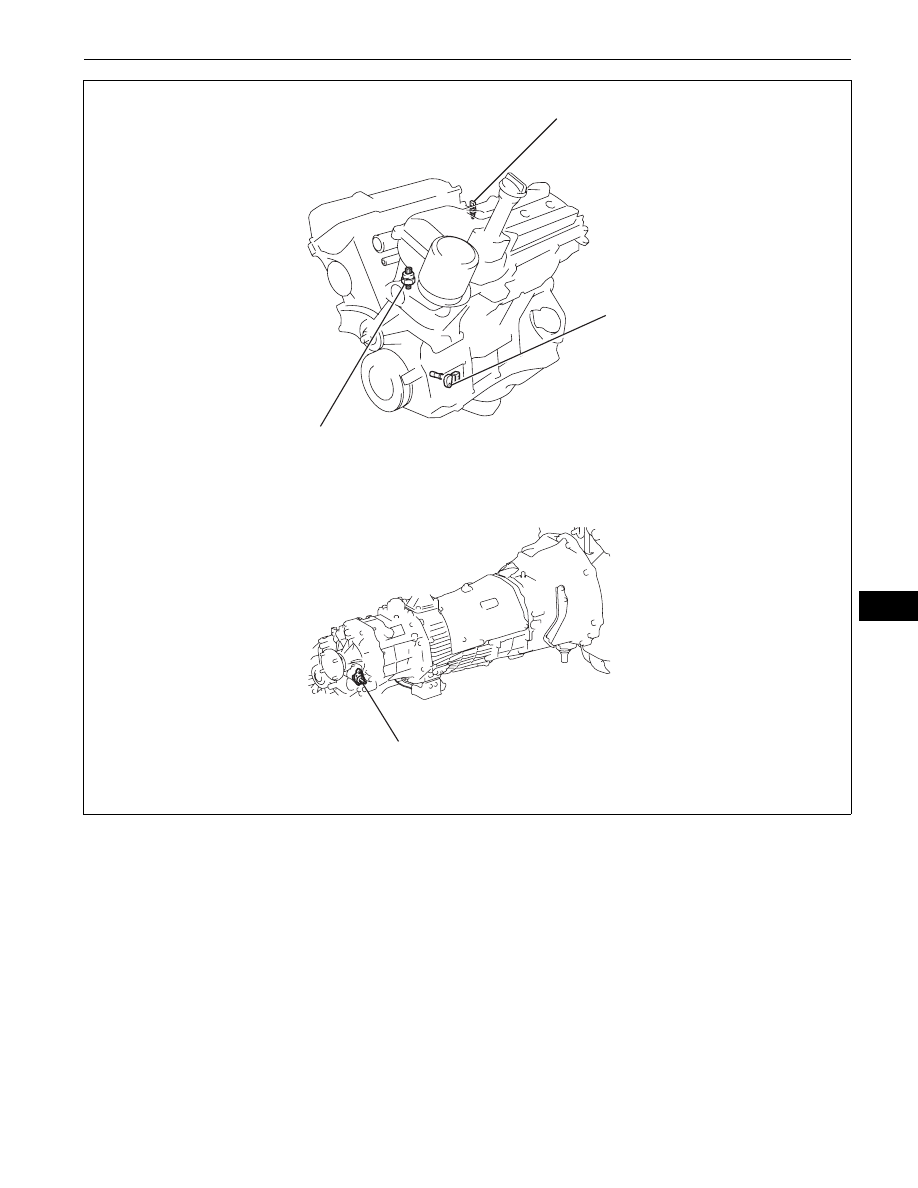

CRANKSHAFT POSITION
SENSOR

ENGINE COOLANT
TEMPERATURE SENSOR

ENGINE OIL PRESSURE
SWITCH ASSEMBLY

*: FOR M/T

SPEED SENSOR*

E125395E01

ME–6

METER  –  METER / GAUGE SYSTEM

ME

SYSTEM DIAGRAM

1.

COMBINATION METER ASSEMBLY

Fuel Sender Gauge Assembly

Skid Control ECU*3

Speed Sensor*4

Brake Fluid Level Warning Switch

Generator Assembly

Engine Oil Pressure Switch

Headlight Dimmer Switch

Ignition Switch

Battery

Passenger Seat Belt Warning Light

Light Control Rheostat

DRL relay *1

*1 : w/ Daytime Running Light System

Center Airbag Sensor Assembly

4WD Control ECU

Front Seat Inner Belt Assembly
(Driver Side)

*2 : w/ Rear Differential Lock

Rear Differential Lock Switch*2

Combination
Meter Assembly

Occupant Classification ECU

Front Seat Inner Belt Assembly
(Passenger Side)

Turn Signal Flasher Assembly

*3 : for A/T

*4 : for M/T

E125396E01

METER  –  METER / GAUGE SYSTEM

ME–7

ME

2.

ACCESSORY METER ASSEMBLY

Main Body ECU

ECM

Front Door Courtesy Switch

Rear Door Courtesy Switch (Upper and Lower)

Back Door Courtesy Switch

Unlock Warning Switch Assembly

Parking Brake Switch

Back Window Courtesy Switch

Park/Neutral Position Switch*

Crankshaft Position Sensor

Engine Coolant Temperature Sensor

*: for A/T

E125397E02
