Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 113

1GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM

ES–407

(a) Check the wire harness and connectors between the

VSV for ACIS and ECM.
(1) Disconnect the B17 VSV for ACIS connector.
(2) Disconnect the B1 ECM connector.
(3) Check the resistance.

Standard Resistance (Check for open)

Standard Resistance (Check for short)

(4) Reconnect the VSV for ACIS connector.
(5) Reconnect the ECM connector.

(b) Check the wire harness between the VSV for ACIS and

EFI relay.
(1) Disconnect the B17 VSV for ACIS connector.
(2) Remove the EFI relay from the engine room R/B.
(3) Check the resistance.

Standard Resistance (Check for open)

(4) Reconnect the VSV for ACIS connector.
(5) Reinstall the EFI relay.

(a) Check that the vacuum hose is connected correctly.
(b) Check the vacuum hose for looseness and

disconnection.

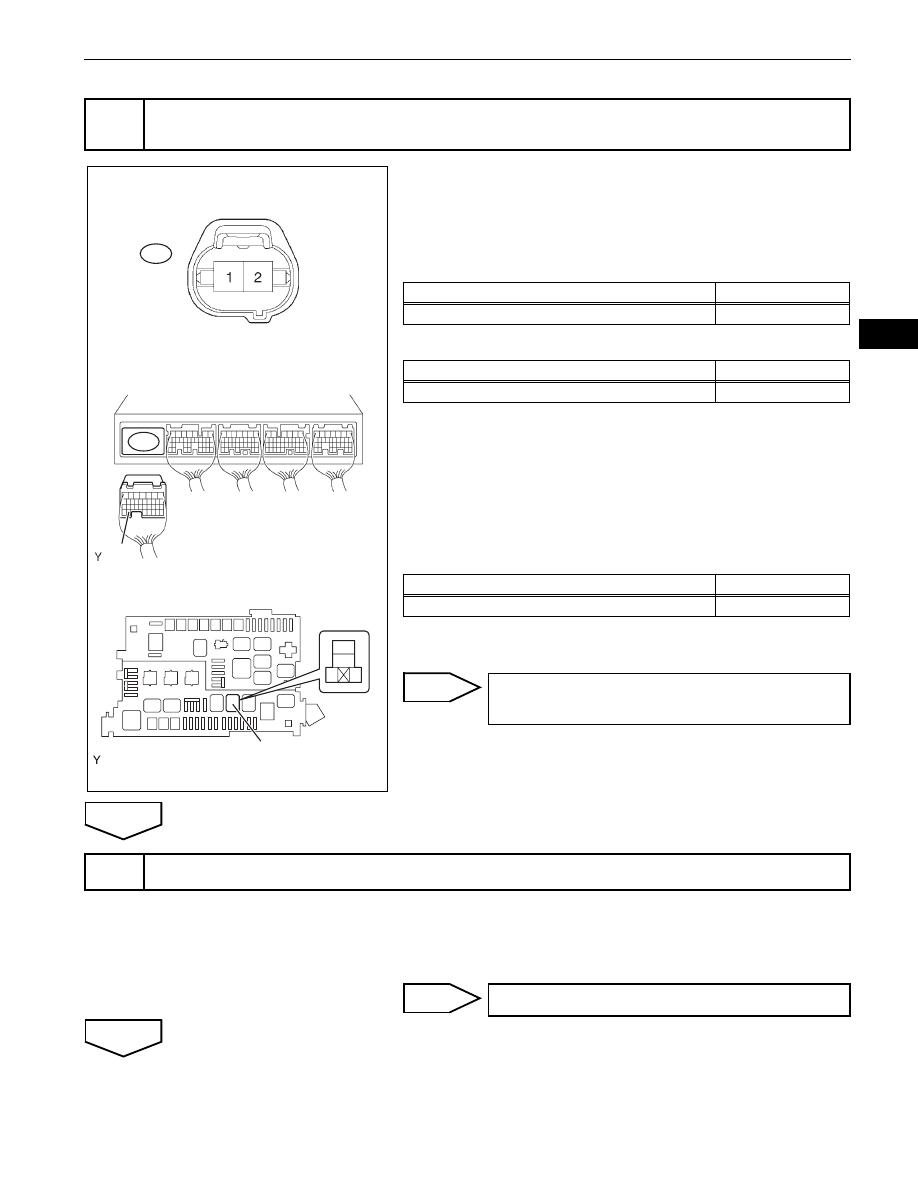

CHECK HARNESS AND CONNECTOR (VSV FOR ACIS - ECM, VSV FOR ACIS - EFI
RELAY)

EFI Relay

Engine Room R/B:

ACIS

ECM Connector

VSV for ACIS Connector

B17

Front View

Wire Harness Side:

A133467E01

Tester Connections

Specified Conditions

VSV for ACIS (B17-2) - ACIS (B1-33)

Below 1

Ω

Tester Connections

Specified Conditions

VSV for ACIS (B17-2) or ACIS (B1-33) - Body ground

10 k

Ω or higher

Tester Connections

Specified Conditions

VSV for ACIS (B17-1) - EFI relay terminal 3 of R/B

Below 1

Ω

REPAIR OR REPLACE HARNESS OR
CONNECTOR

CHECK VACUUM HOSES (INTAKE MANIFOLD - IACV, IACV - VSV FOR ACIS)

REPAIR OR REPLACE VACUUM HOSES

ES–408

1GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM

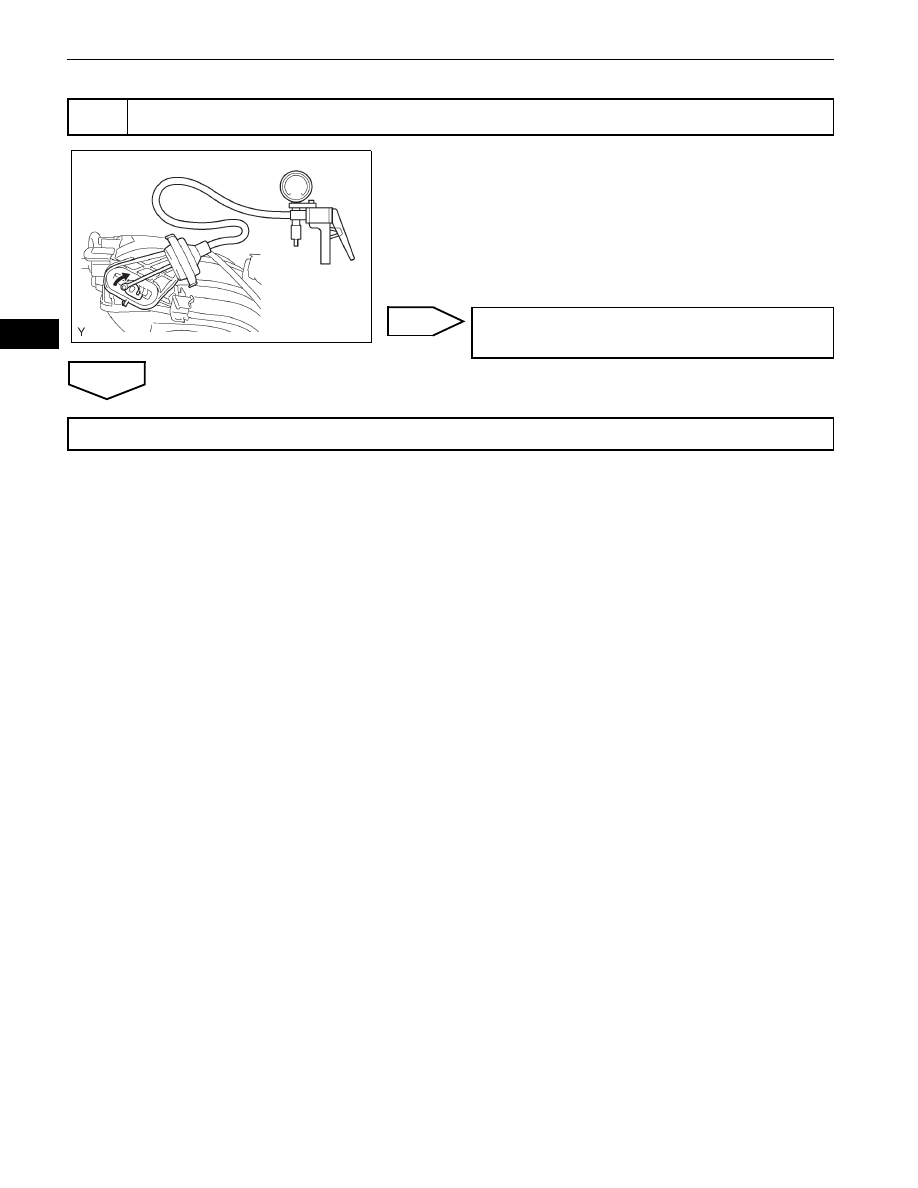

(a) Check that the lever moves when a vacuum of 26.6 kPa

(200 mmHg) is applied with the vacuum gauge on.
OK:

Lever moves

(b) Check that the vacuum of 26.6 kPa (200 mmHg) is

sustained for 1 minute in the above state.
OK:

Vacuum is sustained

INSPECT INTAKE AIR CONTROL VALVE (INTAKE AIR SURGE TANK)

A075984E02

REPLACE INTAKE AIR CONTROL VALVE
(INTAKE AIR SURGE TANK)

REPLACE ECM (See page

ES-446

)

1GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM

ES–409

DESCRIPTION

The MIL (Malfunction Indicator Lamp) is used to indicate vehicle malfunction detections by the ECM.
By turning the ignition switch ON, power is supplied to the MIL circuit, and the ECM provides the circuit
ground which illuminates the MIL.
The MIL operation can be checked visually: When the ignition switch is first turned ON, the MIL should be
illuminated and should then turn OFF. If the MIL remains illuminated or is not illuminated, conduct the
following troubleshooting procedure using an intelligent tester.

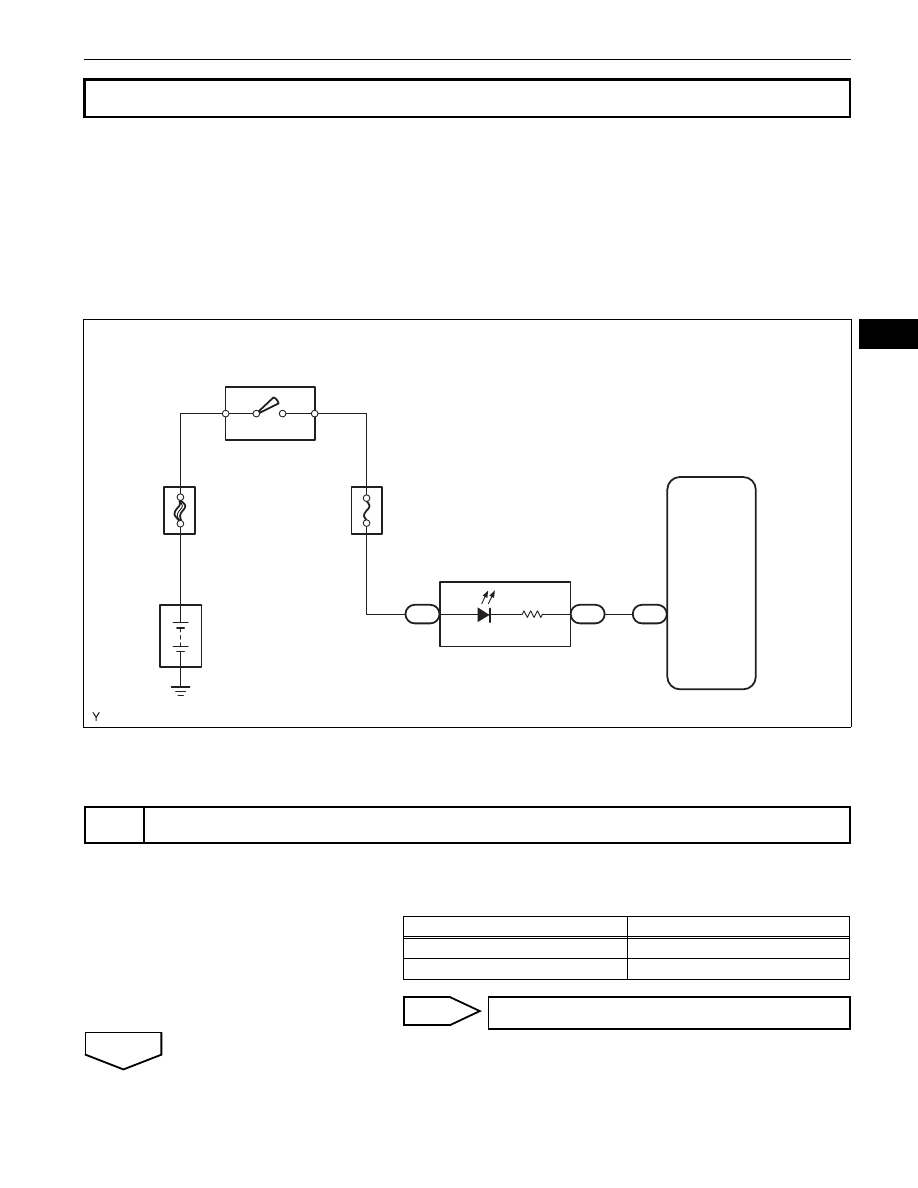

WIRING DIAGRAM

INSPECTION PROCEDURE

(a) Perform troubleshooting in accordance with the chart

below.
Result

MIL Circuit

CHECK THAT MIL IS ILLUMINATED

Ignition Switch

Combination Meter

IG+

CHK

MIL

ECM

GAUGE

Battery

AM2

IG2

AM2

E46

E13

E14

A133432E01

MIL Condition

Proceed To

MIL remains ON

MIL does not illuminate

Go to step 4

ES–410

1GR-FE ENGINE CONTROL SYSTEM – SFI SYSTEM

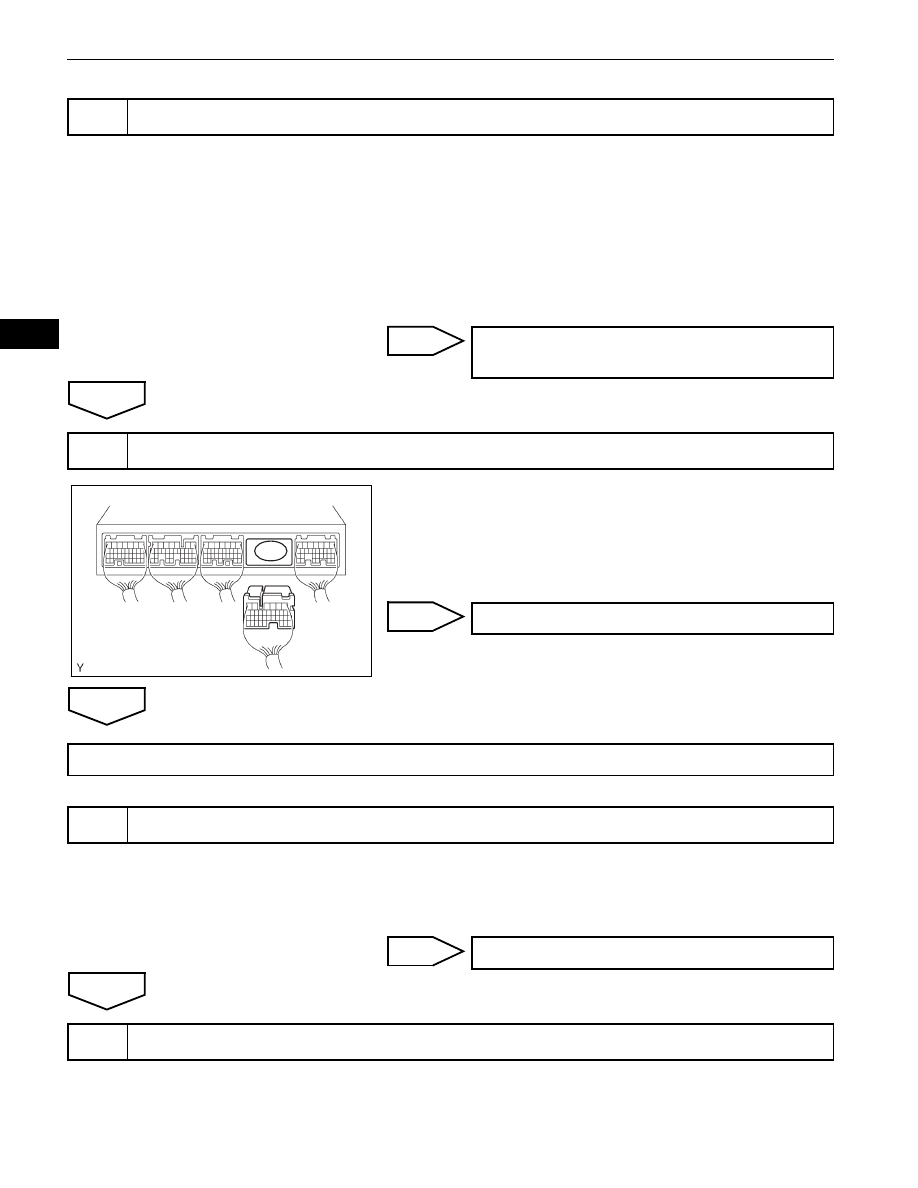

(a) Connect an intelligent tester to the DLC3.
(b) Turn the ignition switch ON.
(c) Turn the tester ON.
(d) Check whether any DTCs have been stored (See page

ES-38

). Note them down if necessary.

(e) Clear DTCs (See page

ES-38

(f)

Check if the MIL turns off.
OK:

MIL should turn off.

(a) Disconnect the E46 ECM connector.
(b) Turn the ignition switch ON.
(c) Check that MIL is not illuminated.

OK:

MIL is not illuminated.

(d) Reconnect the ECM connector.

(a) Check if the MIL is illuminated when the ignition switch is
