Toyota Sequoia (2005). Manual - part 973

Unit : C
(Integrated FL)

Unit : B
(Integrated FL)

Unit : A
(Integrated FL Base)

25A CDS FAN

22

SEQUOIA (EM00Z0U)

F  RELAY LOCATIONS

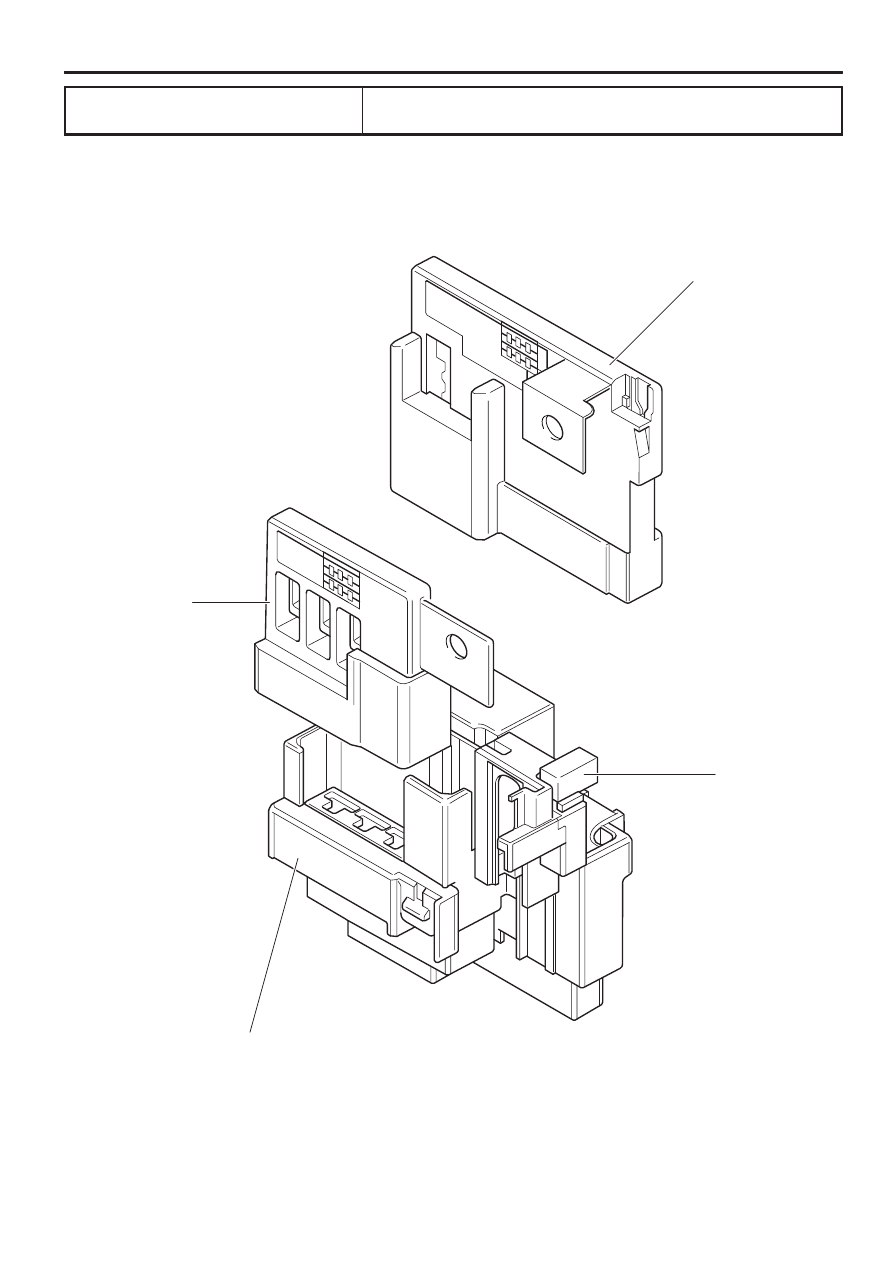

Fusible Link Block

Engine Compartment Left (See Page 20)
[Inside Engine Room J/B]

7

6

8

9

10

11

12

13

1

2

3

4

5

7

Top View

Side View

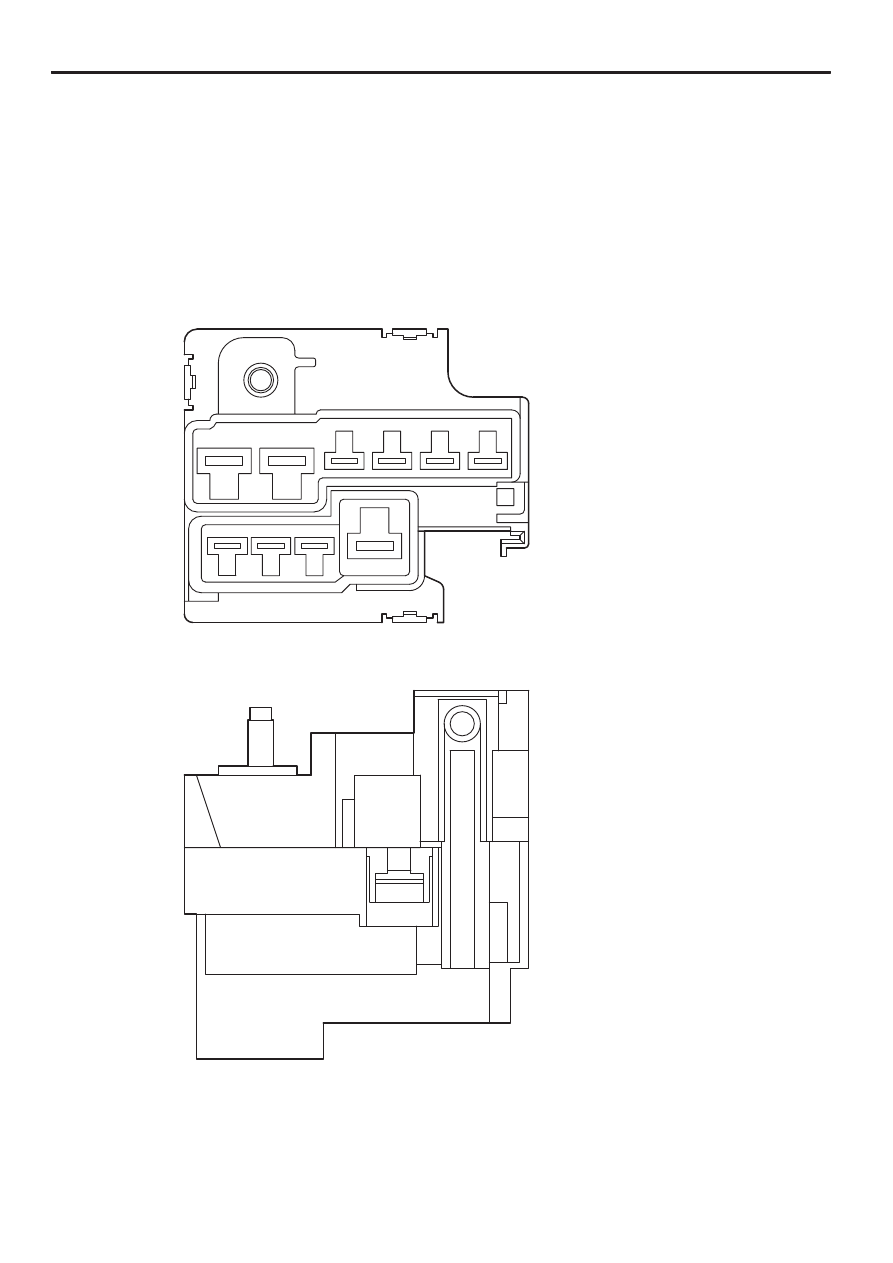

[Unit : A (Integrated FL Base)]

SEQUOIA (EM00Z0U)

23

F

Side View

30A RR HEATER
(for High Current)

40A DEFOG
(for High Current)

50A HEATER
(for High Current)
50A AIR SUS
(for High Current)

140A ALT
(for High Current)

60A TOWING R/B
(for High Current)

Side View

Back View

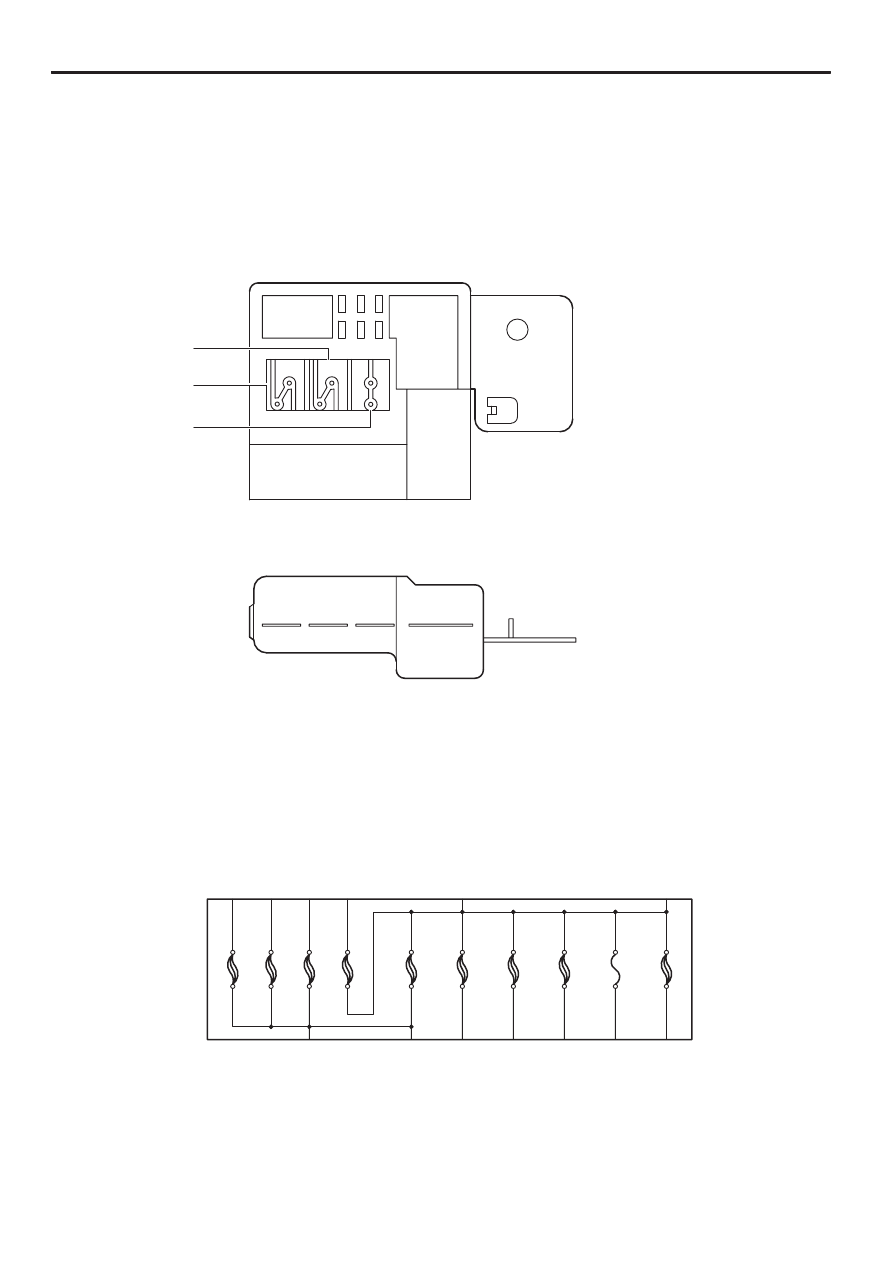

[Unit : B (Integrated FL)]

5

7

6

8

9

10

11

12

24

SEQUOIA (EM00Z0U)

F  RELAY LOCATIONS

Fusible Link Block

Engine Compartment Left (See Page 20)
[Inside Engine Room J/B]

Side View

30A R/B
(for High Current)

50A A/PUMP
(for High Current)

60A ABS
(for High Current)

Back View

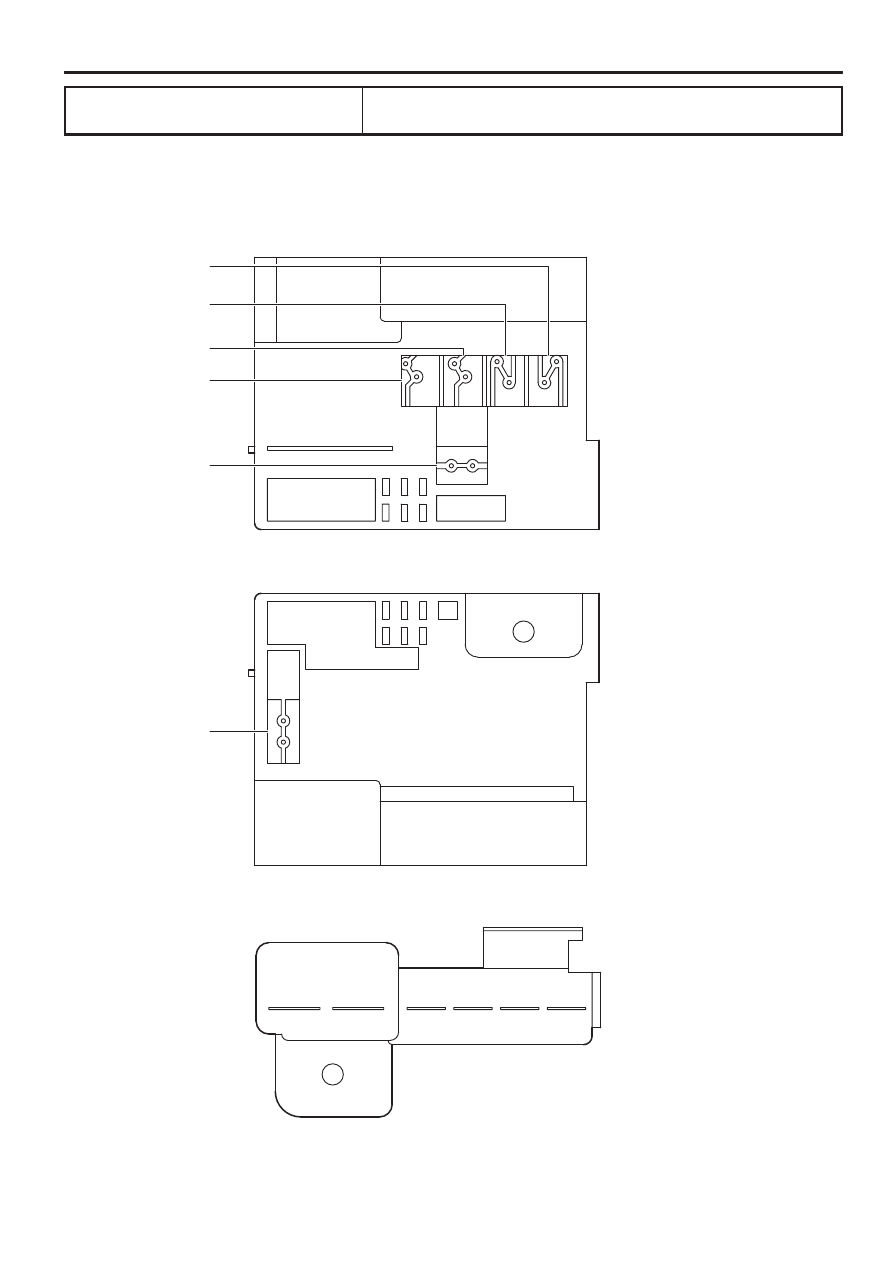

[Unit : C (Integrated FL)]

[Fusible Link Block Inner Circuit]

1

2

3

5

4

5

4

11

12

10

13

9

2

1

3

6

7

8

50A A/PUMP

30A R/B

60A ABS

140A ALT

40A DEFOG

30A RR HEATER

50A HEATER

25A CDS FAN

50A AIR SUS

60A TOWING R/B

SEQUOIA (EM00Z0U)

25

F
