AIR CONDITIONER CONTROL ASSEMBLY (Center
Cluster Integration)

3833

INSPECTION

INSPECT BULB
Set the tester as shown in the illustration to check for continuity.
If continuity exists, replace the heater control.
If no continuity exists, replace the bulb.

AC3HZ–01

–

AIR CONDITIONING

AIR CONDITIONER CONTROL ASSEMBLY (Center
Cluster Integration)

AC–107

3834

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

AC–111

).

AC3I0–01

AC–108

–

AIR CONDITIONING

AIR CONDITIONER CONTROL ASSEMBLY (Center
Cluster Integration)

3835

INSTALLATION

Installation is in the reverse order of removal (See page

AC–110

).

AC3I2–02

I21439

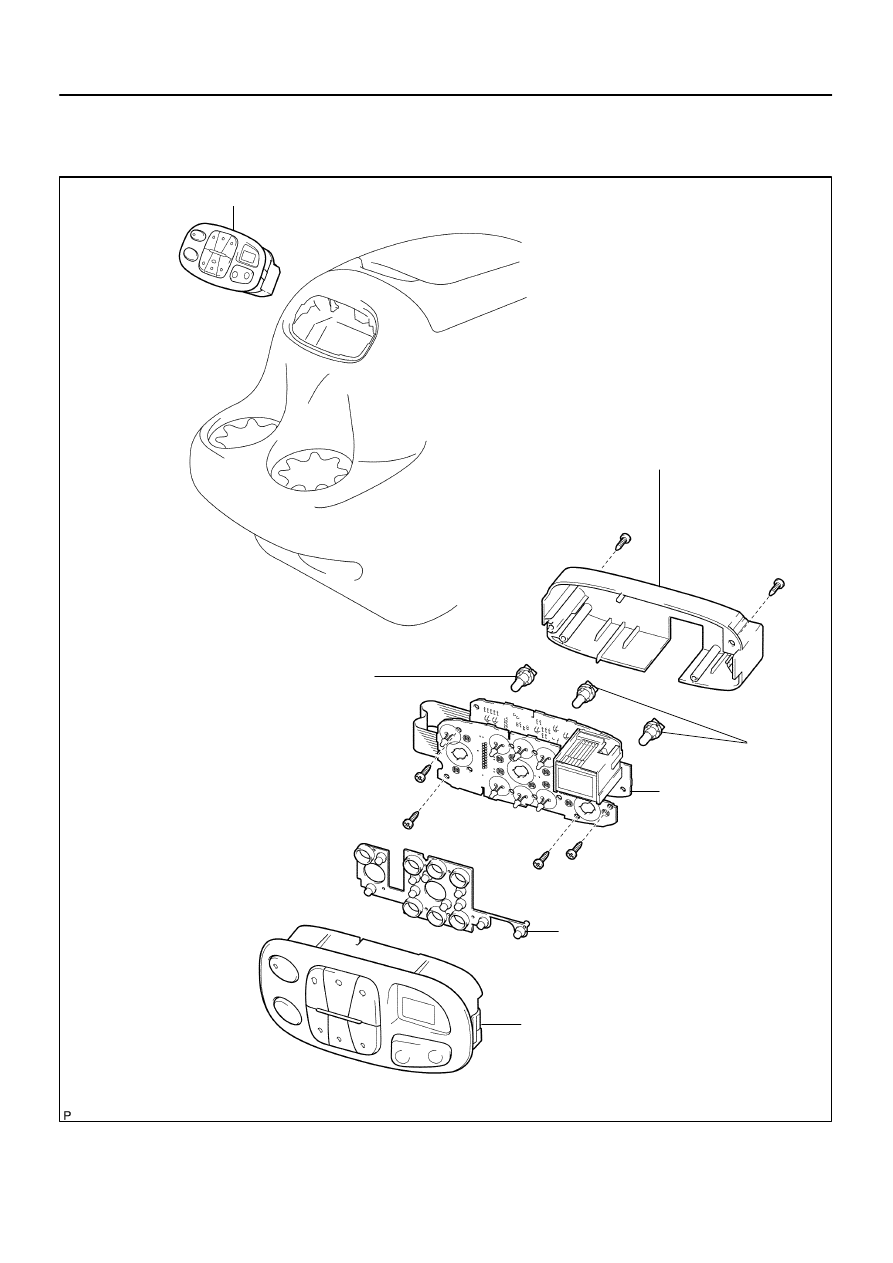

Heater Control Assembly

Heater Control Housing

Bulb

Bulb

A/C Amplifier
and PC Board

Packing

Panel

–

AIR CONDITIONING

REAR A/C CONTROL ASSEMBLY (for Rear A/C)

AC–109

3836

REAR A/C CONTROL ASSEMBLY (for Rear A/C)

COMPONENTS
