AIR CONDITIONING

AIR MIX SERVOMOTOR

3813

AIR MIX SERVOMOTOR

INSPECTION

1.

REMOVE AIR MIX SERVOMOTOR

(a)

Disconnect the connector.

(b)

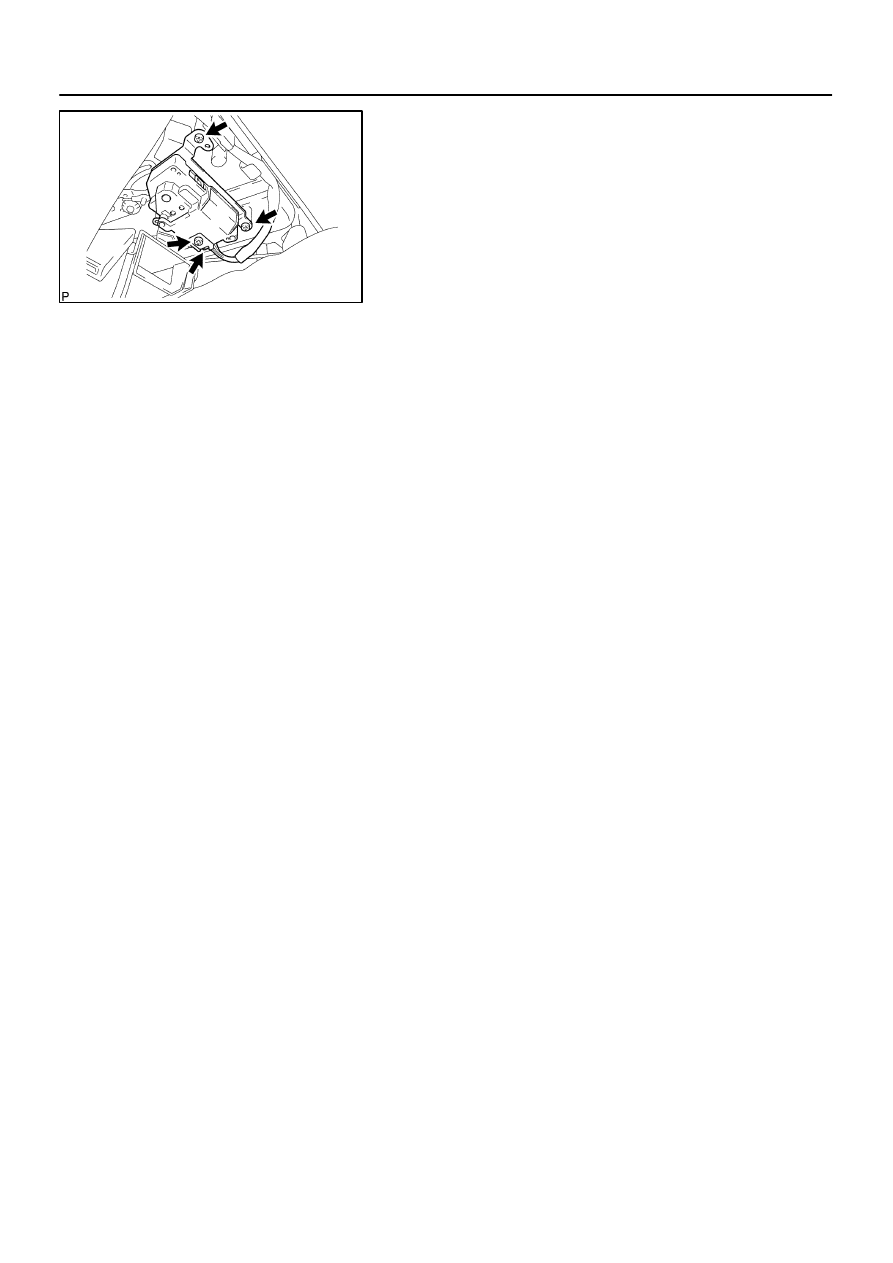

Remove the 3 screws and servomotor.

2.

INSPECT AIR MIX DAMPER POSITION SERVOMO-
TOR (See page

DI–2346

)

3.

INSPECT AIR MIX SERVOMOTOR CIRCUIT
(See page

DI–2355

)

4.

INSTALL AIR MIX SERVOMOTOR

AC3HS–02

I21375

I03738

–

AIR CONDITIONING

THERMISTOR (for Rear A/C)

AC–87

3814

THERMISTOR (for Rear A/C)

INSPECTION

1.

REMOVE SIDE HEATER COVER

2.

REMOVE THERMISTOR

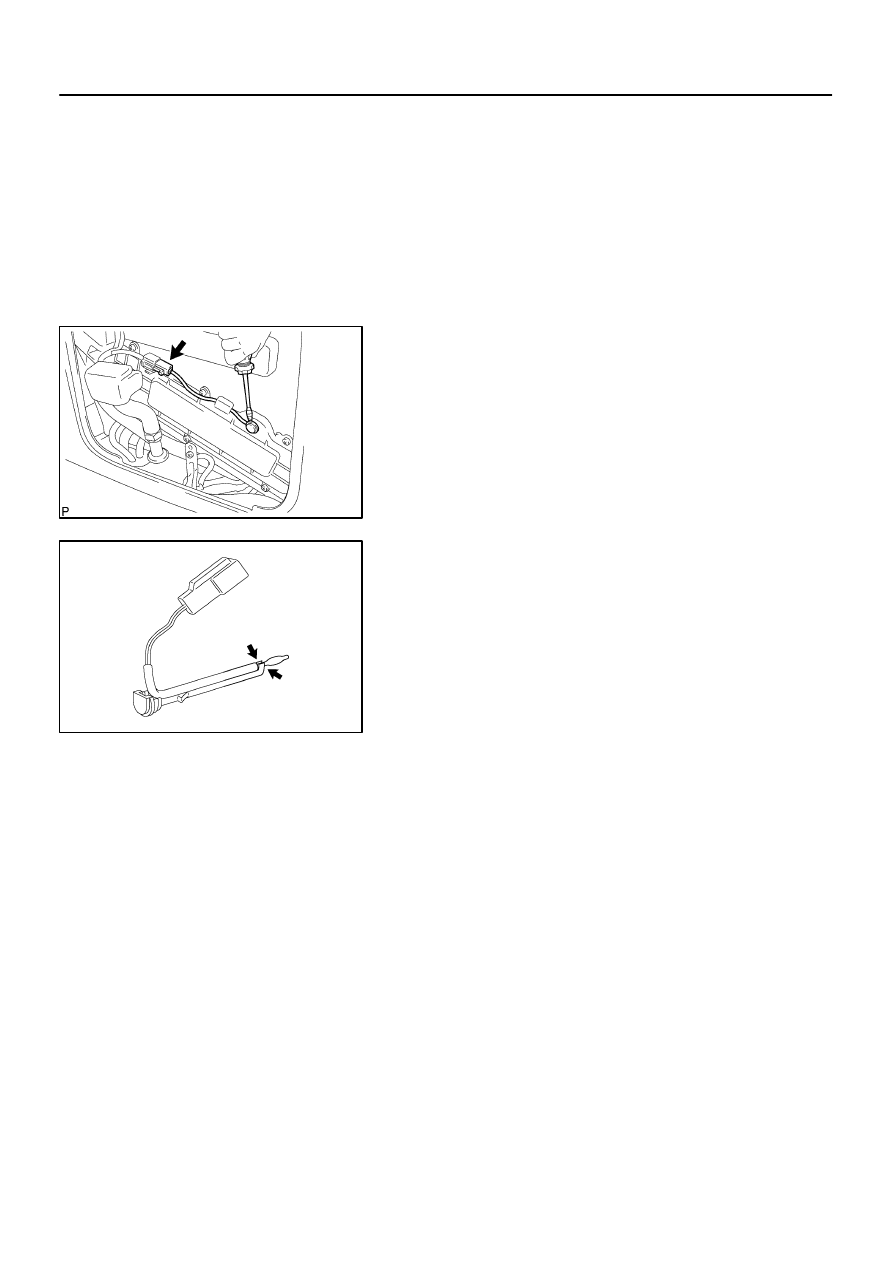

(a)

Disconnect the connector and connector clamp.

(b)

Using a screwdriver, pull out the sensor.

HINT:
Tape the screwdriver tip before use.

(c)

Release the 2 claws and remove the sensor from the
bracket plate.

3.

INSPECT THERMISTOR (See page

DI–2330

)

4.

INSTALL THERMISTOR

5.

INSTALL SIDE HEATER COVER

I21433

AC1LM–07

AC–88

–

AIR CONDITIONING

SOLAR SENSOR

3815

SOLAR SENSOR

INSPECTION

1.

REMOVE SOLAR SENSOR

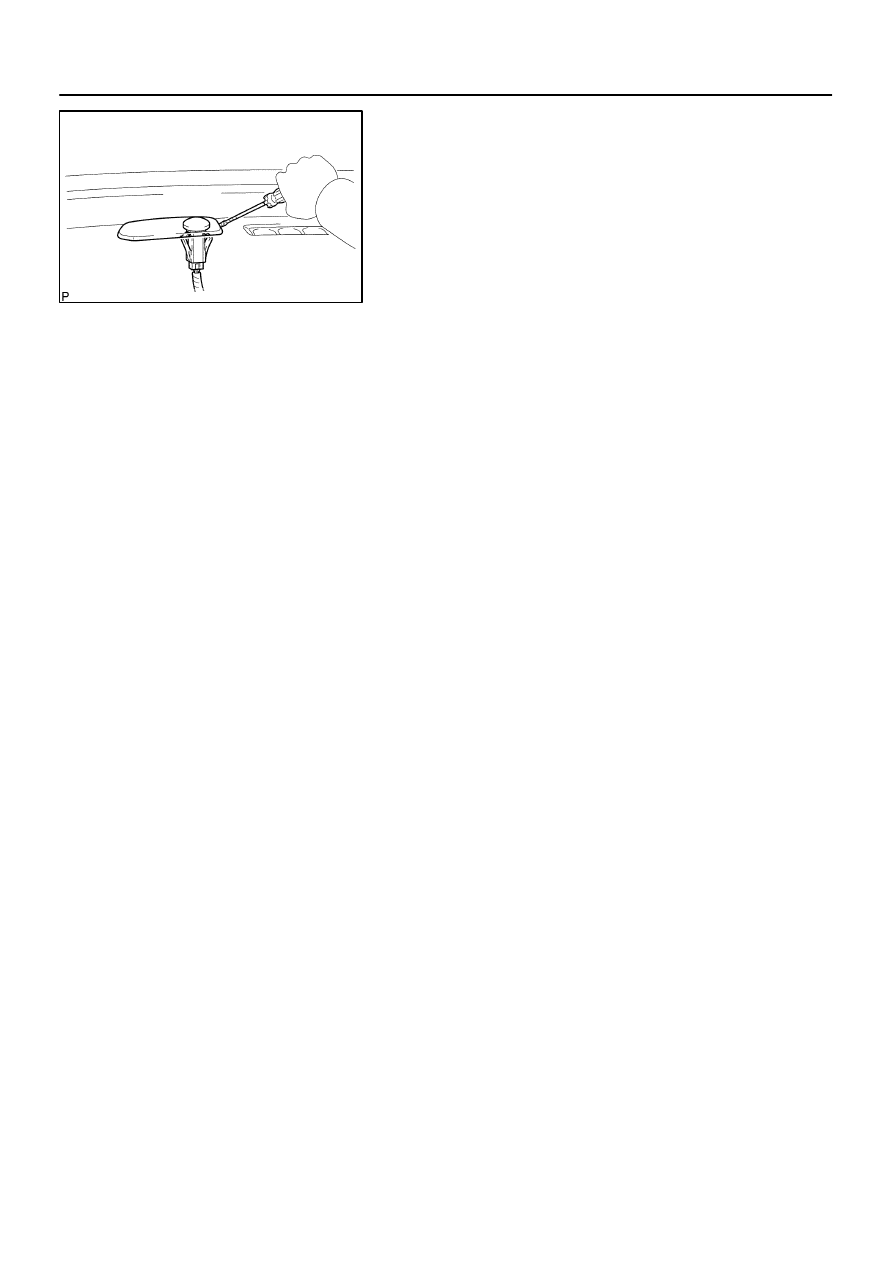

Using a screwdriver, pull out the sensor, then disconnect
the connector.

HINT:
Tape the screwdriver tip before use.
2.

INSPECT SOLAR SENSOR CIRCUIT
(See page

DI–2336

)

3.

INSTALL SOLAR SENSOR

I21434

AC3HT–02

–

AIR CONDITIONING

ROOM TEMPERATURE SENSOR

AC–89

3816

ROOM TEMPERATURE SENSOR

INSPECTION

1.

REMOVE ROOM TEMPERATURE SENSOR

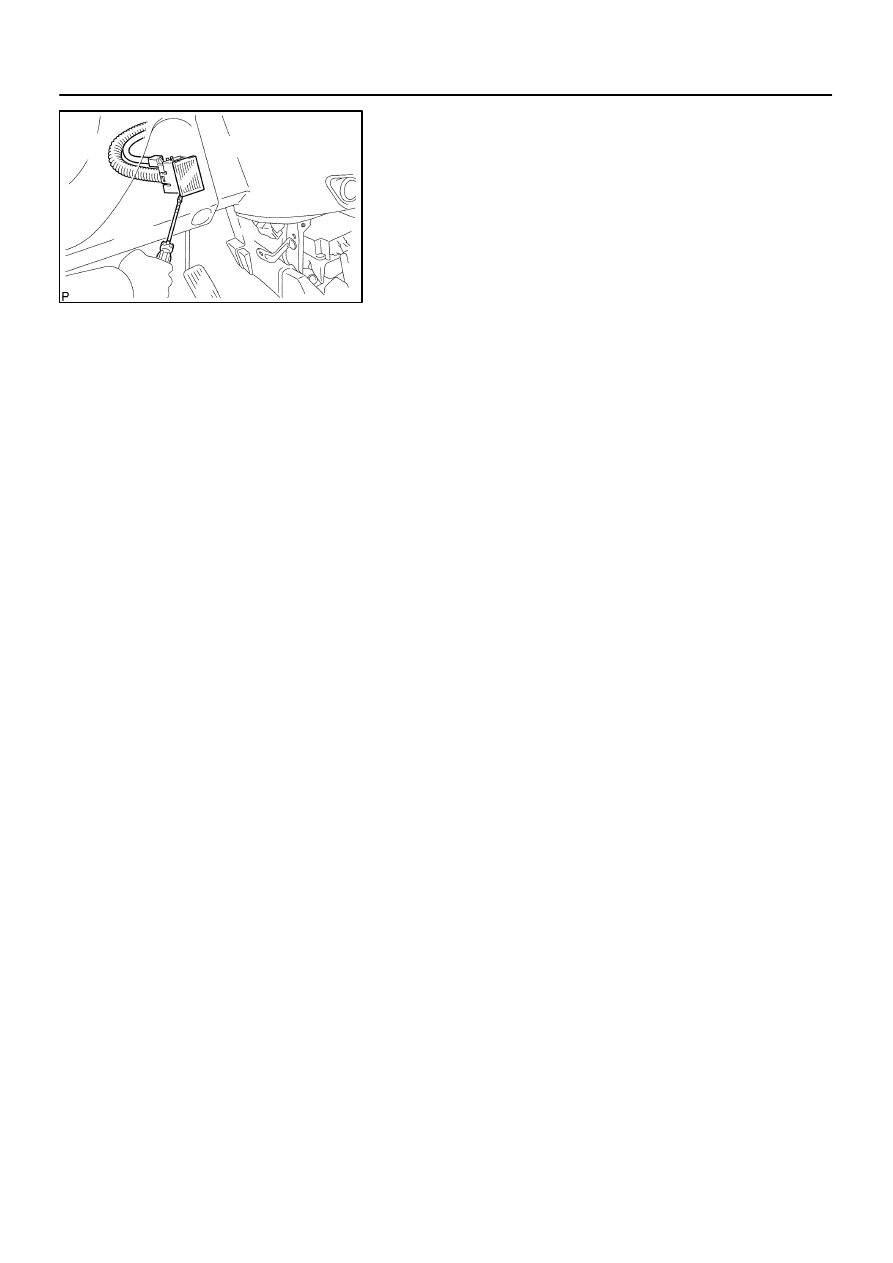

Using a screwdriver, pull out the sensor, then disconnect the
connector and aspirator hose.
HINT:
Tape the screwdriver tip before use.
2.

INSPECT ROOM TEMPERATURE SENSOR CIRCUIT
(See page

DI–2319

)

3.

INSTALL ROOM TEMPERATURE SENSOR
