BO–168

–

BODY

SEAT BELT PRETENSIONER

3721

(5)

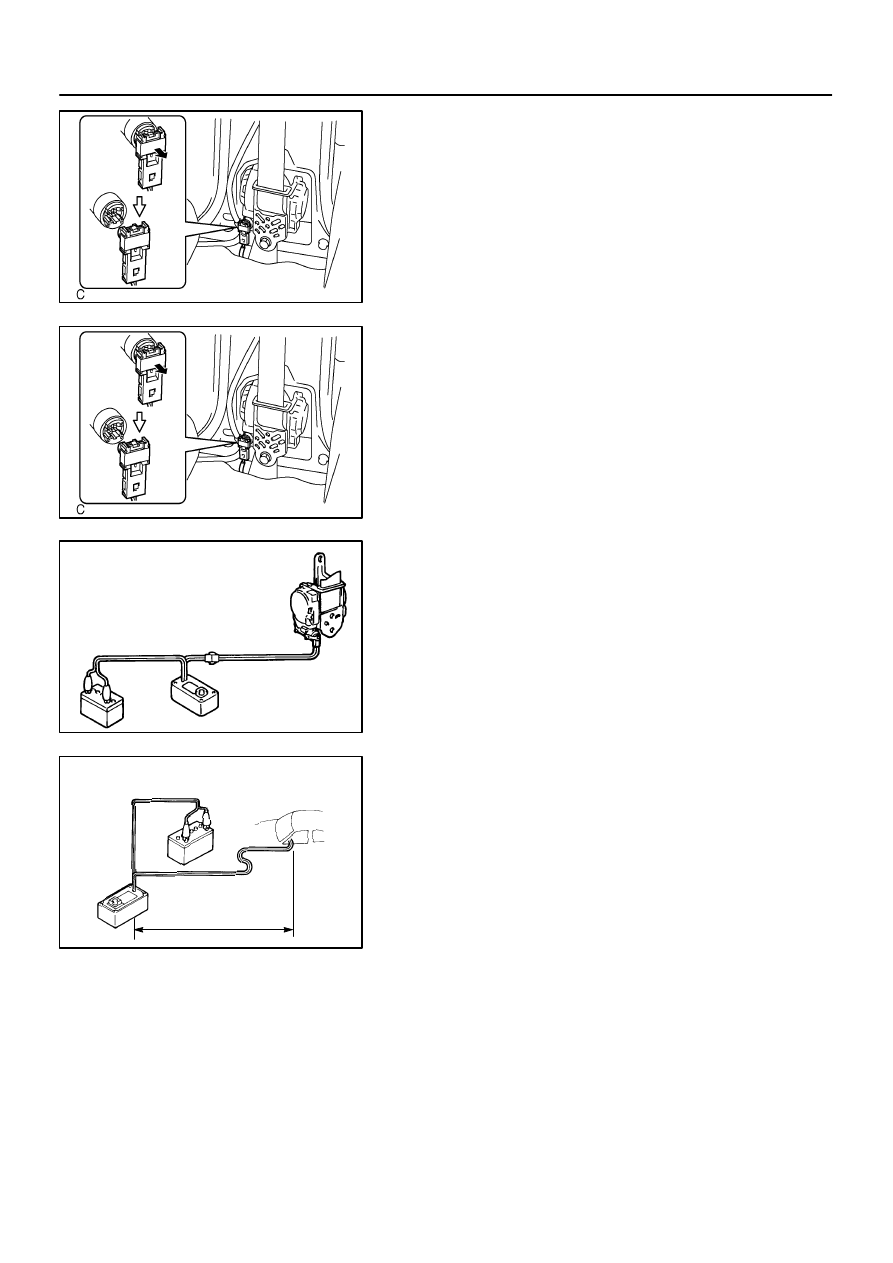

Disconnect the pretensioner connector as shown in
the illustration.

(6)

Buckle the front seat belt and check that there is no
looseness and slack in the front seat inner belt and
front seat outer belt.

(c)

Other front seat outer belts:
Disconnect the pretensioner connector.
(1)

Remove the front door scuff plate.

(2)

Remove the slide door scuff plate.

(3)

Remove the center pillar lower garnish.

(4)

Disconnect the pretensioner connector as shown in
the illustration.

(5)

Buckle the front seat belt and check that there is no
looseness and slack in the front seat inner belt and
front seat outer belt.

(6)

Connect the 2 SST each other, then connect them
to the seat belt pretensioner.

SST

09082–00700, 09082–00740

NOTICE:
To avoid damaging the SST connector and wire harness,
do not lock secondary lock of the twin lock.

(7)

Move the SST to at least 10mm (33 ft) away from the
front of the vehicle.

(8)

Close all the doors and windows of the vehicle.

NOTICE:
Take care not to damage the SST wire harness.

(9)

Connect the SST red clip to the battery positive (+)
terminal and the black clip to the negative (–) termi-
nal.

(d)

Activate seat belt pretensioner.
(1)

Confirm that no one is inside the vehicle or within 10
m (33 ft) area around the vehicle.

(2)

Press the SST activation switch and activate the
seat belt pretensioner.

HINT:
The seat belt pretensioner operates simultaneously as the LED
of the SST activation switch lights up.
(e)

Dispose of the front seat outer belt (with seat belt preten-
sioner).

AB0158

SST

Battery

H02612

SST

SST

–

BODY

SEAT BELT PRETENSIONER

BO–169

3722

CAUTION:

The front seat outer belt is very hot when the seat belt
pretensioner is activated, so leave it alone for at least
30 minutes after activation.

Use gloves and safety glasses when handling a front
seat outer belt with activated seat belt pretensioner.

Always wash your hands with water after completing
the operation.

Do not apply water, etc. to a front seat outer belt with
activated seat belt pretensioner.
When scrapping a vehicle, activate the seat belt preten-
sioner and scrap the vehicle with activated front seat out-
er belt still installed.

2.

ACTIVATION WHEN DISPOSING OF FRONT SEAT
OUTER BELT ONLY

NOTICE:

When disposing of the front seat outer belt (with seat
belt pretensioner) only, never use the customer’s ve-
hicle to activate the seat belt pretensioner.

Be sure to follow the procedure given below when ac-
tivating the seat belt pretensioner.

HINT:
Have a battery ready as the power source to activate the seat
belt pretensioner.
(a)

Remove the front seat outer belt (See page

BO–159

).

HINT:
Cut the belt near the seat belt retractor.

(b)

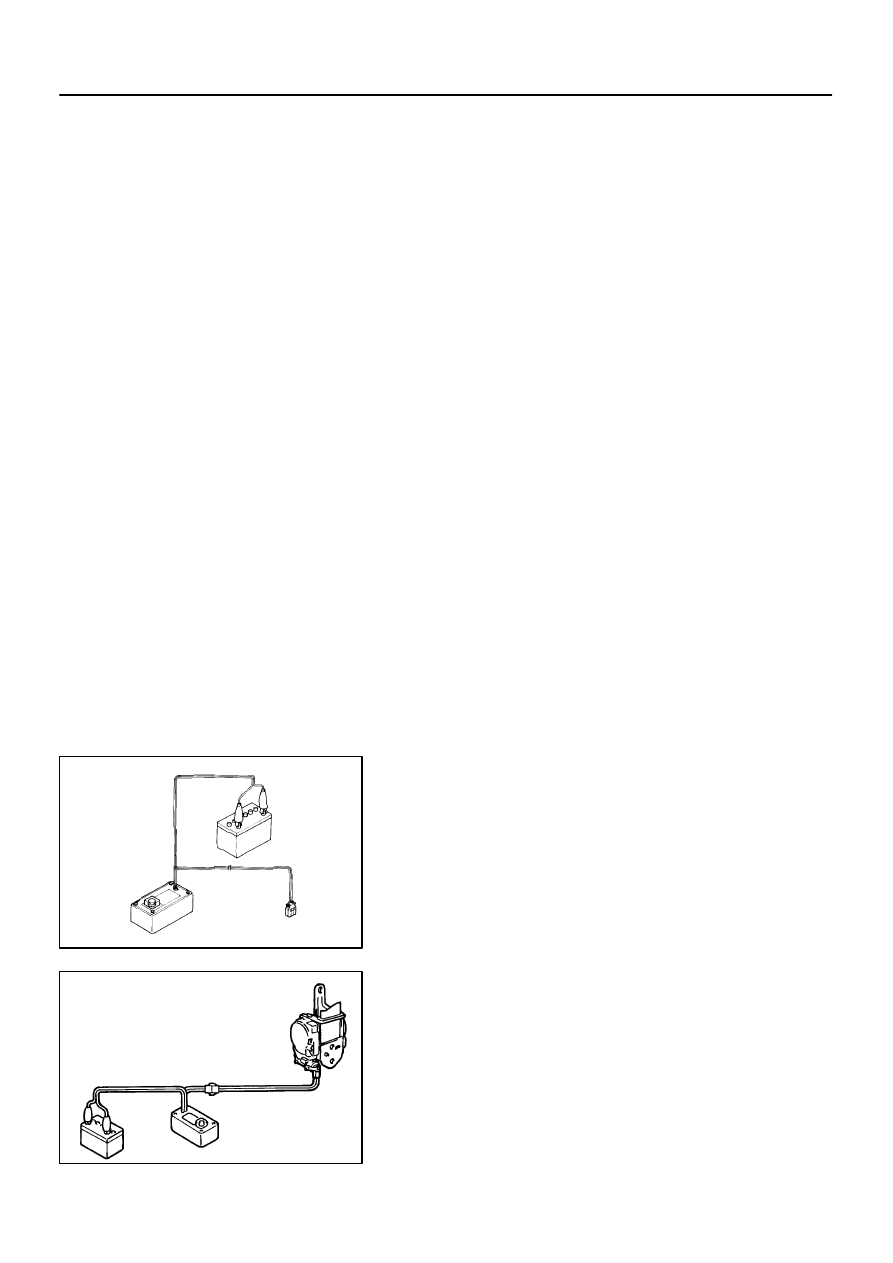

Check functioning of SST (See step 1–(a)).
SST

09082–00700, 09082–00740

(c)

Install the SST.
(1)

Connect the 2 SST each other, then connect them
to the seat belt pretensioner.

SST

09082–00700, 09082–00740

NOTICE:
To avoid damaging the SST connector and wire harness,
do not lock the secondary lock of the twin lock.

H20776

SST

SST

R05181

10 m (33 ft) or more

H20777

BO–170

–

BODY

SEAT BELT PRETENSIONER

3723

(2)

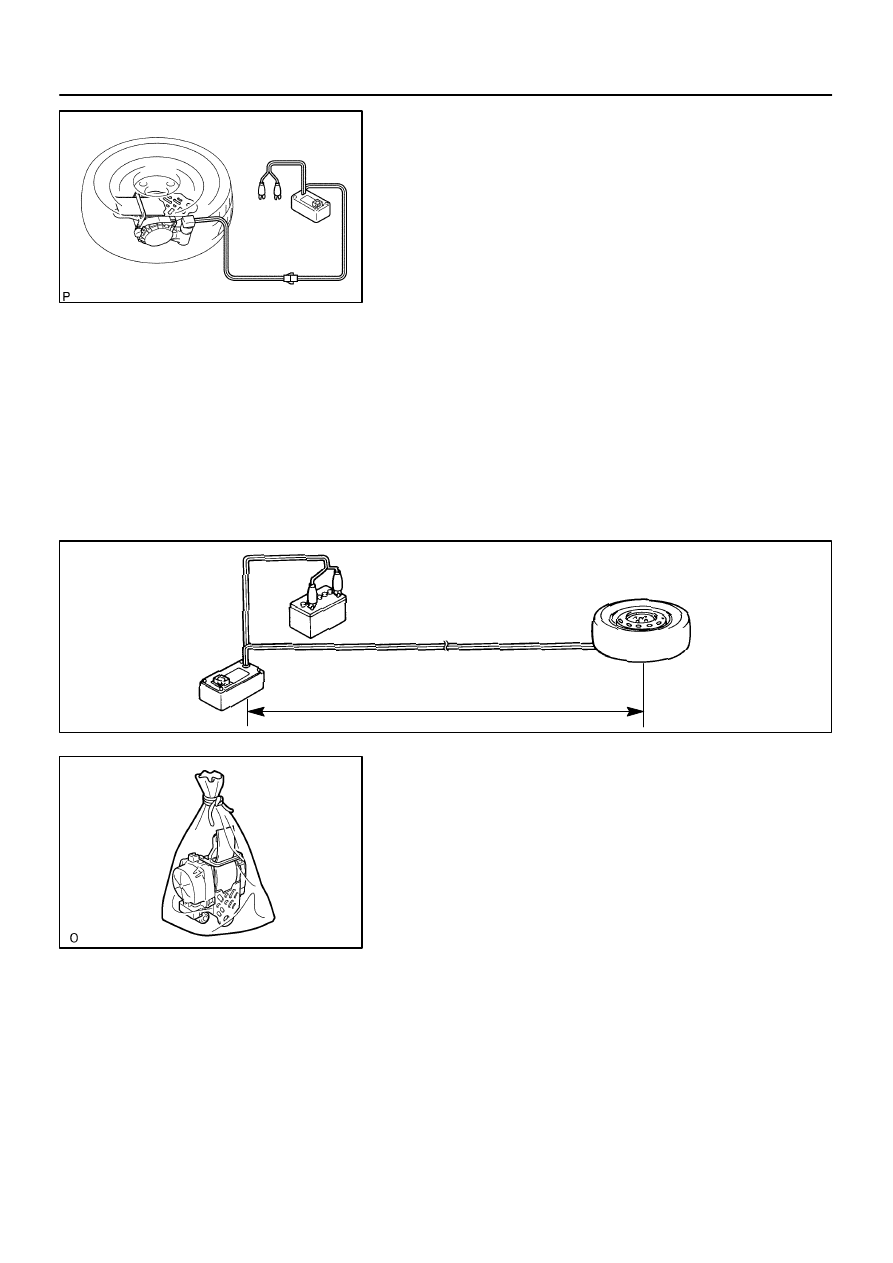

Place the front seat outer belt on the ground and
cover it with the disc wheel with tire.

NOTICE:
Place the front seat outer belt as shown in the illustration.

(3)

Move the SST to at least 10 m (33 ft) away from the
disc wheel.

NOTICE:
Take care not to damage the SST wire harness.
(d)

Activate the seat belt pretensioner.
(1)

Connect the SST red clip to the battery positive (+)
terminal and black clip to the battery negative (–)
terminal.

(2)

Check that no one is within 10 m (33 ft) area around
the disc wheel.

(3)

Press the SST activation switch and activate the
seat belt pretensioner.

HINT:
The seat belt pretensioner operates simultaneously as the LED
of the SST activation switch lights up.

(e)

Dispose of the front seat outer belt (with seat belt preten-
sioner).

CAUTION:

The front seat outer belt is very hot when the seat belt
pretensioner is activated, so leave it alone for at least
30 minutes after activation.

Use gloves and safety glasses when handling a front
seat outer belt with activated seat belt pretensioner.

Always wash your hands with water after completing
the operation.

Do not apply water, etc. to a front seat outer belt with
activated seat belt pretensioner.
(1)

Remove the disc wheel and SST.

(2)

Place the front seat outer belt in a vinyl bag, tie the
end tightly and dispose of it in the same way as oth-
er general parts.

BO47T–01

–

BODY

SEAT BELT PRETENSIONER

BO–171

3724

REPLACEMENT

REPLACE REQUIREMENTS
In the following cases, replace the seat belt pretensioner.

If the seat belt pretensioner has been activated.

If the seat belt pretensioner has been found to be faulty in troubleshooting.

If the front seat outer belt has been found to be faulty during the check in items 1–(b) or 2–(b).

If the front seat outer belt has been dropped.

CAUTION:
For removal and installation of the seat belt pretensioner, see page

BO–163

 and

BO–172

.

Be sure to follow the correct procedure.
