H11188

Shape

Size

Shape

Size

Shape

Size

mm (in.)

ø = 5.22
(0.2055)
L = 16
(0.63)

ø = 8
(0.31)

ø = 6
(0.24)
L = 14
(0.55)

ø = 5
(0.20)
L = 16
(0.63)

ø = 5
(0.20)
L = 16
(0.63)

ø = 6
(0.24)

ø = 6
(0.24)
L = 25
(0.98)

ø = 8
(0.31)
L = 22
(0.87)

BO–88

–

BODY

INSTRUMENT PANEL

3641

HINT:

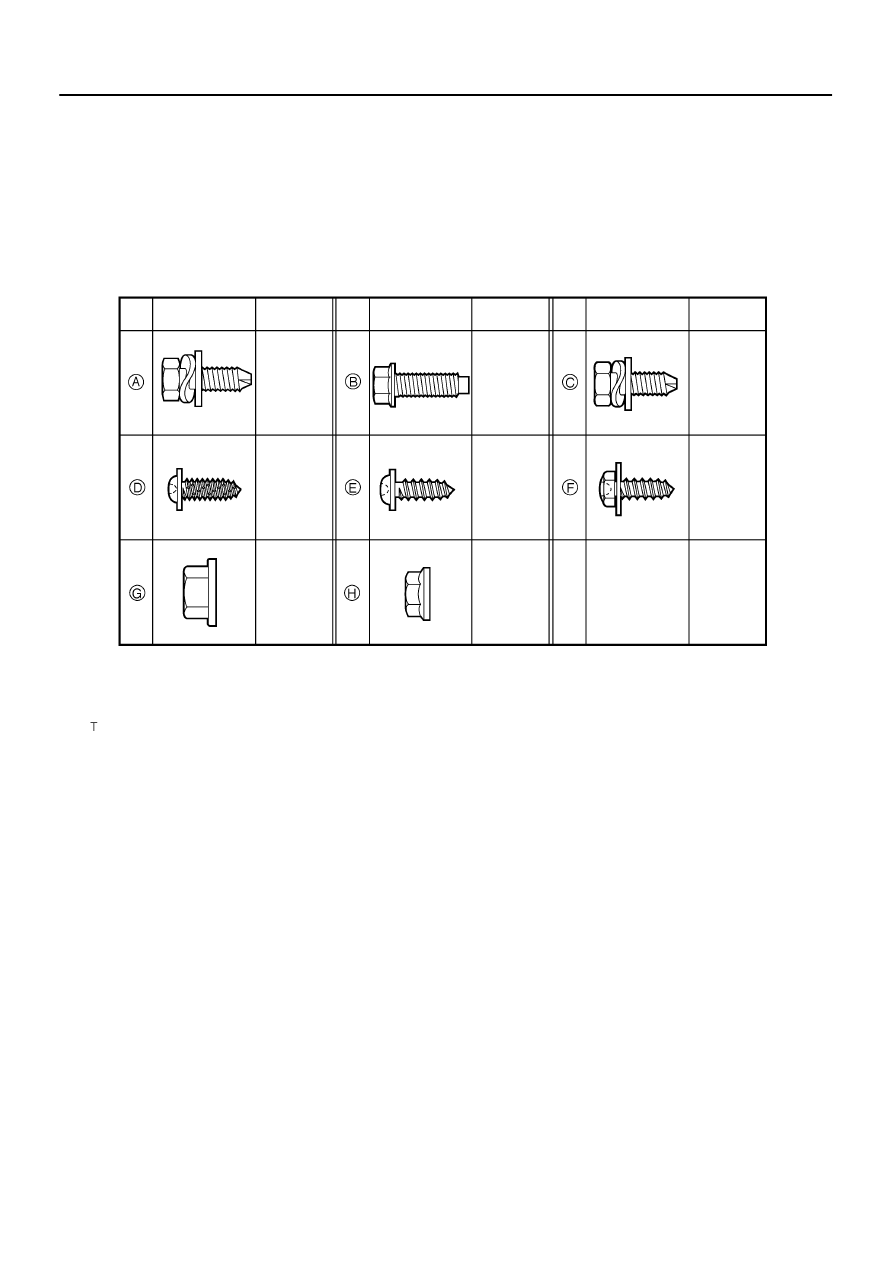

Screw shapes and sizes are indicated in the table below. The codes (”A” – ”H”) correspond to those indicated
on the previous page.

BO4HL–02

H24383

Claw

H16716

2 Clips

H16717

Clip

–

BODY

INSTRUMENT PANEL

BO–89

3642

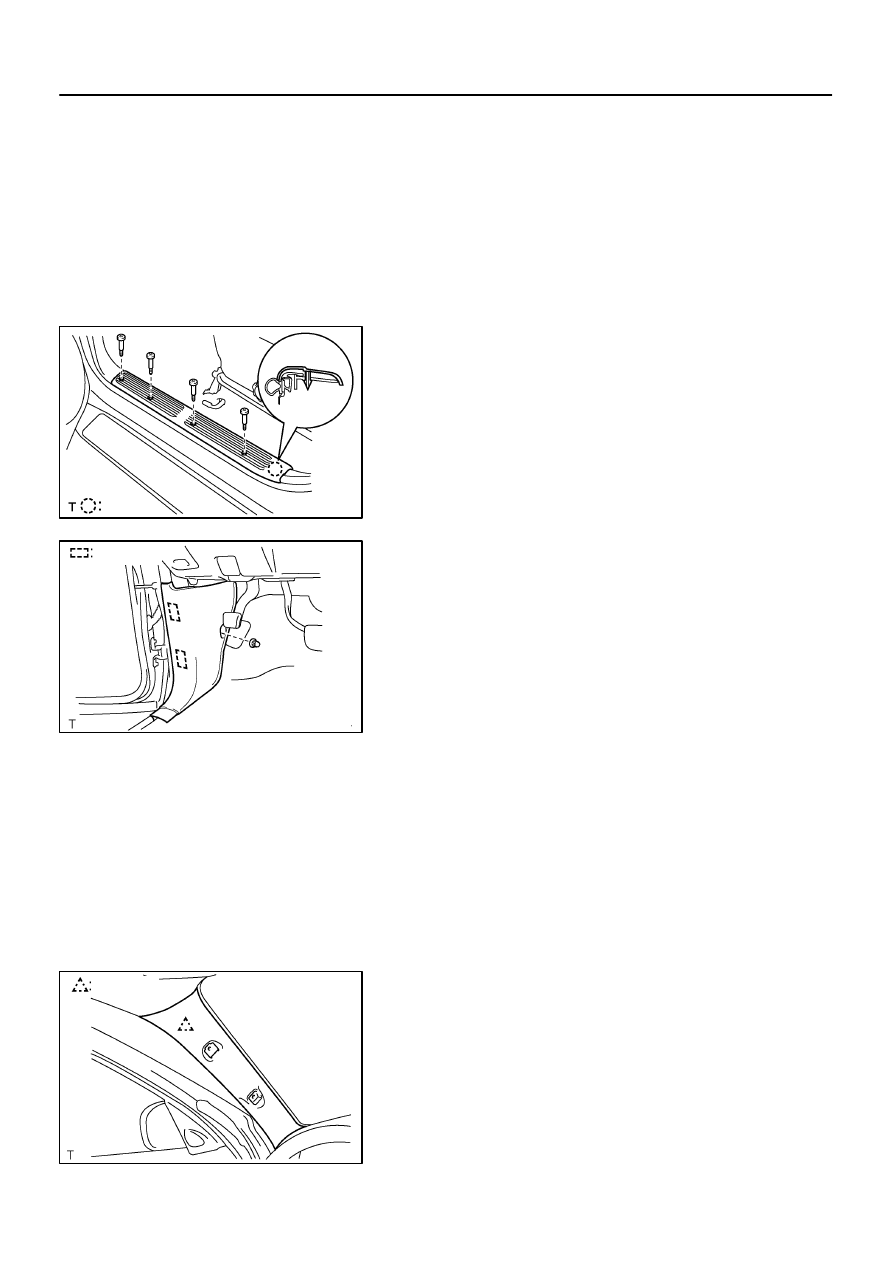

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

Wait for 90 seconds after disconnecting the cable to prevent the
airbag working.

2.

REMOVE FRONT DOOR SCUFF PLATE

(a)

Remove the 4 screws and front door scuff plate.

(b)

Use the same manner described above on the other side.

3.

REMOVE COWL SIDE TRIM BOARD

(a)

Remove the nut and cowl side trim board.

(b)

Use the same manner described above on the other side.

4.

REMOVE SIDE PANEL

5.

REMOVE FRONT PILLAR GARNISH

(a)

Remove the assist grip.
(1)

Using a screwdriver, remove the 2 assist grip plugs.

HINT:
Tape the screwdriver tip before use.

(2)

Remove the 2 bolts and assist grip.

(b)

Remove the front pillar garnish.

(c)

Use the same manner described above on the other side.

6.

REMOVE STEERING WHEEL PAD (See page

SR–14

)

7.

REMOVE STEERING WHEEL (See page

SR–14

)

8.

REMOVE STEERING COLUMN COVERS (See page

SR–14

)

9.

REMOVE COMBINATION SWITCH

Disconnect the 4 connectors, remove the 3 screws and com-
bination switch.

H11174

: 4 Clips

H11372

 3 Clips

H11177

 2 Clips

H16769

5 Clips

H24384

BO–90

–

BODY

INSTRUMENT PANEL

3643

10.

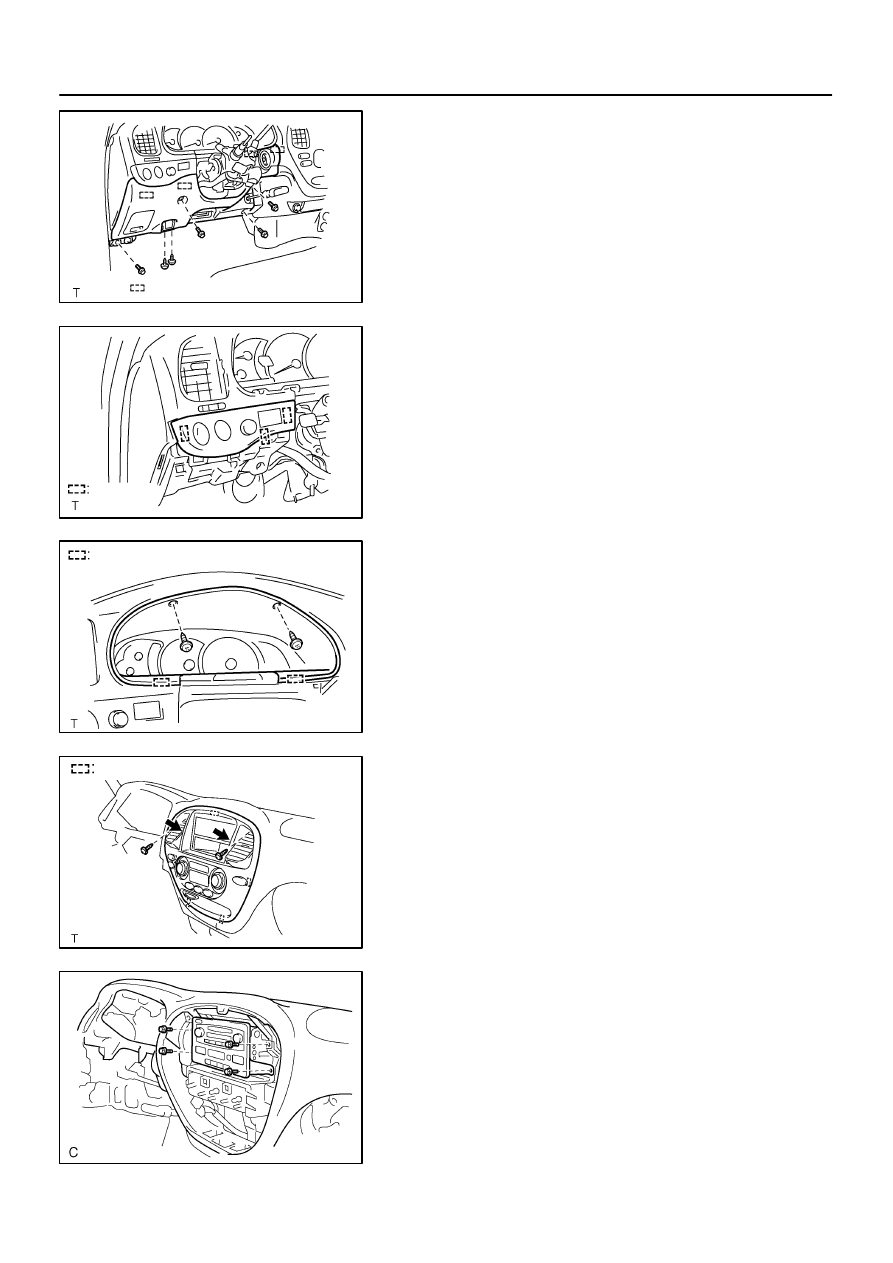

REMOVE LOWER FINISH PANEL

(a)

Remove the 2 screws and hood lock release lever.

(b)

Remove the 4 bolts and lower finish panel.

(c)

Disconnect the connector.

11.

REMOVE SWITCH BASE

(a)

Using a screwdriver, lift up the switch base and remove it.

HINT:
Tape the screwdriver tip before use.
(b)

Disconnect the connectors.

12.

REMOVE NO. 2 HEATER TO REGISTER DUCT

13.

REMOVE STEERING COLUMN (See page

SR–14

)

14.

REMOVE CLUSTER FINISH PANEL

Remove the 2 screws and cluster finish panel.
15.

REMOVE COMBINATION METER

(a)

Remove the 4 screws.

(b)

Remove the combination meter and disconnect the 4
connectors.

16.

REMOVE INTEGRATION CONTROL PANEL

(a)

Remove the 2 screws as shown in the illustration.

(b)

Using a screwdriver, remove the integration panel, then
disconnect the connectors.

HINT:
Tape the screwdriver tip before use.

17.

REMOVE RADIO TUNER ASSEMBLY

(a)

Disconnect the connector.

(b)

Remove the 4 bolts and radio tuner assembly.

18.

REMOVE AIR CONDITIONER CONTROL ASSEMBLY
(See page

AC–103

)

H16202

H11371

H24860

4 Clips

H16748

6 Clips

–

BODY

INSTRUMENT PANEL

BO–91

3644

19.

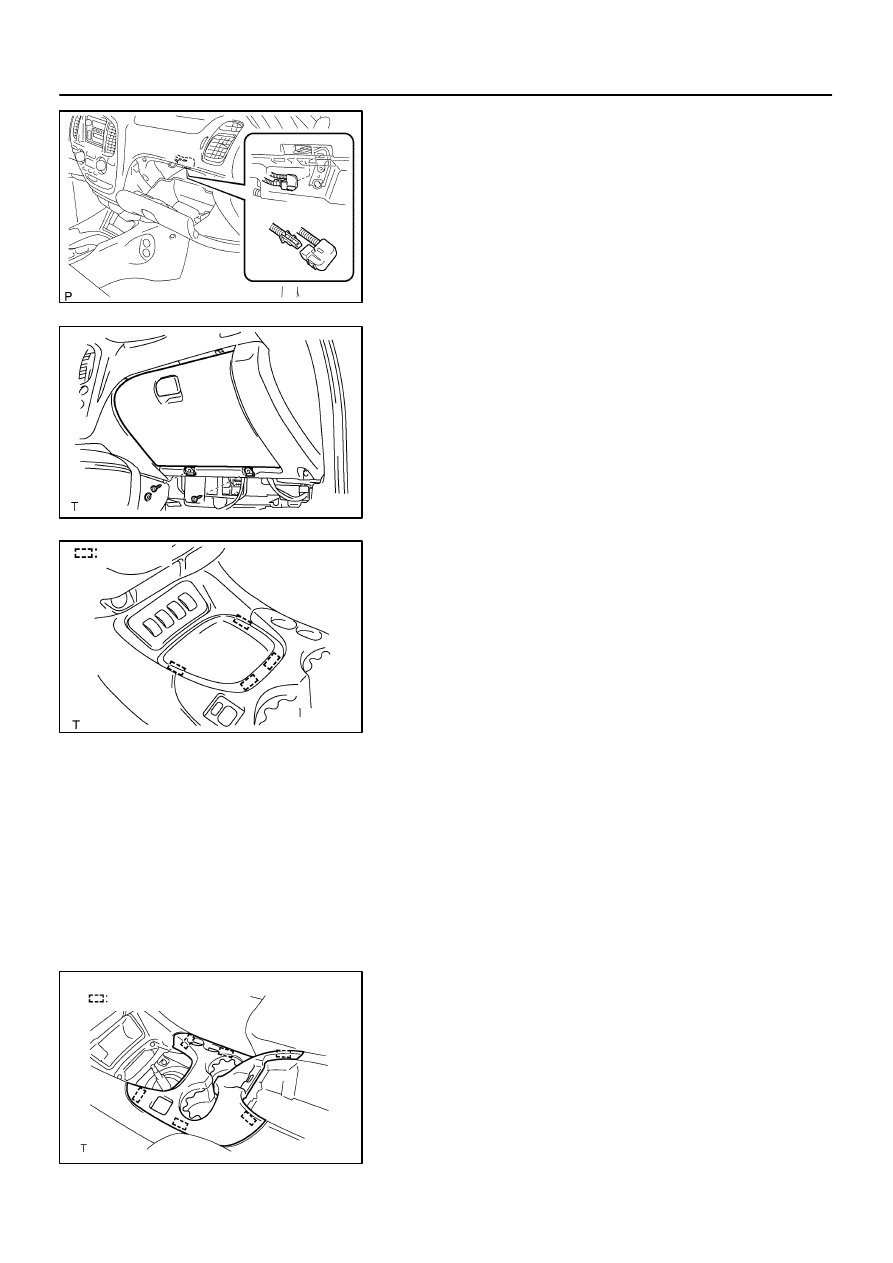

DISCONNECT FRONT PASSENGER AIRBAG AS-
SEMBLY CONNECTOR

NOTICE:
When handling the airbag connector, take care not to dam-
age the airbag wire harness.
(a)

Using a clip remover, disengage the connector clamp.

(b)

Disconnect the connector as shown in the illustration.

20.

REMOVE GLOVE COMPARTMENT DOOR

Remove the 2 screws and glove compartment door.
21.

REMOVE LOWER NO. 2 FINISH PANEL

Remove the 3 screws and lower No. 2 finish panel.

22.

REMOVE SHIFTING HOLE COVER

Using a screwdriver, remove the shifting hole cover.
HINT:
Tape the screwdriver tip before use.
23.

REMOVE UPPER CONSOLE PANEL

(a)

w/ Seat heater:
Using a screwdriver, remove the seat heater switches,
then disconnect the connectors.

HINT:
Tape the screwdriver tip before use.
(b)

Using a screwdriver, remove the power mirror control
switch, then disconnect the connector.

HINT:
Tape the screwdriver tip before use.

(c)

Using a screwdriver, remove the upper console panel.

HINT:
Tape the screwdriver tip before use.
