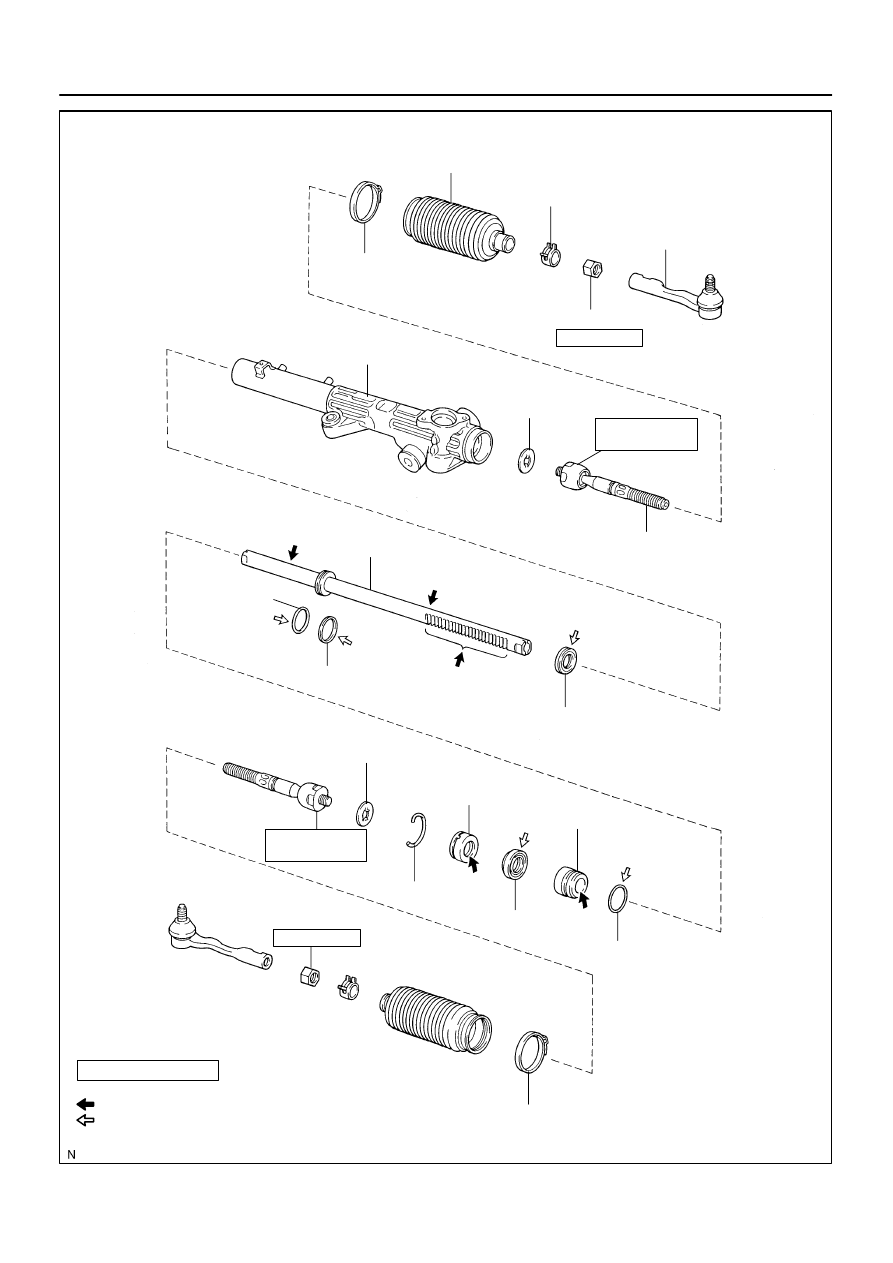

F06761

Rack Housing



 Claw Washer

Rack End

Lock Nut

Tie Rod End

Rack Boot



 Clamp

Clip

Steering Rack



 Teflon Ring



 Oil Seal

Bushing



 O–Ring



 Oil Seal



 Wire





N·m (kgf·cm, ft·lbf) : Specified touque

Power steering fluid
For use with SST

Non–reusable part
Molybdenum disulfide lithium base grease



*



 O–Ring

55 (560, 41)

103 (1,050, 76)
*76 (770, 56)

55 (560, 41)

103 (1,050, 76)
*76 (770, 56)

Cylinder End Stopper

SR–38

–

STEERING

POWER STEERING GEAR

3265

Rack Housing Cap

59 (600, 43)

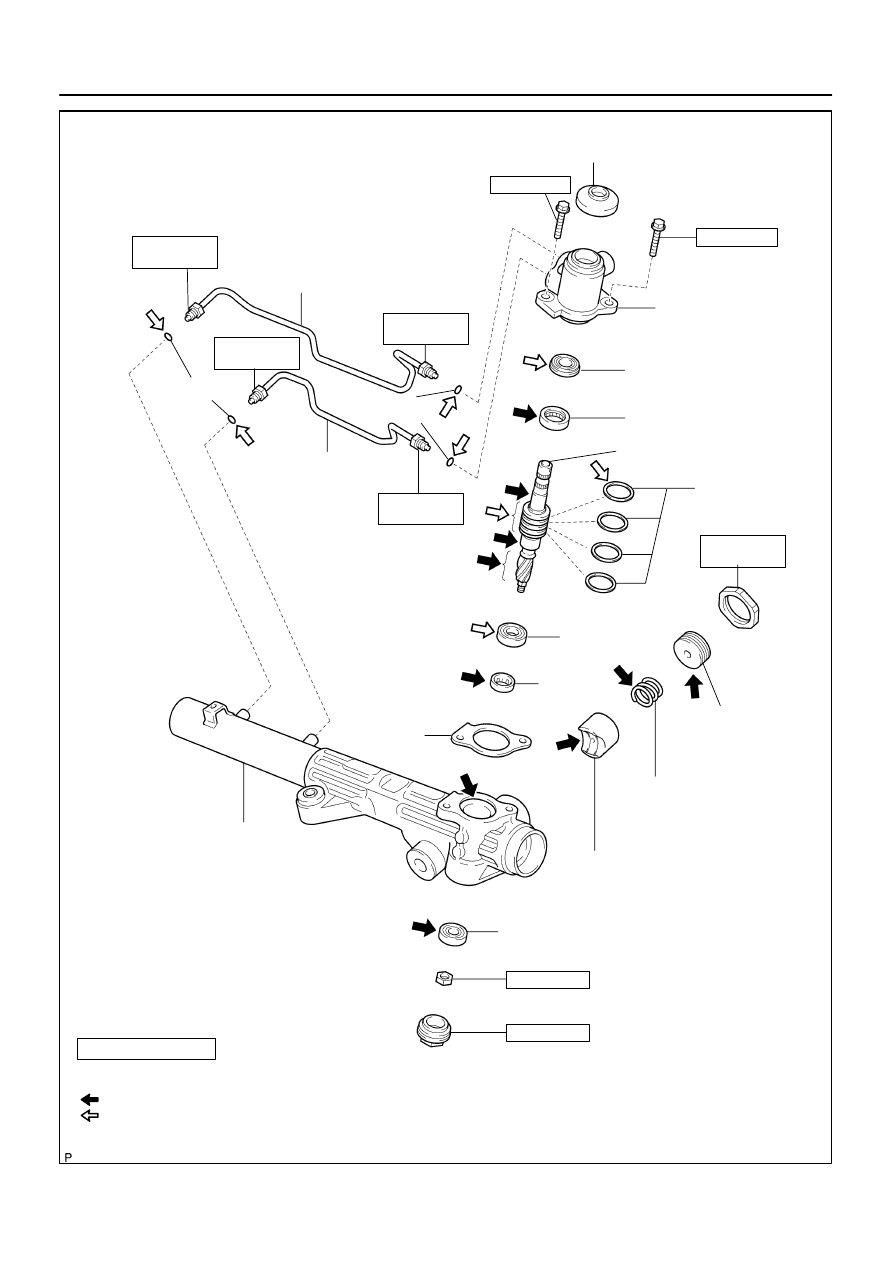

F13619

Turn Pressure Tube

Dust Cover

Turn Pressure Tube



 O–Ring

Control Valve
Housing



 Oil Seal



 Bearing



 Teflon Ring

Rack Guide Spring

Rack Guide
Sub–assembly



 Self–locking Nut



 Bearing

N·m (kgf·cm, ft·lbf) : Specified torque

Non–reusable part
Precoated part
Molybdenum disulfide lithium base grease
Power steering fluid
For use with SST

Rack Housing



 Bearing



 Gasket

Control Valve Assembly



*



 Oil seal

15 (150, 11)
*13 (135, 10)

18 (185, 13)

59 (600, 43)
*44 (450, 32)

Rack Guide
Spring Cap

25 (250, 18)

18 (185, 13)

15 (150, 11)
*13 (135, 10)

15 (150, 11)
*13 (135, 10)

15 (150, 11)
*13 (135, 10)

Rack Guide Spring
Cap Lock Nut



 O–Ring

–

STEERING

POWER STEERING GEAR

SR–39

3266

SR02O–09

F13616

SST

SR–40

–

STEERING

POWER STEERING GEAR

3267

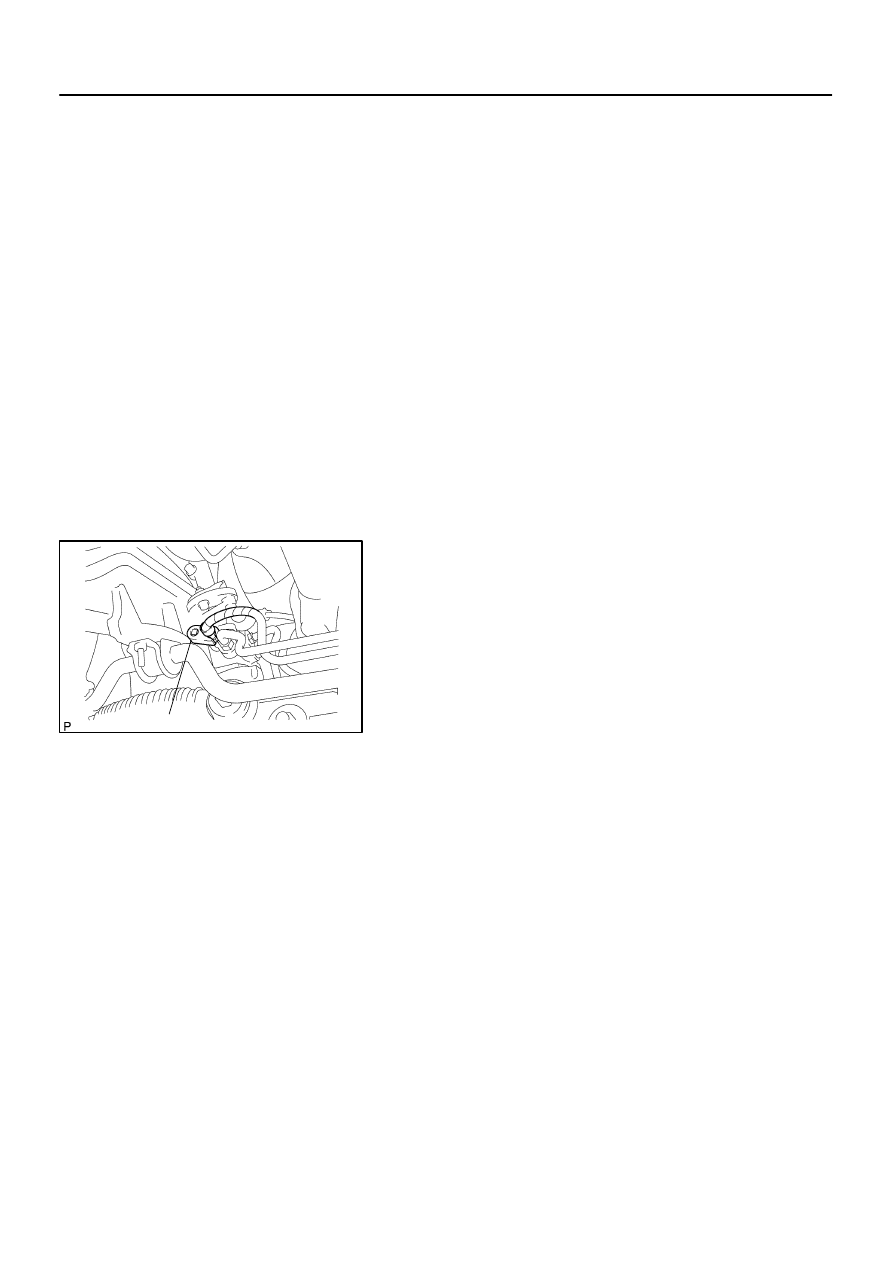

REMOVAL

NOTICE:
Remove the steering wheel assembly before the steering
gear removal, because there is possibility of breaking of
the spiral cable.
1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

Wait for 90 seconds after disconnecting the cable to prevent the
airbag working.
2.

PLACE FRONT WHEELS FACING STRAIGHT AHEAD

3.

REMOVE STEERING WHEEL PAD
(See page

SR–14

)

4.

REMOVE STEERING WHEEL (See page

SR–14

)

5.

DISCONNECT RH AND LH TIE ROD ENDS
(See page

SA–86

)

6.

DISCONNECT NO. 2 INTERMEDIATE SHAFT AS-
SEMBLY (See page

SR–14

)

7.

DISCONNECT CLAMP PLATE

Remove the bolt and disconnect the clamp plate.

8.

DISCONNECT PRESSURE FEED AND RETURN
TUBES

Using SST, disconnect the tubes.

SST

09023–12701

9.

REMOVE PS GEAR ASSEMBLY

(a)

Remove the bolt, nut and stud bolt from the bracket.

(b)

Remove the 2 set bolts, nut, washer and PS gear assem-
bly.

10.

REMOVE BRACKET AND GROMMET

SR0V9–05

F13620

SST

F06746

SST

Bolt

SST

Nut

F06747

Matchmarks

F06748

–

STEERING

POWER STEERING GEAR

SR–41

3268

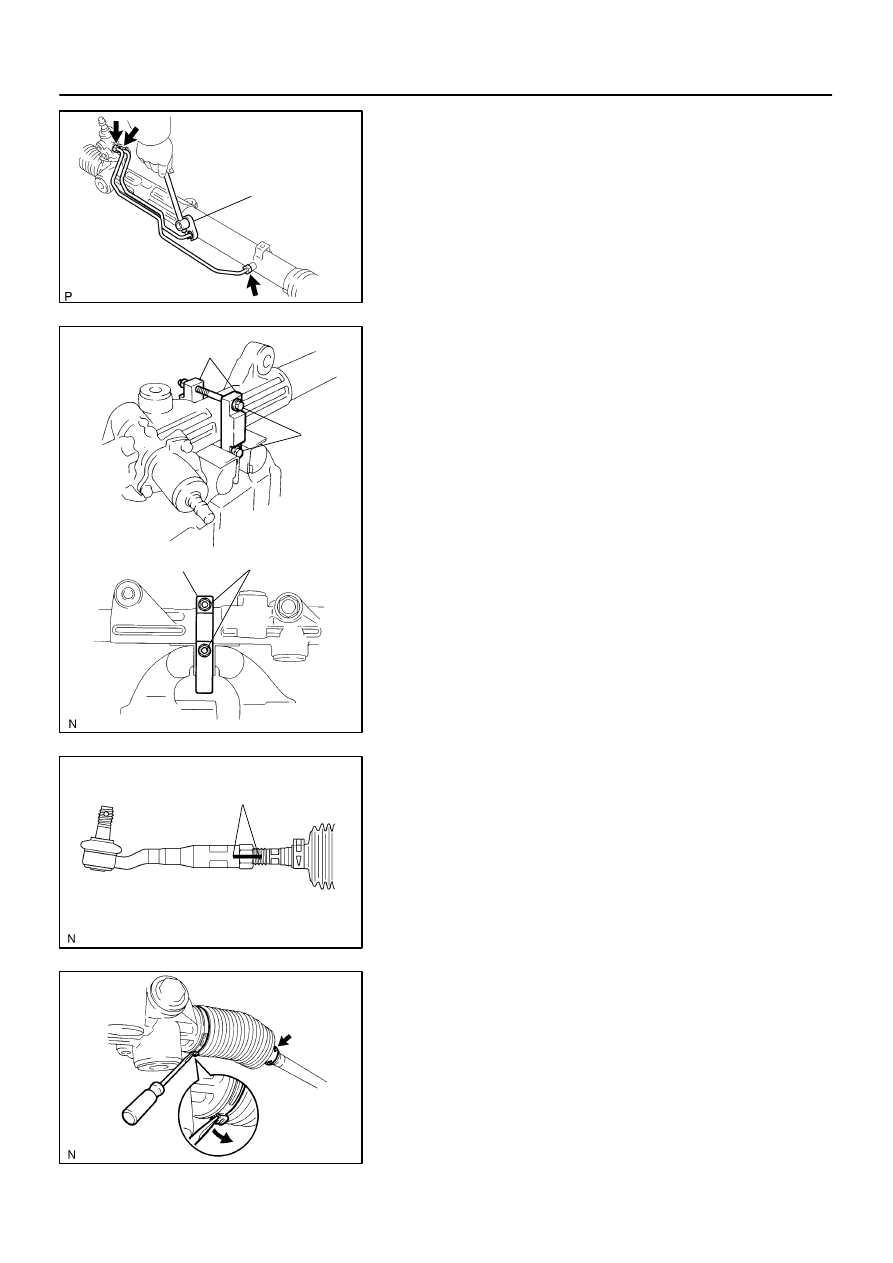

DISASSEMBLY

NOTICE:
When using a vise, do not overtighten it.
1.

REMOVE 2 TURN PRESSURE TUBES

(a)

Using SST, remove the 2 turn pressure tubes.
SST

09023–38401

(b)

Remove the 4 O–rings from the tubes.

2.

SECURE PS GEAR ASSEMBLY IN VISE

Using SST, 2 bolts and nuts, secure the gear assembly in a vise,
as shown in the illustration.

SST

09612–00012

Reference:
Bolt: 90105–10346
Nut: 90170–10198

HINT:
Use 2 of the same type of SST.

3.

REMOVE RH AND LH TIE ROD ENDS AND LOCK
NUTS

(a)

Put matchmarks on the tie rod end, lock nut and rack end.

(b)

Loosen the lock nut, remove the tie rod end and lock nut.

(c)

Perform the same procedure on the other side.

4.

REMOVE RH AND LH CLIPS, RACK BOOTS AND
CLAMPS

(a)

Using a screwdriver, loosen the 2 clamps.

(b)

Remove the 2 clips and boots.

HINT:
Mark the RH and LH boots.
NOTICE:
Be careful not to damage the boot.
