SR–22

–

STEERING

TILT STEERING COLUMN

3249

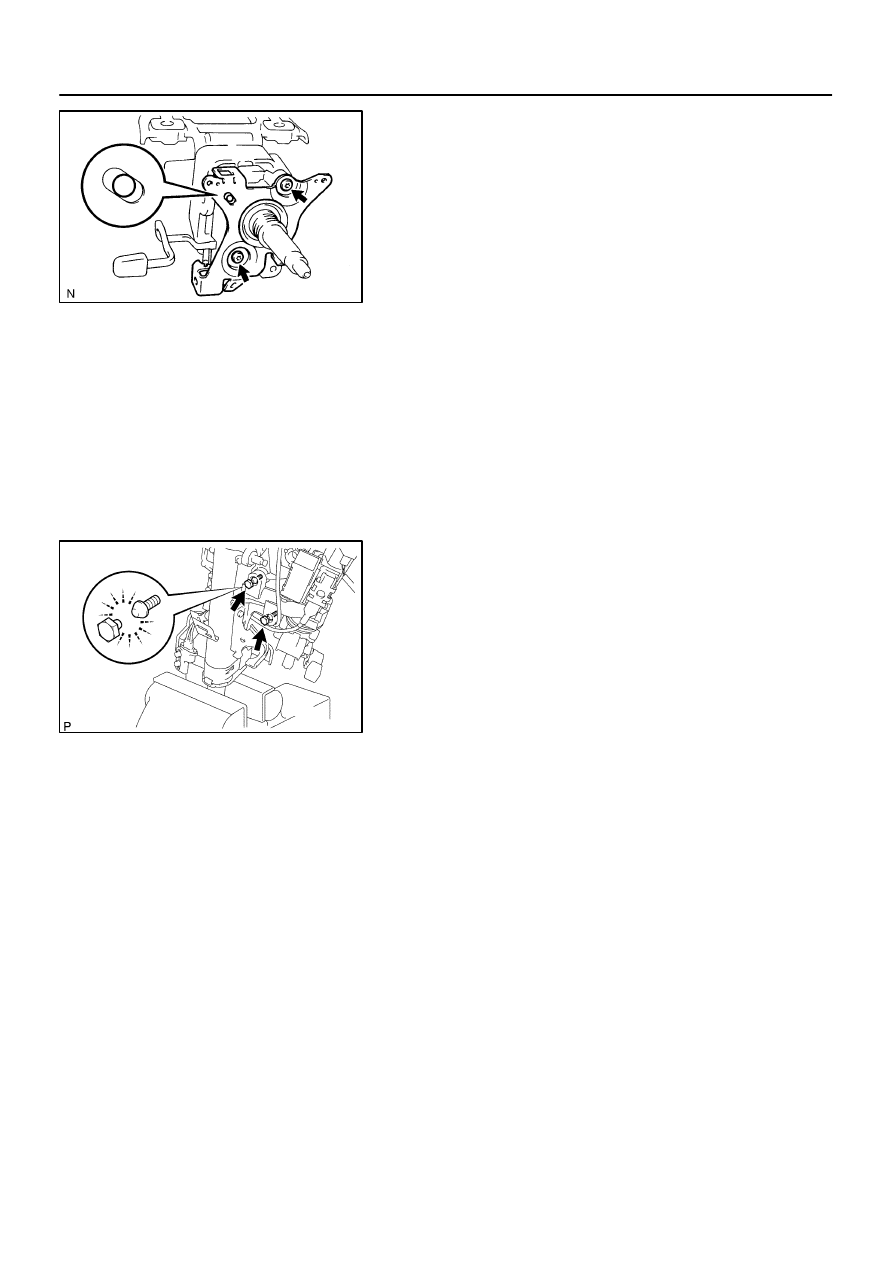

7.

INSTALL TURN SIGNAL BRACKET

Using a torx

®

 socket wrench, install the turn signal bracket with

2 new torx

®

 screws.

Torque: 7.5 N·m (75 kgf·cm, 65 in.·lbf)

HINT:
Make sure that the protrusion on the steering column housing
is fitted into the hole of the turn signal bracket.
8.

INSTALL RELEASE LEVER SPRING

9.

INSTALL SHIFT LEVER HOUSING

Using a torx

®

 socket wrench, install the shift lever housing with

3 new torx

®

 screws.

Torque: 12 N·m (120 kgf·cm, 9 ft·lbf)

10.

INSTALL PARK LOCK CABLE ASSEMBLY (See page

AT–21

)

11.

INSTALL SHIFT LEVER

Using a torx

®

 socket wrench, install the shift lever with a new

torx

®

 screw.

Torque: 18 N·m (180 kgf·cm, 13 ft·lbf)

12.

INSTALL COLUMN UPPER BRACKET

(a)

Install the column upper bracket with 2 new tapered–
head bolts.

HINT:
Insert the bracket pin into the column tube hole.
(b)

Tighten the tapered–head bolts until the bolt heads break
off.

13.

INSTALL KEY CYLINDER LAMP ASSEMBLY

14.

INSTALL TRANSPONDER KEY COIL

SR1KE–01

F17897

Matchmarks

F17913

Matchmarks

–

STEERING

TILT STEERING COLUMN

SR–23

3250

INSTALLATION

NOTICE:
When replacing the steering angle sensor, drive the vehicle
straight ahead at a speed of 6.5 mph (10.5 km/h) or more.
Accordingly, zero point calibration of the steering angle
sensor is performed.
HINT:
If the steering angle sensor zero point calibration is not per-
formed, its value will be fixed. Check after driving the vehicle
straight ahead at a speed of 6.5 mph (10.5 km/h) or more (See
page

DI–946

).

1.

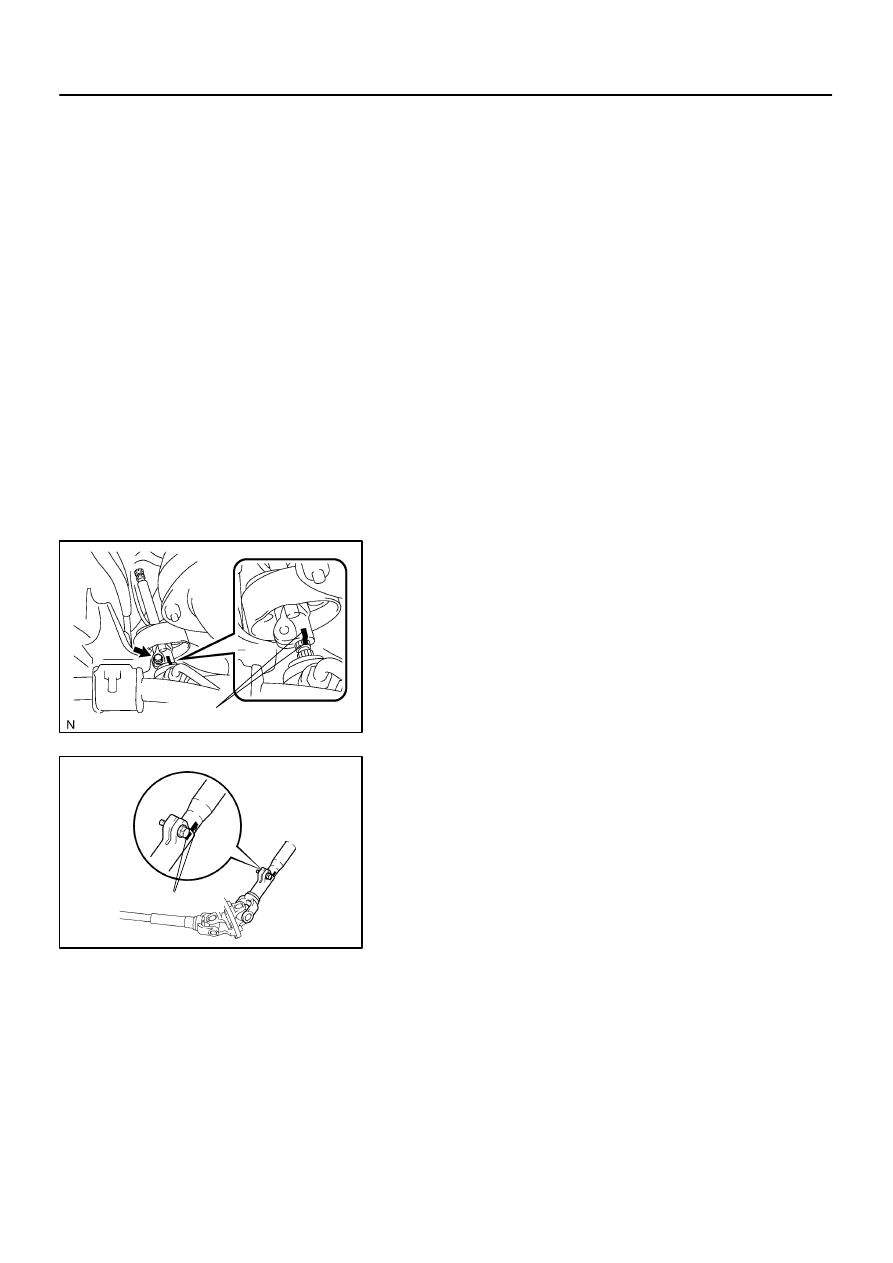

INSTALL NO. 2 INTERMEDIATE SHAFT ASSEMBLY

(a)

Align the matchmark on the No. 2 intermediate shaft as-
sembly with the one on the control valve shaft.

(b)

Install the bolt.
Torque: 35 N·m (360 kgf·cm, 26 ft·lbf)

2.

CONNECT NO. 2 UNIVERSAL JOINT ASSEMBLY

(a)

Align the matchmark on the column assembly with the
one on the No. 2 universal joint assembly.

(b)

Install the bolt.
Torque: 35 N·m (360 kgf·cm, 26 ft·lbf)

3.

INSTALL STEERING COLUMN ASSEMBLY WITH NO.
2 UNIVERSAL JOINT ASSEMBLY

(a)

Install the column assembly with the No. 2 universal joint
assembly.

(b)

Install the 4 steering column set nuts.
Torque: 26 N·m (260 kgf·cm, 19 ft·lbf)

NOTICE:
Take care not to rotate the steering shaft.
(c)

Connect the connectors.

4.

CONNECT TRANSMISSION CONTROL CABLE AS-
SEMBLY

Connect the cable assembly to the shift lever assembly.

F13260

F17896

B

Matchmarks

A

F19948

Mark

SR–24

–

STEERING

TILT STEERING COLUMN

3251

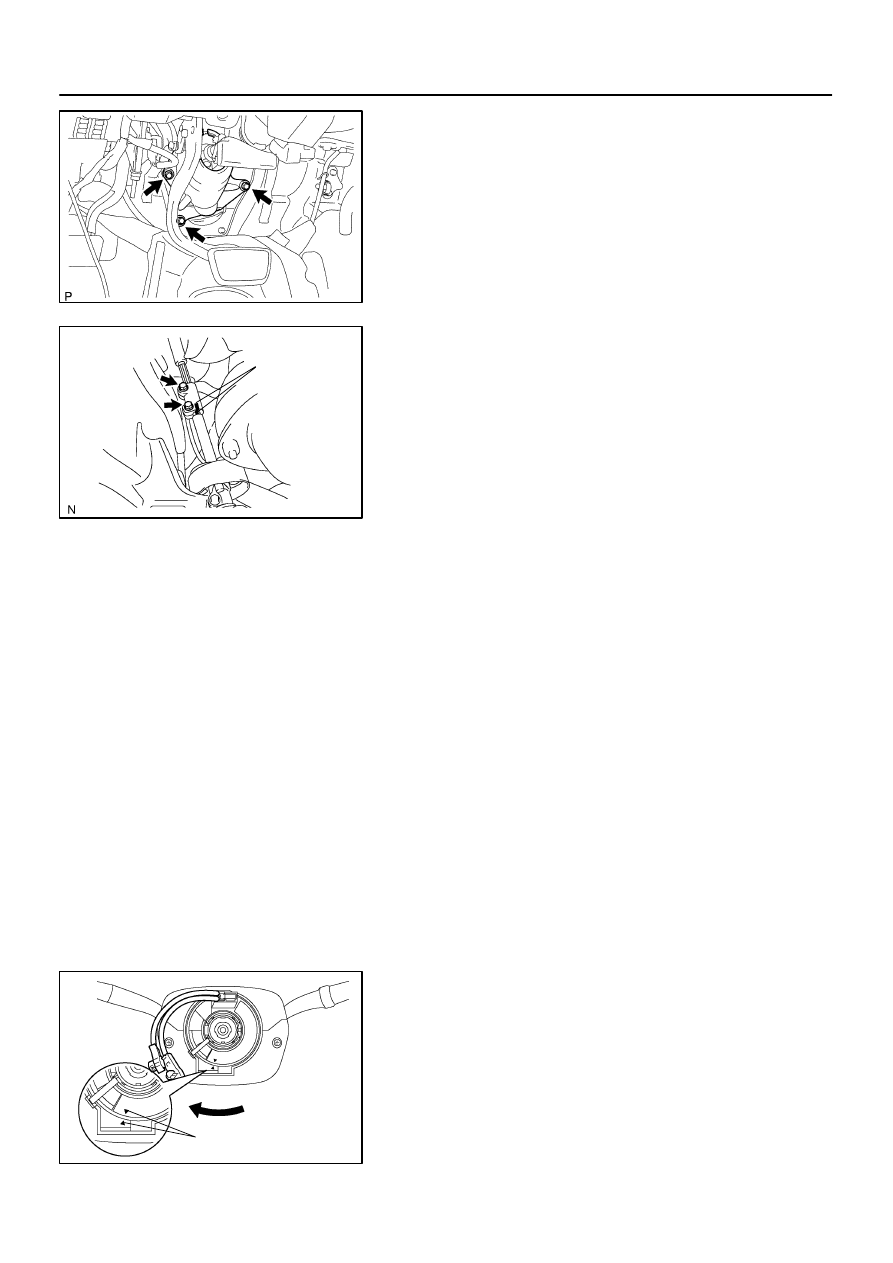

5.

INSTALL COLUMN HOLE COVER NO. 2

Install the column hole cover No. 2 to the body with the 3 bolts.

Torque: 8.0 N·m (82 kgf·cm, 71 in.·lbf)

6.

INSTALL SLIDING YOKE

(a)

Align the matchmark on the sliding yoke with the one on
the No. 2 intermediate shaft assembly.

(b)

Install the ”B” bolt.
Torque: 35 N·m (360 kgf·cm, 26 ft·lbf)

(c)

Install the ”A” bolt.
Torque: 35 N·m (360 kgf·cm, 26 ft·lbf)

7.

INSTALL BRAKE PEDAL RETURN SPRING

8.

INSTALL NO. 2 HEATER TO REGISTER DUCT

9.

INSTALL LOWER LH FINISH PANEL

(a)

Install the lower LH finish panel with the 4 bolts.

(b)

Connect the hood lock release lever with the 2 screws.

10.

INSTALL COWL SIDE TRIM AND FRONT DOOR
SCUFF PLATE

11.

INSTALL SPIRAL CABLE (See page

BE–26

)

12.

INSTALL COMBINATION SWITCH WITH SPIRAL
CABLE

(a)

Install the combination switch with the 3 screws.

(b)

Connect the airbag connector.

(c)

Connect the 4 connectors.

13.

INSTALL UPPER AND LOWER COLUMN COVERS

Install the upper and lower column covers with the 3 screws.

14.

CENTER SPIRAL CABLE

(a)

Check that the front wheels are facing straight ahead.

(b)

Turn the cable counterclockwise by hand until it feels firm.

(c)

Then rotate the cable clockwise about 2.5 turns to align
the marks.

HINT:
The cable will rotate about 2.5 turns to both the left and right
from the center.

F17129

Torx

®

 Screw

Screw Case

–

STEERING

TILT STEERING COLUMN

SR–25

3252

15.

INSTALL STEERING WHEEL

(a)

Align the matchmark on the wheel with the one on the
main shaft.

(b)

Install the wheel set nut.
Torque: 50 N·m (510 kgf·cm, 37 ft·lbf)

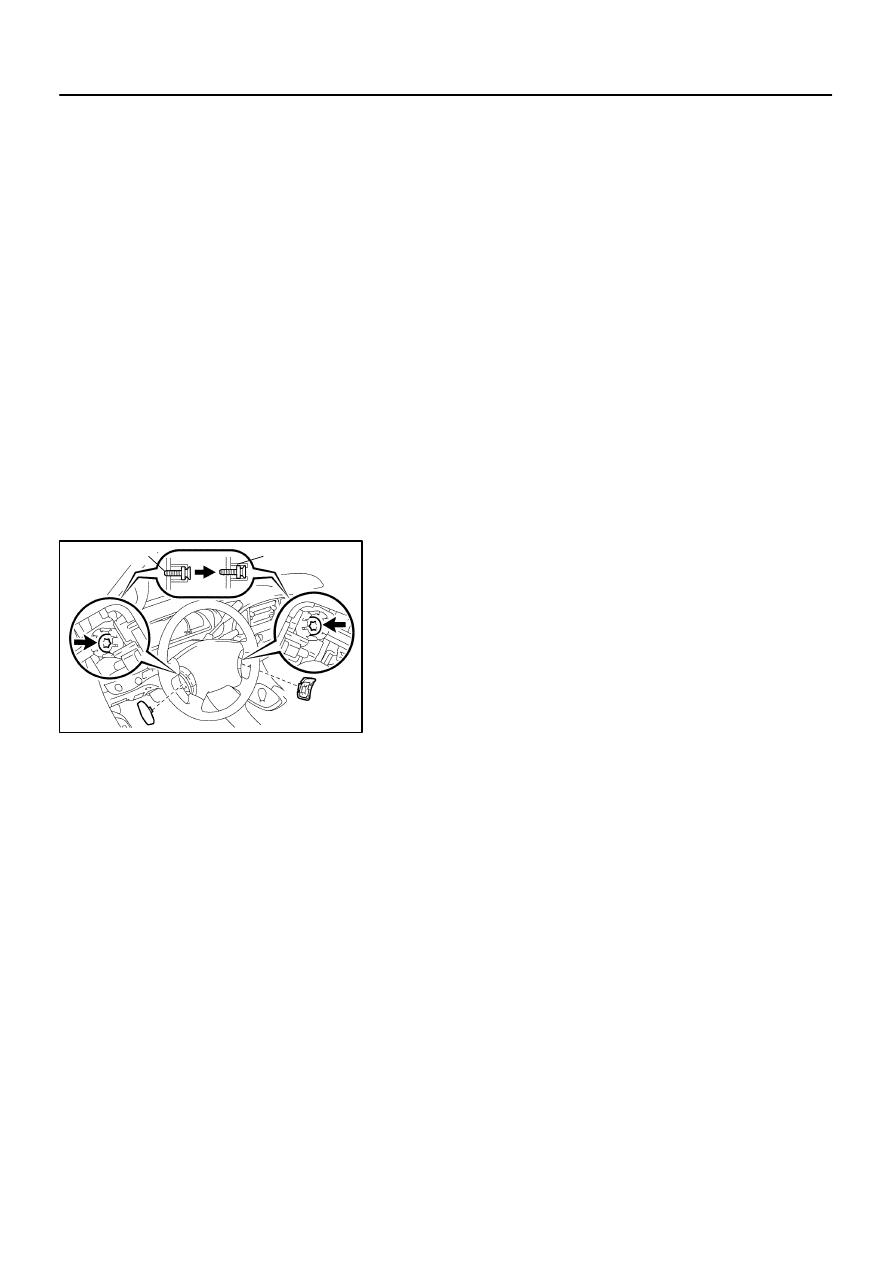

16.

INSTALL STEERING WHEEL PAD

NOTICE:

Never use airbag parts from another vehicle. When
replacing parts, replace with new ones.

Make sure that the wheel pad is installed with the spe-
cified torque.

If the wheel pad has been dropped, or there are
cracks, dents or other defects on the case or connec-
tor, replace the wheel pad with a new one.

When installing the wheel pad, take care that the wir-
ings do not interfere with other parts and are not
pinched between other parts.

(a)

Connect the horn terminal.

(b)

Connect the airbag connectors.

(c)

Install the wheel pad after confirming that the circumfer-
ence groove of the torx

®

 screw is caught on the screw

case.

(d)

Using a torx

®

 socket wrench (T30), tighten the 2 torx

®

screws.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)

(e)

Install the steering wheel lower No. 2 cover.

(f)

Install the steering wheel lower No. 3 cover.

17.

CHECK STEERING WHEEL CENTER POINT

18.

CONNECT CABLE TO NEGATIVE BATTERY TERMI-
NAL

19.

PERFORM INITIALIZATION (See page

IN–20

)

Some systems need initialization when disconnecting the cable
from the negative battery terminal.
