SA23K–03

F06626

 Non–reusable part

 Bearing Spacer

N·m (kgf·cm, ft·lbf) : Specified torque

Differential

 Oil Seal

Oil Slinger

Rear Bearing

74 (750, 54)

Companion Flange

74 (750, 54)

See page

SA–50

–

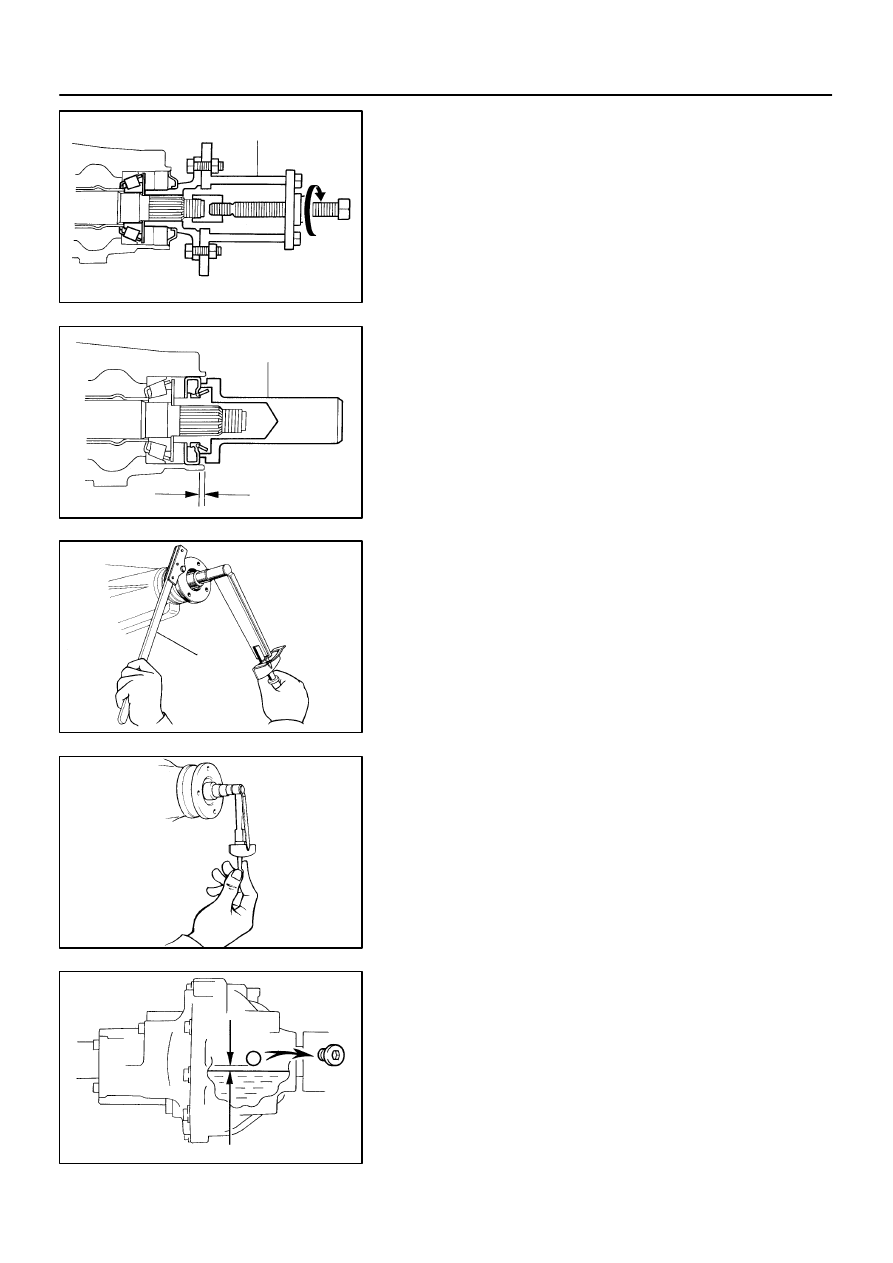

SUSPENSION AND AXLE

FRONT DIFFERENTIAL REAR OIL SEAL

SA–37

3033

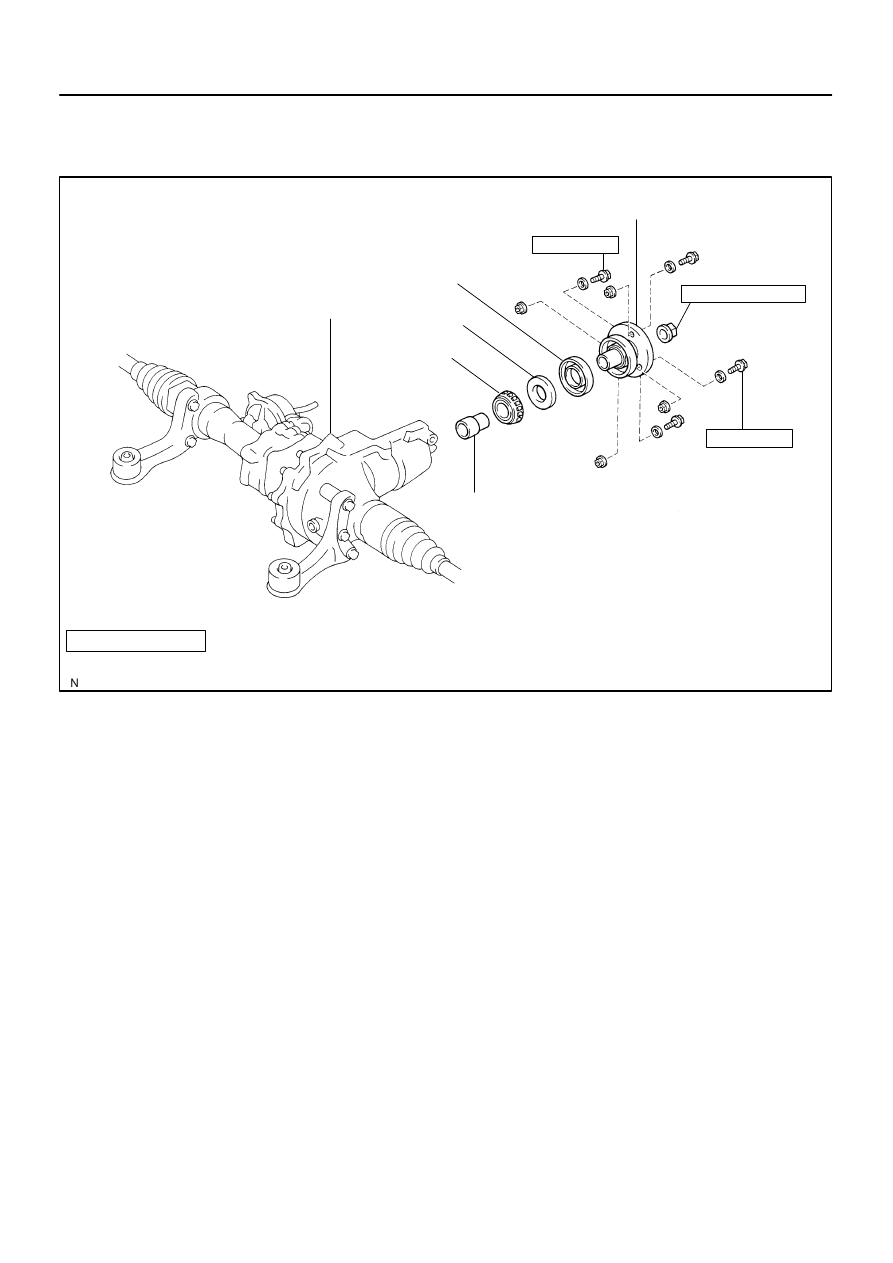

FRONT DIFFERENTIAL REAR OIL SEAL

COMPONENTS

SA23L–04

Z00638

SST

R13369

SST

R13370

SST

R13371

SST

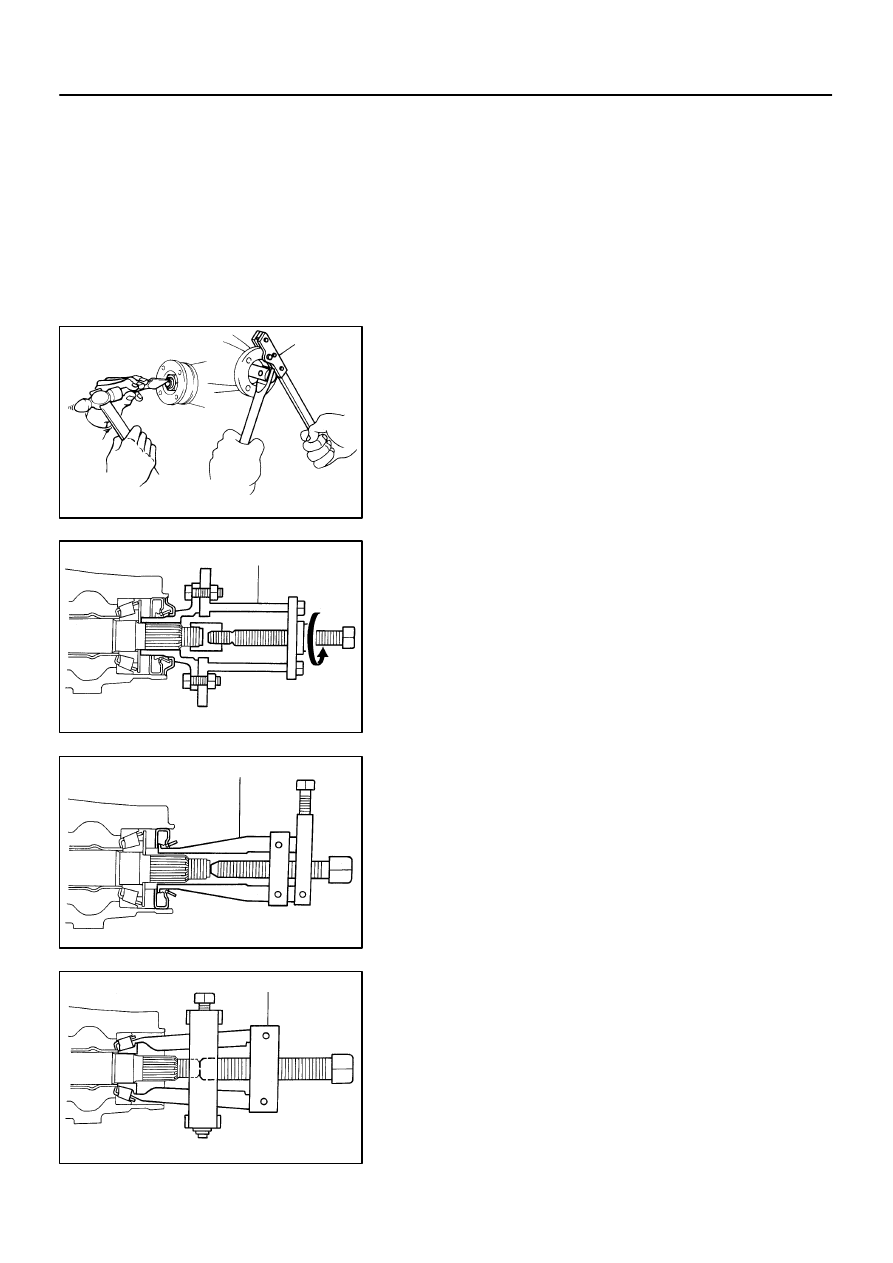

SA–38

–

SUSPENSION AND AXLE

FRONT DIFFERENTIAL REAR OIL SEAL

3034

REPLACEMENT

1.

REMOVE ENGINE UNDER COVER

2.

DRAIN DIFFERENTIAL OIL

3.

REMOVE FRONT PROPELLER SHAFT
(See page

PR–7

)

4.

REMOVE COMPANION FLANGE

(a)

Using a chisel and hammer, loosen the staked part of the
nut.

(b)

Using SST to hold the flange, remove the nut.
SST

09330–00021

(c)

Using SST, remove the companion flange.
SST

09950–30012 (09951–03010, 09953–03010,
09954–03010,  09955–03030, 09956–03020)

5.

REMOVE OIL SEAL AND OIL SLINGER

(a)

Using SST, remove the oil seal.
SST

09308–10010

(b)

Remove the oil slinger.

6.

REMOVE REAR BEARING AND BEARING SPACER

(a)

Using SST, remove the rear bearing from the drive pinion.
SST

09556–22010

(b)

Remove the bearing spacer.

7.

INSTALL BEARING SPACER, REAR BEARING AND
OIL SLINGER

(a)

Install a new bearing spacer and place the rear bearing
and oil slinger.

R13368

SST

R13374

SST

4.5

± 0.3

mm

(0.177

± 0.012

in.)

FA1083

SST

FA1084

R13338

Less than
5 mm (0.20 in.)

–

SUSPENSION AND AXLE

FRONT DIFFERENTIAL REAR OIL SEAL

SA–39

3035

(b)

Using SST and the companion flange, install the rear
bearing, then remove the companion flange.
SST

09950–30012 (09951–03010, 09953–03010,
09954–03010,  09955–03030, 09956–03020)

8.

INSTALL OIL SEAL

(a)

Coat a new oil seal lip with MP grease.

(b)

Using SST and a hammer, install the oil seal.
SST

09554–22010

Oil seal drive in depth: 4.5

±

 0.3 mm (0.177

±

 0.012 in.)

9.

INSTALL COMPANION FLANGE

(a)

Place the companion flange on the drive pinion.

(b)

Coat the threads of a new nut with hypoid gear oil.

(c)

Using SST to hold the flange, torque the nut.
SST

09330–00021

Torque: 108 N·m (1,100 kgf·cm, 80 ft·lbf)

10.

ADJUST DRIVE PINION PRELOAD
(See page

SA–50

)

11.

STAKE DRIVE PINION NUT

12.

INSTALL FRONT PROPELLER SHAFT
(See page

PR–9

)

13.

FILL DIFFERENTIAL WITH HYPOID GEAR OIL
Torque: 39 N·m (400 kgf·cm, 29 ft·lbf)
Oil type: Hypoid gear oil API GL–5
Recommended oil viscosity: SAE 75W–90
Capacity: 1.15 liters (1.22 US qts, 1.01 Imp. qts)

14.

INSTALL ENGINE UNDER COVER

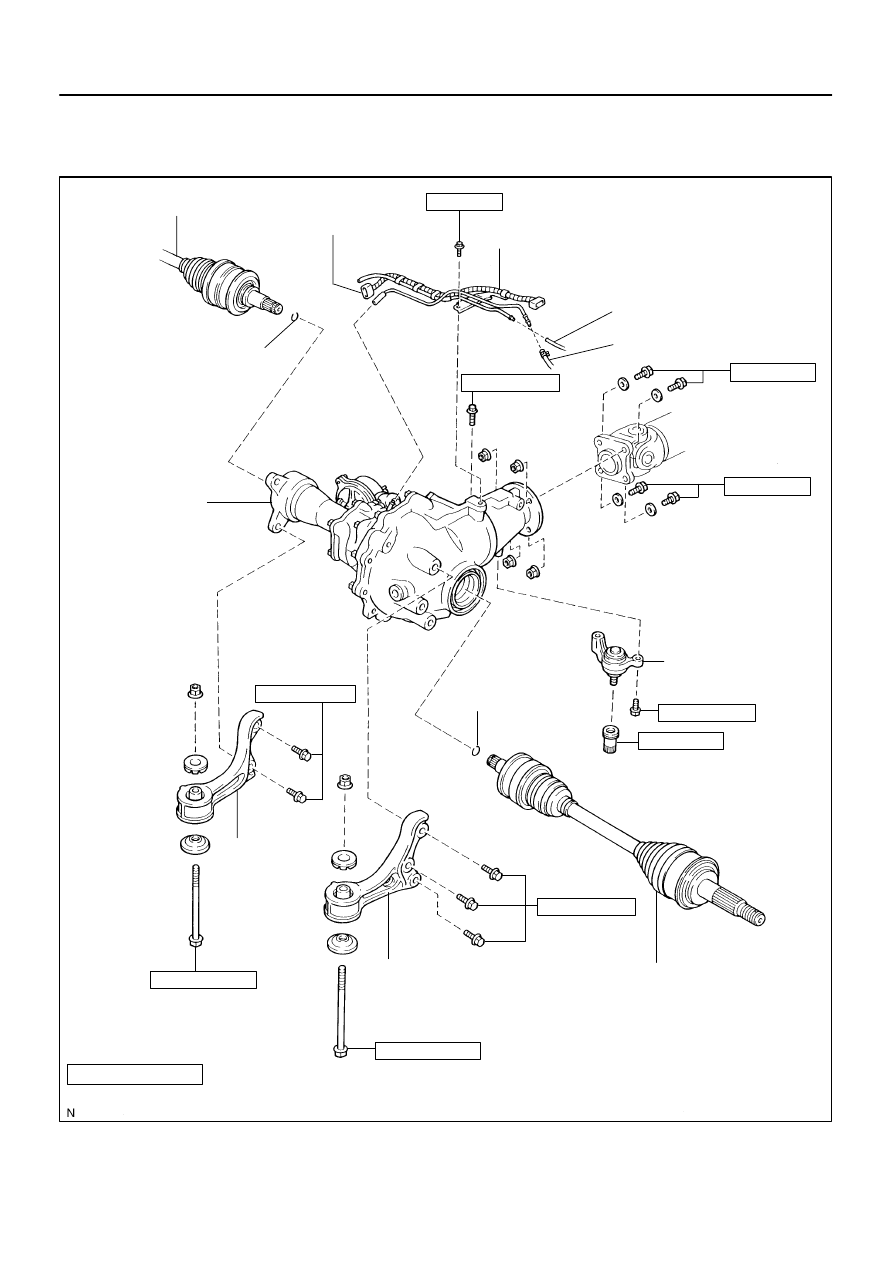

SA23M–03

F06629

A.D.D. Actuator
Connector

RH Drive Shaft



 Snap Ring

Vacuum Hose

Front
Differential
Carrier

Rear
Mounting Cushion

LH Drive Shaft

Front (LH)
Mounting Cushion

Front (RH)
Mounting
Cushion

N·m (kgf·cm, ft·lbf) : Specified torque



 Non–reusable part

87 (890, 64)

157 (1,600, 116)

137 (1,400, 101)



 Snap Ring

13 (130, 9)

Tube with Wire Harness Assembly

Breather Hose

108 (1,100, 80)

108 (1,100, 80)

157 (1,600, 116)

137 (1,400, 101)

74 (750, 54)

74 (750, 54)

SA–40

–

SUSPENSION AND AXLE

FRONT DIFFERENTIAL CARRIER

3036

FRONT DIFFERENTIAL CARRIER

COMPONENTS
