CO0UV–03

B07219

–

COOLING

RADIATOR

CO–17

2833

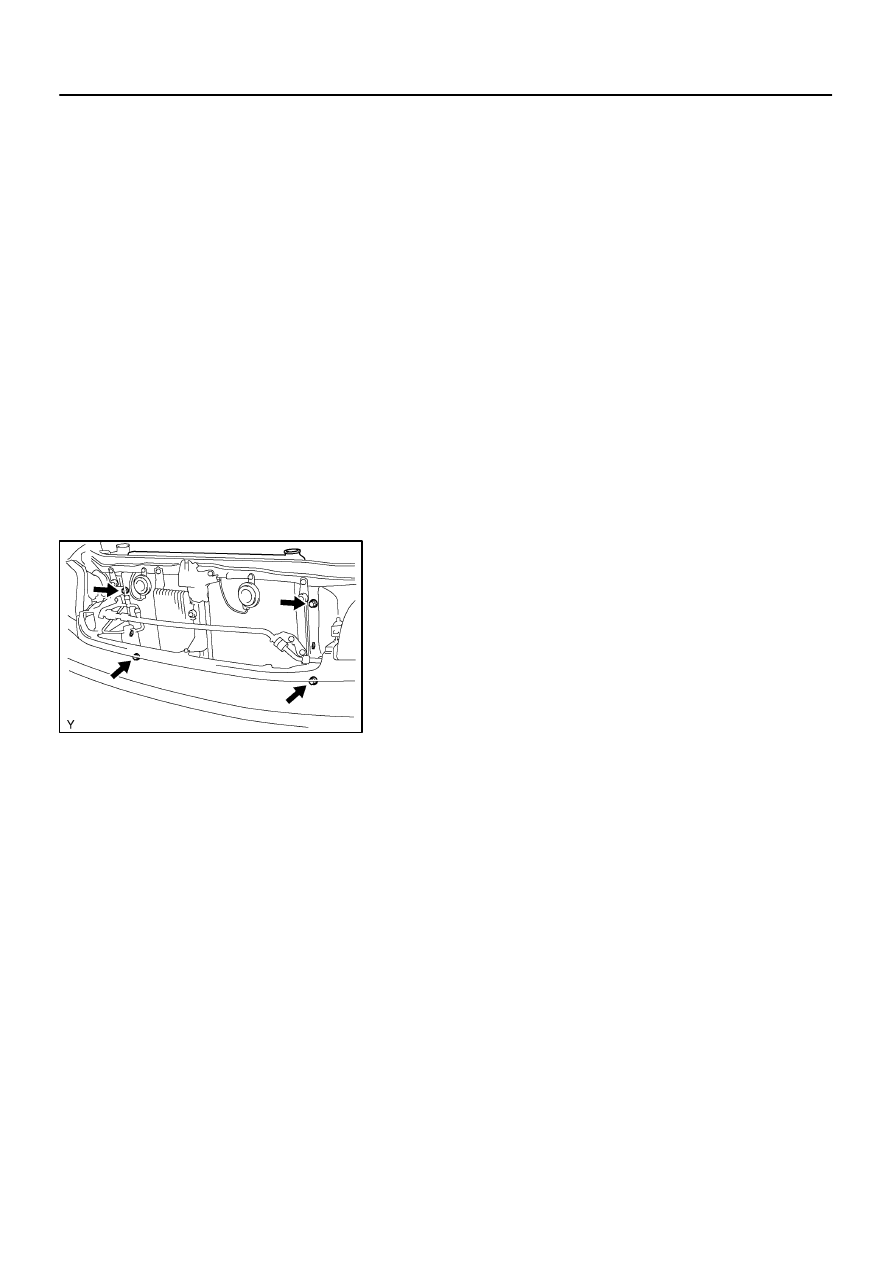

REMOVAL

1.

REMOVE ENGINE UNDER COVER

2.

DRAIN ENGINE COOLANT

3.

DISCONNECT RADIATOR RESERVOIR HOSE FROM
RADIATOR

4.

DISCONNECT UPPER RADIATOR HOSE FROM RA-
DIATOR

5.

DISCONNECT LOWER RADIATOR HOSE FROM RA-
DIATOR

6.

DISCONNECT A/T OIL COOLER HOSES FROM RA-
DIATOR

7.

REMOVE NO.2 FAN SHROUD

Remove the 2 clips and No.2 fan shroud.

8.

REMOVE RADIATOR ASSEMBLY

Remove the 4 bolts and radiator assembly.
9.

REMOVE NO.1 FAN SHROUD

Remove the 4 bolts and No.1 fan shroud.

CO0UY–03

B07220

CO–18

–

COOLING

RADIATOR

2834

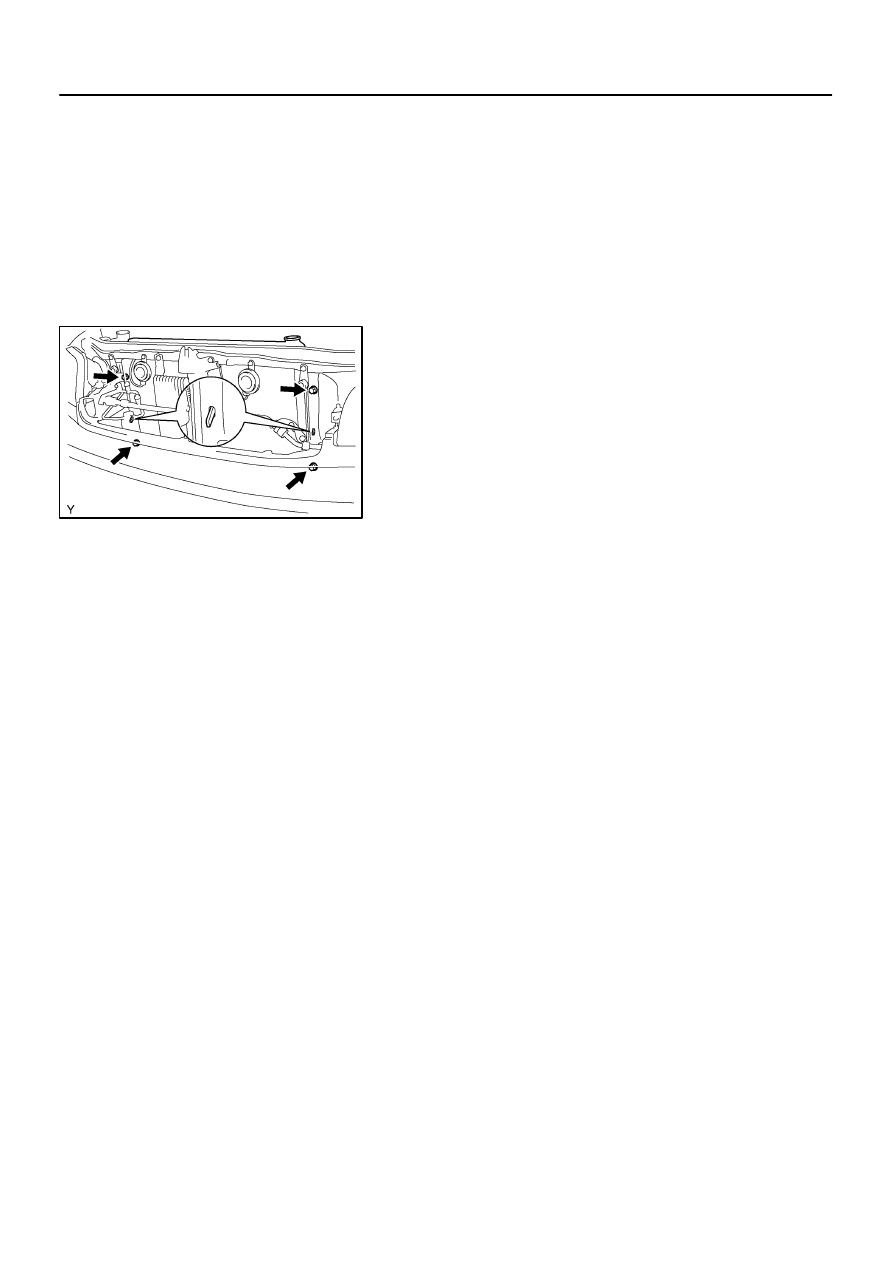

INSTALLATION

1.

INSTALL NO.1 FAN SHROUD

Install the No.1 fan shroud with the 4 bolts.

Torque: 5.0 N·m (50 kgf·cm, 44 in.·lbf)

2.

INSTALL RADIATOR ASSEMBLY

(a)

Set the radiator bracket hooks to the radiator support
holes.

(b)

Install the 4 bolts.
Torque: 12 N·m (120 N·m, 9 ft·lbf)

3.

INSTALL NO.2 FAN SHROUD

Install the No.2 fan shroud with the 2 clips.
4.

CONNECT A/T OIL COOLER HOSES TO RADIATOR

5.

CONNECT UPPER RADIATOR HOSE TO RADIATOR

6.

CONNECT LOWER RADIATOR HOSE TO RADIATOR

7.

CONNECT RADIATOR RESERVOIR HOSE TO RADIA-
TOR

8.

FILL WITH ENGINE COOLANT

9.

START ENGINE AND CHECK FOR ENGINE COOLANT
LEAKS

10.

RECHECK ENGINE COOLANT LEVEL

11.

INSTALL ENGINE UNDER COVER

B16233

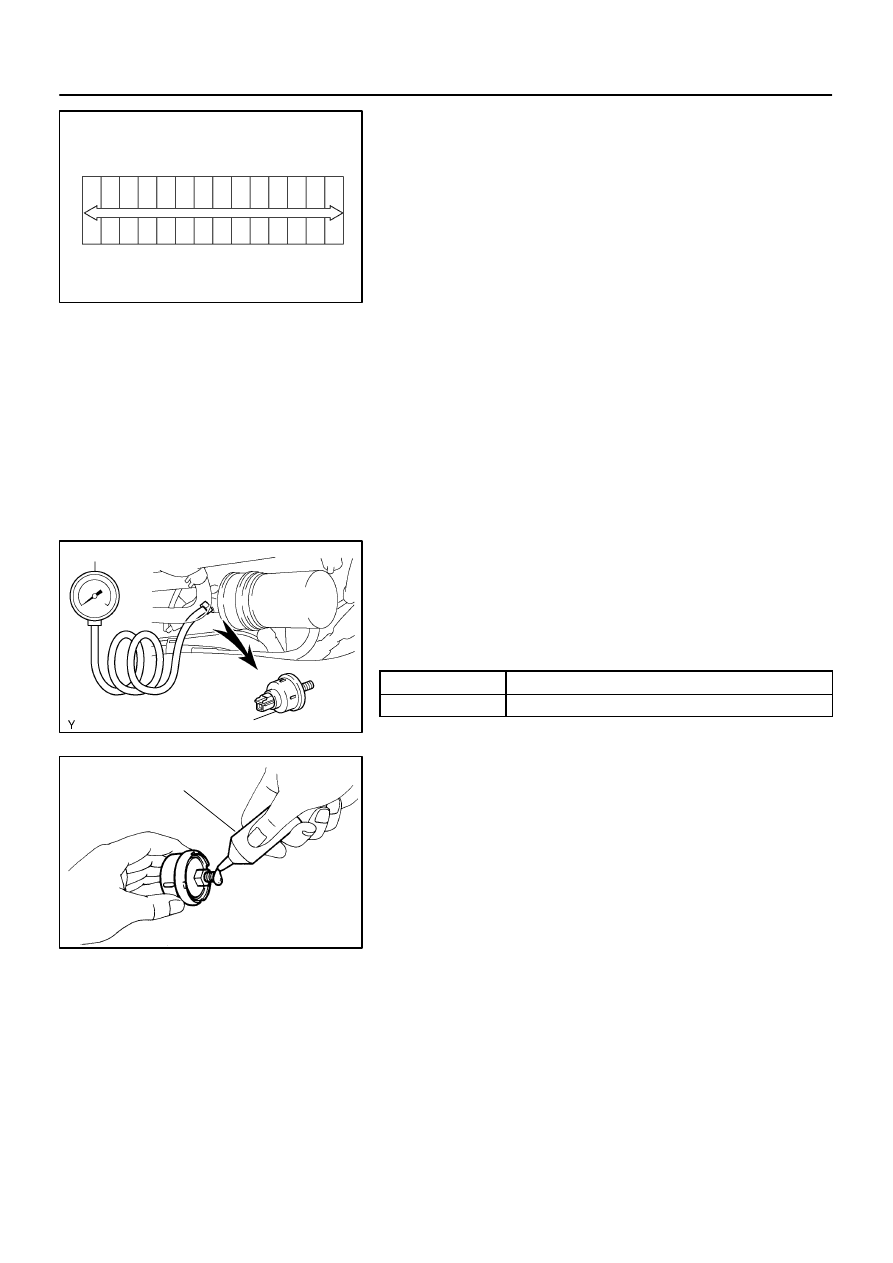

Recommended Viscosity (SAE):

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

5W–30

°

C

°

F –20

–29

0

–18

20
–7

40

4

60
16

80
27

100

38

LU0GV–05

B07230

Oil Pressure Gauge

Oil Pressure Switch

P08343

Adhesive

–

LUBRICATION

OIL AND FILTER

LU–1

2835

OIL AND FILTER

INSPECTION

1.

CHECK ENGINE OIL QUALITY

Check the oil for deterioration, entry of water, discoloring or thin-
ning.
If the quality is visibly poor, replace the oil.

Oil grade:
API grade SL Energy–Conserving or ILSAC multi-
grade engine oil.

2.

CHECK ENGINE OIL LEVEL

The oil level should be between the ”L” and ”F” marks on the dip-
stick.
If low, check for leakage and add oil up to the ”F” mark.
NOTICE:
Do not fill with engine oil above the ”F” mark.
3.

REMOVE ENGINE UNDER COVER

4.

REMOVE OIL PRESSURE SWITCH

5.

INSTALL OIL PRESSURE GAUGE

6.

WARM UP ENGINE

Allow the engine to warm up to normal operating temperature.
7.

CHECK OIL PRESSURE
Oil pressure:

At idle

29 kPa (0.3 kgf/cm

2

, 4.2 psi) or more

At 3,000 rpm

294 – 588 kPa (3.0 – 6.0 kgf/cm

2

, 43 – 85 psi)

8.

REMOVE OIL PRESSURE GAUGE

9.

REINSTALL OIL PRESSURE SWITCH

(a)

Apply adhesive to 2 or 3 threads of the oil pressure switch.
Adhesive:
Part No. 08833–00080, THREE BOND 1344, LOCTITE
242 or equivalent

(b)

Reinstall the oil pressure switch.

10.

START ENGINE, AND CHECK FOR ENGINE OIL
LEAKS

11.

REINSTALL ENGINE UNDER COVER

LU0GW–07

B07231

B07232

SST

LU–2

–

LUBRICATION

OIL AND FILTER

2836

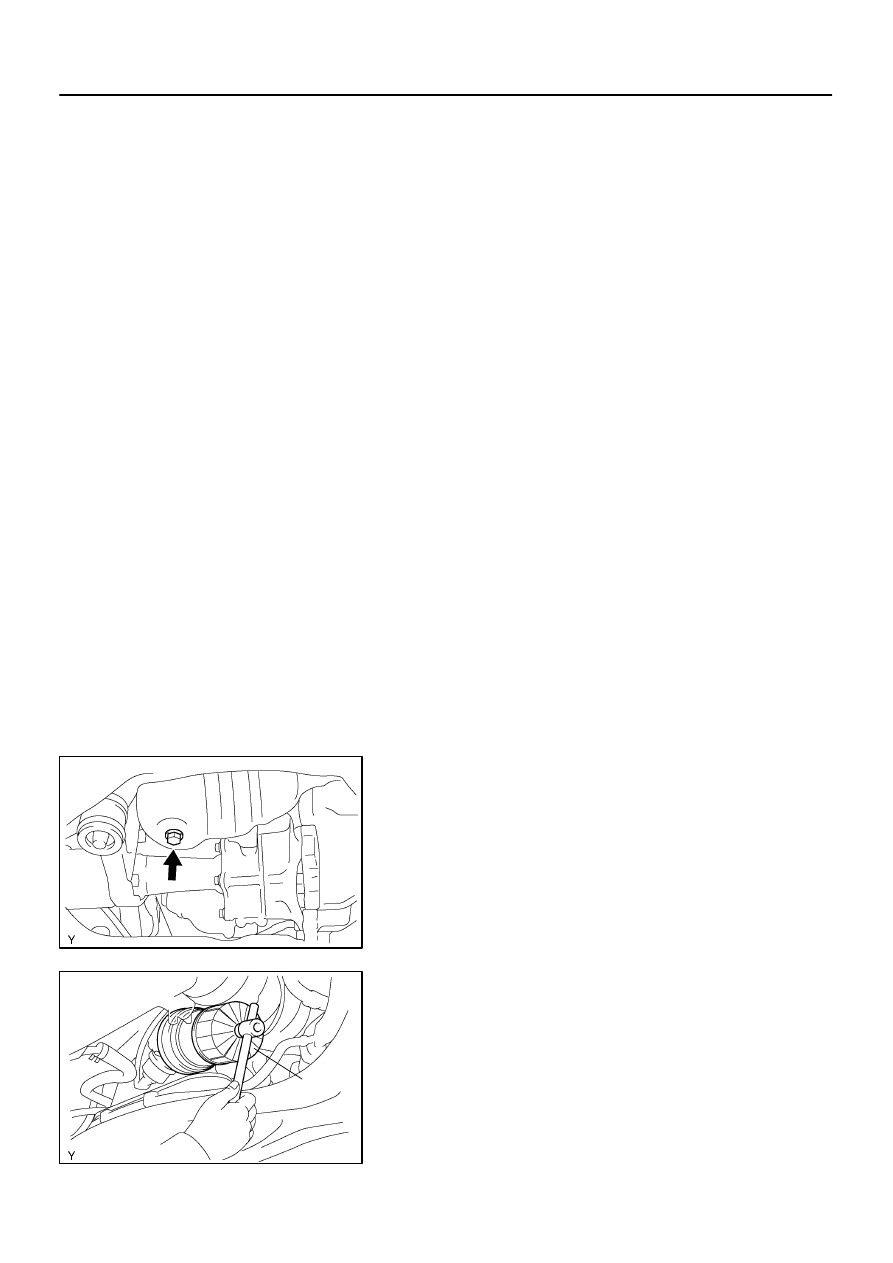

REPLACEMENT

CAUTION:

Prolonged and repeated contact with mineral oil will
result in the removal of natural fats from the skin,
leading to dryness, irritation and  dermatitis. In addi-
tion, used engine oil contains potentially harmful
contaminants which may cause skin cancer.

Care should be taken, therefore, when changing en-
gine oil to minimize the frequency and length of time
your skin is exposed to used engine oil. Protective
clothing and gloves that cannot be penetrated by oil
should be worn. The skin should be thoroughly
washed with soap and water, or use water–less hand
cleaner, to remove any used engine oil. Do not use
gasoline, thinners, or solvents.

In order to preserve the environment, used oil and
used oil filters must be disposed of only at desig-
nated disposal sites.

1.

w/ Oil filter change:
REMOVE ENGINE UNDER COVER

2.

DRAIN ENGINE OIL

(a)

Remove the oil filler cap.

(b)

Remove the oil drain plug and gasket, and drain the oil
into a container.

3.

REPLACE OIL FILTER

(a)

Using SST, remove the oil filter.
SST

09228–07501

(b)

Clean the oil filter contact surface on the oil filter mount-
ing.

(c)

Lubricate the filter rubber gasket with clean engine oil.
