B16402

Ohmmeter

Continuity

SF0PJ–10

B16403

Ohmmeter

No Continuity

B16404

Air

B16405

Battery

Air

–

SFI

VSV FOR EVAPORATIVE EMISSION (EVAP)

SF–63

2797

INSPECTION

1.

REMOVE VSV

2.

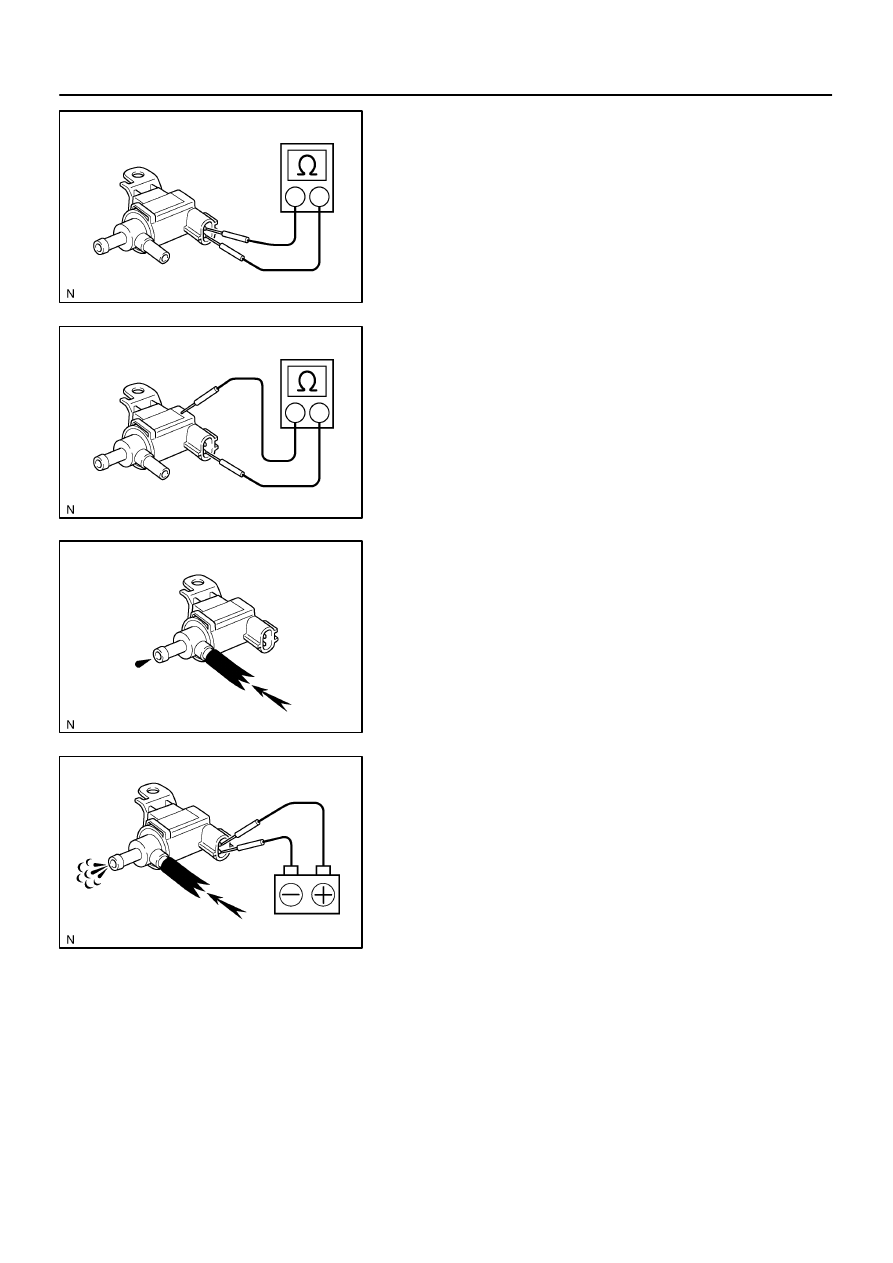

INSPECT VSV

(a)

Inspect the VSV for open circuit.
Using an ohmmeter, check that there is continuity be-
tween the terminals.
Resistance: 30 to 34

Ω

 at 20

°

C (68

°

F)

If there is no continuity, replace the VSV.

(b)

Inspect the VSV for ground.
Using an ohmmeter, check that there is no continuity be-
tween each terminal and the body.

If there is continuity, replace the VSV.

(c)

Inspect the VSV operation.
(1)

Check that air dose not flow from port.

(2)

Apply battery positive voltage across the terminals.

(3)

Check that air flows from port.

If operation is not as specified, replace the VSV.
3.

REINSTALL VSV

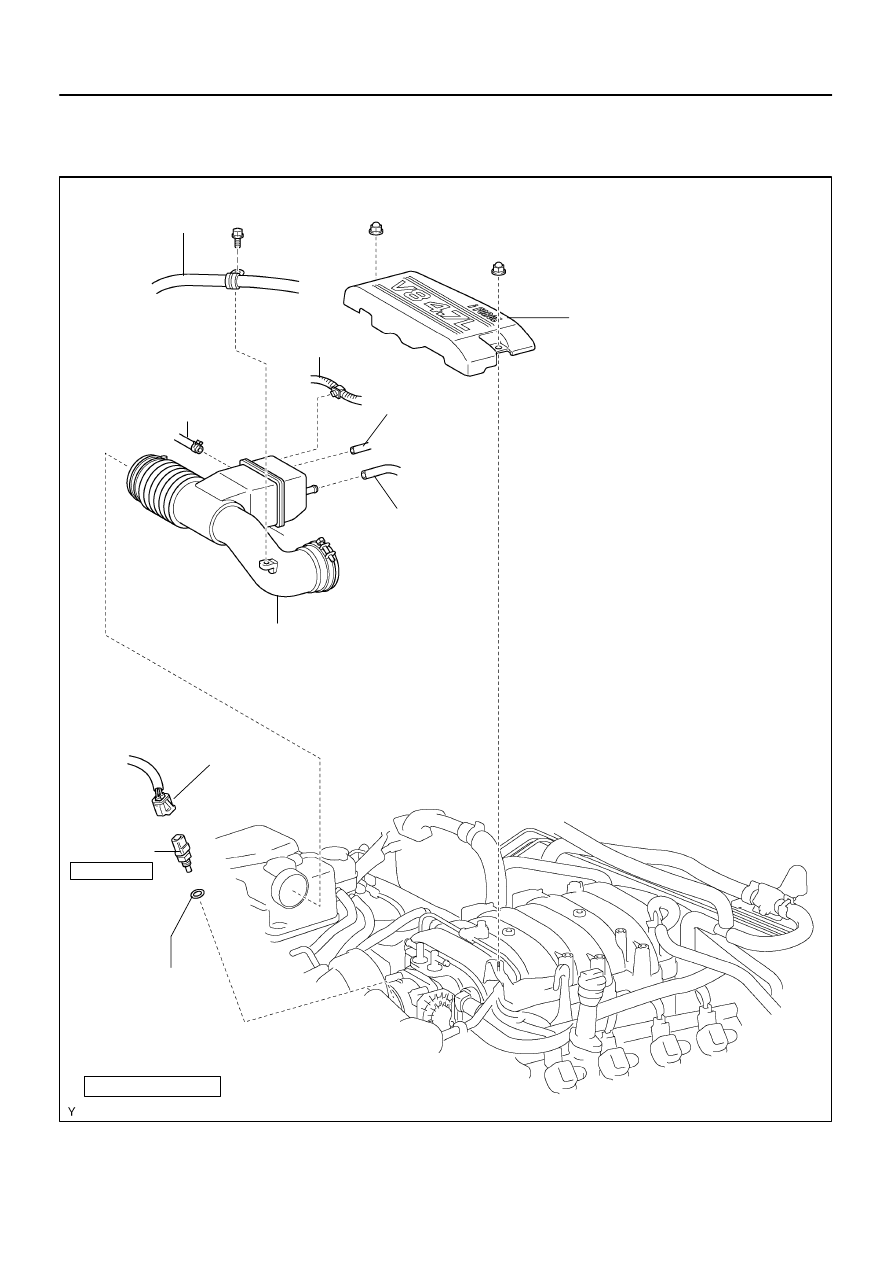

SF0PN–14

B17471

PS Air Hose

PCV Hose

Intake Air Connector

 Gasket

ECT Sensor
Connector

ECT Sensor

N·m (kgf·cm, ft·lbf) : Specified torque

 Non–reusable part

Vacuum Hose

Throttle Body Cover

MAF Meter Wire

Suction Hose

20 (204, 15)

SF–64

–

SFI

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

2798

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

COMPONENTS

SF0PO–19

B02308

S01196

S01699

Z17274

Ohmmeter

Resistance k

Ω

Temperature

°

C (

°

F)

Acceptable

30
20

10

5
3
2

1

0.5
0.3
0.2

0.1

40

–20

0

20

60 80 100

(212)

(176)

(140)

(104)

(68)

(32)

(–4)

–

SFI

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

SF–65

2799

INSPECTION

1.

DRAIN ENGINE COOLANT

2.

REMOVE THROTTLE BODY COVER

3.

REMOVE INTAKE AIR CONNECTOR

4.

DISCONNECT THROTTLE BODY FROM INTAKE MAN-
IFOLDS

Remove the nut and 3 bolts, and disconnect the throttle body
from the intake manifold.

5.

REMOVE ECT SENSOR

(a)

Disconnect the ECT sensor connector.

(b)

Remove the ECT sensor and gasket.

6.

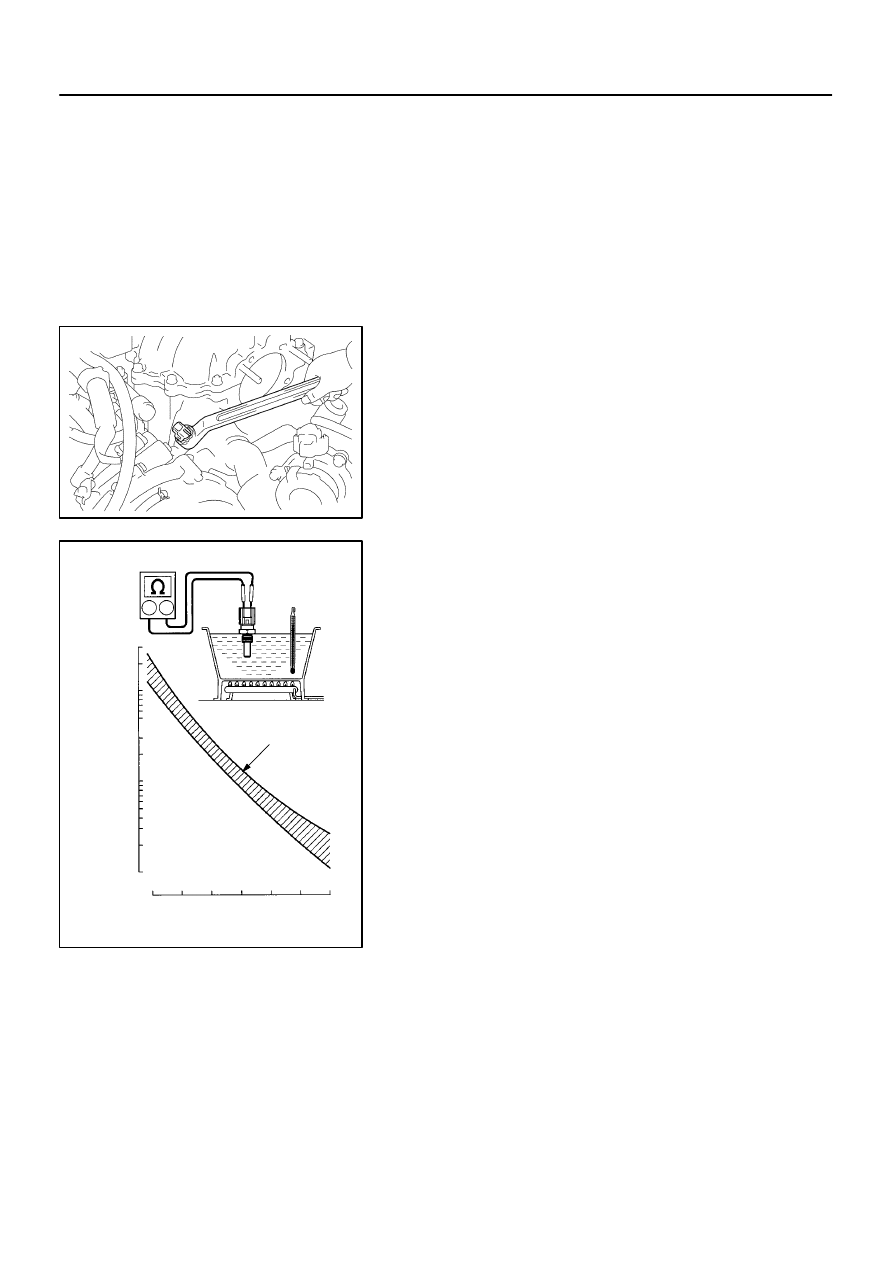

INSPECT ECT SENSOR

Using an ohmmeter, measure the resistance between the ter-
minals.

Resistance: Refer to the graph

If the resistance is not as specified, replace the ECT sensor.
7.

REINSTALL ECT SENSOR

(a)

Install a new gasket and the ECT sensor.
Torque: 19.6 N·m (200 kgf·cm, 14 ft·lbf)

(b)

Connect the ECT sensor connector.

8.

REINSTALL THROTTLE BODY TO INTAKE MAN-
IFOLDS

Install a new gasket and the throttle body with the 2 bolts and
2 nuts.

Torque: 20 N·m (204 kgf·cm, 15 ft·lbf)

9.

REINSTALL INTAKE AIR CONNECTOR

10.

REFILL WITH ENGINE COOLANT (See page

CO–2

)

11.

REINSTALL THROTTLE BODY COVER

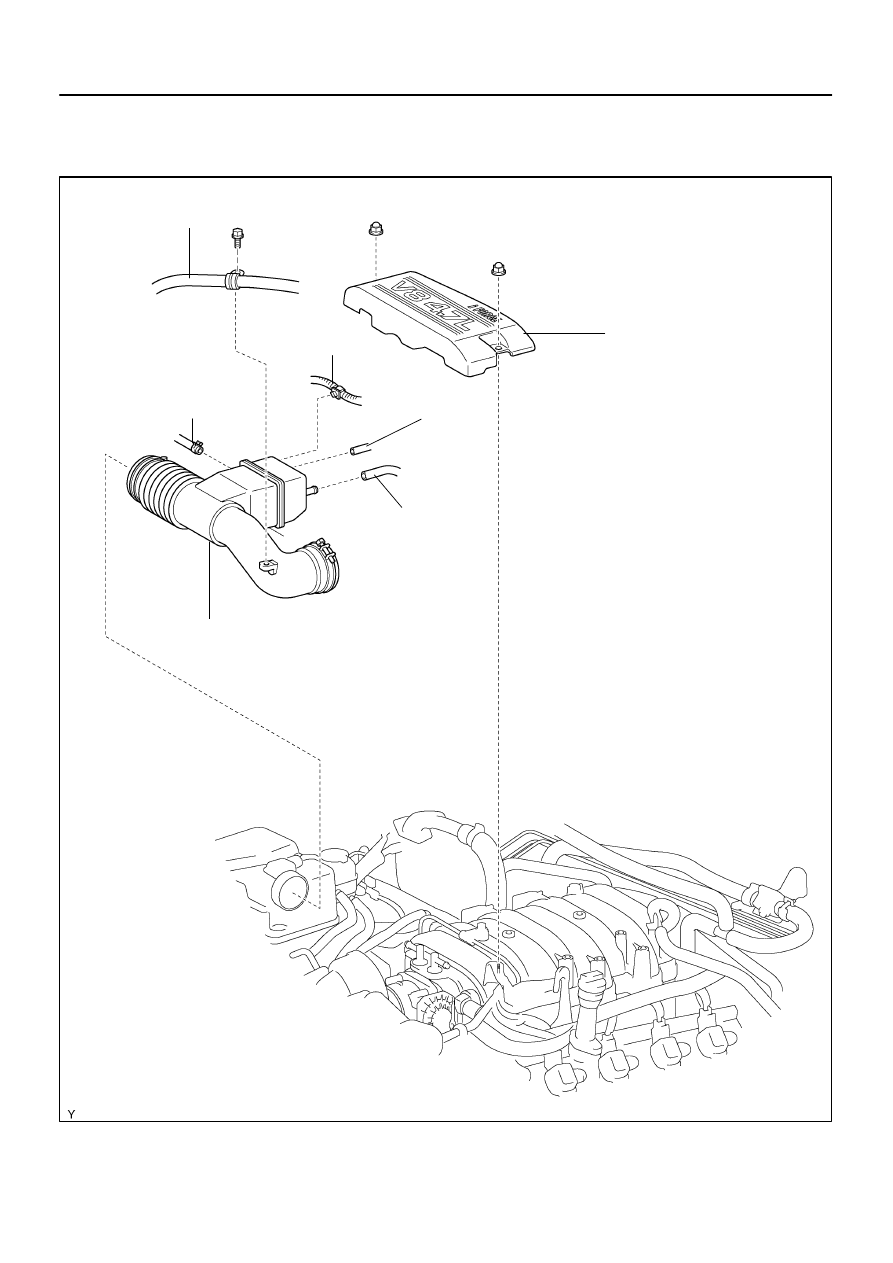

SF0PR–17

B17459

Throttle Body Cover

PS Air Hose

Intake Air Connector

Suction Hose

MAF Meter Wire

PCV Hose

Vacuum Hose

SF–66

–

SFI

KNOCK SENSOR

2800

KNOCK SENSOR

COMPONENTS
