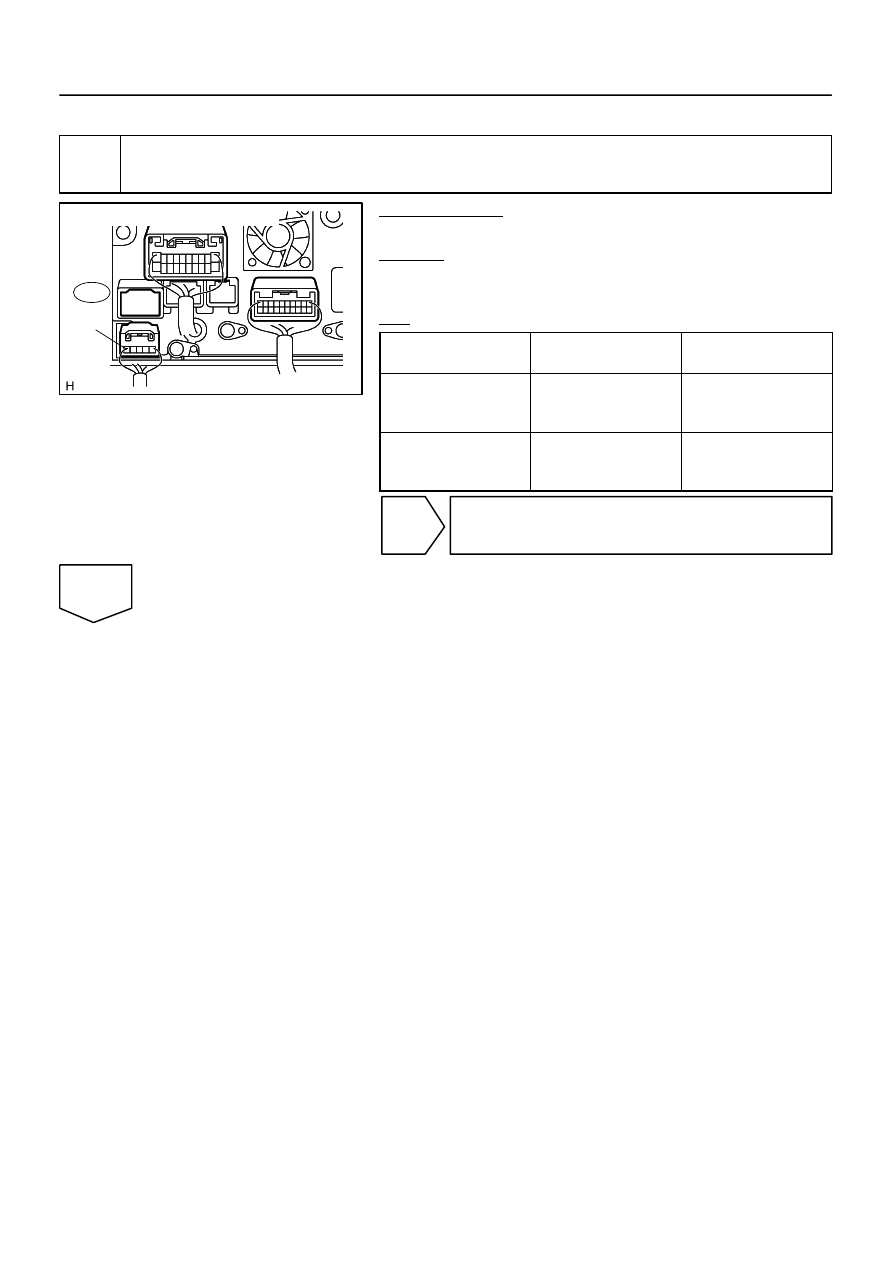

Radio and Navigation Assy:

REV

R29

–

DIAGNOSTICS

NAVIGATION SYSTEM

DI–2295

2489

INSPECTION PROCEDURE

1

Inspect radio and navigation assy (REV).

PREPARATION:
Disconnect the radio and navigation assy connector.
CHECK:
Measure the resistance according to the value(s) in the table
below.
OK:

Symbol

(Tester connection)

Condition

Specified condition

REV (R29–5) –

Body ground

Ignition switch is on.

Shift lever is moved to R

position.

10 to 14 V

REV (R29–5) –

Body ground

Ignition switch is on.

Shift lever is moved to any

position except R.

Below 1 V

OK

Replace radio and navigation assy.

NG

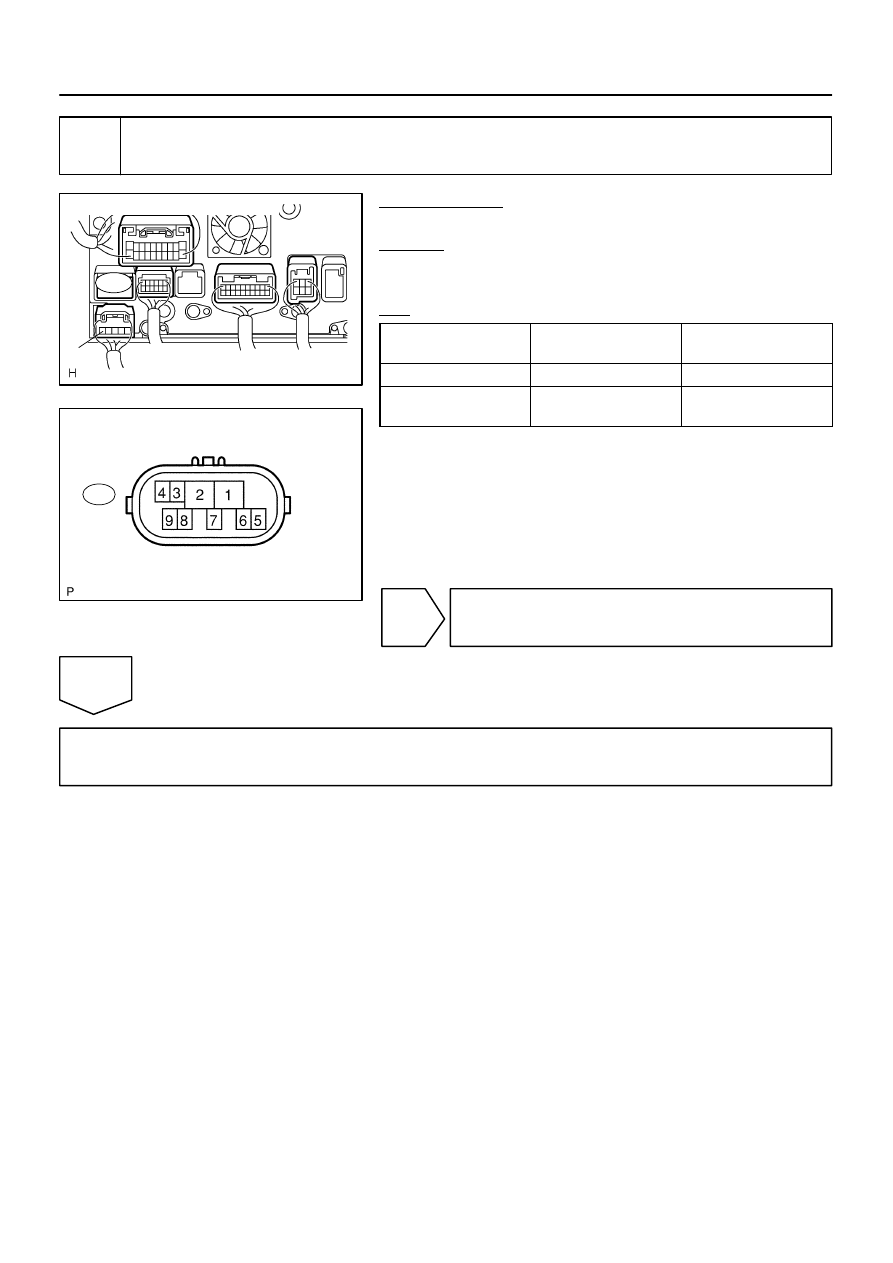

I28748

Radio and Navigation Assy:

REV

R29

I28359

Park/Neutral Position Switch
Connector Front View:

P1

DI–2296

–

DIAGNOSTICS

NAVIGATION SYSTEM

2490

2

Check harness and connector (Radio and navigation assy – Park/neutral posi-
tion switch).

PREPARATION:
Disconnect the park/neutral position switch connector.
CHECK:
Measure the resistance according to the value(s) in the table
below.
OK:

Symbol

(Tester connection)

Condition

Specified condition

REV (R29–5) – P1–1

Always

Below 1

Ω

REV (R29–5) –

Body ground

Always

10 k

Ω

or higher

NG

Repair or replace harness or connector.

OK

Go to back–up light system (See page

BE–45

).

AC2810

DIDKM–01

AC2811

N11084

Wrong

Okay

HI

LO

HI

LO

–

DIAGNOSTICS

AIR CONDITIONING SYSTEM

DI–2297

2491

AIR CONDITIONING SYSTEM

PRECAUTION

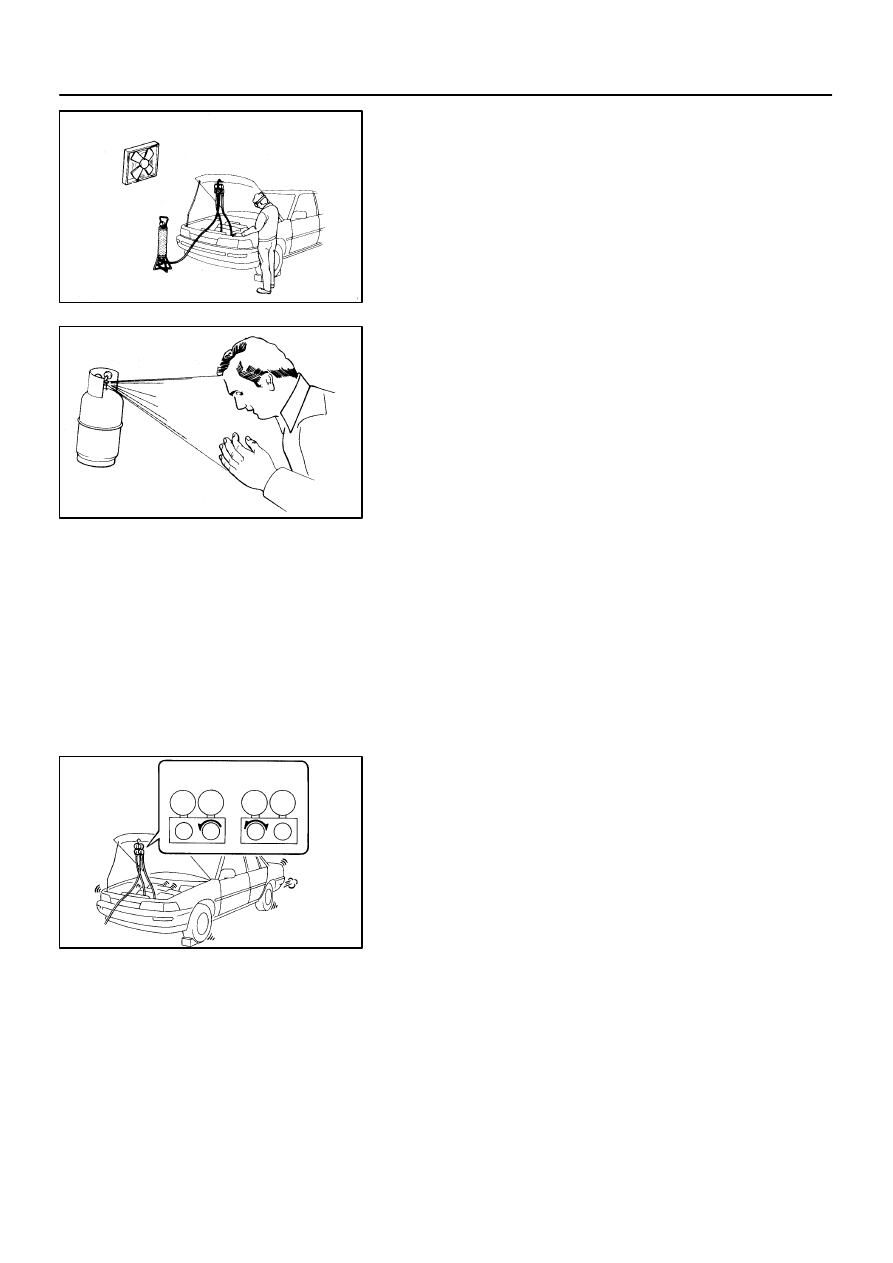

1.

DO NOT HANDLE REFRIGERANT IN AN ENCLOSED
AREA OR NEAR AN OPEN FLAME

2.

ALWAYS WEAR EYE PROTECTION

3.

BE CAREFUL NOT TO GET LIQUID REFRIGERANT IN
YOUR EYES OR ON YOUR SKIN

If liquid refrigerant gets in your eyes or on your skin:
(a)

wash the area with lots of cool water.

CAUTION:
Do not rub your eyes or skin.
(b)

apply clean petroleum jelly to the skin.

(c)

go immediately to a hospital or see a physician for profes-
sional treatment.

4.

NEVER HEAT CONTAINER OR EXPOSE IT TO NAKED
FLAME

5.

BE CAREFUL NOT TO DROP CONTAINER OR APPLY
PHYSICAL SHOCKS TO IT

6.

DO NOT OPERATE COMPRESSOR WITHOUT
ENOUGH REFRIGERANT IN REFRIGERATION SYS-
TEM

If there is not enough refrigerant in the refrigerant system, oil lu-
brication will be insufficient and compressor burnout may occur.
Necessary care should be taken to avoid this.
7.

DO NOT OPEN HIGH PRESSURE MANIFOLD VALVE
WHILE COMPRESSOR IS OPERATE

Open and close only the low pressure valve. If the high pressure
valves are opened, refrigerant flows in the reverse direction
causing the charging cylinder to rupture.
8.

BE CAREFUL NOT TO OVERCHARGE SYSTEM WITH
REFRIGERANT

If refrigerant is overcharged, it causes problems such as insuffi-
cient cooling, poor fuel economy, engine overheating etc.

DI–2298

–

DIAGNOSTICS

AIR CONDITIONING SYSTEM

2492

9.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

The SEQUOIA is equipped with an SRS (Supplemental Re-
straint System) such as the driver, passenger, side, curtain
shield airbag. Failure to carry out service operation in the cor-
rect sequence could cause the SRS to unexpectedly deploy
during servicing, possibly leading to a serious accident. Before
servicing (including removal or installation of parts, inspection
or replacement), be sure to read the precautionary notices tn
the RS section.
10.

INITIALIZATION

NOTICE:
When disconnecting the battery terminal, initialize the fol-
lowing system after the terminal is reconnected.

System Name

See Page

Back Door Power Window Control Sys-

tem

BE–77
