Toyota Sequoia (2005). Manual - part 482





I24354

BH

W–B

W–B

W–B

P–B

W–B

BA1

Body ECU

4

3

2

D18
Door Unlock Detection SW
Rear LH

B7 LSWL

2

BC1

2

1

3 BC1

BK

B5 LSWR

3

BA1

P–L

D19
Door Unlock Detection SW
Rear RH

P–B

P–B

21

24

P–L

P–L

J/C

L

E

J30

J29

J/C

J45

J44

F

M

DIAGNOSTICS

BODY CONTROL SYSTEM

DI–1723

1917

Rear Door unlock detection switch circuit

CIRCUIT DESCRIPTION

The door unlock detection switch is built in the door lock motor assembly. This switch is ON when the door
lock knob is in the unlock position and OFF when the lock knob is in the lock position. The ECU detects the
door lock knob conditions in this circuit.

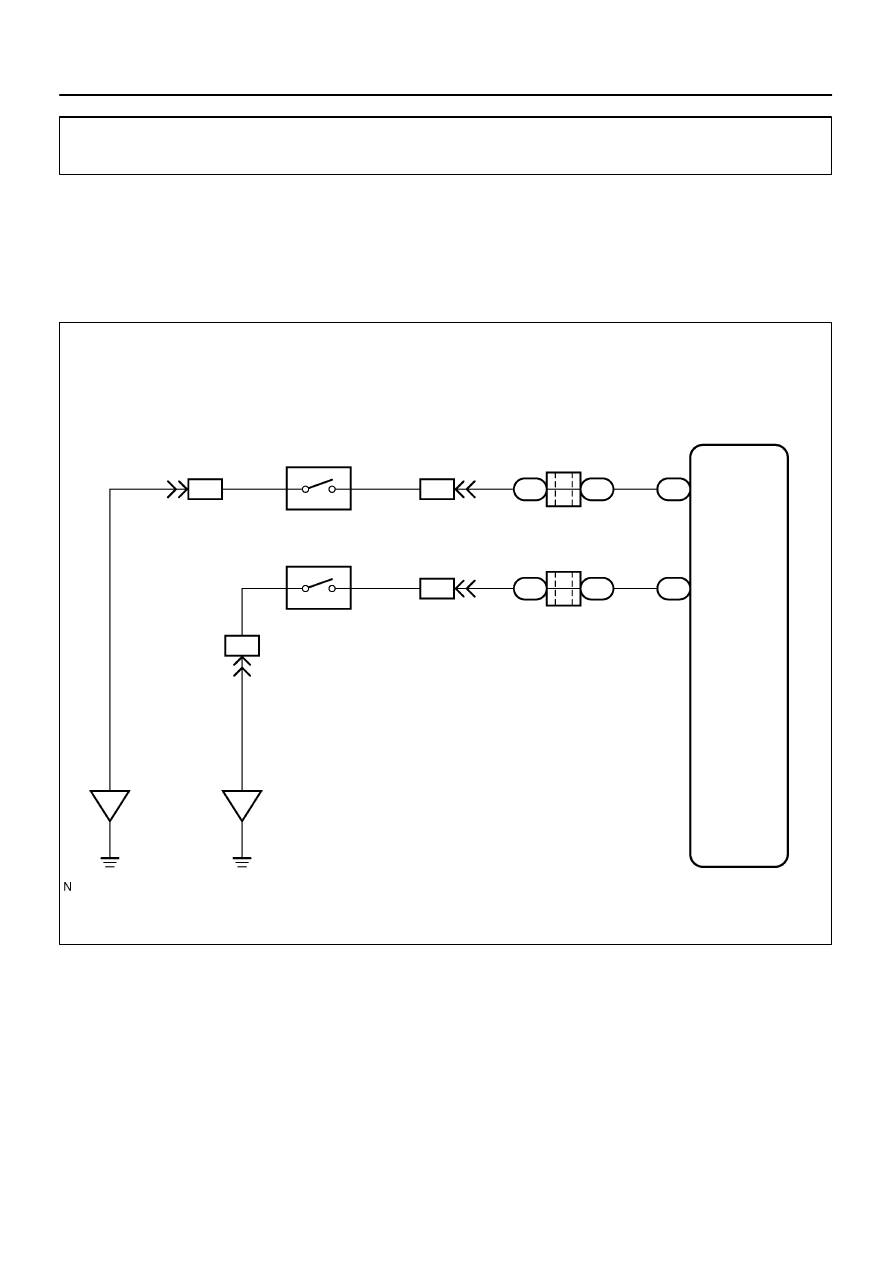

WIRING DIAGRAM

DI574–10

DI–1724

DIAGNOSTICS

BODY CONTROL SYSTEM

1918

INSPECTION PROCEDURE

1

Check rear door unlock detection switch (See page

BE–79

).

NG

Replace door lock motor assembly.

OK

2

Check wire harness and connector between door unlock detection switch and
body ECU, door unlock detection switch and body ground (See page

IN–35

).

NG

Repair or replace wire harness or connector.

OK

Proceed to next circuit inspection shown in
problem symptoms table
(See page

DI–1686

).

I18736

1

2

20

14

Body ECU

HCTY

B7

IA1

A

J1
J/C

L–W

E3
Engine Hood
Courtesy SW

W–B

EA

L–W

DIAGNOSTICS

BODY CONTROL SYSTEM

DI–1725

1919

Engine Hood Courtesy Switch Circuit

CIRCUIT DESCRIPTION

The engine hood courtesy switch is built into the engine hood lock assembly, and is turned on when the en-
gine hood is opened and goes off when the engine hood is closed.

WIRING DIAGRAM

DI7NV–08

I00298

1 (+)

2 (–)

DI–1726

DIAGNOSTICS

BODY CONTROL SYSTEM

1920

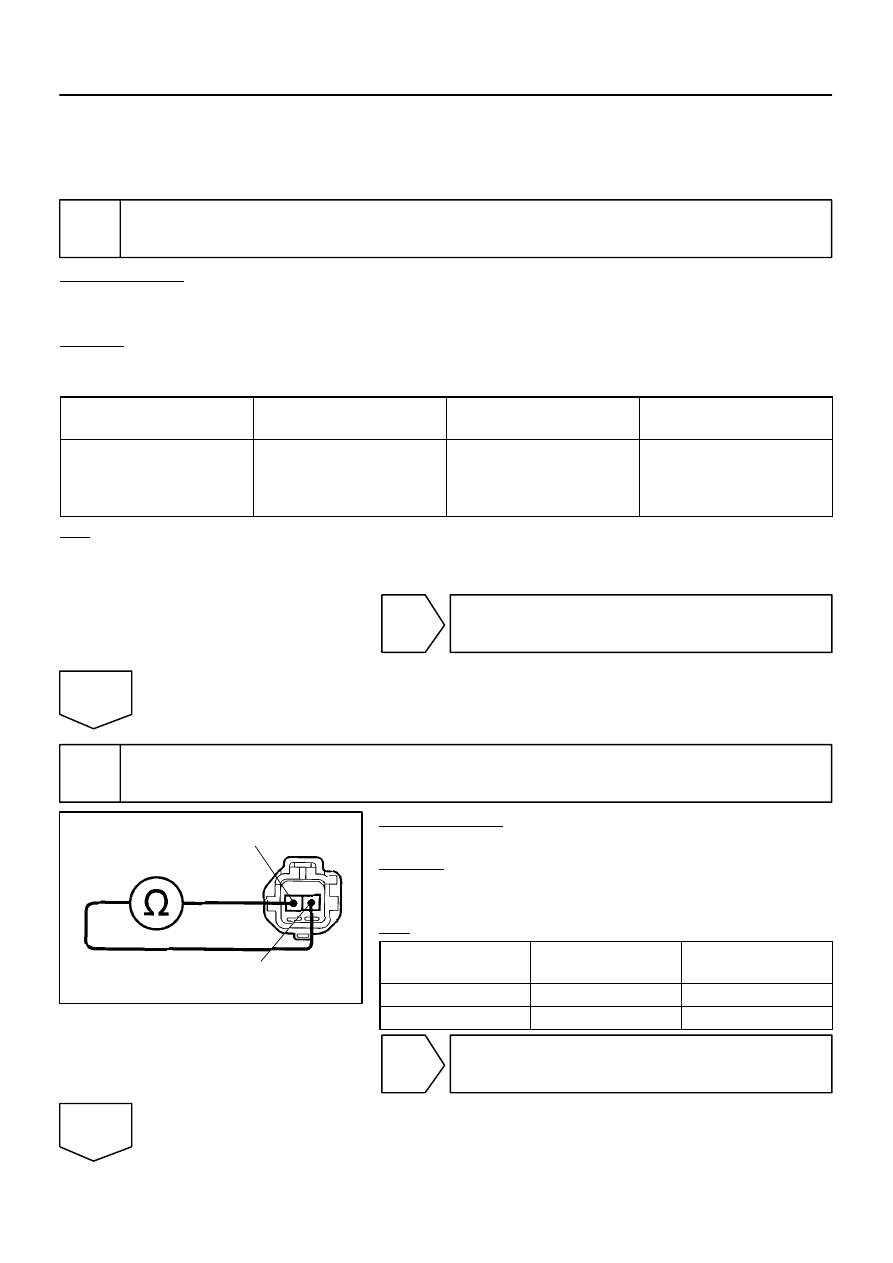

INSPECTION PROCEDURE

HINT:
When using the hand–held tester, start the inspection from step 1 and when not using the hand–held tester,
start from step 2.

1

Check engine hood courtesy switch using hand–held tester.

PREPARATION:
(a)

Connect the hand–held tester to the DLC3.

(b)

Turn the ignition switch ON.

CHECK:
According to the display on the tester, read the ”DATA LIST”.
BODY ECU:

Item

Measurement Item/Display

(Range)

Normal Condition

Diagnostic Note

HOOD COURTSY SW

Hood courtesy switch/ON or OFF

ON: Engine hood OPEN

(Hood courtesy switch ON)

OFF: Engine hood CLOSE

(Hood courtesy switch OFF)

OK:

The indication on the tester switches between ON and OFF in accordance with the engine hood
courtesy switch status.

OK

Proceed to next circuit inspection shown in
problem symptoms table (See page

DI–1686

).

NG

2

Check engine hood courtesy switch.

PREPARATION:
Disconnect the engine hood courtesy switch connector.
CHECK:
Check continuity between terminals 1 and 2 when the engine
hood lock is locked and unlocked.
OK:

Engine hood lock

condition

Tester connection

Specified condition

LOCK

1 – 2

No continuity

UNLOCK

1 – 2

Continuity

NG

Replace engine hood courtesy switch.

OK
