H41440

H23351

Spiral
Cable

Airbag

Sensor

Assembly

D2+

D2–

D Squib

(Dual stage –

2nd step)

B

C

E

D

F

A

Cowl Wire

A23

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

DI–1395

1589

13

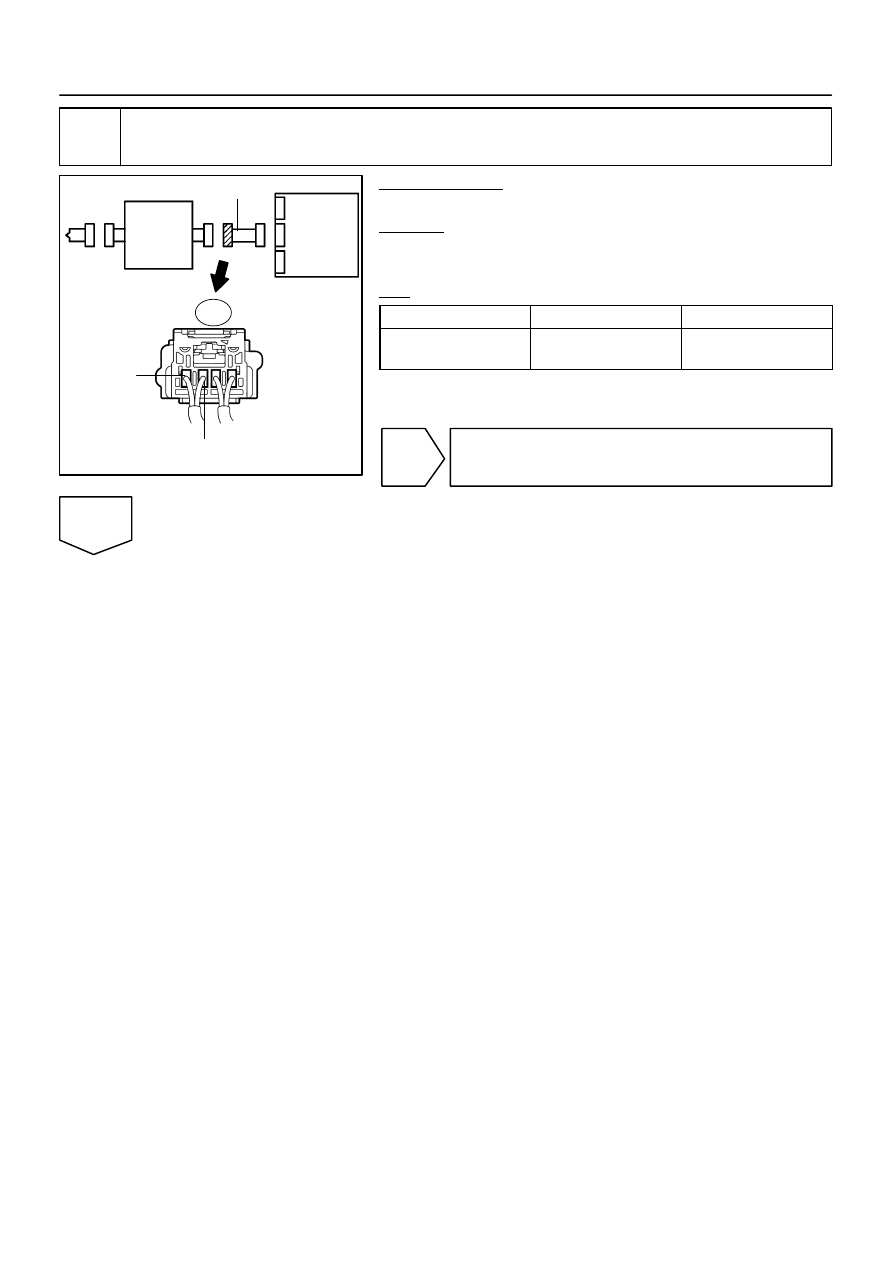

Check cowl wire (short).

PREPARATION:
Disconnect the cowl wire connector from the spiral cable.
HINT:
The activation prevention mechanism of connector ”B” has al-
ready been released.
CHECK:
Measure the resistance according to the value(s) in the table
below.
OK:

Tester Connection

Condition

Specified Condition

A23–4 (D2+) –

A23–3 (D2–)

Always

1 M

Ω

 or higher

NG

Repair or replace cowl wire.

OK

H41479

H23350

Spiral
Cable

Airbag

Sensor

Assembly

D2+

D2–

D Squib

(Dual stage –

2nd step)

Color: Black

A

B

D

E

C

F

DI–1396

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

1590

14

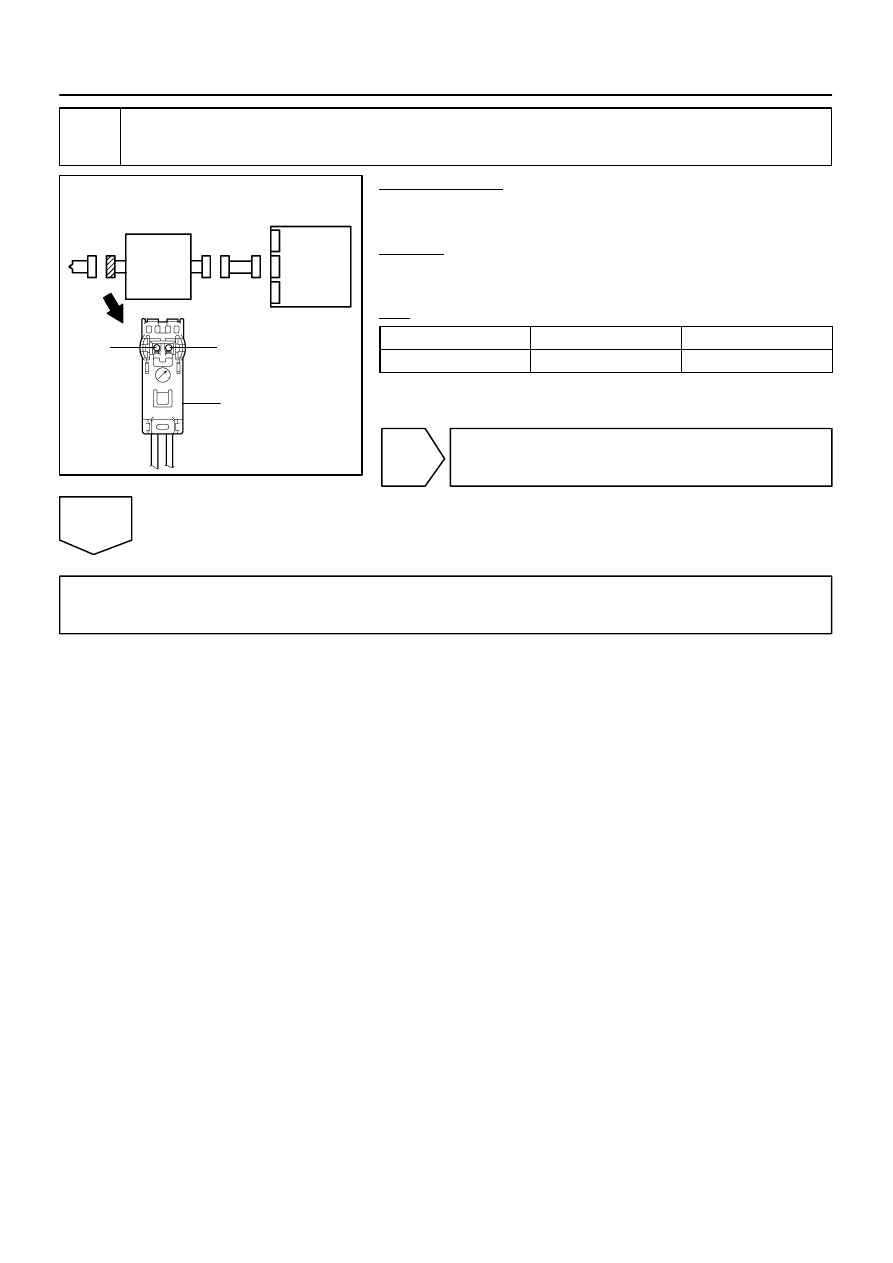

Check spiral cable (short).

PREPARATION:
Release the activation prevention mechanism built into con-
nector ”D” (see page

DI–1137

).

CHECK:
Measure the resistance according to the value(s) in the table
below.
OK:

Tester Connection

Condition

Specified Condition

D2+ – D2–

Always

1 M

Ω

 or higher

NG

Replace spiral cable (see page

RS–21

).

OK

From the results of the above inspection, the malfunctioning part can now be considered normal.
To make sure of this, use the simulation method to check (see page

DI–1137

).

HINT:

Perform the simulation method by selecting the check mode with the hand–held tester (see page

DI–1151

).

After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page

DI–1151

).

H41440

H23351

Spiral
Cable

Airbag

Sensor

Assembly

D2+

D2–

D Squib

(Dual stage –

2nd step)

B

C

E

D

F

A

Cowl Wire

A23

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

DI–1397

1591

15

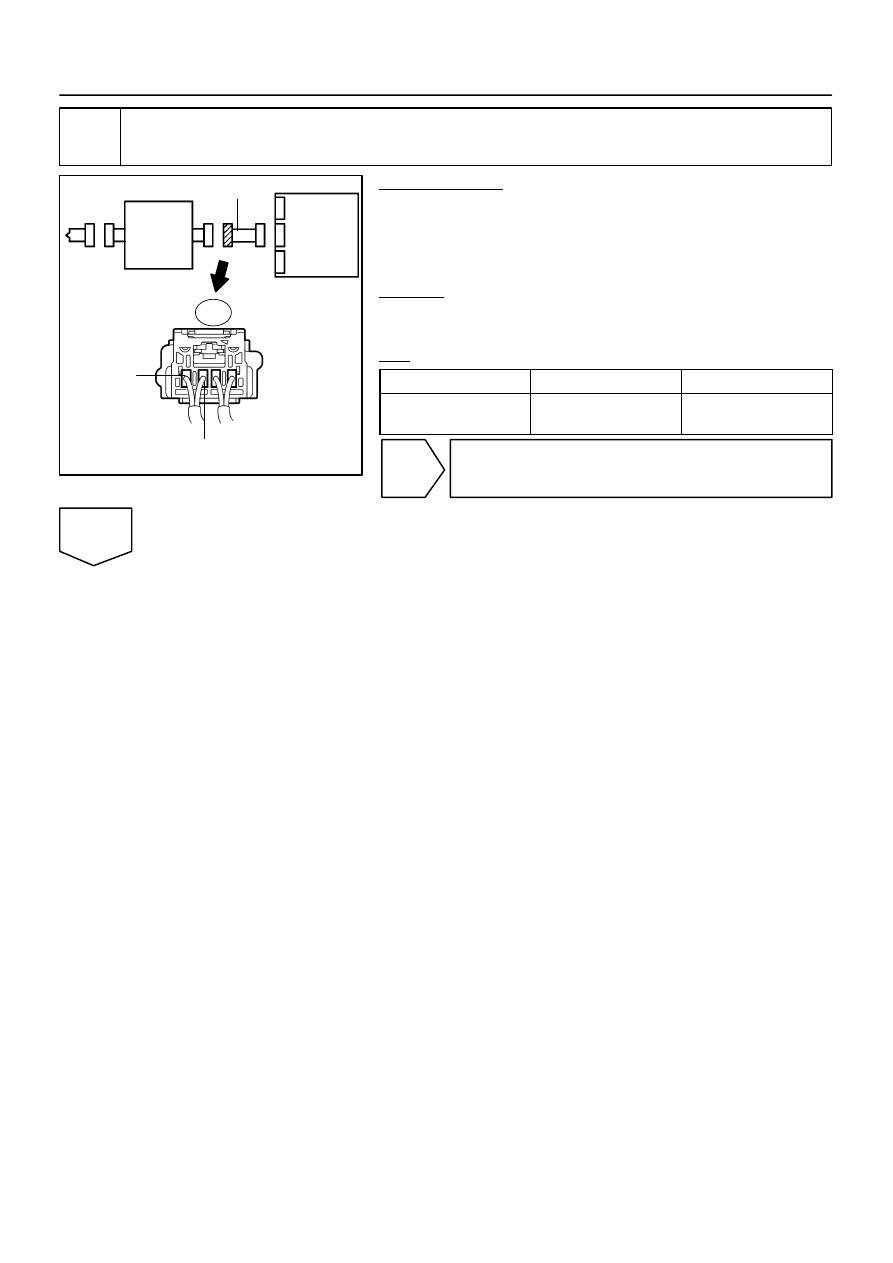

Check cowl wire (open).

PREPARATION:
Disconnect the cowl wire connector from the spiral cable.
CHECK:
Measure the resistance according to the value(s) in the table
below.
OK:

Tester Connection

Condition

Specified Condition

A23–4 (D2+) –

A23–3 (D2–)

Always

Below 1

Ω

NG

Repair or replace cowl wire.

OK

H41479

H23350

Spiral
Cable

Airbag

Sensor

Assembly

D2+

D2–

D Squib

(Dual stage –

2nd step)

Color: Black

A

B

D

E

C

F

DI–1398

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

1592

16

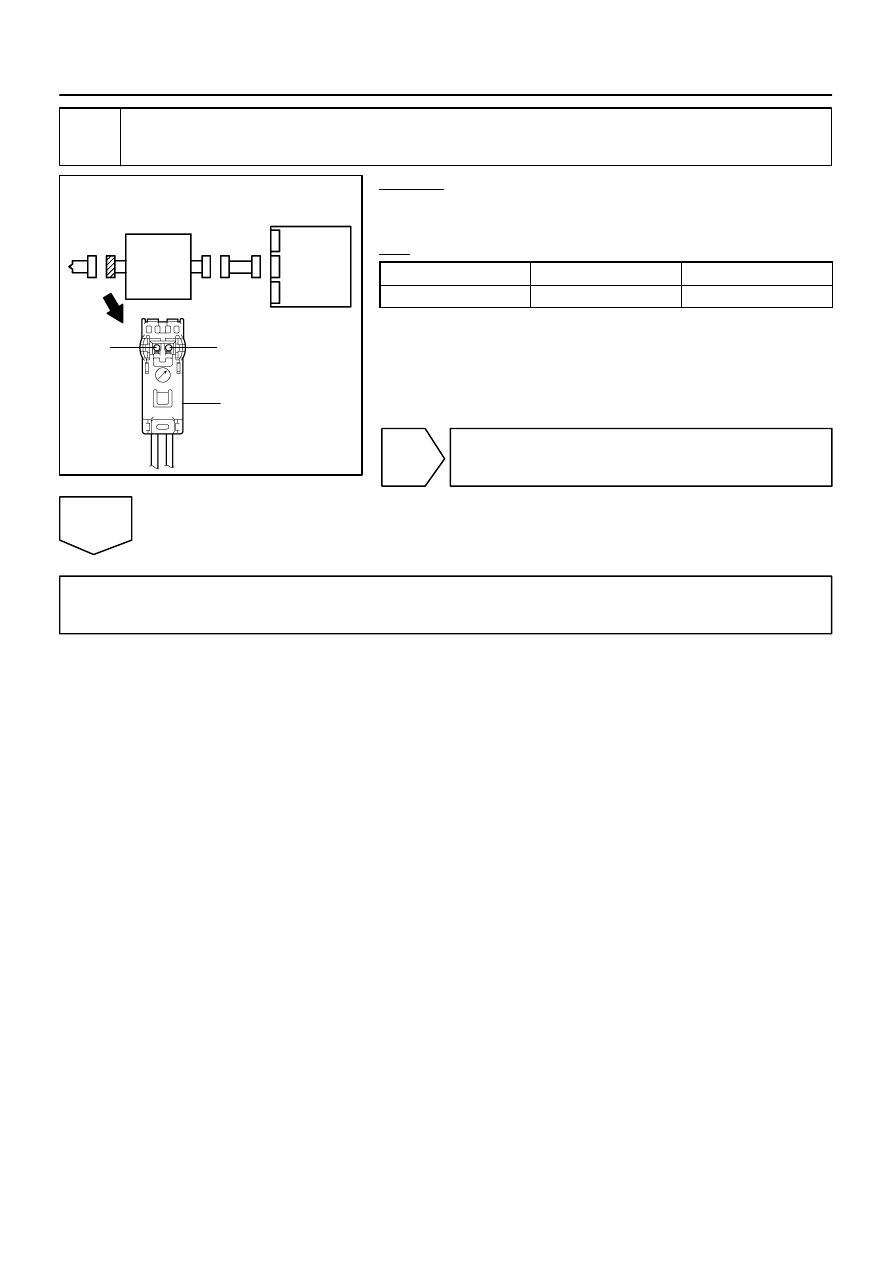

Check spiral cable (open).

CHECK:
Measure the resistance according to the value(s) in the table
below.
OK:

Tester Connection

Condition

Specified Condition

D2+ – D2–

Always

Below 1

Ω

NG

Replace spiral cable (see page

RS–21

).

OK

From the results of the above inspection, the malfunctioning part can now be considered normal.
To make sure of this, use the simulation method to check (see page

DI–1137

).

HINT:

Perform the simulation method by selecting the check mode with the hand–held tester (see page

DI–1151

).

After selecting the check mode, perform the simulation method by wiggling each connector of the air-
bag system or driving the vehicle on a city or rough road (see page

DI–1151

).
