H24040

Occupant
Classification ECU

O7

2

SGD2

O9
Occupant Classification
Sensor Front RH

O7

8

SIG2

O7

12

SVC2

SGD2

SIG2

SVC2

3

2

1

B–Y

LG

P

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

DI–1271

1465

WIRING DIAGRAM

DI–1272

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

1466

INSPECTION PROCEDURE

HINT:

If troubleshooting (wire harness inspection) is difficult to perform, remove the passenger seat installa-
tion bolts to see the under surface of seat cushion.

In the above case, hold the seat so that it does not fall down. Holding the seat for a long period of time
may cause a problem, such as seat rail deformation. Hold the seat only as necessary.

1

Check DTC.

CHECK:
(a)

Turn the ignition switch to the ON position.

(b)

Clear the DTCs stored in memory (see page

DI–1147

).

HINT:
First clear DTCs stored in the occupant classification ECU and then in the airbag sensor assembly.
(c)

Turn the ignition switch to the LOCK position.

(d)

Turn the ignition switch to the ON position.

(e)

Using the hand–held tester, check the DTCs of the occupant classification ECU (see page

DI–1147

).

OK:

DTC B1781 is not output.

HINT:
Codes other than DTC B1781 may be output at this time, but they are not related to this check.

NG

Go to step 2.

OK

From the results of the above inspection, the malfunctioning part can now be considered normal.
To make sure of this, use the simulation method to check (see page

DI–1137

).

H43111

H43105

H23817

SGD2

Occupant
Classification
Sensor Front RH

Seat Wire No. 1

C

B

D

A

SIG2

O7

SVC2

Occupant
Classification
ECU

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

DI–1273

1467

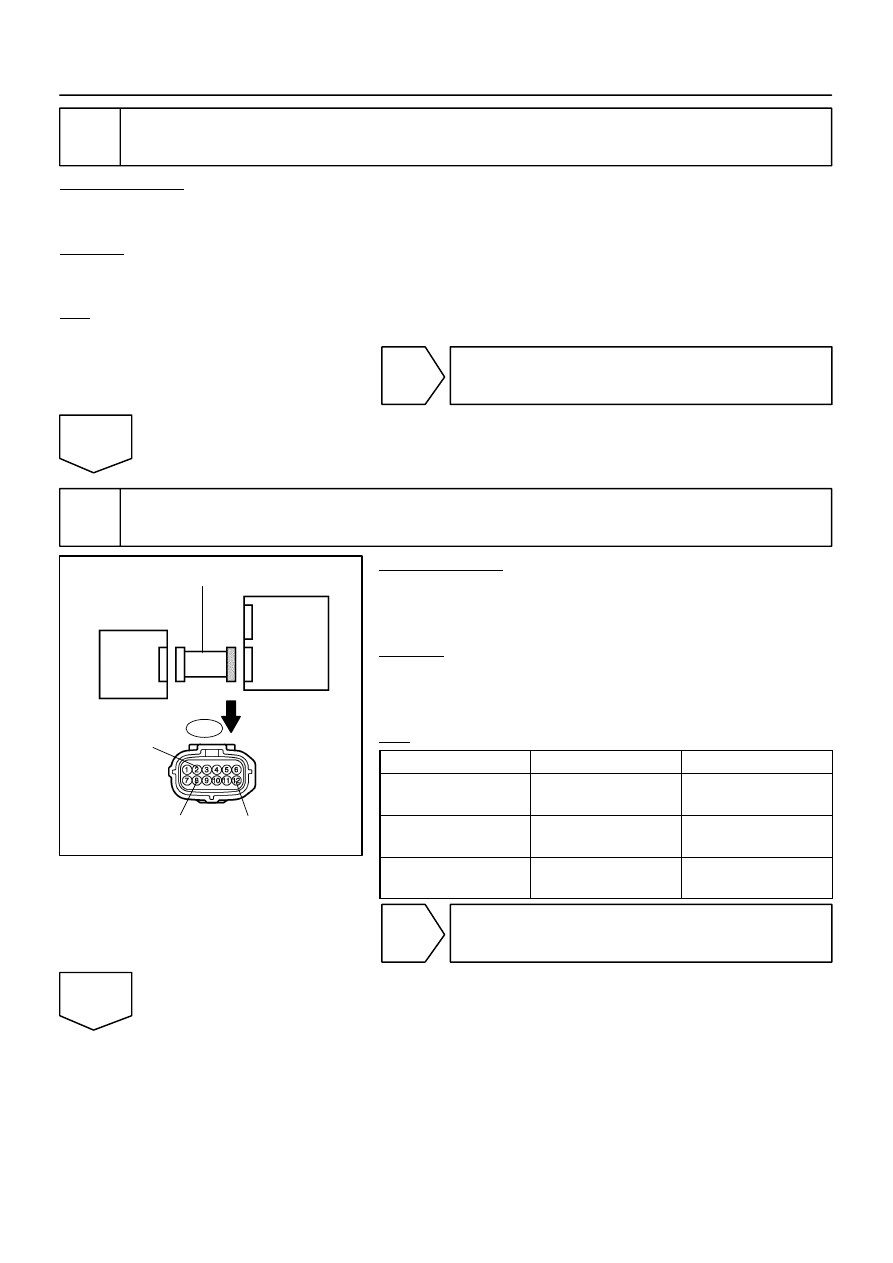

2

Check connection of connectors.

PREPARATION:
(a)

Turn the ignition switch to the LOCK position.

(b)

Disconnect the negative (–) terminal cable from the battery, and wait for at least 90 seconds.

CHECK:
Check that the connectors are properly connected to the occupant classification ECU and the occupant clas-
sification sensor front RH.
OK:

The connectors are connected securely.

NG

Connect connectors, then go to step 1.

OK

3

Check seat wire No. 1 (short to B+).

PREPARATION:
(a)

Disconnect the connectors from the occupant classifica-
tion ECU and the occupant classification sensor front RH.

(b)

Connect the negative (–) terminal cable to the battery.

CHECK:
(a)

Turn the ignition switch to the ON position.

(b)

Measure the voltage according to the value(s) in the table
below.

OK:

Tester Connection

Condition

Specified Condition

O7–2 (SGD2) –

Body ground

Ignition switch ON

Below 1 V

O7–8 (SIG2) –

Body ground

Ignition switch ON

Below 1 V

O7–12 (SVC2) –

Body ground

Ignition switch ON

Below 1 V

NG

Repair or replace seat wire No. 1.

OK

H43111

H43106

H43699

H23818

C

B

D

A

Occupant
Classification
Sensor Front RH

Occupant
Classification
ECU

SGD2

SIG2

SVC2

Service Wire

Service Wire

SGD2

SIG2

SVC2

Seat Wire No. 1

O7

O9

DI–1274

–

DIAGNOSTICS

SUPPLEMENTAL RESTRAINT SYSTEM

1468

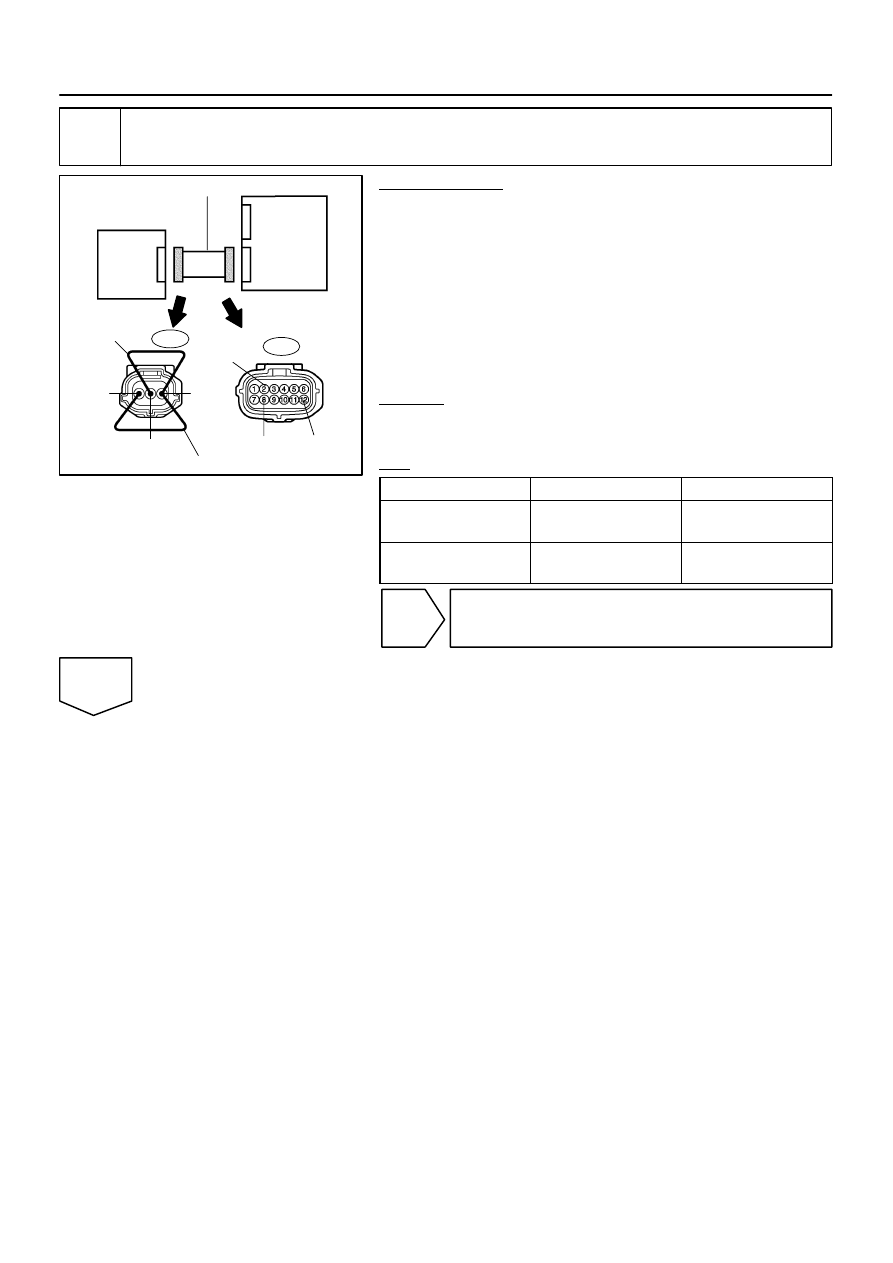

4

Check seat wire No. 1 (open).

PREPARATION:
(a)

Turn the ignition switch to the LOCK position.

(b)

Disconnect the negative (–) terminal cable from the bat-
tery, and wait for at least 90 seconds.

(c)

Using a service wire, connect O9–1 (SVC2) and O9–3
(SGD2), O9–2 (SIG2) and O9–3 (SGD2) of connector
”C”.

NOTICE:
Do not forcibly insert a service wire into the terminals of the
connector when connecting.
CHECK:
Measure the resistance according to the value(s) in the table
below.
OK:

Tester Connection

Condition

Specified Condition

O7–12 (SVC2) –

O7–2 (SGD2)

Always

Below 1

Ω

O7–8 (SIG2) –

O7–2 (SGD2)

Always

Below 1

Ω

NG

Repair or replace seat wire No. 1.

OK
