DIAGNOSTICS

TIRE PRESSURE WARNING SYSTEM

DI–803

997

6

Problem Symptoms Table (See page

DI–814

)

Go to step 8

7

Circuit Inspection (See page

DI–827

 To

DI–888

)

NEXT

8

Repair

NEXT

9

Confirmation Test

NEXT

End

DIDJY–01

Inspector’s

Name

:

Customer’s Name

Production Date

VIN

Licence Plate No.

Odometer Reading

/              /

/              /

Frequency of Problem Occurrence

/                            /

Continuous

Intermittent (       times a day)

In spite of abnormal low tire pressure, the warning lamp does not
come on.

The warning lamp was lit and the tire was filled up with air, but
the warning lamp does not go off.

Remains ON

Does not come on

Check Item

Tire Pressure
Warning Lamp

Normal

Malfunction Code (Code        )

Symptoms

km

miles

Tire Pressure Warning System Check Sheet

Tire Pressure
Warning Lamp
Abnormal

Tire

Tire Pressure

FR (             )  FL (             )  RR (             )  RL (             )

Tire Size

Tire Type

Tire Wear Condition

History of changing tires or wheels

When (                                                                                )

History of rotating tires

FR (             )  FL (             )  RR (             )  RL (             )

FR (             )  FL (             )  RR (             )  RL (             )

FR (             )  FL (             )  RR (             )  RL (             )

When (                                                                                )

DI–804

–

DIAGNOSTICS

TIRE PRESSURE WARNING SYSTEM

998

CUSTOMER PROBLEM ANALYSIS CHECK

DIDJZ–01

F19326

F19327

F19328

–

DIAGNOSTICS

TIRE PRESSURE WARNING SYSTEM

DI–805

999

REGISTRATION

1.

IN CASE OF TIRE PRESSURE MONITOR ECU REPLACEMENT

(a)

Read ID stored in the old ECU using the hand–held tester.

2.

IN CASE OF TIRE PRESSURE MONITOR VALVE SUB–ASSY AND/OR TIRE PRESSURE MON-
ITOR ECU REPLACEMENT

(a)

Read ID written on the tire pressure monitor valve.

3.

REGISTER TRANSMITTER ID

NOTICE:
It is necessary to register the transmitter ID in the tire pressure monitor ECU when replacing the tire
pressure monitor valve sub–assy and/or tire pressure monitor ECU.
(a)

Set the tire pressure of all wheels to the specified value.

Tire size

Front

Rear

Spare

P245 / 70 R 16

220 kPa (2.2 kgf/cm

2

, 32 psi)

240 kPa (2.4 kgf/cm

2

, 35 psi)

240 kPa (2.4 kgf/cm

2

, 35 psi)

P265 / 70 R 16

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

P265 / 65 R 17

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

(b)

Connect the hand–held tester to DLC3.

(c)

Turn the ignition switch to the ON position.

(d)

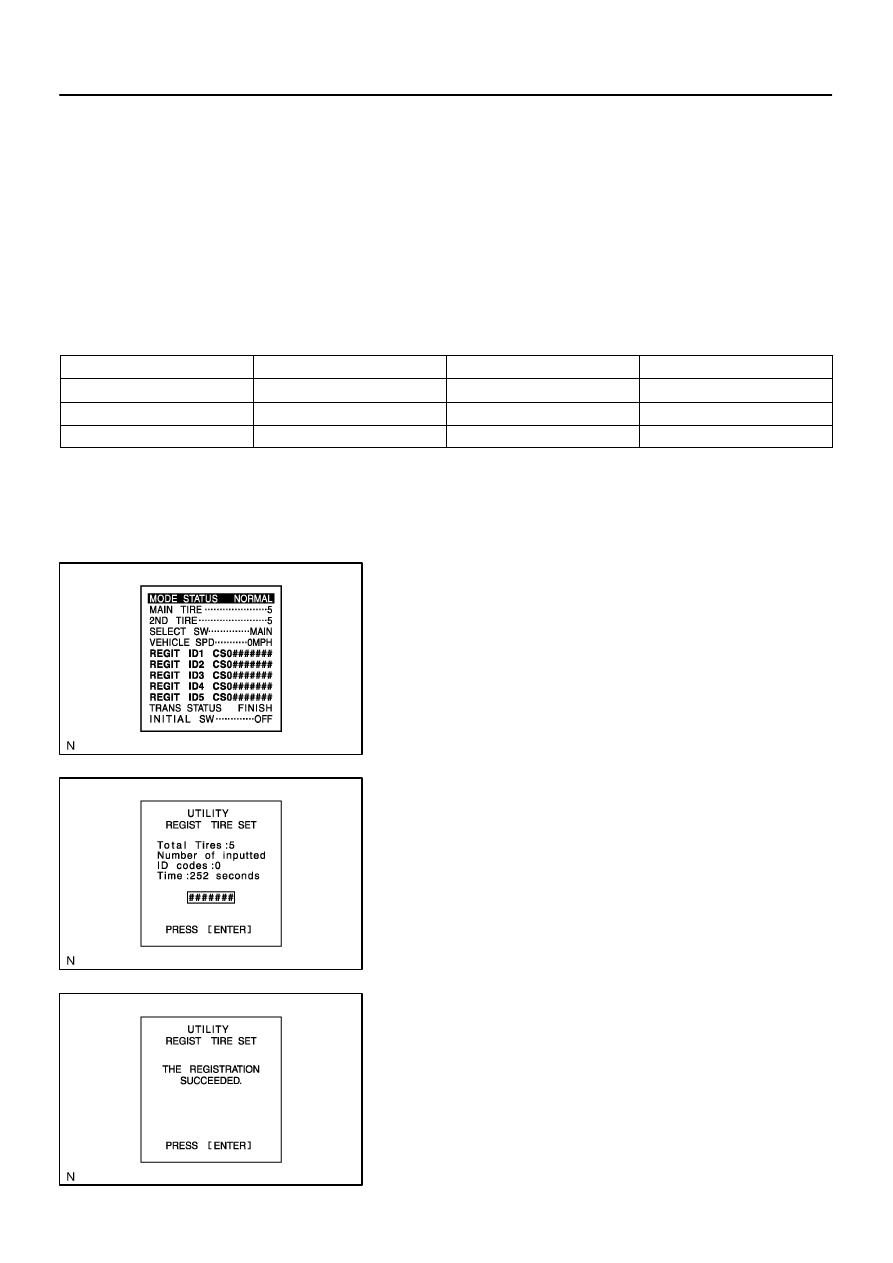

Read and write down the ID (ID1 to ID5) by using the
DATA LIST.

(e)

Select the REGIST TIRE following the hand–held tester
screen.
(UTILITY – REGIST TIRE)

(f)

Input the ID (ID1 to ID5) using the hand–held tester and
transmit it to the tire pressure monitor ECU.

(g)

Set the ID transmission condition to ”SUCCEEDED”.

HINT:
If the operations of steps (d) to (f) do not complete within 5 min.,
the mode will return to normal operation mode.

F19131

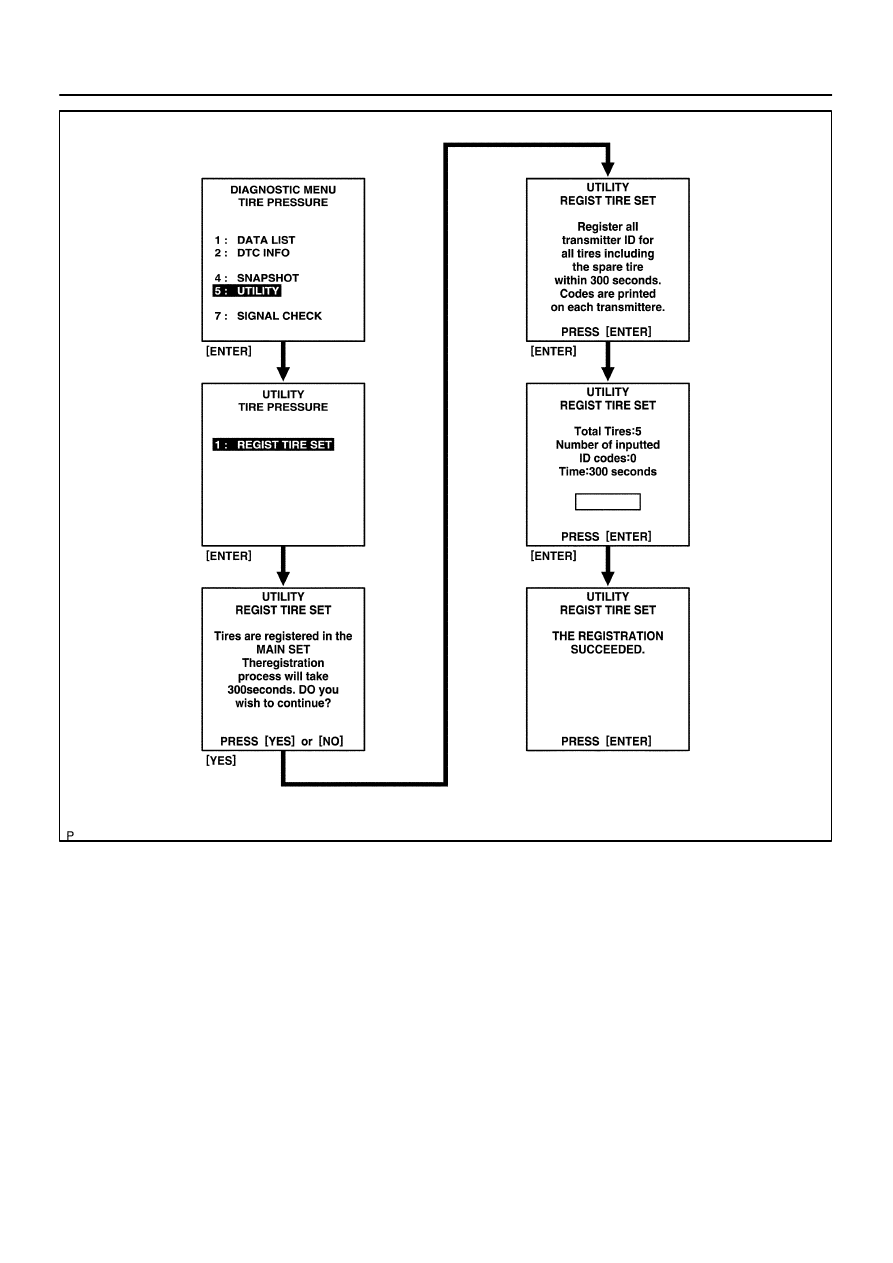

Registration Procedure
