Toyota Sequoia (2005). Manual - part 224

D14233

ECM

LMS

E5

P–L

I22

GND

2LO

IG

O

O

J43
J/C

10

1

9

Integration Control and Panel

I19

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

DI–691

885

Shift Position L Switch Circuit

CIRCUIT DESCRIPTION

The shift position L switch is a momentary type switch. When the shift position L switch is  pressed while
driving with the shift lever in the 2 position, the L position indicator on the combination meter comes on and
the transmission is locked in 1st gear. When the switch is pressed again, the indicator goes off and the trans-
mission is released.

WIRING DIAGRAM

DIDJS–01

D14180

Wire Harness Side:
(Connector Front View):

I19

DI–692

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

886

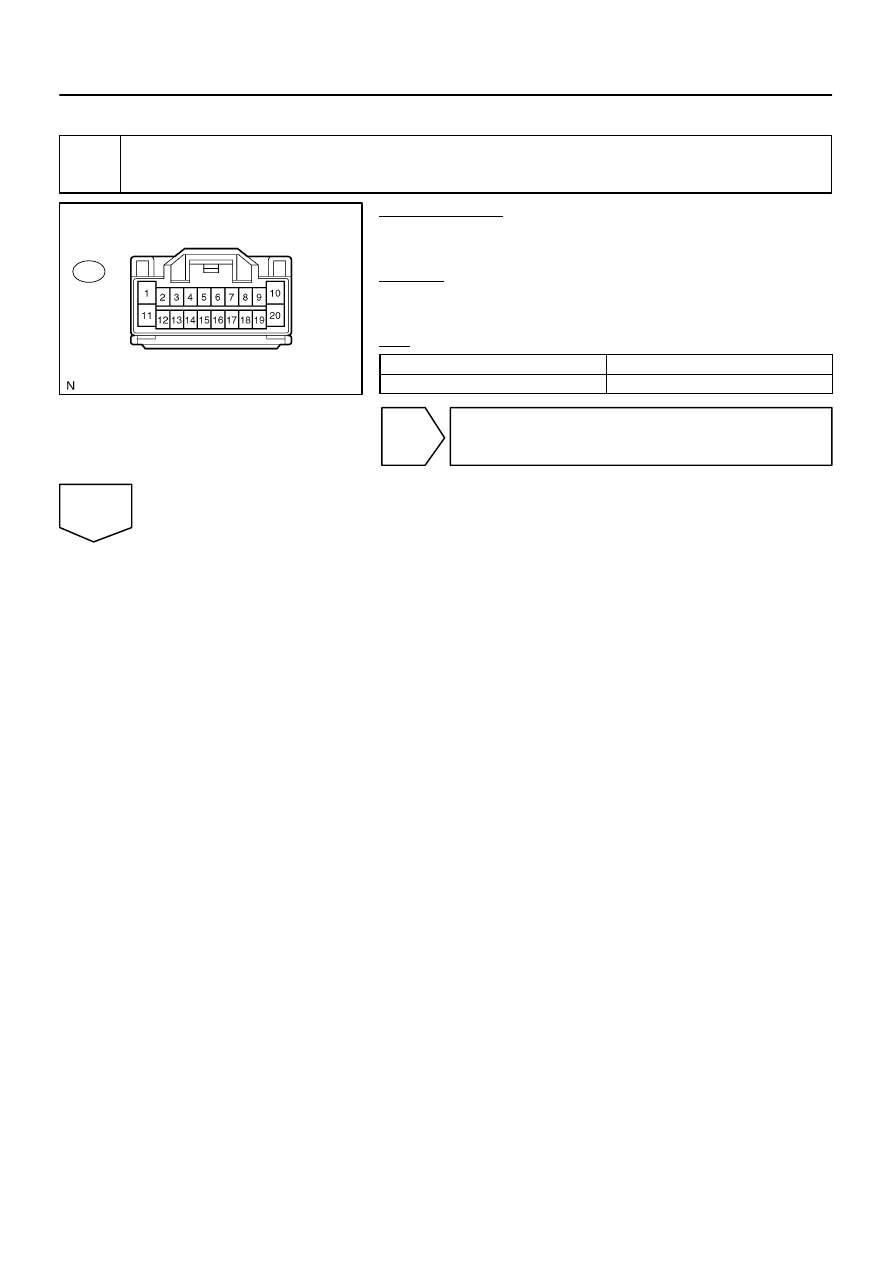

INSPECTION PROCEDURE

1

Check harness and connector (shift position L switch – body ground).

PREPARATION:
Remove the center cluster integration panel assembly (shift
position L switch).
CHECK:
Measure the resistance according to the value(s) in the table
below.
OK:

Tester Connection

Specified Condition

10 – Body ground

Below 1

Ω

NG

Repair or replace harness or connector
(See page

IN–35

).

OK

D14236

I19

I22

GND

2LO

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

DI–693

887

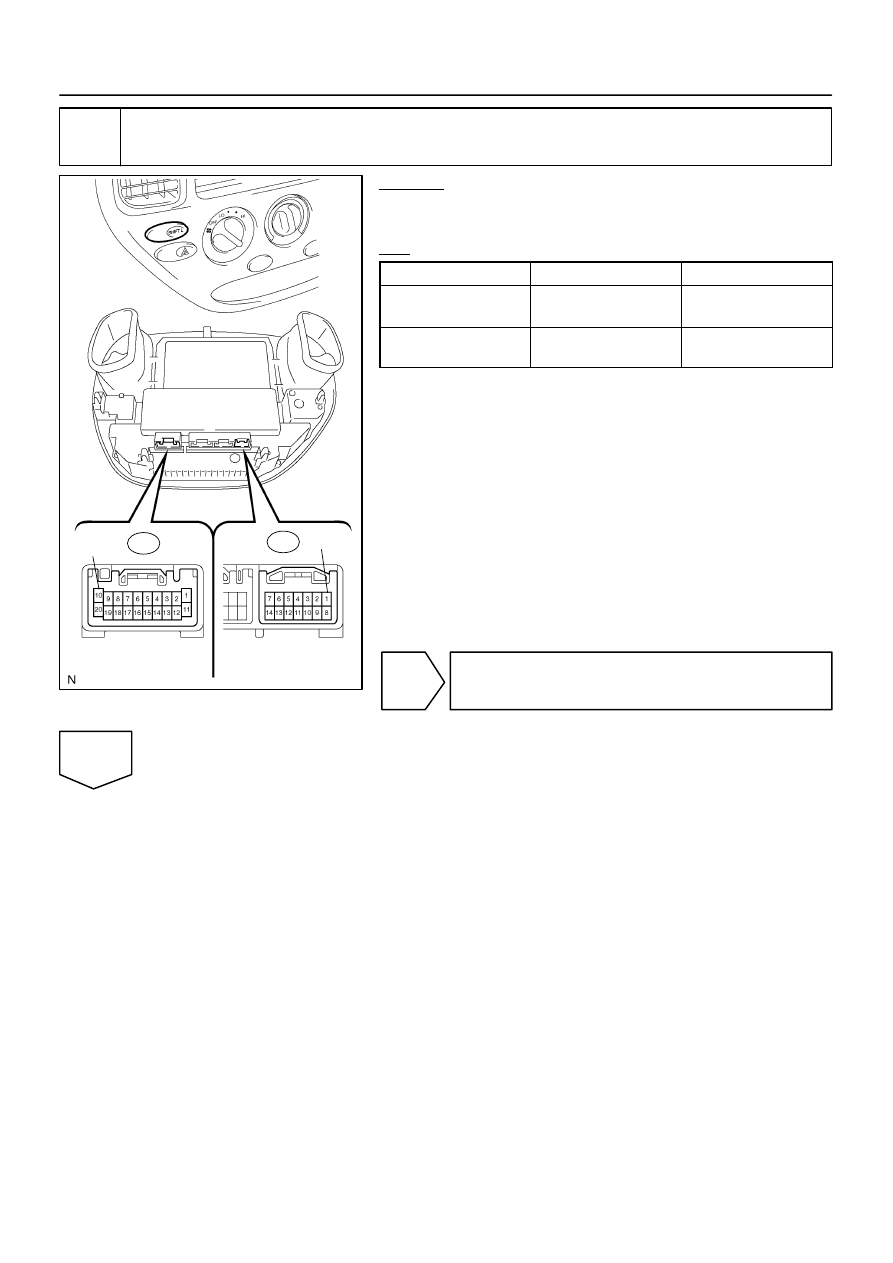

2

Inspect center cluster integration panel (shift position L switch).

CHECK:
Measure the resistance according to the value(s) in the table
below.
OK:

Switch Condition

Tester Connection

Specified Condition

Shift position L switch

pressed and held

I22 – 1 (2LO) –

I19 – 10 (GND)

Below 1

Ω

Shift position L switch

released

↑

10 k

Ω

 or higher

NG

Replace

center cluster integration panel

(shift position L switch).

OK

D14184

E8

E7

E6

E5

E4

ECM:

LMS

DI–694

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

888

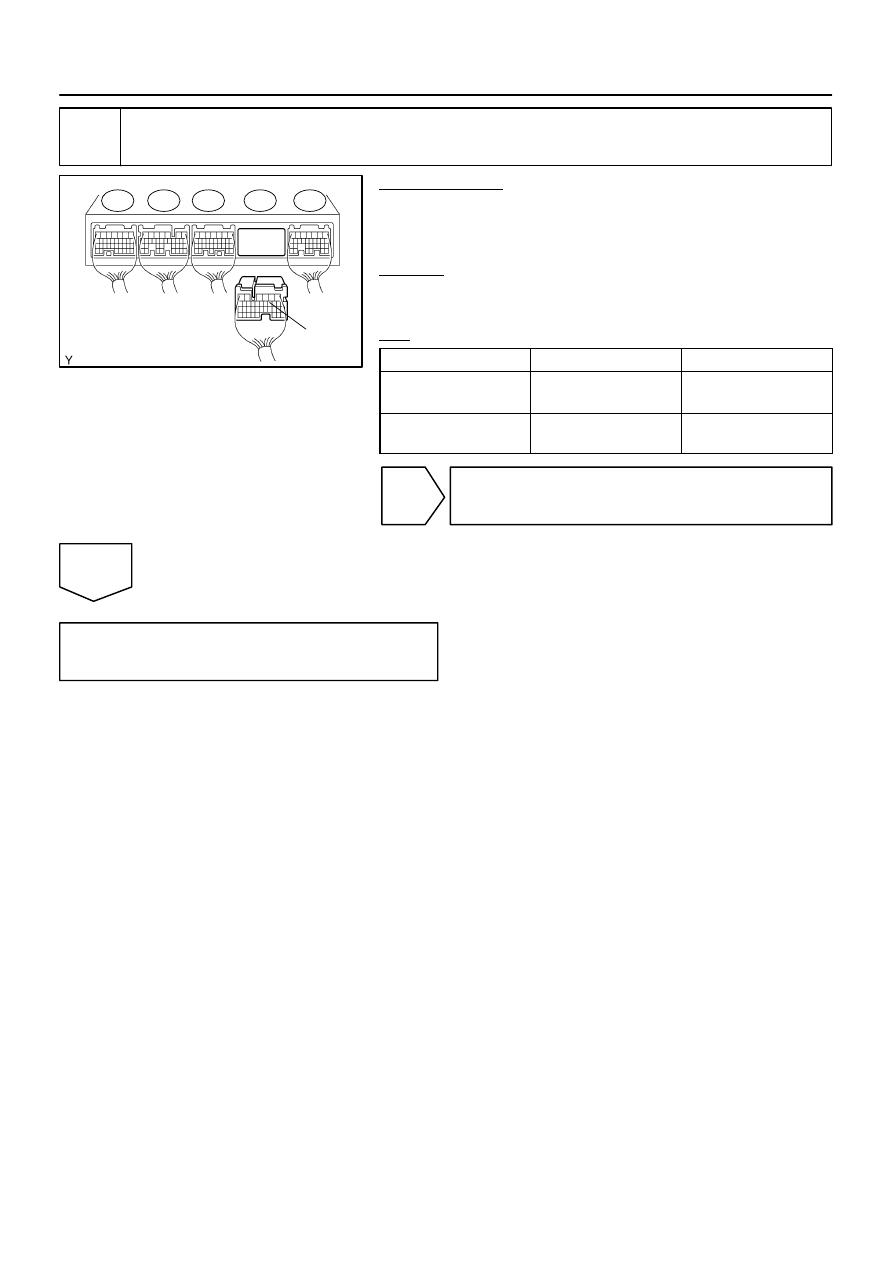

3

Check harness and connector (shift position L switch – ECM).

PREPARATION:
(a)

Install the center cluster integration panel assembly (shift
position L switch).

(b)

Disconnect the connector from the ECM.

CHECK:
Measure the resistance according to the value(s) in the table
below.
OK:

Switch Condition

Tester Connection

Specified Condition

Shift position L switch

pressed and held

E5 – 9 (LMS) –

Body ground

Below 1

Ω

Shift position L switch

released

↑

10 k

Ω

 or higher

NG

Repair or replace harness or connector
(See page

IN–35

).

OK

Proceed to next circuit inspection shown on
matrix chart (See page

DI–553

).
