DIAGNOSTICS

AUTOMATIC TRANSMISSION

DI–575

769

P2772*

(

DI–685

)

Transfer L4 SW Circuit



Short in transfer L4 position switch circuit



Transfer L4 position switch



4WD control ECU



ECM





HINT:
*: 4WD

DIDJ5–01

DI–576

DIAGNOSTICS

AUTOMATIC TRANSMISSION

770

CIRCUIT INSPECTION

DTC

P0705

Transmission Range Sensor Circuit Mal-
function (PRNDL Input)

CIRCUIT DESCRIPTION

The park/neutral position switch detects the shift lever position and sends signals to the ECM.

DTC No.

DTC Detection Condition

Trouble Area

P0705

(2–trip detection logic)



All switches are OFF simultaneously for NSW, R, N, D, 3 and

2 positions.



2 or more switches are ON simultaneously for NSW, R, D, 3

and 2 positions.



Open or short in park/neutral position switch circuit



Park/neutral position switch



ECM

MONITOR DESCRIPTION

These DTCs indicate a problem with the park/neutral position switch and the wire harness in the park/neutral
position switch circuit.
The park/neutral position switch detects the shift lever position and sends a signal to the ECM.
For security, the park/neutral position switch detects the shift lever position so that engine can be started
only when the shift lever is in the P or N position.
The park/neutral position switch sends a signal to the ECM according to the shift position (NSW, R, D, 3 or
2).
The ECM determines that there is a problem with the switch or related parts if it receives more than 1 position
signal simultaneously. The ECM will turn on the MIL and store the DTC.

MONITOR STRATEGY

Related DTCs

P0705

Park/neutral position switch/Verify switch input

Required sensors/Components

Park/neutral position switch

Frequency of operation

Continuous

D

ti

Condition (A)

2 sec.

Duration

Condition (B)

60 sec.

MIL operation

2 driving cycle

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

It

Specification

Item

Minimum

Maximum

The monitor will run whenever this DTC is

not present.

See page

DI–545

Ignition switch

ON

Battery voltage

10.5 V or more

DIAGNOSTICS

AUTOMATIC TRANSMISSION

DI–577

771

TYPICAL MALFUNCTION THRESHOLDS

Detection criteria

Threshold

One of the following conditions is met: Condition (A) or (B)

Condition (A)

Number of the following signal input at the same time

2 or more

 NSW switch

 R switch

 D switch

ON

 3 switch

ON

 2 switch

Condition (B)

All of following conditions are met

 N switch

 NSW switch

 R switch

OFF

 D switch

OFF

 3 switch

 2 switch

COMPONENT OPERATING RANGE

Parameter

Standard value

Park/neutral position switch

The park/neutral position switch sends only one signal to the ECM.

D14218

ECM

R

D

2

3

E7

8

STAR/NSW

11

E5

E5

21

E5

19

E5

10

J52

J52

J52

J52

J52

J52

J/C

J51

J51

J51

J51

J51

J51

B

L–Y

B–Y

W–R

L

LG

LG

L

W–R

B–Y

L–Y

L–R

L–R

B–Y

W–L

W

B

G–R*

G–R

P

PL

RL

NL

DL

2L

LL

IG4

9

1D

1C

IPO

GAUGE

IG1

AM1

7

4

8

7

1C

1L

1

6

AM1

2

1

ALT

Battery

F10
FL Block

Cowl Side J/B LH

I18
Ignition SW

Cowl Side J/B RH

To 4WD Control ECU

To Translate ECU

To Starter Relay

P1
Park/Neutral Position SW

*: 4WD

2

1

N

8

5

4

5

6

1

9

7

3

8

A

E

G

G

F

H

A

H

C

C

F

E

2

RB

DI–578

DIAGNOSTICS

AUTOMATIC TRANSMISSION

772

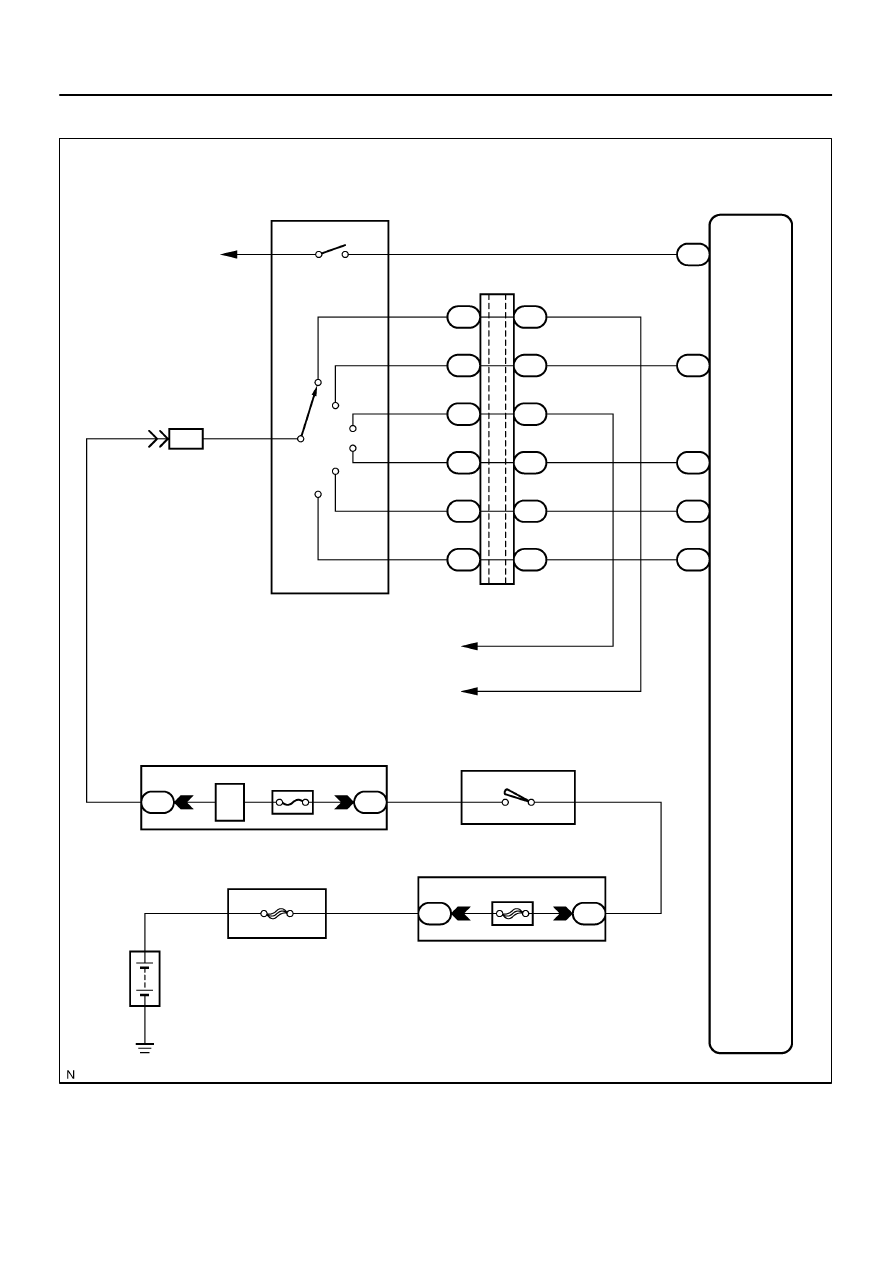

WIRING DIAGRAM
