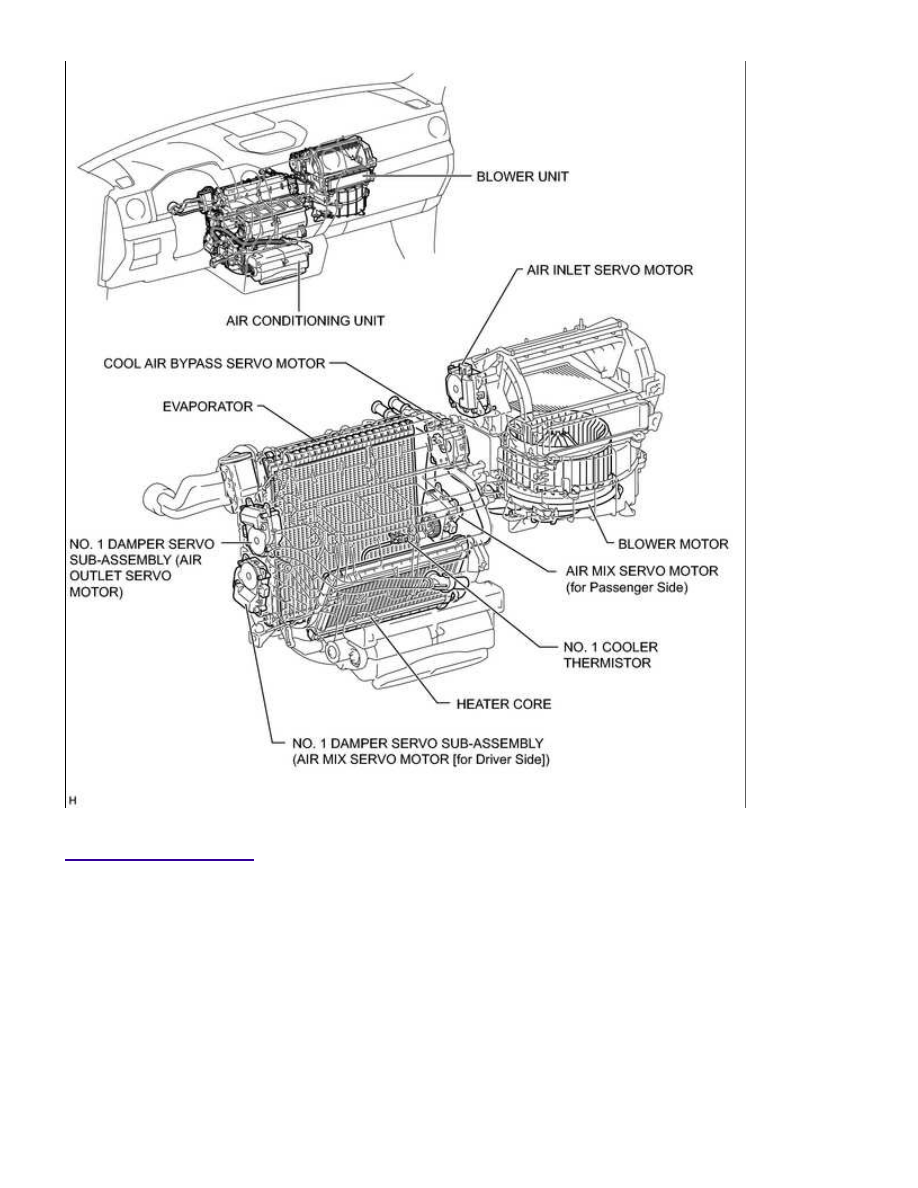

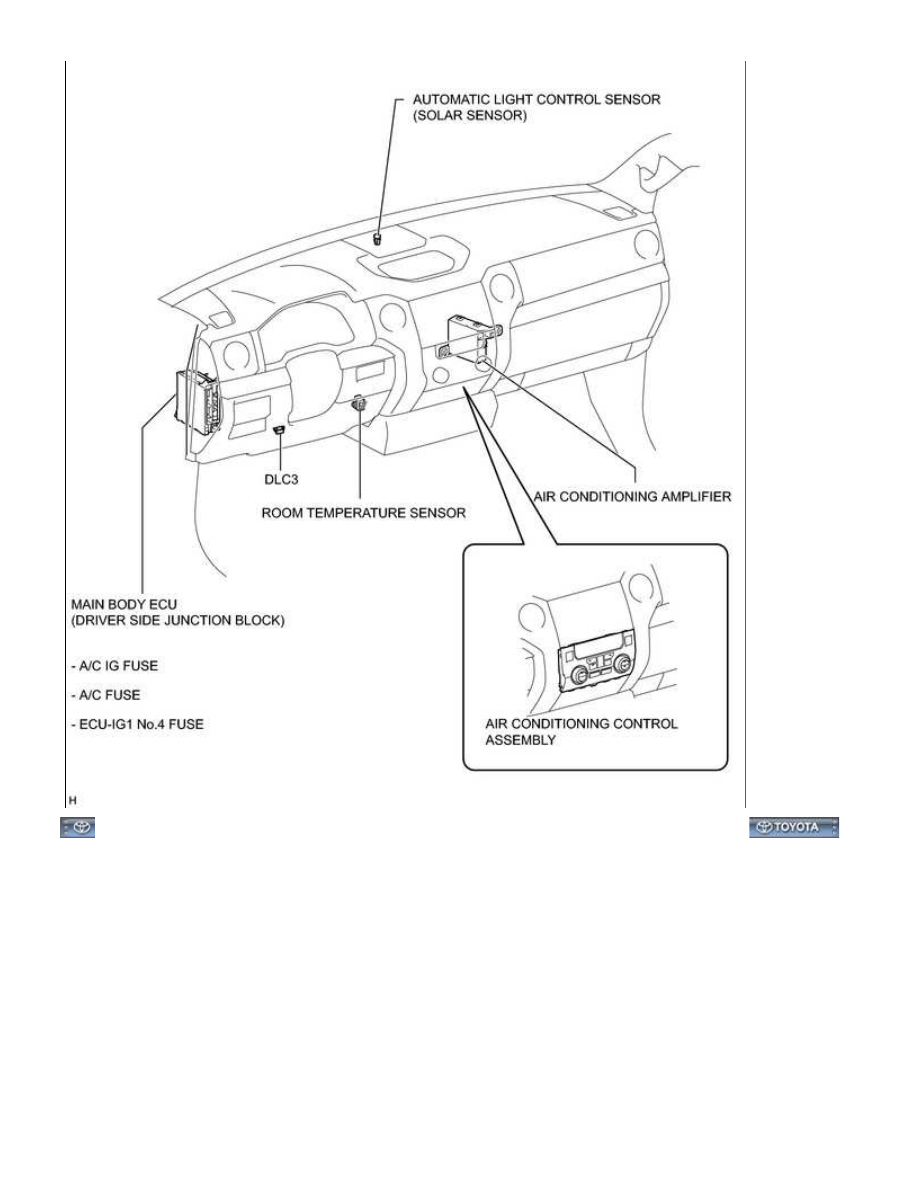

ILLUSTRATION

AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Automatic A...

AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Automatic A...

Last Modified: 9-16-2014

6.6 U

Doc ID: RM000002VX200UX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System): SYSTEM

DIAGRAM; 2015 MY Tundra [08/2014 -        ]

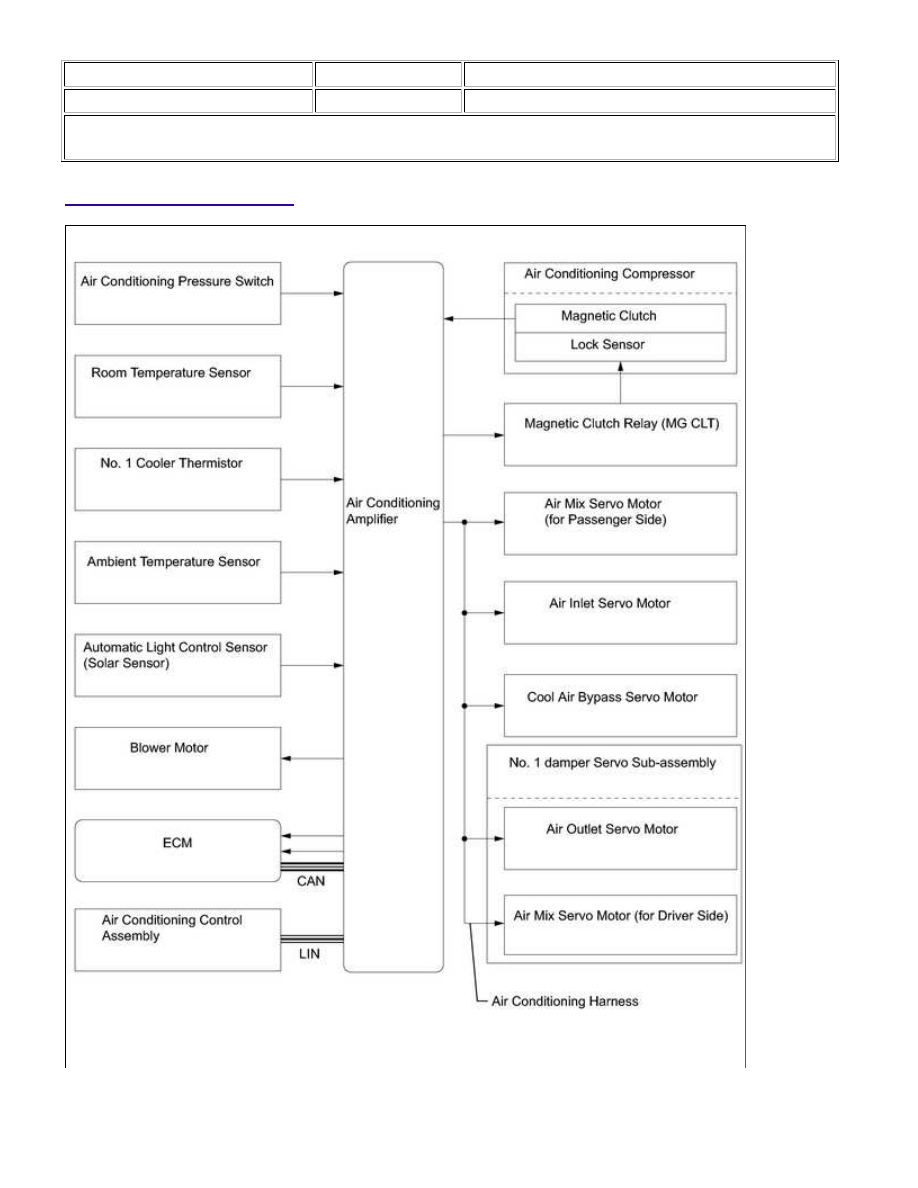

SYSTEM DIAGRAM

Communication table

AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Automatic A...

SENDER

RECEIVER

SIGNAL

LINE

Air Conditioning Control Assembly Air Conditioning Amplifier

Air conditioning control signal

LIN

ECM

Air Conditioning Amplifier

Engine speed

Engine coolant temperature signal

CAN
