22. REMOVE INNER BACK DOOR GLASS WEATHERSTRIP

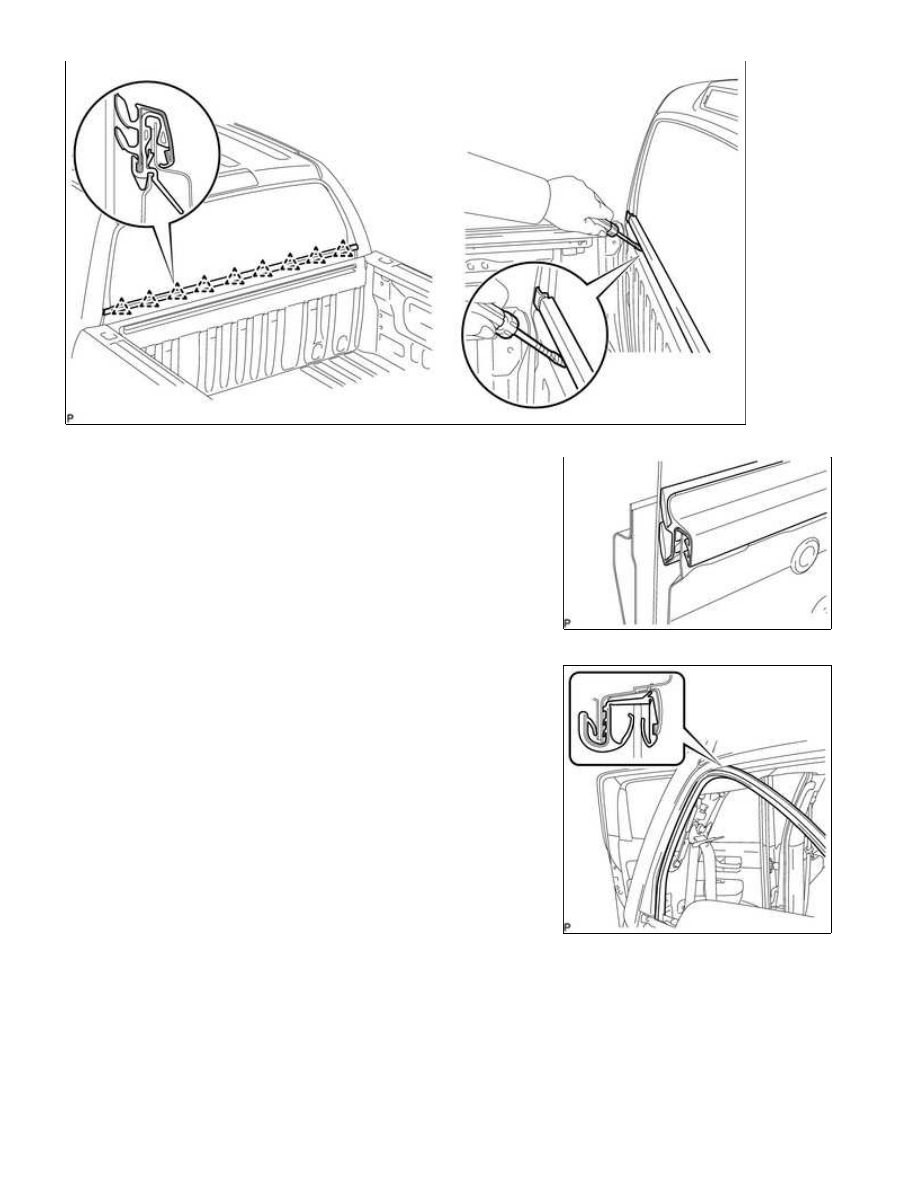

(a) Using a screwdriver, remove the weatherstrip.

HINT:

Tape the screwdriver tip before use.

23. REMOVE BACK DOOR GLASS RUN

(a) Remove the glass run.

24. REMOVE BACK WINDOW GLASS

(a) Connect the cable to the negative (-) battery terminal.

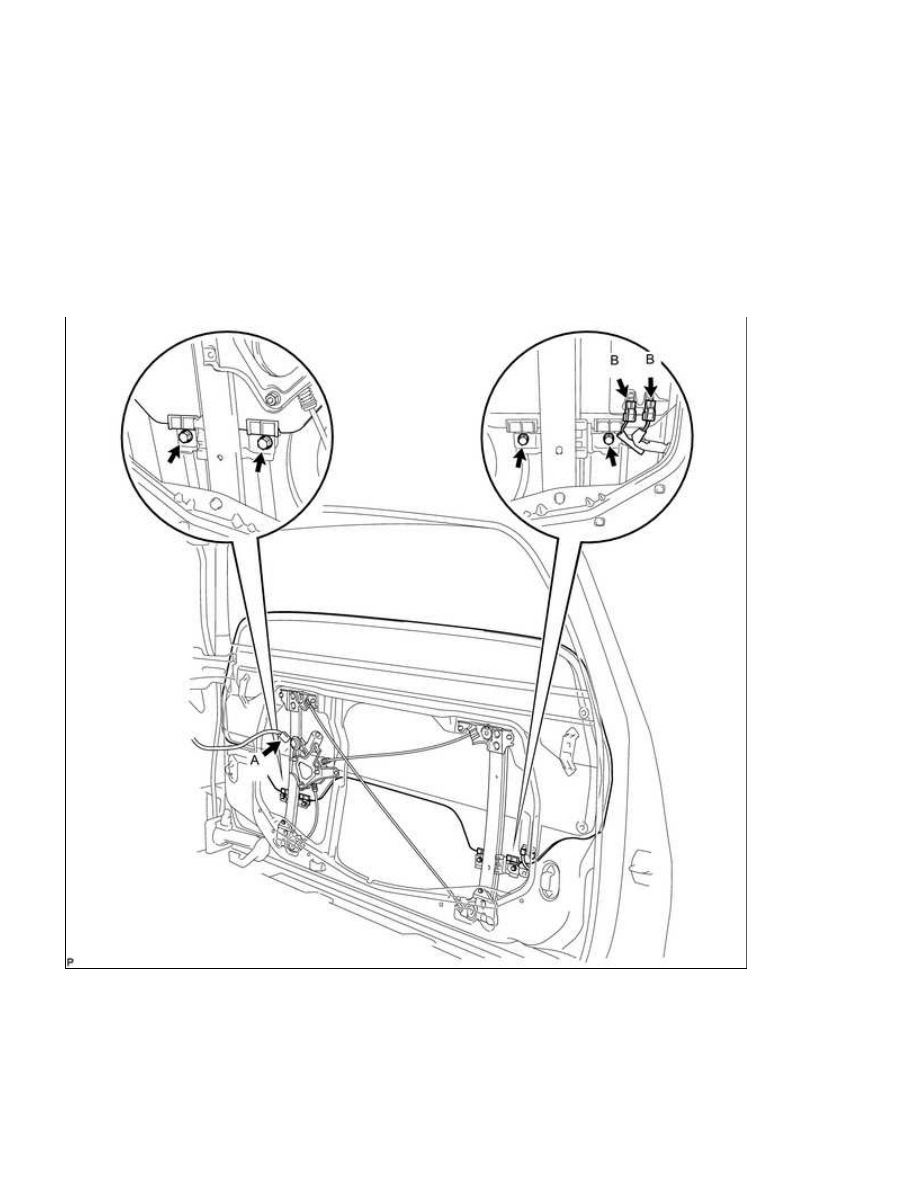

(b) Connect the back window regulator connector labeled A.

(d) Disconnect the back window regulator connector labeled A.

(e) Disconnect the cable from the negative battery (-) terminal.

WINDSHIELD / WINDOWGLASS: BACK WINDOW GLASS (for C...

(f) Disconnect the 2 defogger connectors labeled B.

(g) Remove the 4 bolts.

NOTICE:

Be careful when removing the bolts as the glass may fall and become damaged.

(h) Remove the back window glass.

HINT:

Remove the glass upward.

NOTICE:

Be careful not to damage the glass.

25. REMOVE BACK DOOR POWER WINDOW REGULATOR SUB-ASSEMBLY

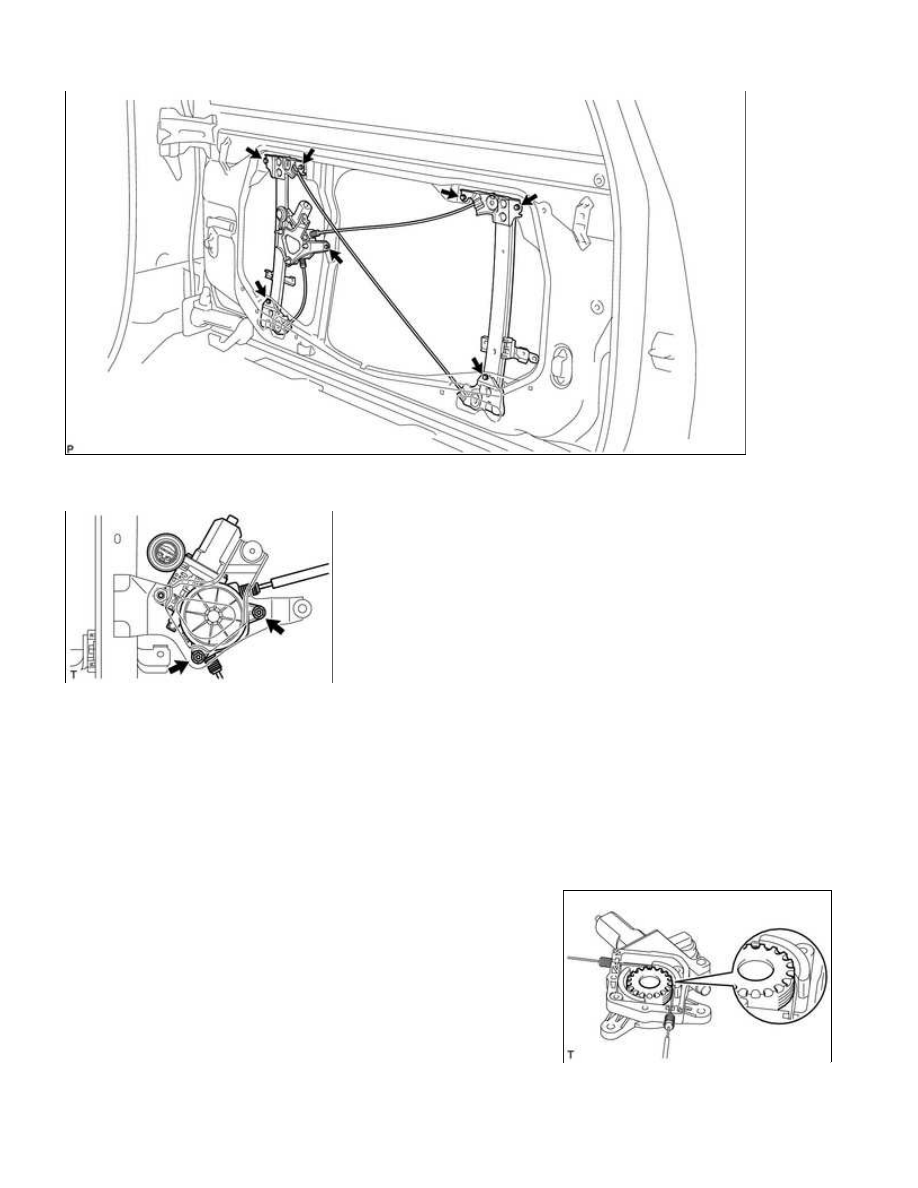

(a) Remove the 7 bolts and back window regulator.

HINT:

Remove the regulator through the service hole.

NOTICE:

WINDSHIELD / WINDOWGLASS: BACK WINDOW GLASS (for C...

Be careful when removing the bolts as the regulator sub-assembly may fall and become damaged.

26. REMOVE BACK DOOR POWER WINDOW REGULATOR MOTOR

NOTICE:

Perform these procedures only when replacing the regulator or motor.

(a) Remove the 2 nuts and motor.

NOTICE:

Be careful when removing the nuts as the motor may fall and become damaged.

(b) Remove the 2 screws and cover.

NOTICE:

Do not pry the drum with a screwdriver or equivalent.

27. REMOVE BACK WINDOW OUTSIDE MOULDING

WINDSHIELD / WINDOWGLASS: BACK WINDOW GLASS (for C...

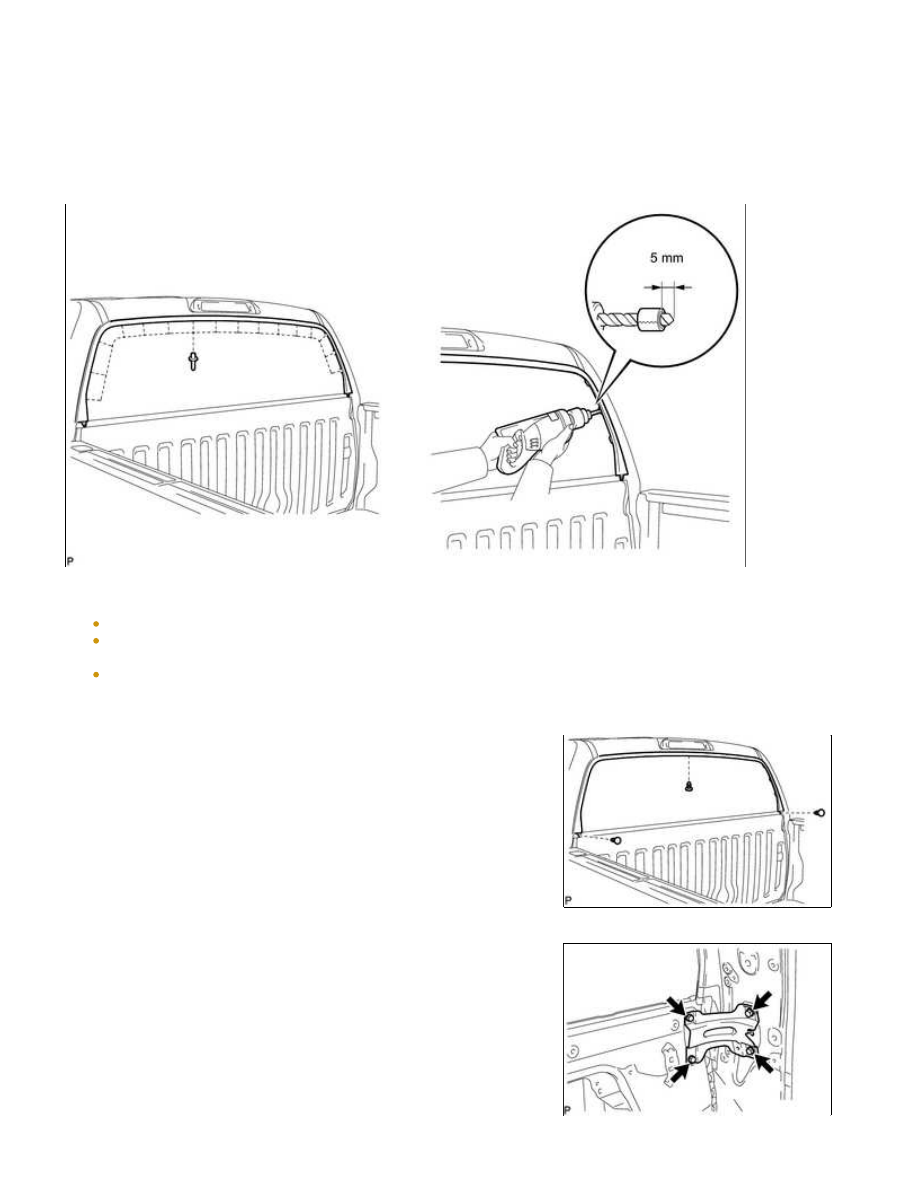

(a) Put a 4 mm (0.157 in.) drill bit into a drill.

Tape the 4 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

(e) Remove the 3 clips and back window outside moulding.

28. REMOVE UPPER CAB REAR PILLAR PLATE LH

(a) Remove the 4 bolts and upper plate.
