Toyota Tundra (2015 year). Manual - part 2076
Last Modified: 9-16-2014
6.6 A
Doc ID: RM000002VEC009X
Model Year: 2015
Model: Tundra
Prod Date Range: [08/2014 - ]
Title: LIGHTING: HEADLIGHT DIMMER SWITCH: INSTALLATION; 2015 MY Tundra [08/2014 - ]
INSTALLATION
1. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY

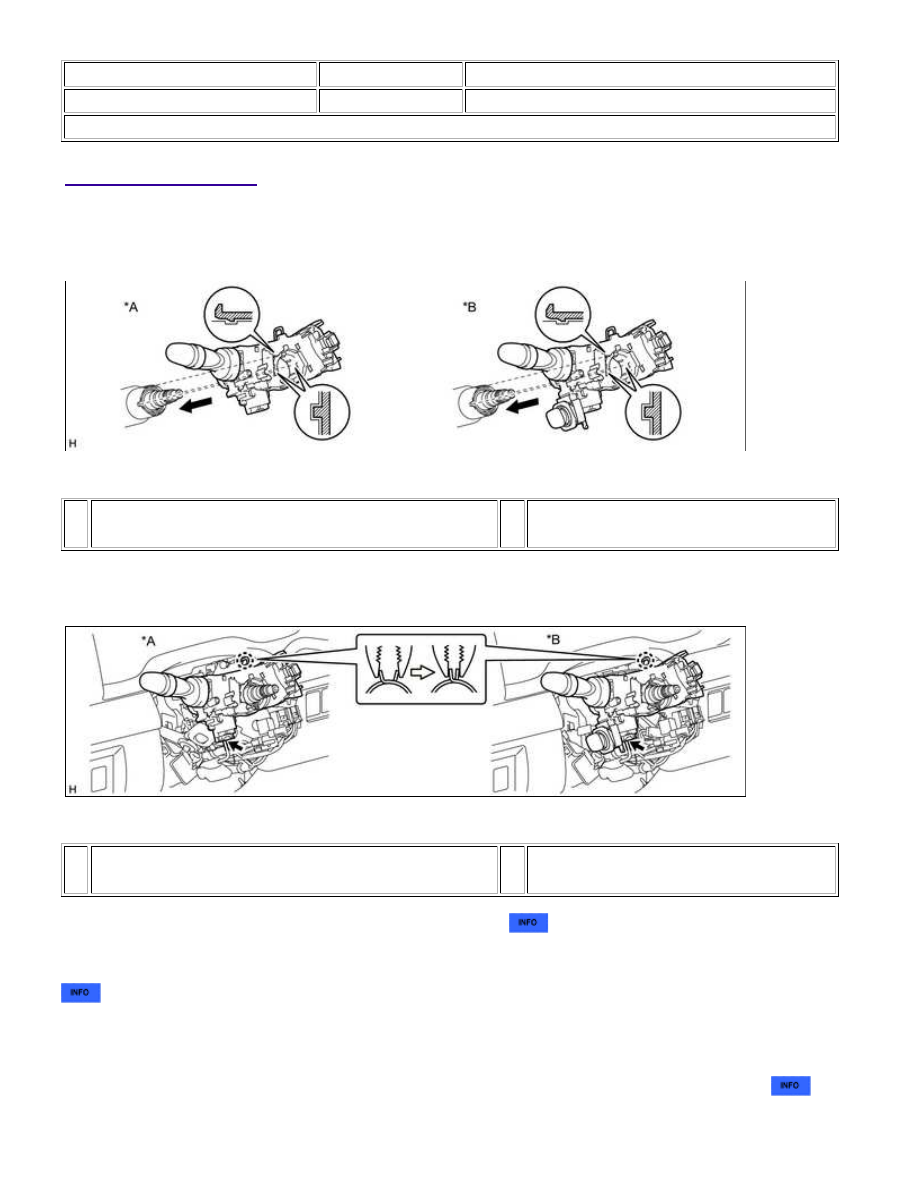

(a) Install the headlight dimmer switch assembly to the steering column, making sure that the stopper
protrusions and cutout parts align.
Text in Illustration
*A
for Manual Tilt, for Manual Tilt and Manual Telescopic
Steering Column
*B
for Power Tilt and Power Telescopic Steering
Column
(b) While loosening the band clamp, attach the claw to install the headlight dimmer switch assembly.
(c) Connect the connector.
Text in Illustration
*A
for Manual Tilt, for Manual Tilt and Manual Telescopic
Steering Column
*B
for Power Tilt and Power Telescopic Steering
Column

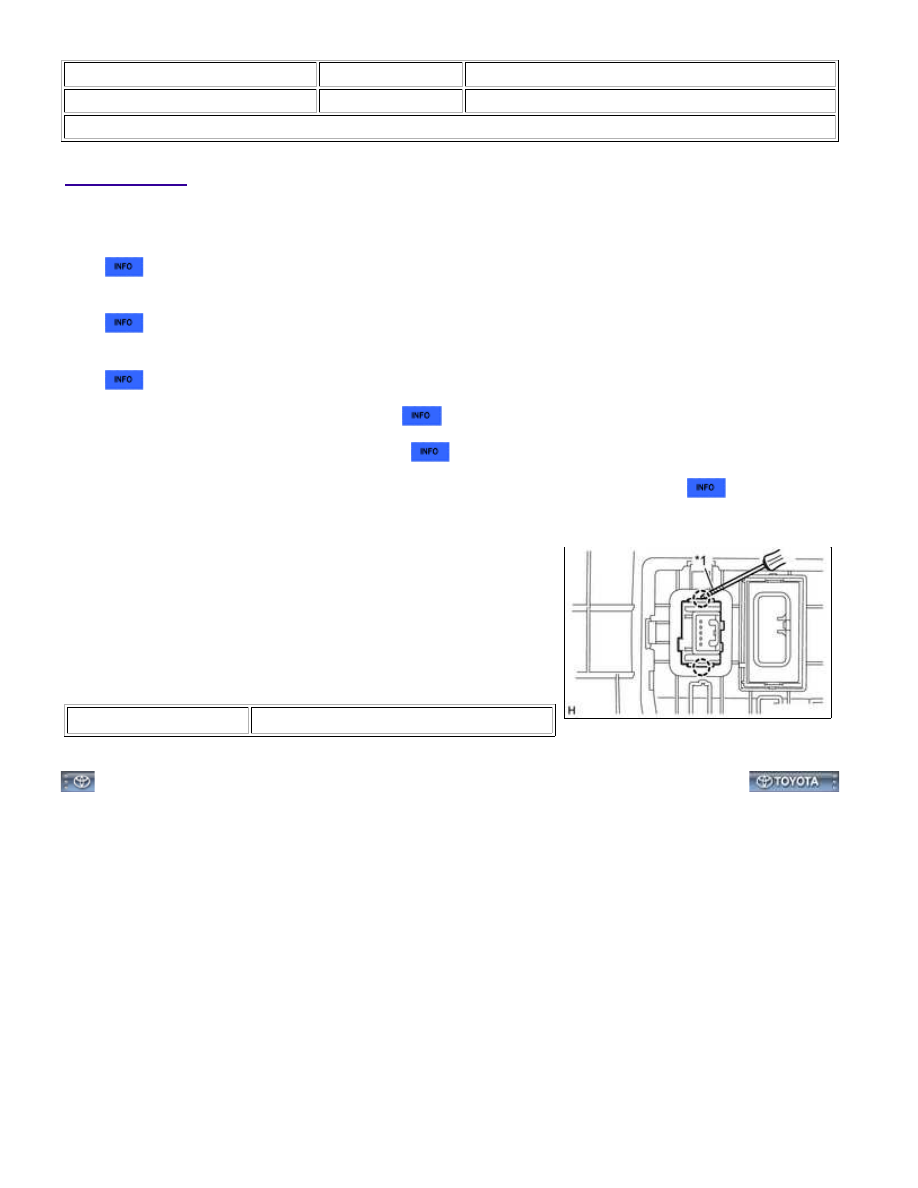

2. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
3. INSTALL SPIRAL CABLE SUB-ASSEMBLY
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
5. CHECK SRS WARNING LIGHT
LIGHTING: HEADLIGHT DIMMER SWITCH: INSTALLATION; 20...
