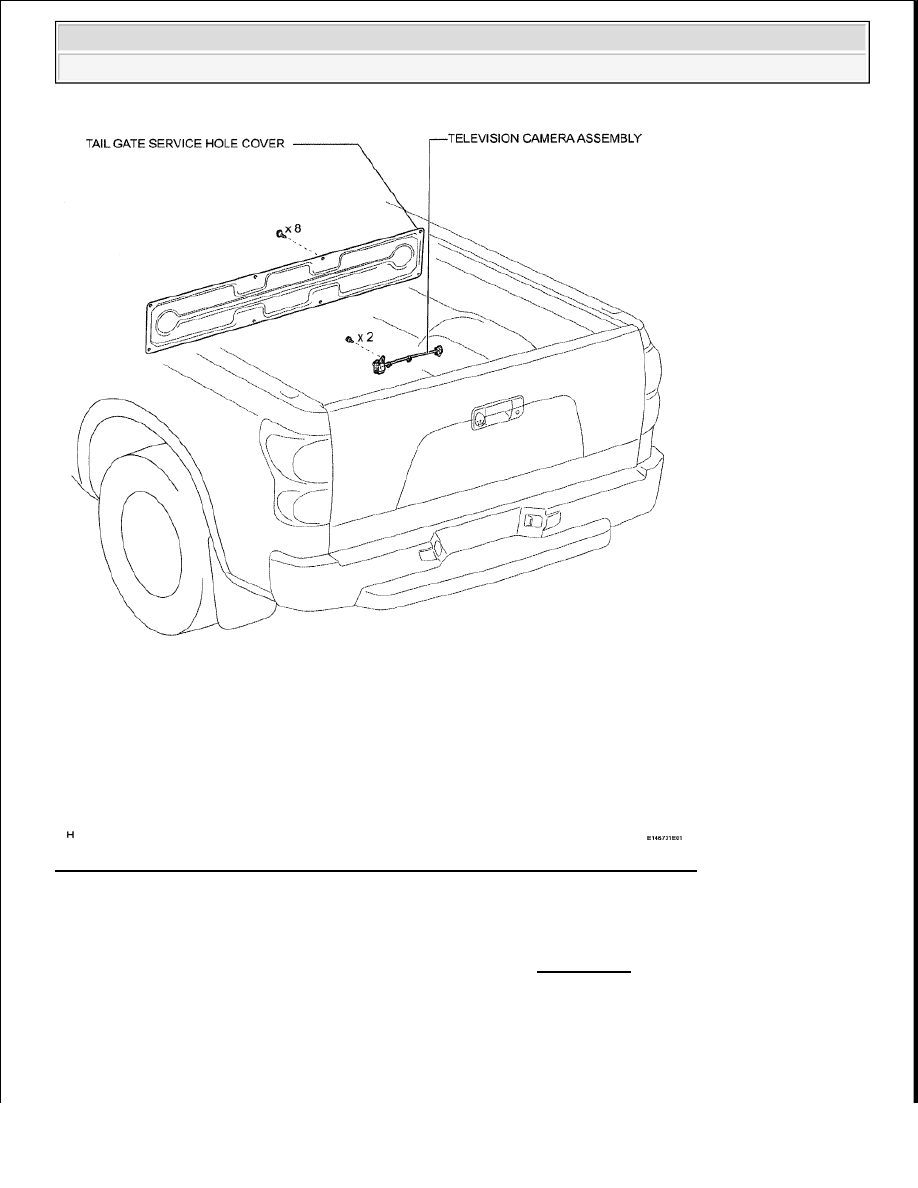

Fig. 84: Identifying Television Camera Assembly And Tail Gate Service Hole Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

1. REMOVE TAIL GATE SERVICE HOLE COVER (See REMOVAL )

2. REMOVE TELEVISION CAMERA ASSEMBLY

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Parking Assist/Monitoring - Tundra

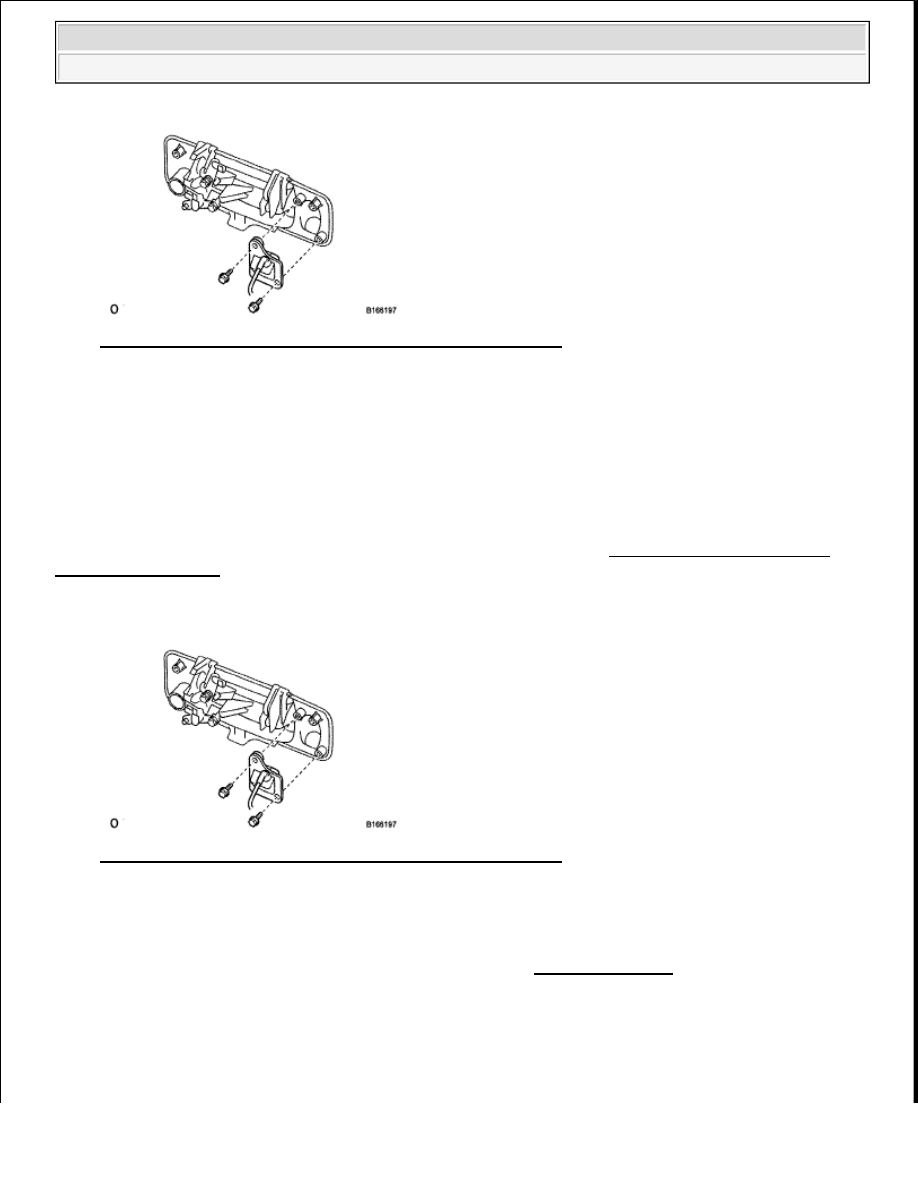

Fig. 85: Identifying Television Camera Assembly With Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

a. Disconnect the television camera connector.

b. Detach the 3 clamps and remove the 2 bolts and television camera.

INSTALLATION

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR
STANDARD BOLTS ).

1. INSTALL TELEVISION CAMERA ASSEMBLY

Fig. 86: Identifying Television Camera Assembly With Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

a. Attach the 3 clamps and install the television camera with the 2 bolts.

b. Connect the television camera connector.

2. INSTALL TAIL GATE SERVICE HOLE COVER (See INSTALLATION )

3. CHECK TELEVISION CAMERA ASSEMBLY ANGLE

a. Move the shift lever to the R position and check the rear view image in the display has no lines or

distortion and has good color.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Parking Assist/Monitoring - Tundra

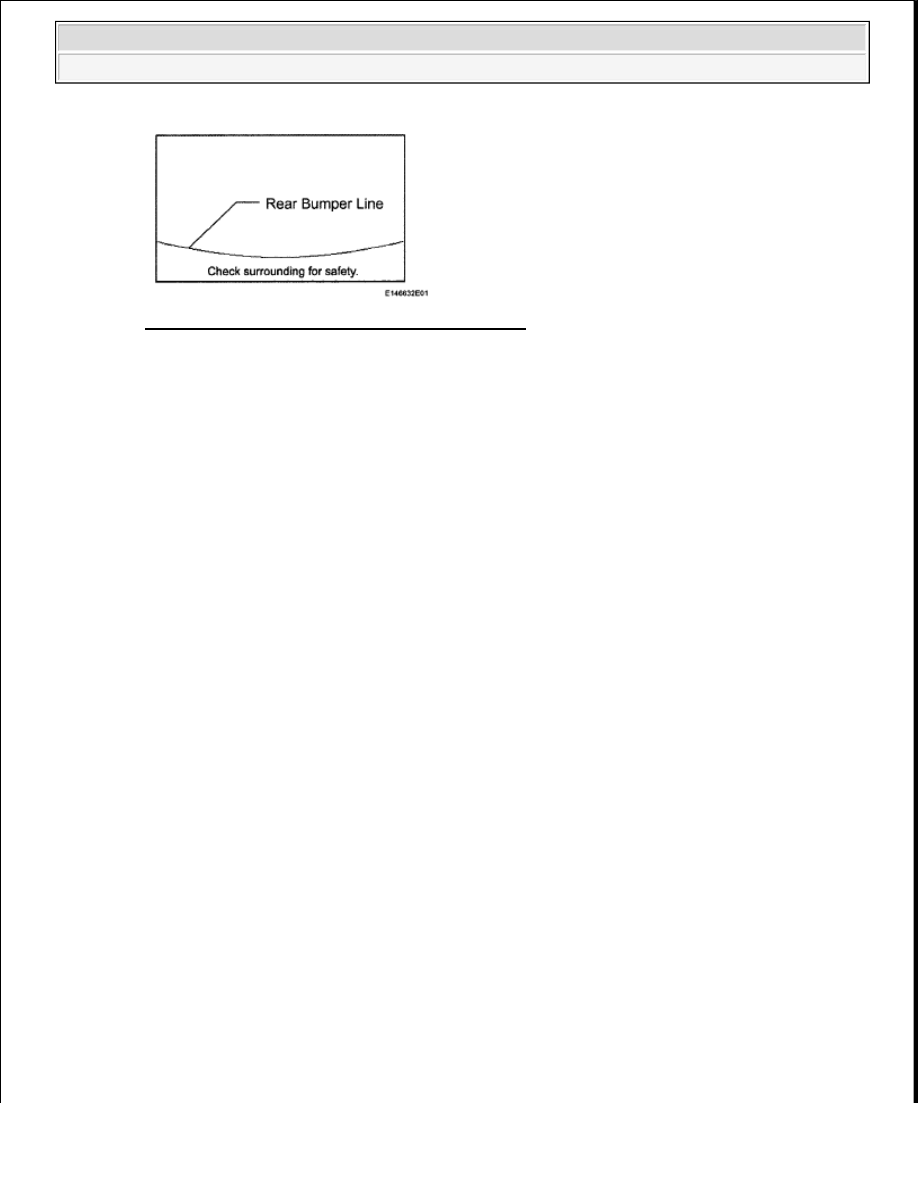

Fig. 87: Identifying Rear Bumper Line In Display
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

CLEARANCE SONAR MAIN SWITCH

COMPONENTS

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Parking Assist/Monitoring - Tundra

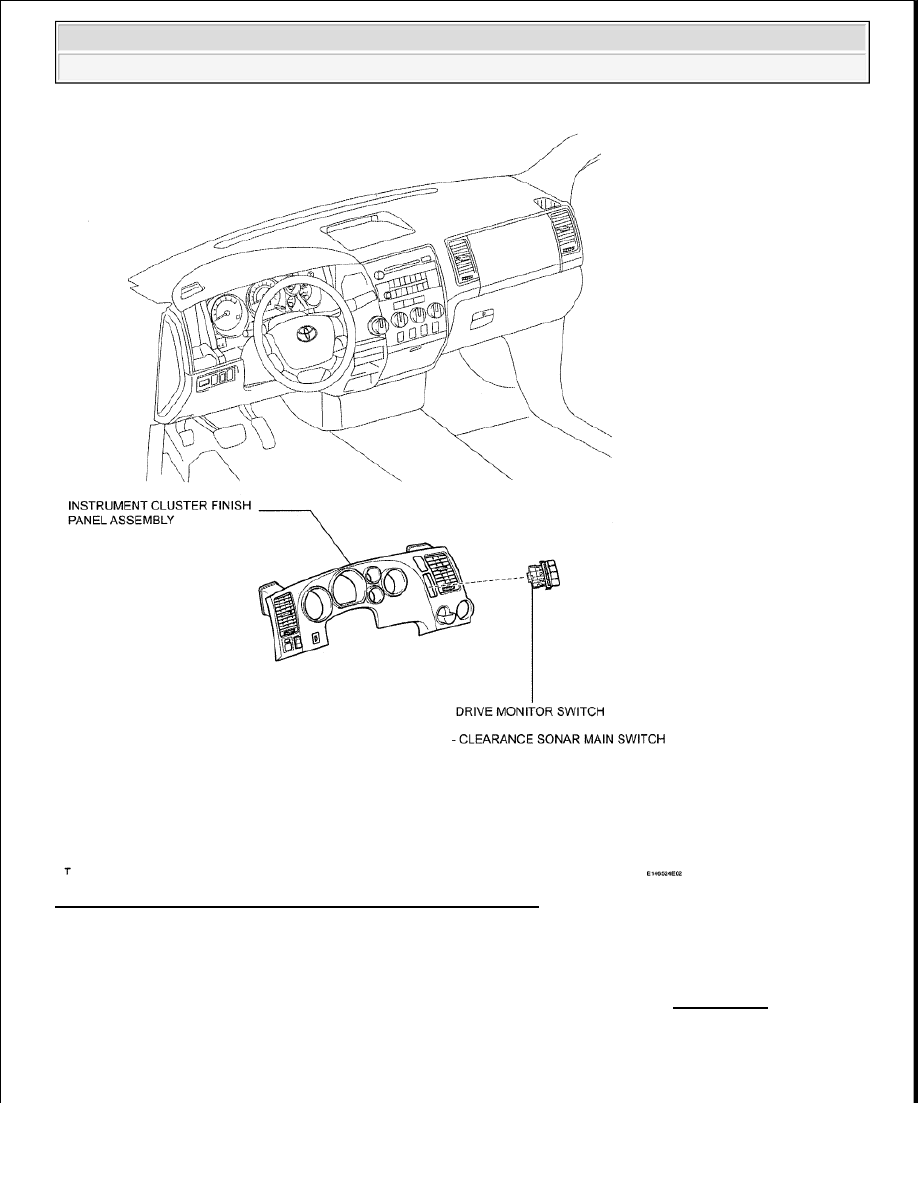

Fig. 88: Identifying Clearance Sonar Main Switch Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (See REMOVAL )

2. REMOVE DRIVE MONITOR SWITCH (CLEARANCE SONAR MAIN SWITCH)

a. Detach the 2 claws and remove the monitor switch.
