Toyota Tundra. Manual - part 350





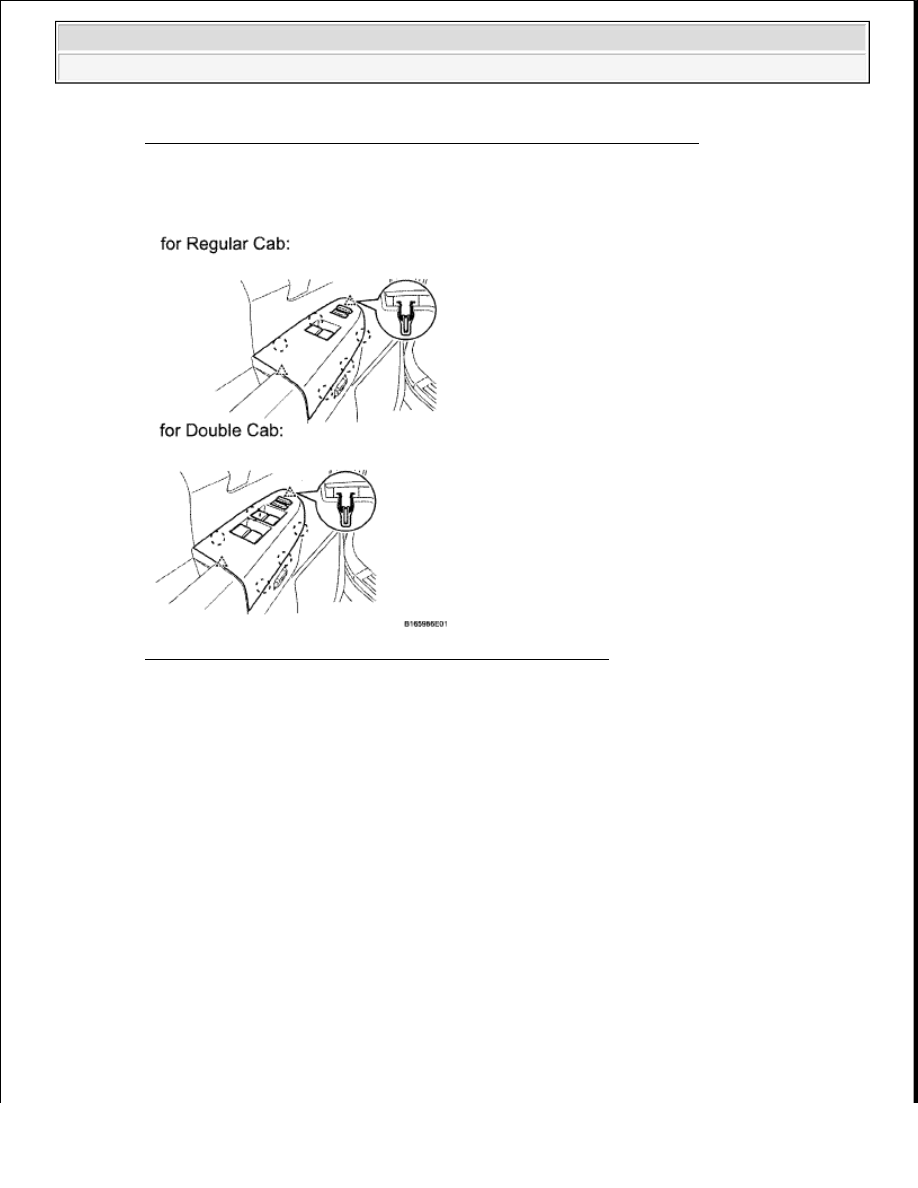

Fig. 85: Identifying Power Window Regulator Master Switch Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Attach the 2 clips and 5 claws to install the armrest base panel.

Fig. 86: Identifying Clips And Claws Of Armrest Base Panel
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

DOOR CONTROL SWITCH (FOR FRONT RH)

COMPONENTS



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Door Lock - Tundra































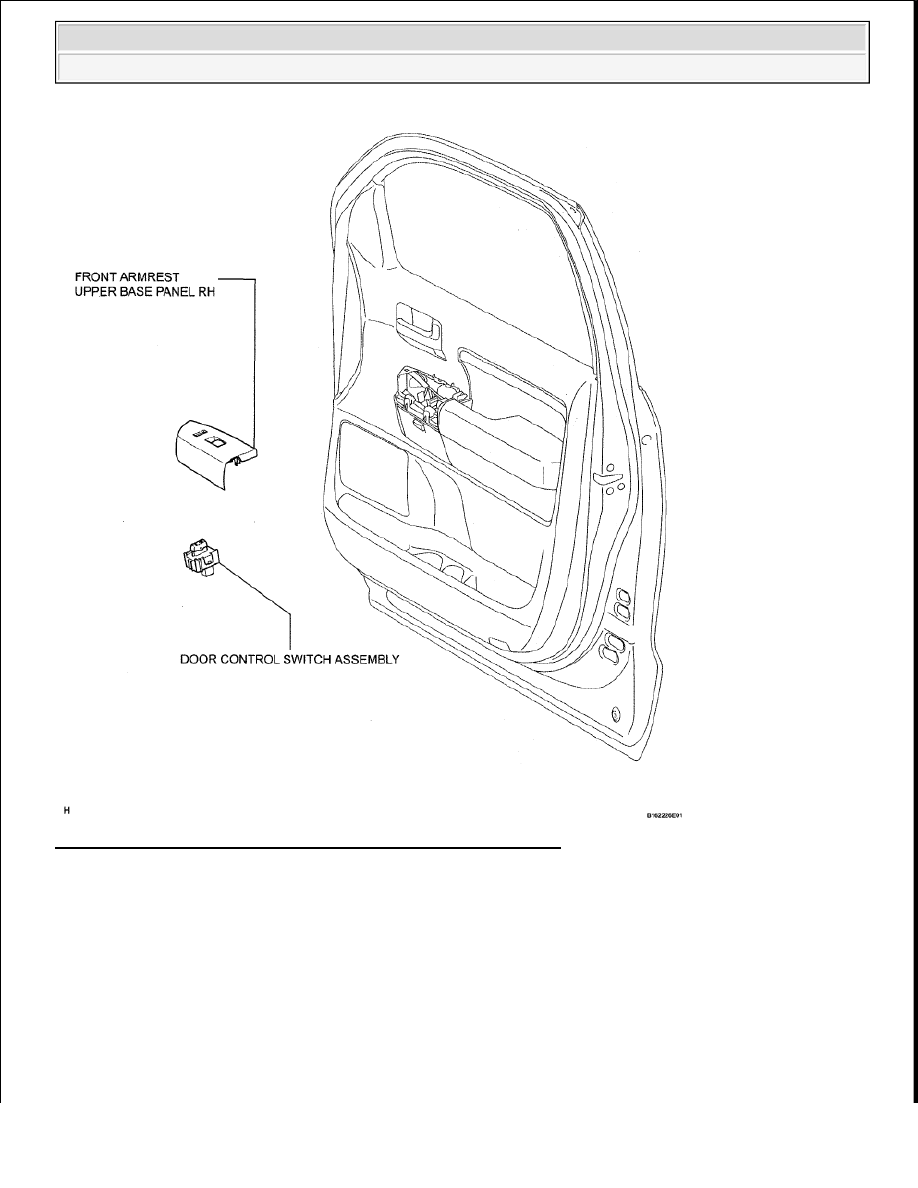

Fig. 87: Identifying Door Control Switch (Front RH) Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

1. REMOVE FRONT ARMREST UPPER BASE PANEL RH

a. Using a molding remover, detach the 2 clips and 5 claws, and remove the armrest base panel.



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Door Lock - Tundra































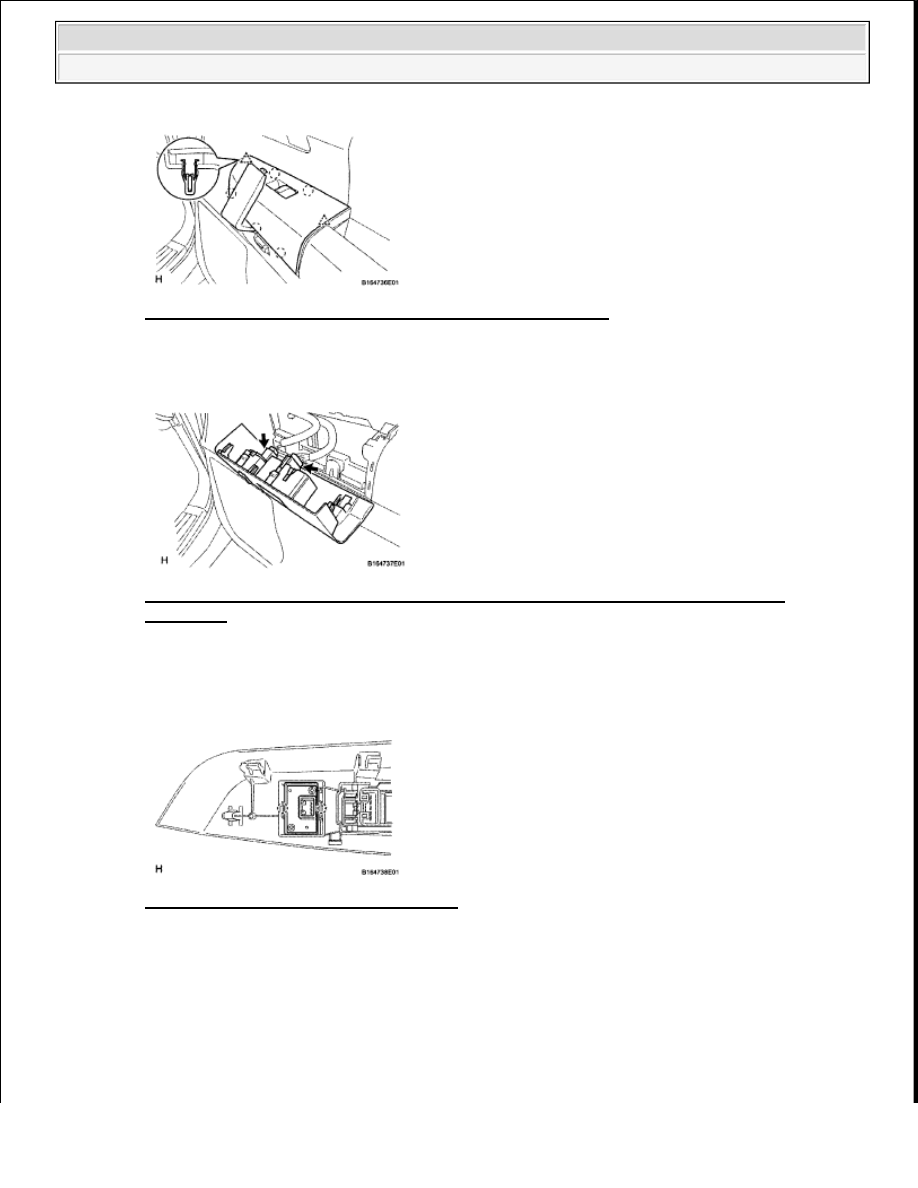

Fig. 88: Identifying Clips And Claws Of Armrest Base Panel
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Disconnect the door control switch connector and power window regulator connector.

Fig. 89: Identifying Door Control Switch Connector And Power Window Regulator
Connector

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. REMOVE DOOR CONTROL SWITCH ASSEMBLY

a. Detach the 2 claws and remove the door control switch.

Fig. 90: Identifying Door Control Switch
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSPECTION

1. INSPECT DOOR CONTROL SWITCH ASSEMBLY



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Door Lock - Tundra































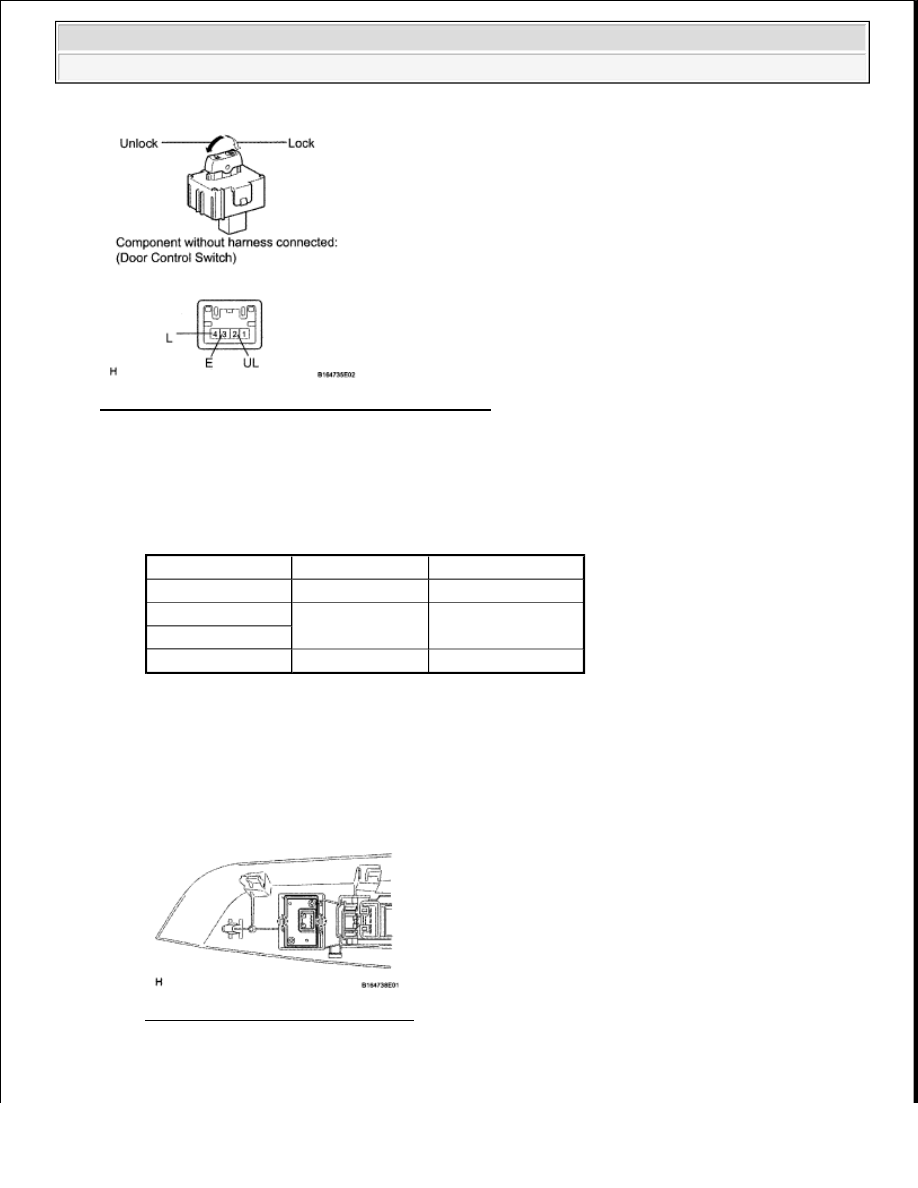

Fig. 91: Identifying Door Control Switch Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

a. Measure the resistance according to the value(s) in the table below.

Standard resistance

DOOR CONTROL SWITCH ASSEMBLY STANDARD RESISTANCE SPECIFICATION

If the result is not as specified, replace the control switch assembly.

INSTALLATION

1. INSTALL DOOR CONTROL SWITCH ASSEMBLY

a. Attach the 2 claws to install the control switch.

Fig. 92: Identifying Control Switch
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. INSTALL FRONT ARMREST UPPER BASE PANEL RH

Tester Connection Switch Condition Specified Condition

4 (L) - 3 (E)

Lock

Below 1 ohms

4 (L) - 3 (E)

OFF

10 kohms or higher

2 (UL) - 3 (E)
2 (UL) - 3 (E)

Unlock

Below 1 ohms



2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Door Lock - Tundra
