Toyota Tundra. Manual - part 287

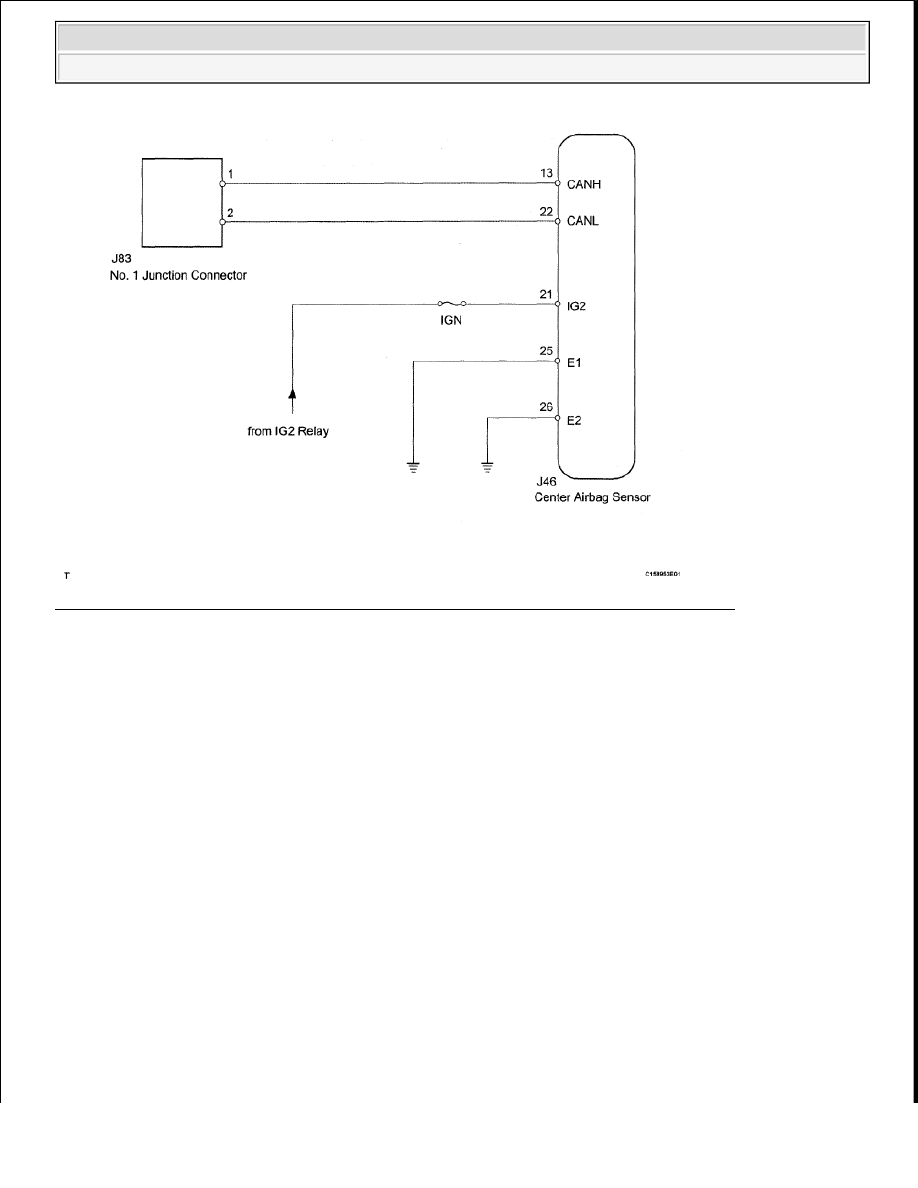

Fig. 73: Identifying Center Airbag Sensor Communication Stop Mode - Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSPECTION PROCEDURE

HINT:

Operating the ignition switch, any switches or any doors triggers related ECU and sensor communication with
the CAN, which causes resistance variation.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

a. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the

main wire and the branch wire.

CAUTION: Wait at least 90 seconds after disconnecting the cable from the

negative (-) battery terminal to prevent airbag and seat belt
pretensioner activation.

NOTE:

After the ignition switch is turned OFF, the navigation system
requires approximately 90 seconds to record various types of
memory and settings. As a result, after turning the ignition switch
OFF, wait 90 seconds or more before disconnecting the cable from
the negative (-) battery terminal.



2009 Toyota Tundra

2009 ACCESSORIES & EQUIPMENT CAN Communication - Tundra































2. CHECK FOR OPEN IN CAN BUS WIRE (CENTER AIRBAG SENSOR BRANCH WIRE)

a. Disconnect the J46 center airbag sensor connector.

b. Measure the resistance according to the value(s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION TABLE

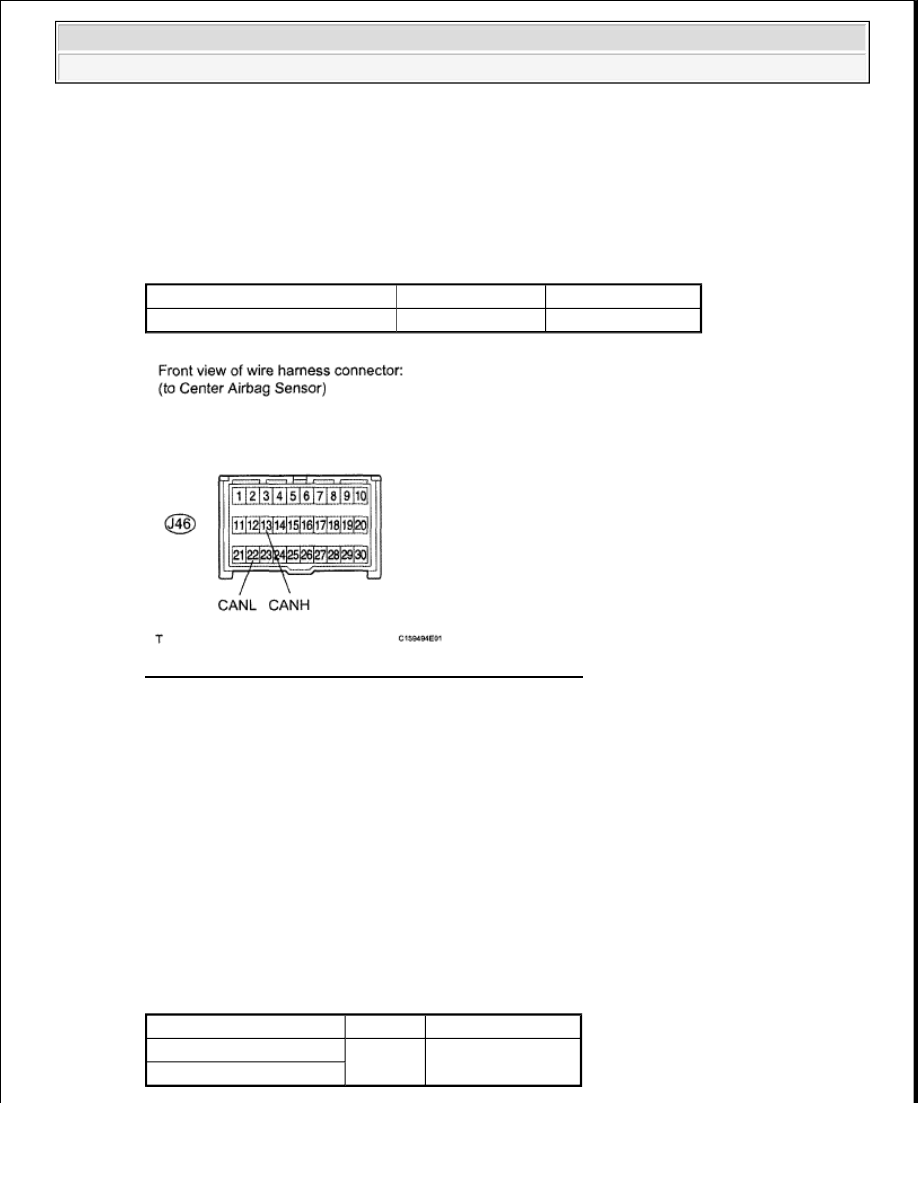

Fig. 74: Identifying J46 Center Airbag Sensor Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: REPAIR OR REPLACE CENTER AIRBAG SENSOR BRANCH WIRE OR CONNECTOR
(CANH, CANL)


OK: Go to Next Step

3. CHECK HARNESS AND CONNECTOR (CENTER AIRBAG SENSOR - BATTERY AND BODY

GROUND)

a. Reconnect the cable to the negative (-) battery terminal before measuring the resistances of the

main wire and the branch wire.

b. Measure the resistance according to the value(s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION TABLE

Tester Connection

Switch Condition Specified Condition

J46-13 (CANH) - J46-22 (CANL) Ignition switch OFF

54 to 69 ohms

Tester Connection

Condition Specified Condition

J46-25 (E1) - Body ground

Always

Below 1 ohms

J46-26 (E2) - Body ground



2009 Toyota Tundra

2009 ACCESSORIES & EQUIPMENT CAN Communication - Tundra































c. Measure the voltage according to the value(s) in the table below.

Standard voltage

STANDARD VOLTAGE SPECIFICATION TABLE

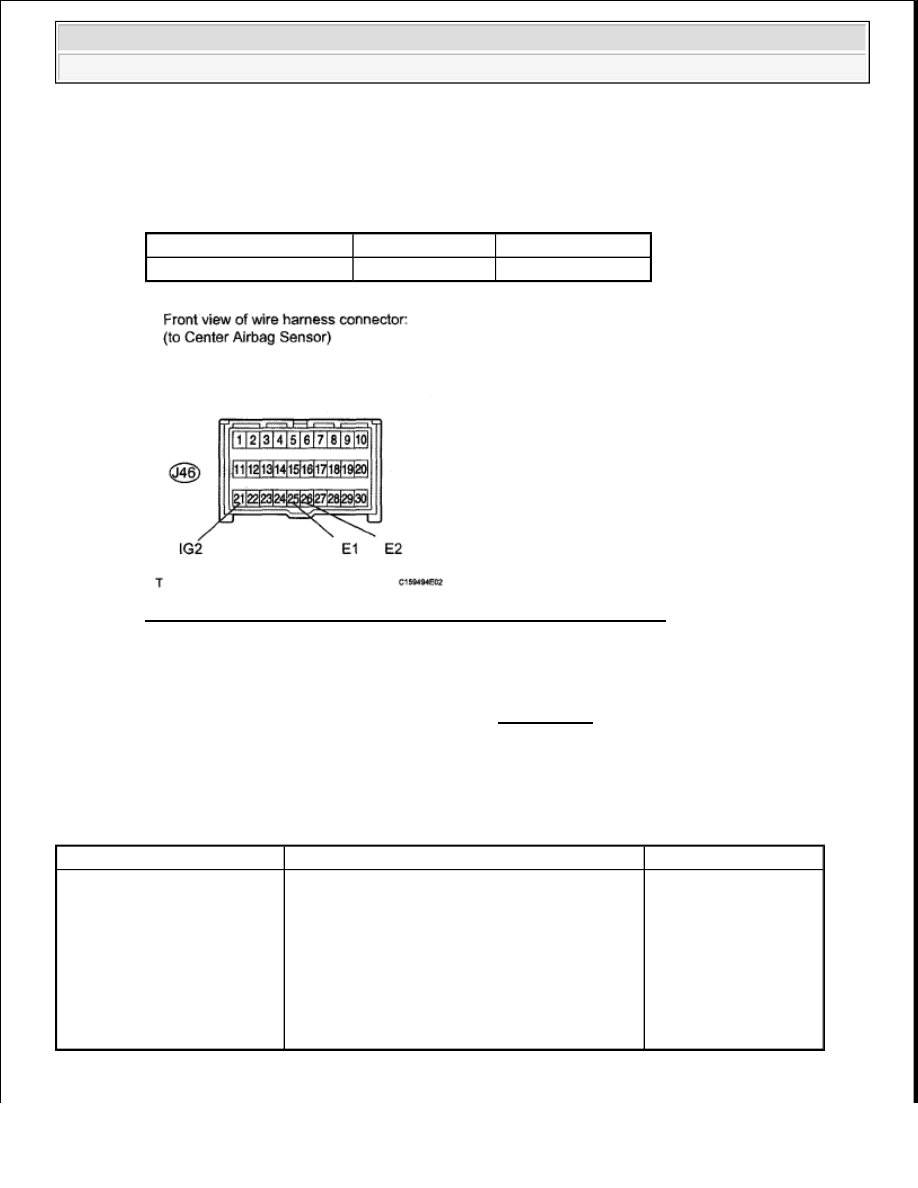

Fig. 75: Identifying J46 Center Airbag Sensor Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE CENTER AIRBAG SENSOR (See REMOVAL )

4WD CONTROL ECU COMMUNICATION STOP MODE

DESCRIPTION

SYMPTOM TABLE

WIRING DIAGRAM

Tester Connection

Switch Condition Specified Condition

J46-21 (IG2) - Body ground Ignition switch ON

11 to 14 V

Detection Item

Symptom

Trouble Area

4WD CONTROL ECU
COMMUNICATION STOP
MODE

When either condition below is met:

Four Wheel Drive Control is not displayed
on "CAN Bus Check".

Applies to "4WD CONTROL ECU
COMMUNICATION STOP MODE" in
"DTC COMBINATION TABLE".

Power source or
inside 4WD
control ECU

4WD control
ECU branch wire
or connector

4WD control
ECU



2009 Toyota Tundra

2009 ACCESSORIES & EQUIPMENT CAN Communication - Tundra

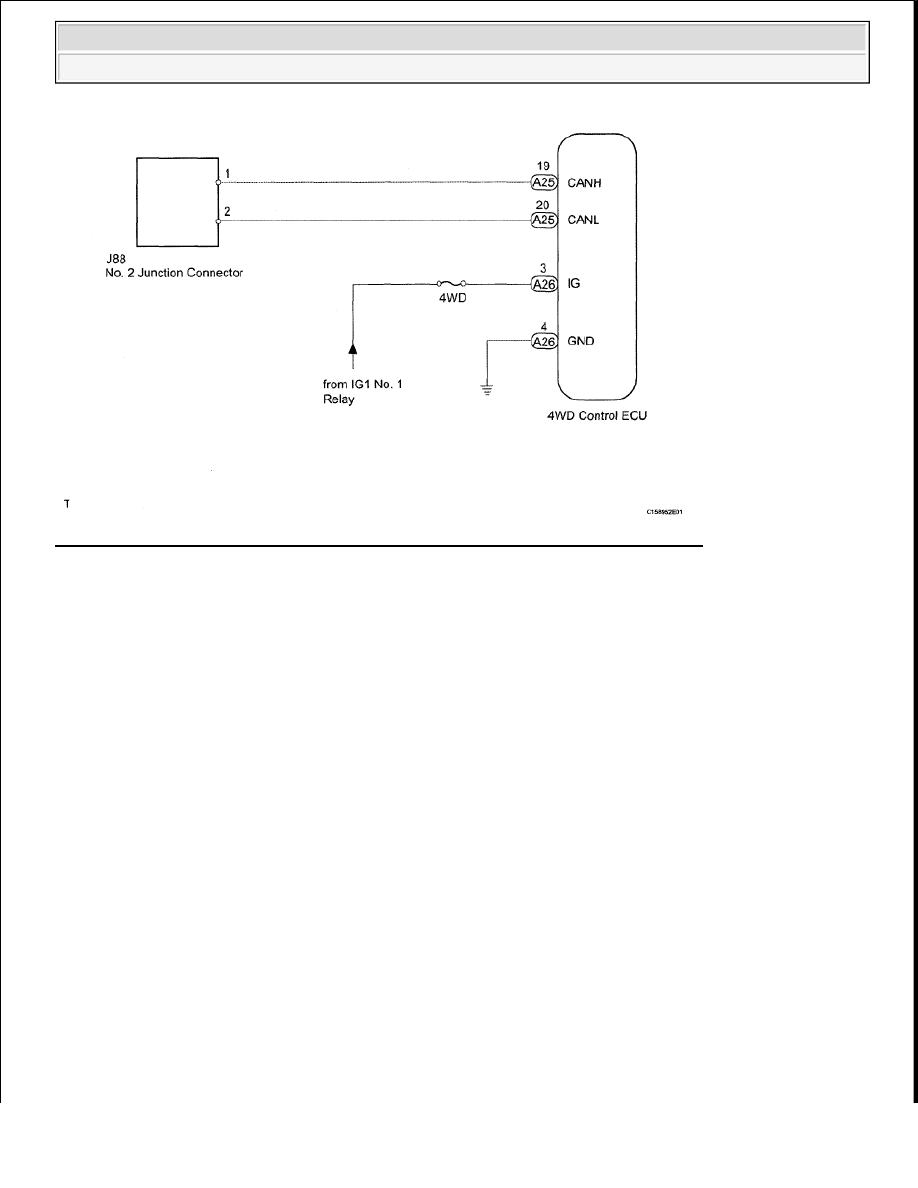

Fig. 76: Identifying 4WD Control ECU Communication Stop Mode Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSPECTION PROCEDURE

HINT:

Operating the ignition switch, any switches or any doors triggers related ECU and sensor communication with
the CAN, which causes resistance variation.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

a. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the

main wire and the branch wire.

2. CHECK FOR OPEN IN CAN BUS WIRE (4WD CONTROL ECU BRANCH WIRE)

a. Disconnect the A25 4WD control ECU connector.

CAUTION: Wait at least 90 seconds after disconnecting the cable from the

negative (-) battery terminal to prevent airbag and seat belt
pretensioner activation.

NOTE:

After the ignition switch is turned OFF, the navigation system
requires approximately 90 seconds to record various types of
memory and settings. As a result, after turning the ignition switch
OFF, wait 90 seconds or more before disconnecting the cable from
the negative (-) battery terminal.



2009 Toyota Tundra

2009 ACCESSORIES & EQUIPMENT CAN Communication - Tundra
