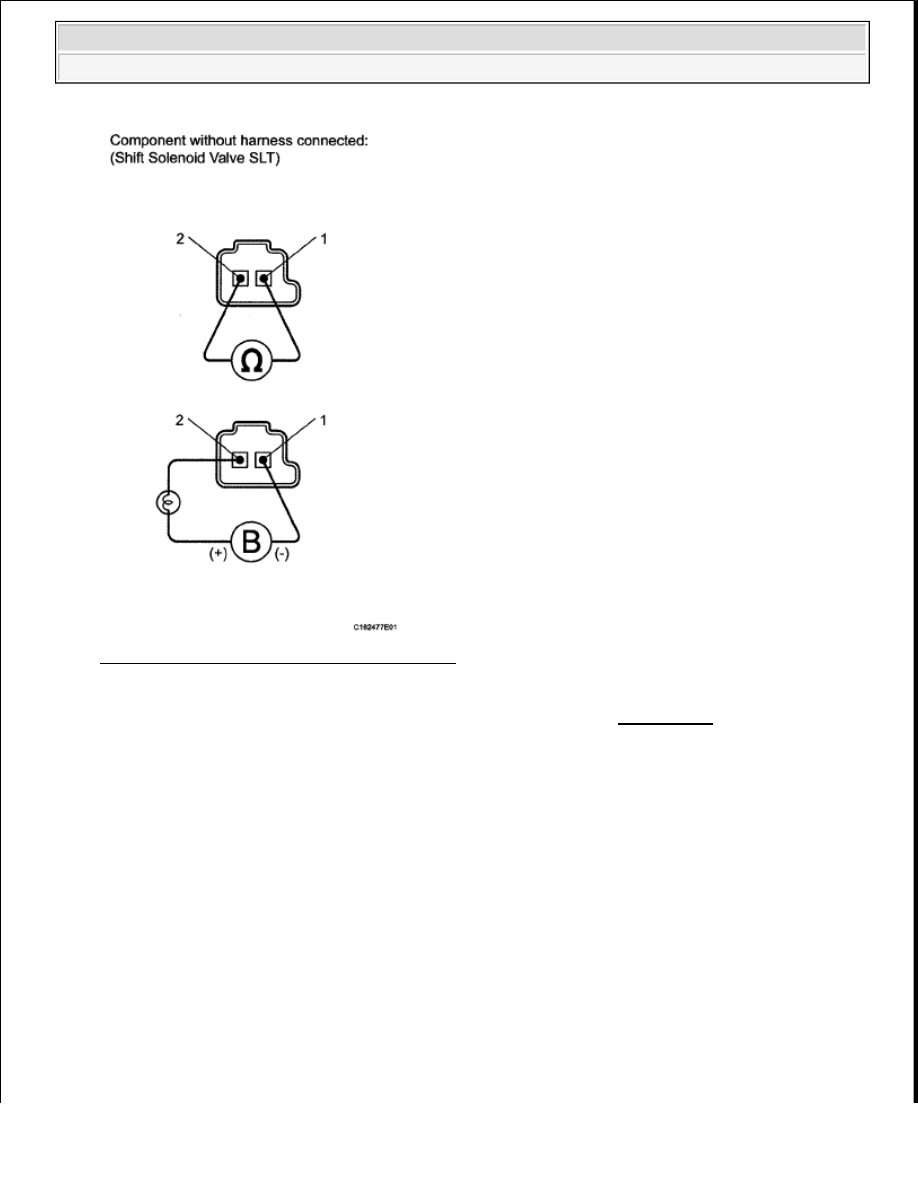

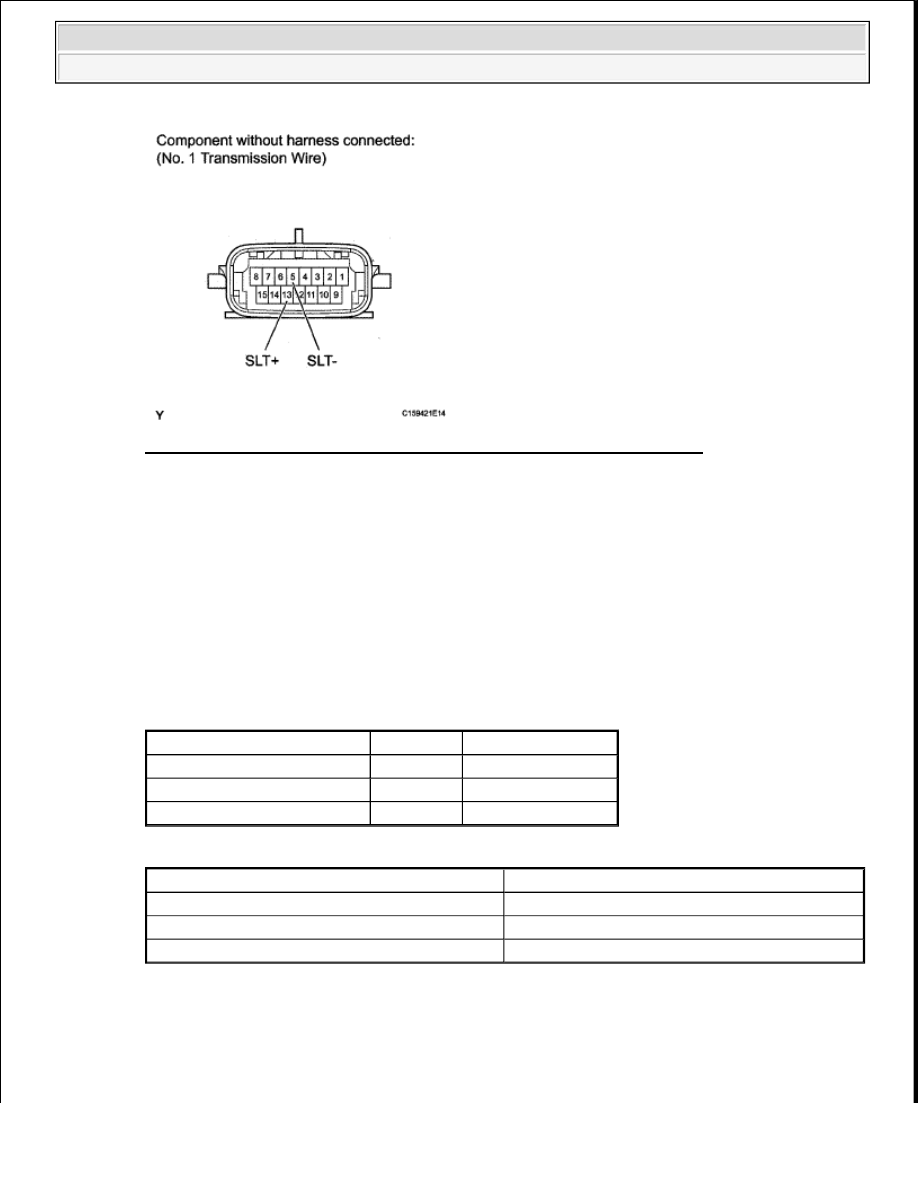

Fig. 105: Identifying D63 No. 1 Transmission Wire Connector Terminals NG: Go to step 3 OK: Go to next step. 2. CHECK HARNESS AND CONNECTOR (NO. 1 TRANSMISSION WIRE - ECM) a. Disconnect the D74 ECM connector. b. Measure the resistance according to the value (s) in the table below. Standard resistance TESTER CONNECTION SPECIFIED CONDITION TABLE Result Tester Connection Condition Specified Condition D74-9 (SLT+) - D74-8 (SLT-) 20°C (68°F) 5.0 to 5.6 ohms D74-9 (SLT+) - Body ground Always 10 kohms or higher D74-8 (SLT-) - Body ground Always 10 kohms or higher Result Proceed To NG A OK (for 3UR-FE) B OK (for 3UR-FBE) C
