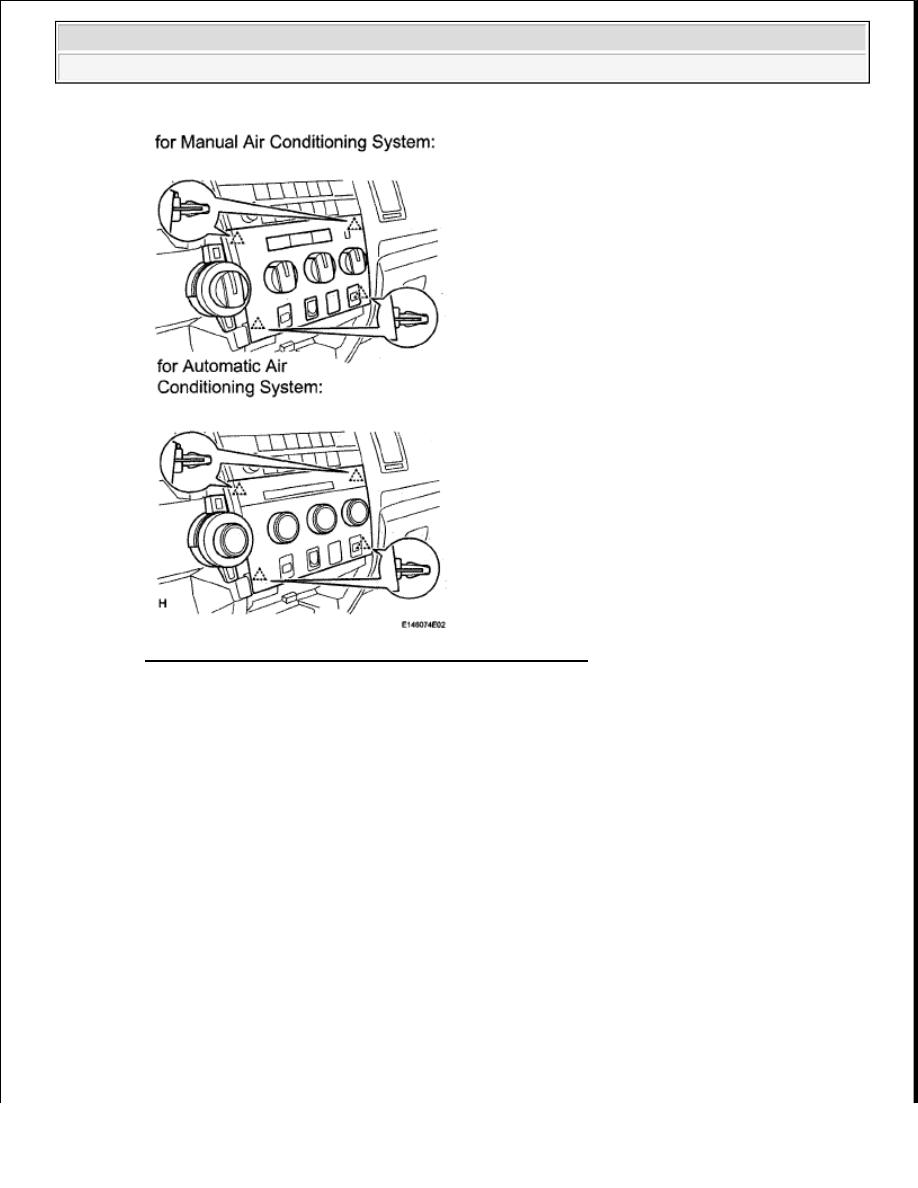

Fig. 367: Identifying Integration Control Panel And Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSTALLATION

1. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

a. Connect the connector.

b. Attach the 4 clips to install the panel.

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

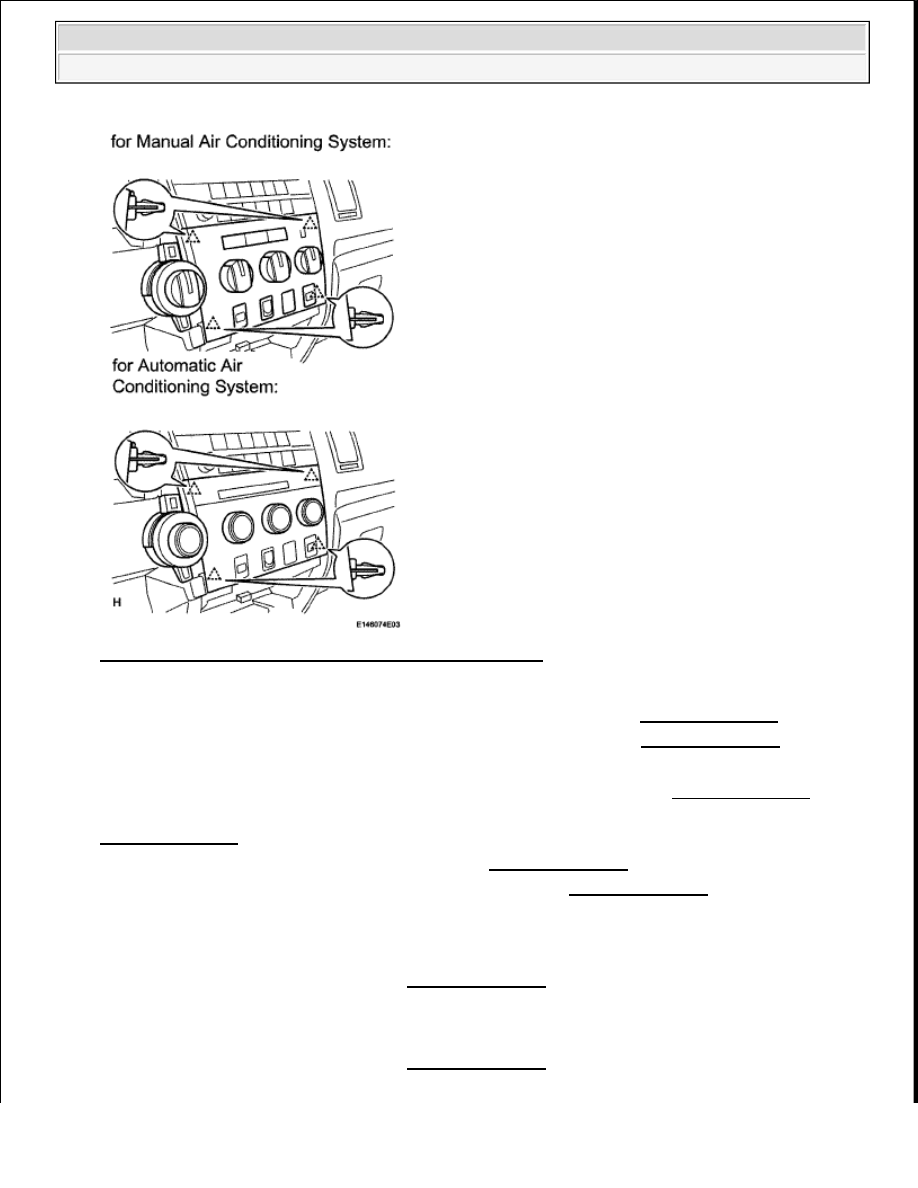

Fig. 368: Identifying Integration Control Panel And Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. INSTALL INSTRUMENT PANEL CUP HOLDER ASSEMBLY (See INSTALLATION )

3. INSTALL LOWER INSTRUMENT CLUSTER FINISH PANEL (See INSTALLATION )

4. INSTALL FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY

5. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (See INSTALLATION )

6. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH (See

INSTALLATION )

7. INSTALL INSTRUMENT SIDE PANEL LH (See INSTALLATION )

8. INSTALL CENTER LOWER INSTRUMENT COVER (See INSTALLATION )

9. INSTALL COWL SIDE TRIM BOARD LH

a. for Regular Cab:

Install the cowl side trim board (see INSTALLATION ).

b. for Double Cab:

Install the cowl side trim board (see INSTALLATION ).

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

c. for CrewMax:

Install the cowl side trim board (see INSTALLATION ).

10. INSTALL FRONT DOOR SCUFF PLATE LH

a. for Regular Cab:

Install the front door scuff plate (see INSTALLATION ).

b. for Double Cab:

Install the front door scuff plate (see INSTALLATION ).

c. for CrewMax:

Install the front door scuff plate (see INSTALLATION ).

INTEGRATION CONTROL AND PANEL (FOR FLOOR SHIFT TYPE)

COMPONENTS

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

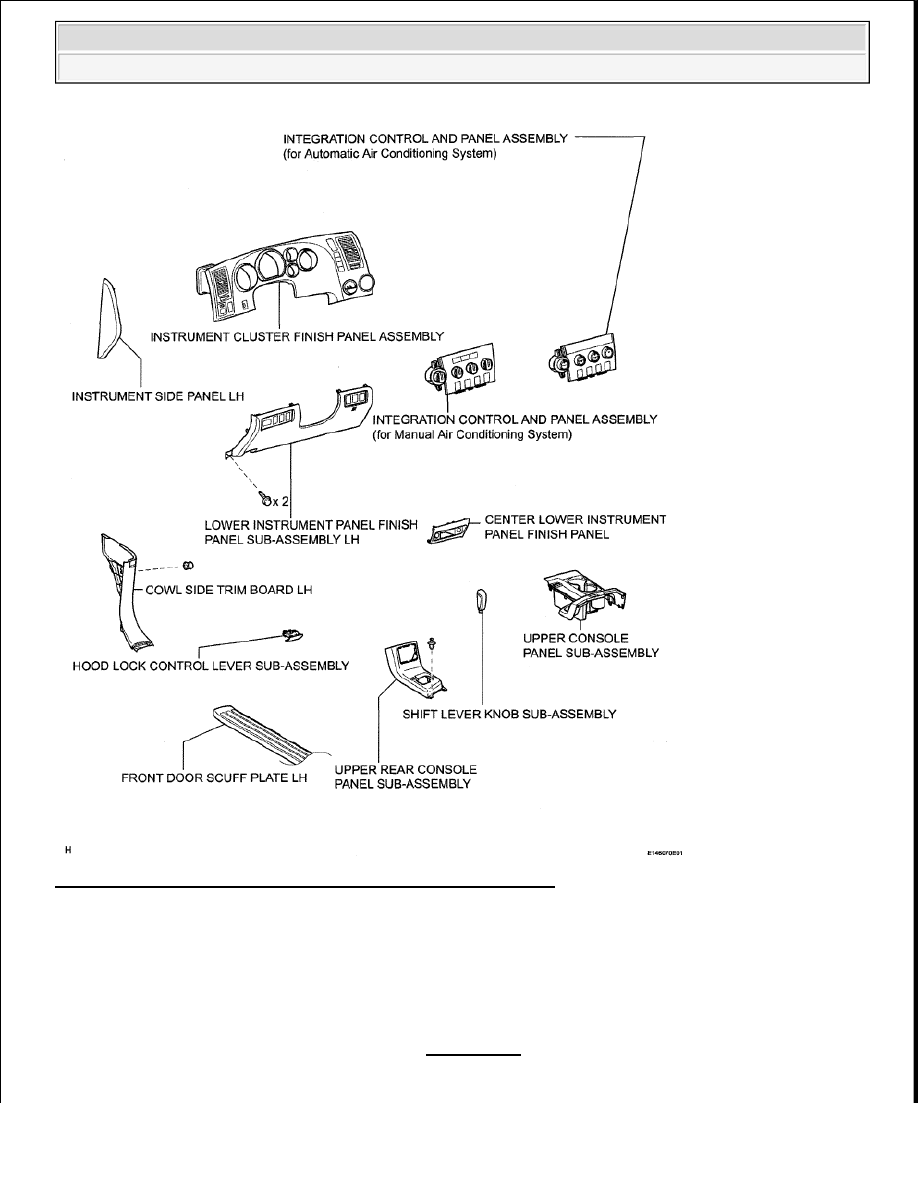

Fig. 369: Identifying Integration Control And Panel Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH

a. for Regular Cab:

Remove the front door scuff plate (see REMOVAL ).

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra
