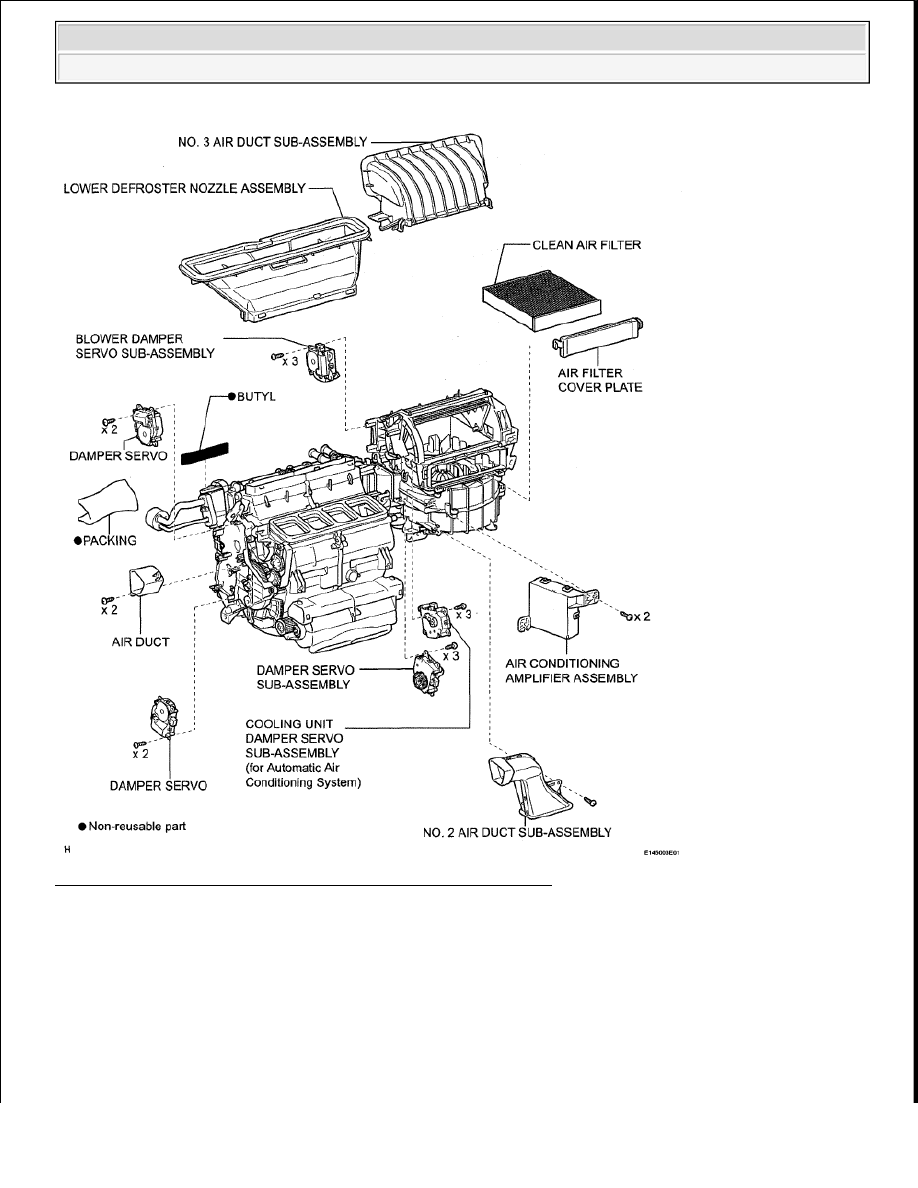

Fig. 163: Identifying Air Conditioning Unit Components (3 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.



2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

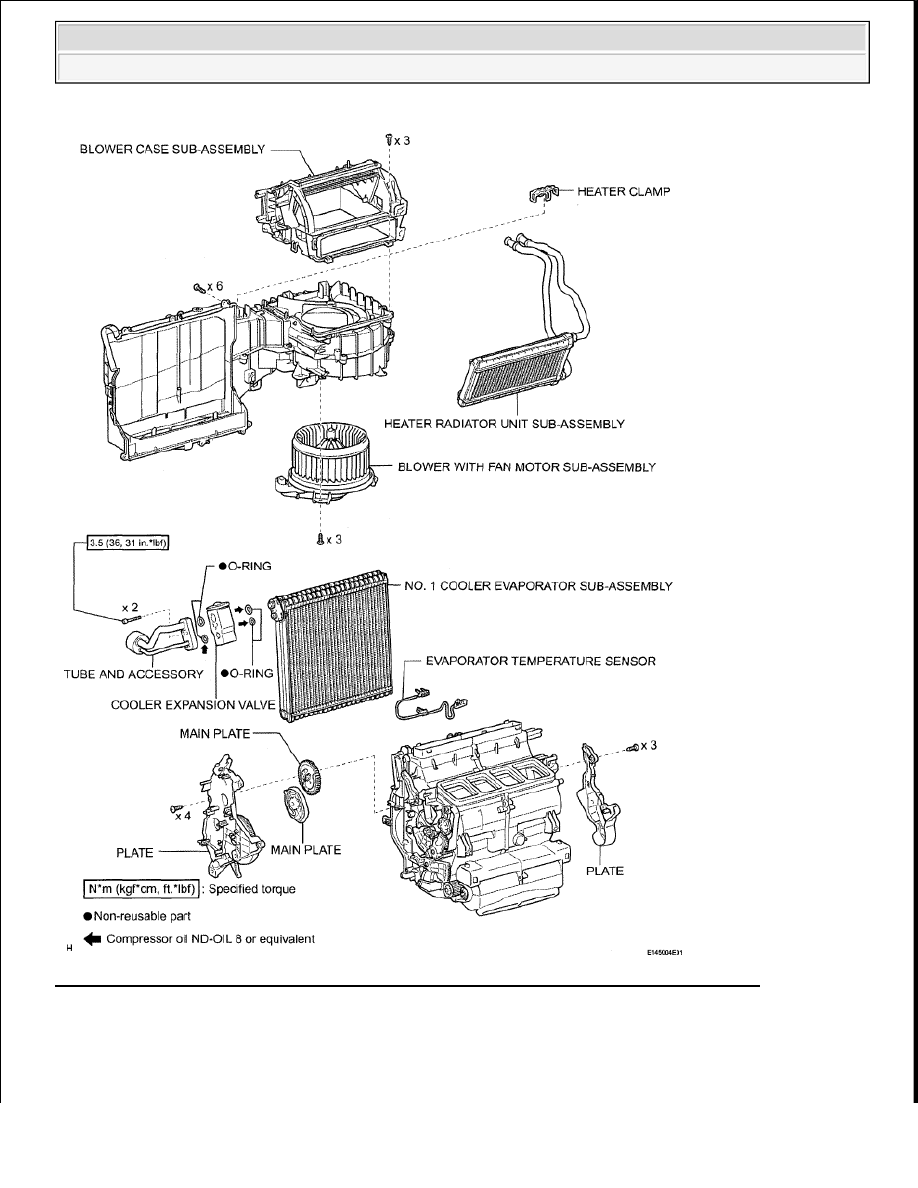

Fig. 164: Identifying Air Conditioning Unit Components With Torque Specification (4 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

1. DRAIN ENGINE COOLANT



2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra































a. for 1GR-FE:

Drain engine coolant (see COOLANT ).

b. for 2UZ-FE:

Drain engine coolant (see COOLANT ).

c. for 3UR-FE, 3UR-FBE:

Drain engine coolant (see COOLANT ).

2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM (See REPLACEMENT )

3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

4. REMOVE NO. 2 COOLER COVER

a. Remove the 2 nuts.

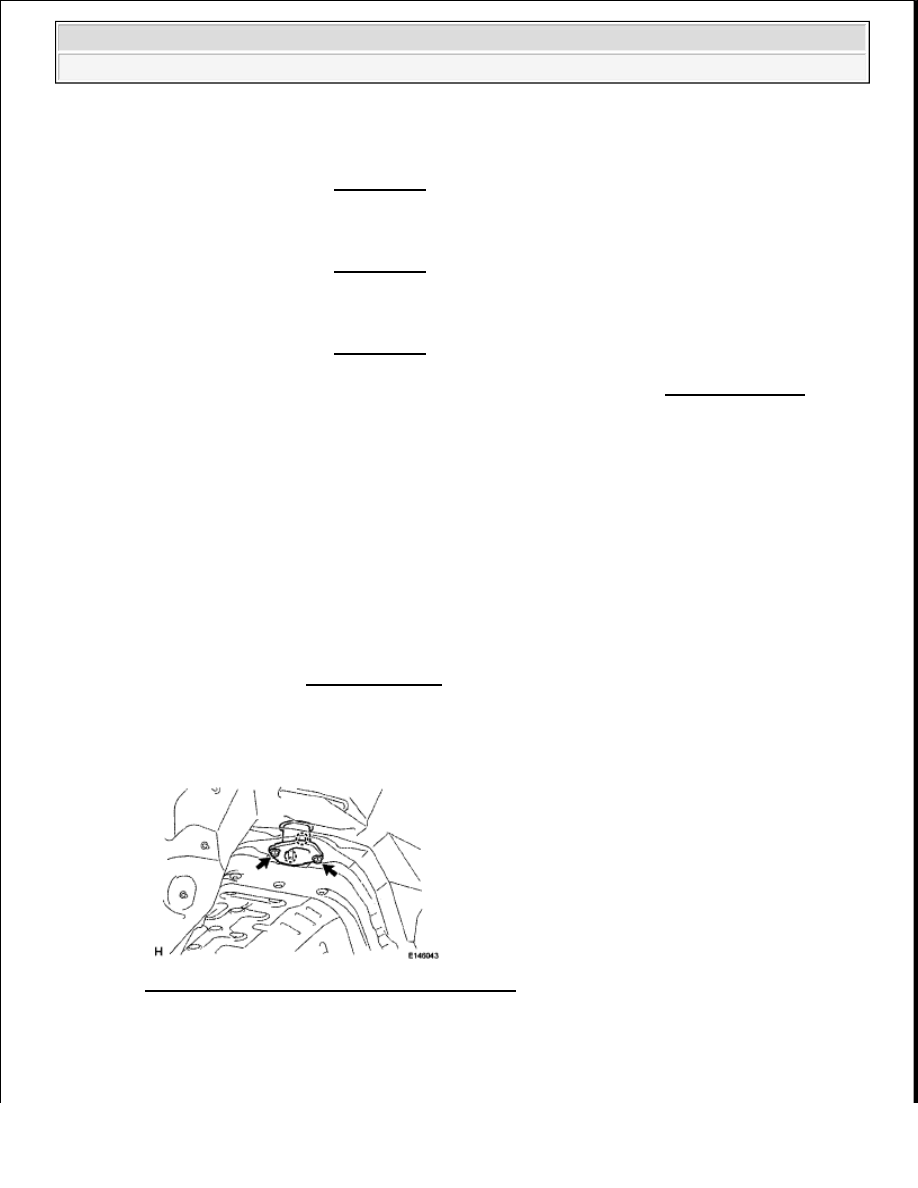

Fig. 165: Locating No. 2 Cooler Cover And Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Detach the 2 claws and remove the cover.

5. REMOVE TUBE SUB-ASSEMBLY

CAUTION: Wait at least 90 seconds after disconnecting the cable from the

negative (-) battery terminal to prevent airbag and seat belt
pretensioner activation.

NOTE:

After the ignition switch is turned LOCK, the navigation system
requires approximately 90 seconds to record various types of
memory and settings. As a result, after turning the ignition switch
LOCK, wait 90 seconds or more before disconnecting the cable from
the negative (-) battery terminal.

Some systems need to be initialized after the cable is reconnected
(see INITIALIZATION ).



2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra































a. Remove the bolt.

b. Detach the plate as shown in the illustration.

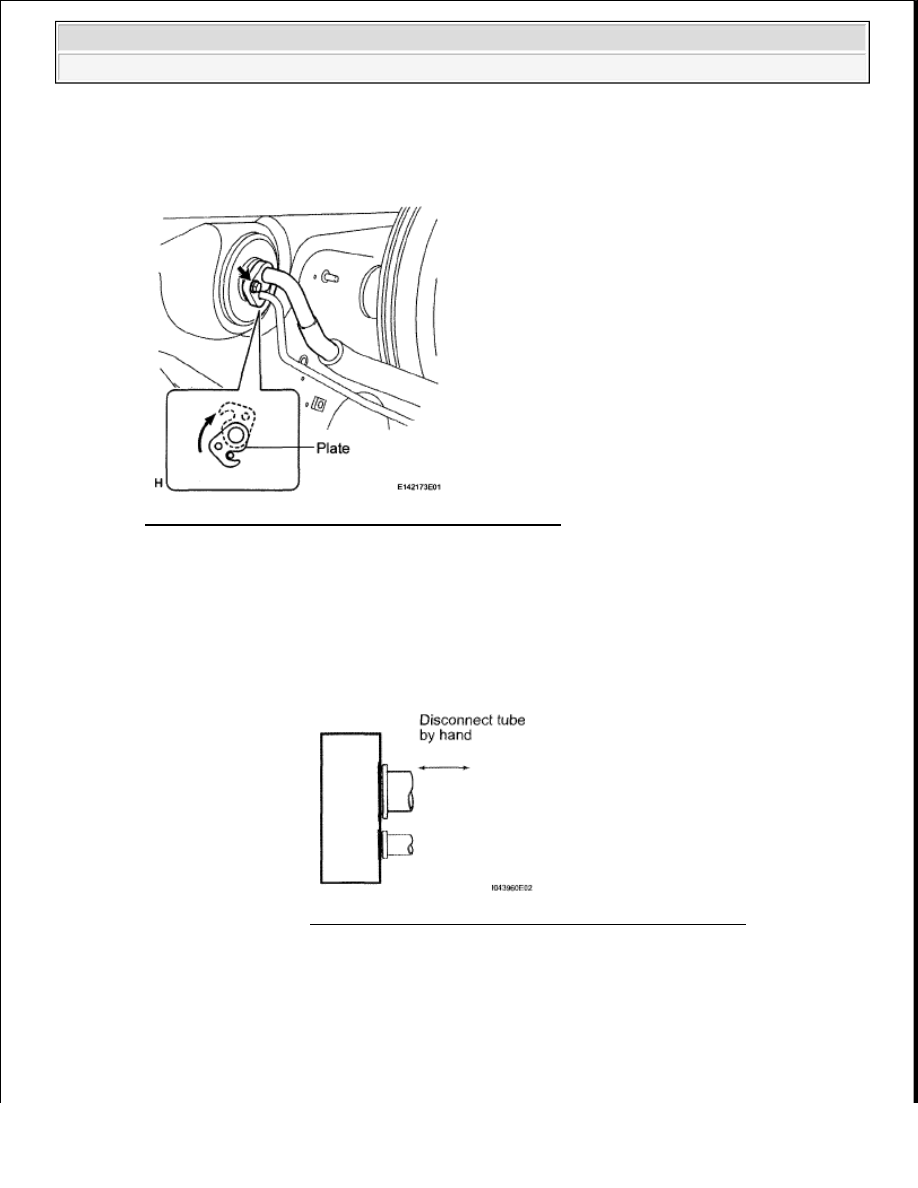

Fig. 166: Locating Tube Sub-Assembly Plate And Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

c. Disconnect the suction tube and liquid tube.

d. Remove the 2 O-rings from the suction tube and liquid tube.

6. DISCONNECT INLET HEATER WATER HOSE AND OUTLET HEATER WATER HOSE

a. Using pliers, grip the claws of the clip and slide the clip.

NOTE:

Do not use a screwdriver or similar tool to disconnect the tube.

Seal the openings of the disconnected parts using vinyl tape to
prevent moisture and foreign matter from entering them.

Fig. 167: Identifying Suction Tube And Liquid Tube
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.



2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra
