3. REMOVE BACK PANEL GARNISH LH (See REMOVAL )

4. REMOVE NO. 1 BOX SPEAKER ASSEMBLY

a. Disconnect the connector.

b. Remove the 3 bolts and box speaker.

Fig. 319: Locating No. 1 Box Speaker Assembly Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSPECTION

1. INSPECT NO. 1 BOX SPEAKER ASSEMBLY

a. Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

If the result is not as specified, replace the speaker assembly.

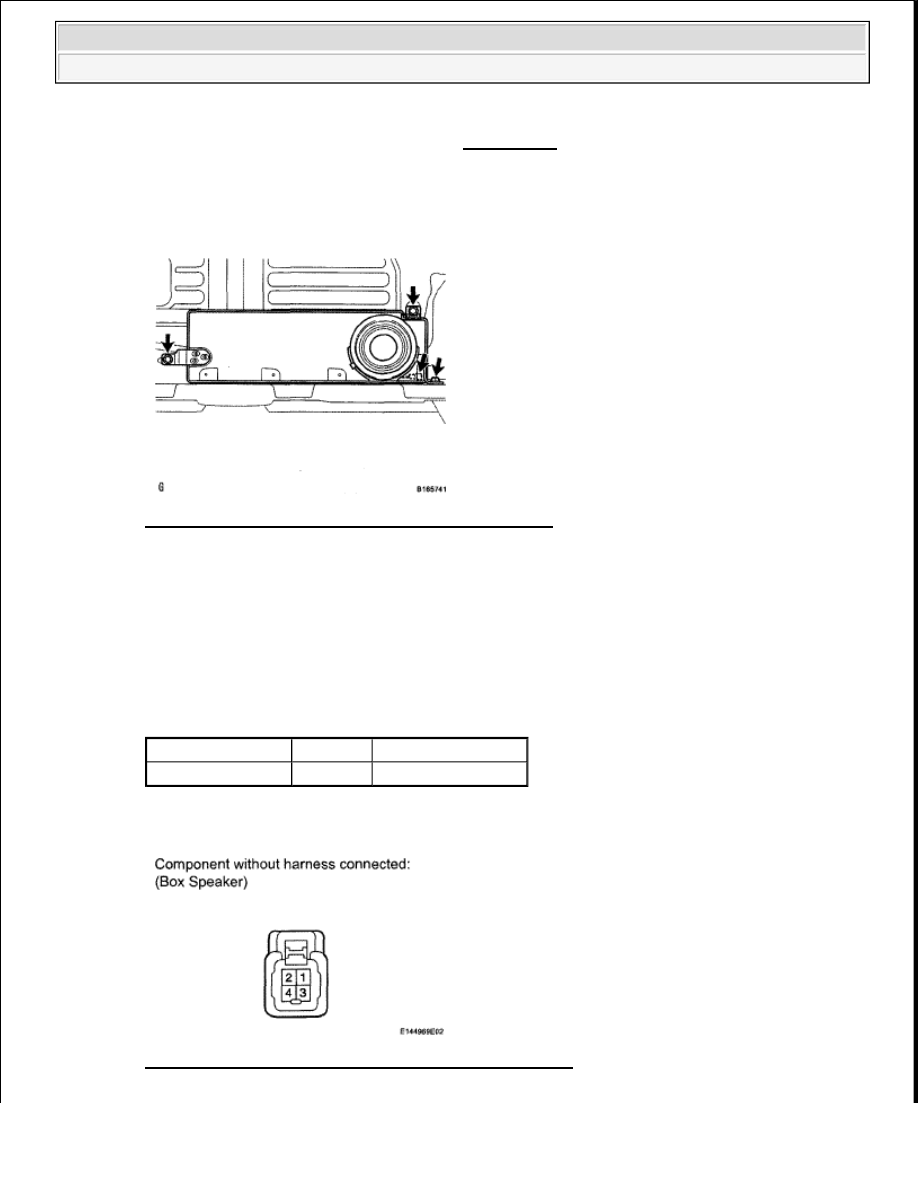

Fig. 320: Identifying Box Speaker Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Tester Connection Condition Specified Condition

1 -2

Always

1.5 to 2.1 ohms

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Audio/Visual - Tundra

INSTALLATION

1. INSTALL NO. 1 BOX SPEAKER ASSEMBLY

a. Install the box speaker with the 3 bolts.

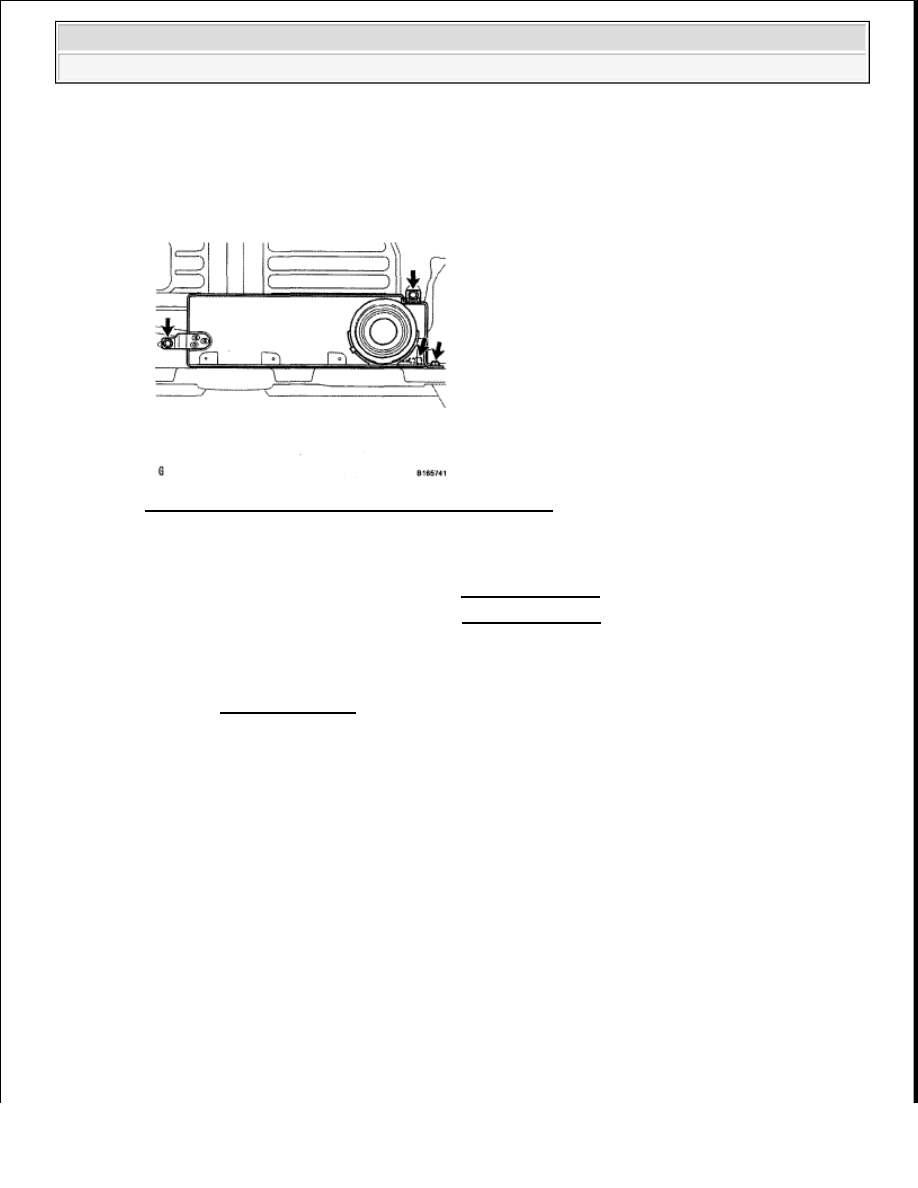

Fig. 321: Locating No. 1 Box Speaker Assembly Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Connect the connector.

2. INSTALL BACK PANEL GARNISH LH (See INSTALLATION )

3. INSTALL BACK PANEL GARNISH RH (See INSTALLATION )

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

FRONT DOOR SPEAKER (FOR DOUBLE CAB)

COMPONENTS

NOTE:

Some systems need to be initialized after the cable is reconnected (see
INITIALIZATION ).

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Audio/Visual - Tundra

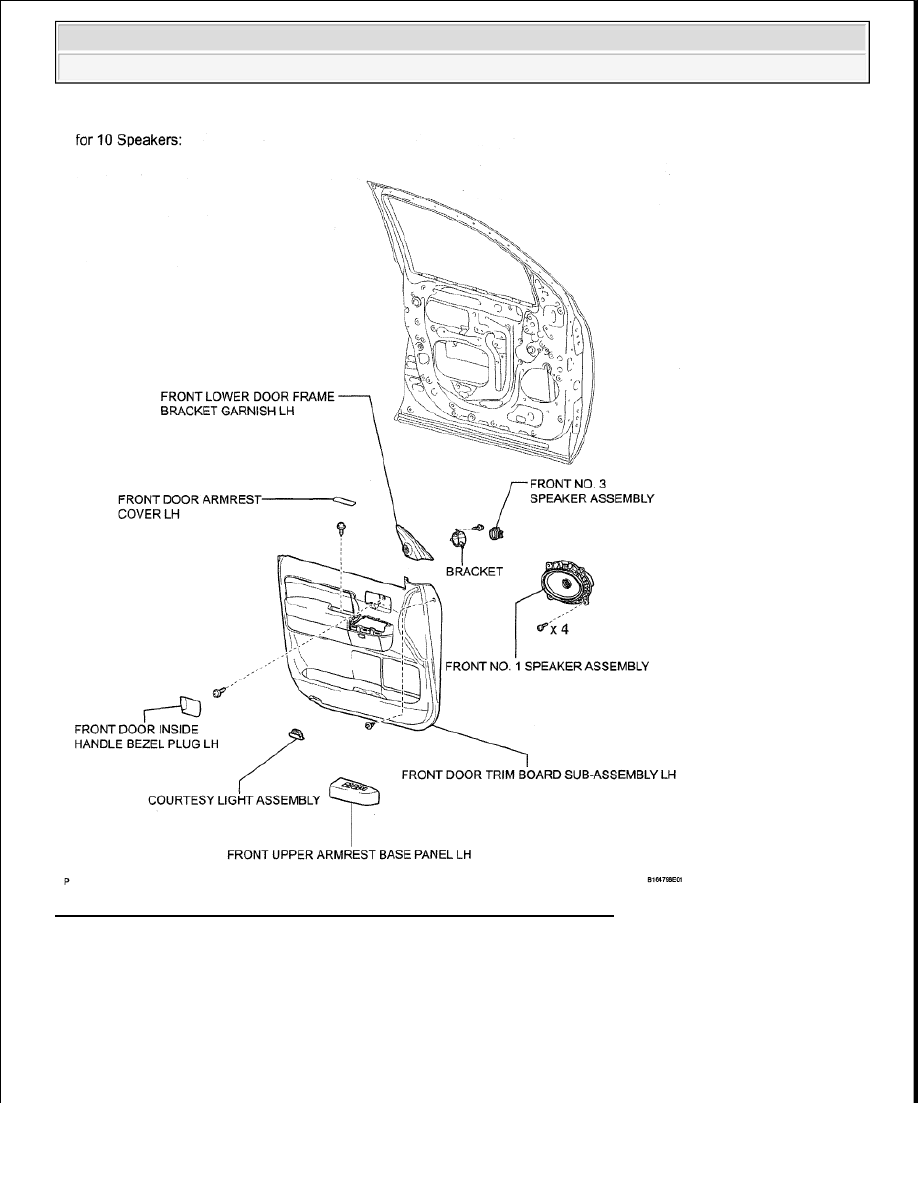

Fig. 322: Identifying Front Door Speaker (For 10 Speakers) Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Audio/Visual - Tundra

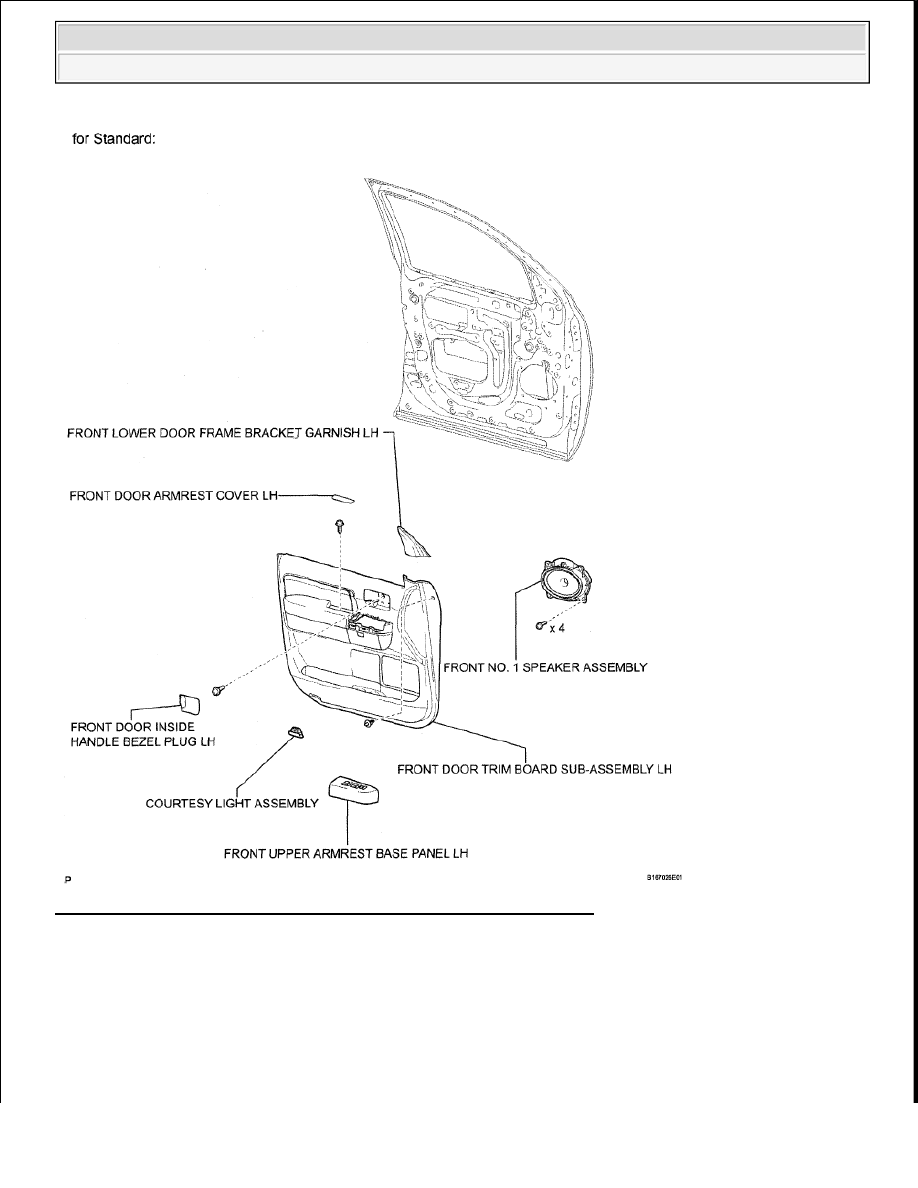

Fig. 323: Identifying Front Door Speaker (For Standard) Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

HINT:



Use the same procedures for the LH side and RH side.



The procedures listed below are for the LH side.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Audio/Visual - Tundra
