Fig. 15: Identifying 2 Water Bypass Hoses
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

c. Disconnect the No. 1 ventilation hose.

Fig. 16: Identifying No. 1 Ventilation Hose
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

d. Remove the No. 1 engine cover sub-assembly.

2009 Toyota Tundra

2009 ENGINE Intake (3UR-FE) - Tundra

Fig. 17: Identifying No. 1 Engine Cover Sub-Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

e. Remove the No. 3 engine cover.

Fig. 18: Identifying No. 3 Engine Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

f. Disconnect the purge VSV connector.

g. Disconnect the purge line hose from the purge VSV.

h. Disconnect the vacuum switching valve connector

Fig. 19: Identifying Locating Purge VSV Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ENGINE Intake (3UR-FE) - Tundra

i. Remove the 2 bolts.

j. Disconnect the No. 1 tube from the union to connector tube hose, and move the hose aside.

Fig. 20: Identifying Hose Clamp
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

k. Disconnect the 3 wire clamps from the 3 wire brackets.

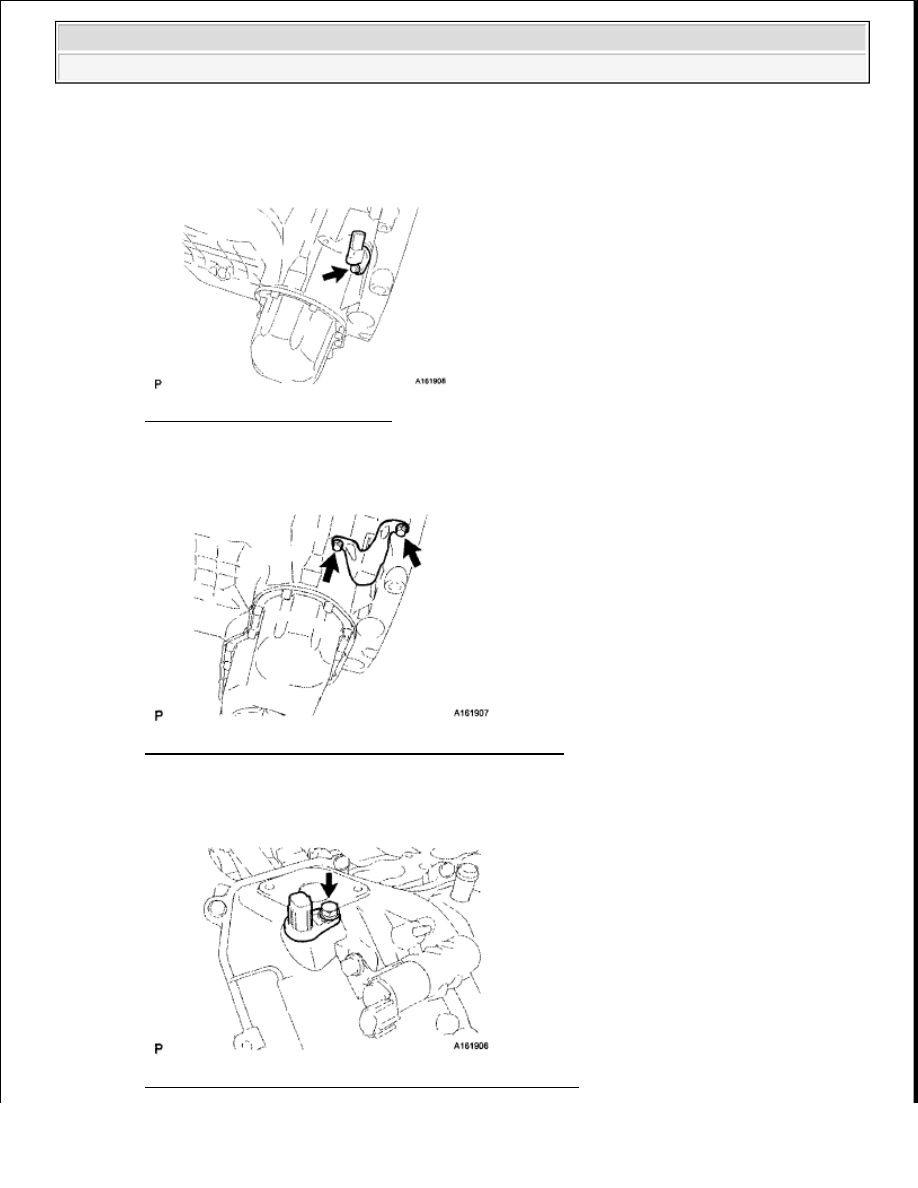

Fig. 21: Identifying Wire Clamps From Wire Brackets
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

l. Remove the bolt and wire bracket from the intake manifold.

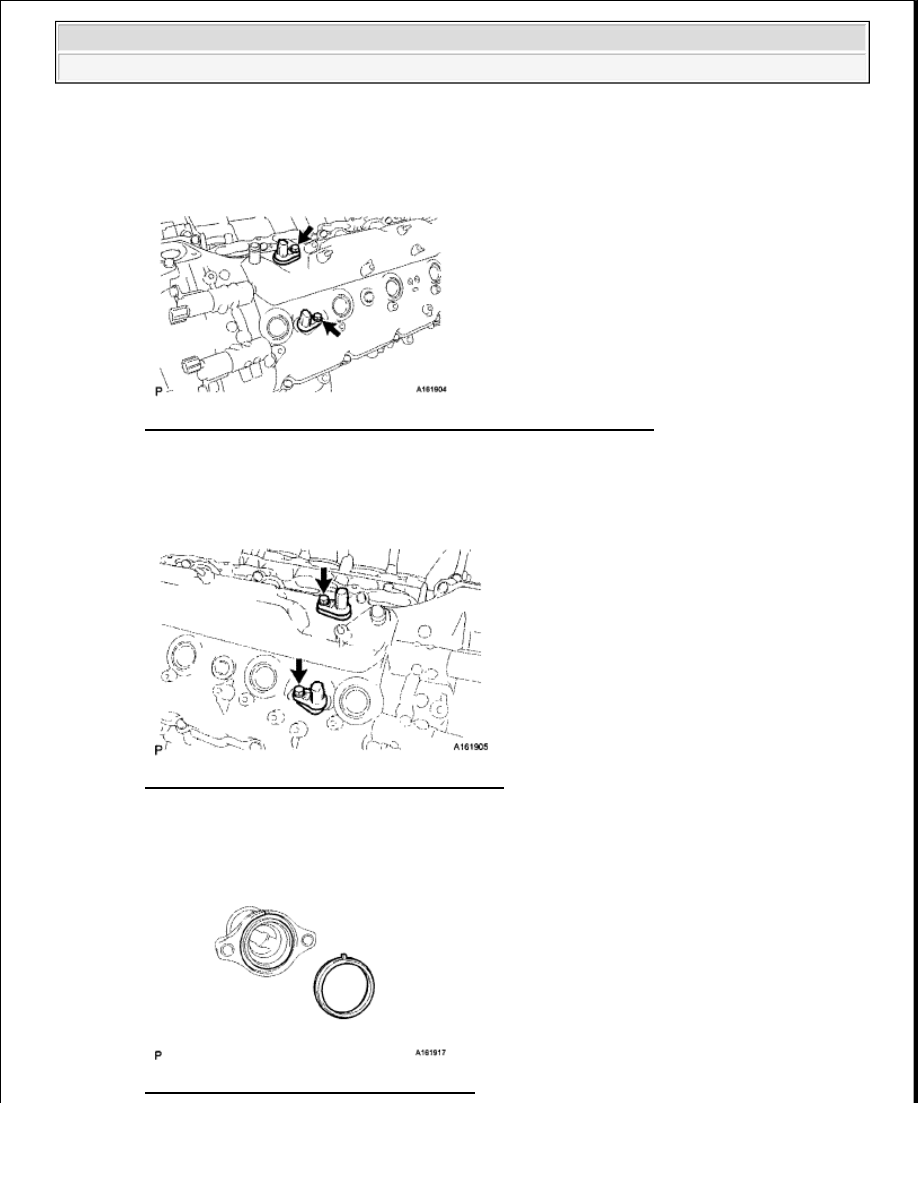

Fig. 22: Identifying Wire Bracket From Intake Manifold

2009 Toyota Tundra

2009 ENGINE Intake (3UR-FE) - Tundra

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

m. Remove the 2 nuts, 8 bolts, intake manifold and 2 gaskets.

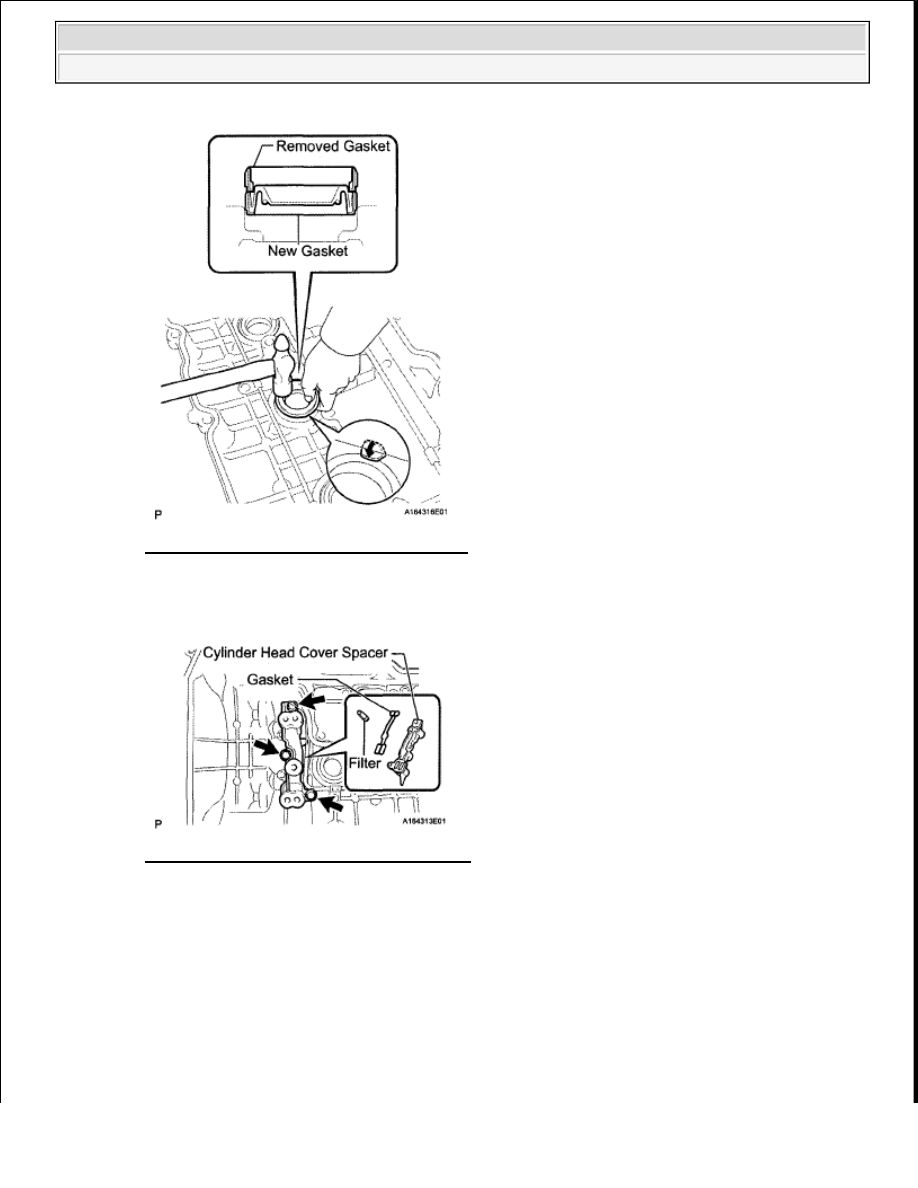

Fig. 23: Identifying Intake Manifold Gaskets With Nuts And Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

9. REMOVE VENTILATION HOSE ASSEMBLY

a. Remove the 2 bolts and ventilation hose from the intake manifold.

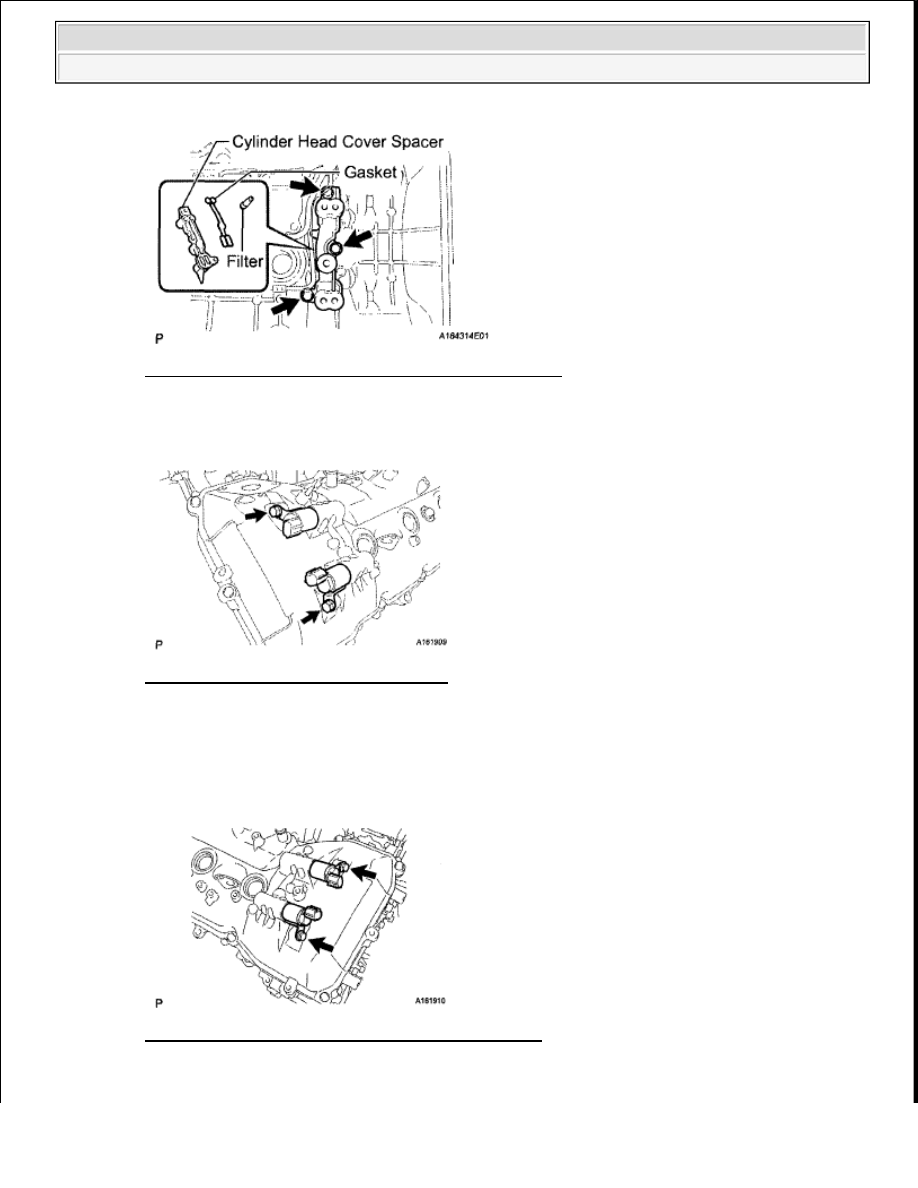

Fig. 24: Identifying Ventilation Hose Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

10. REMOVE V-BANK COVER BRACKET

a. Remove the 2 bolts and bracket.

Fig. 25: Identifying V-Bank Cover Bracket
