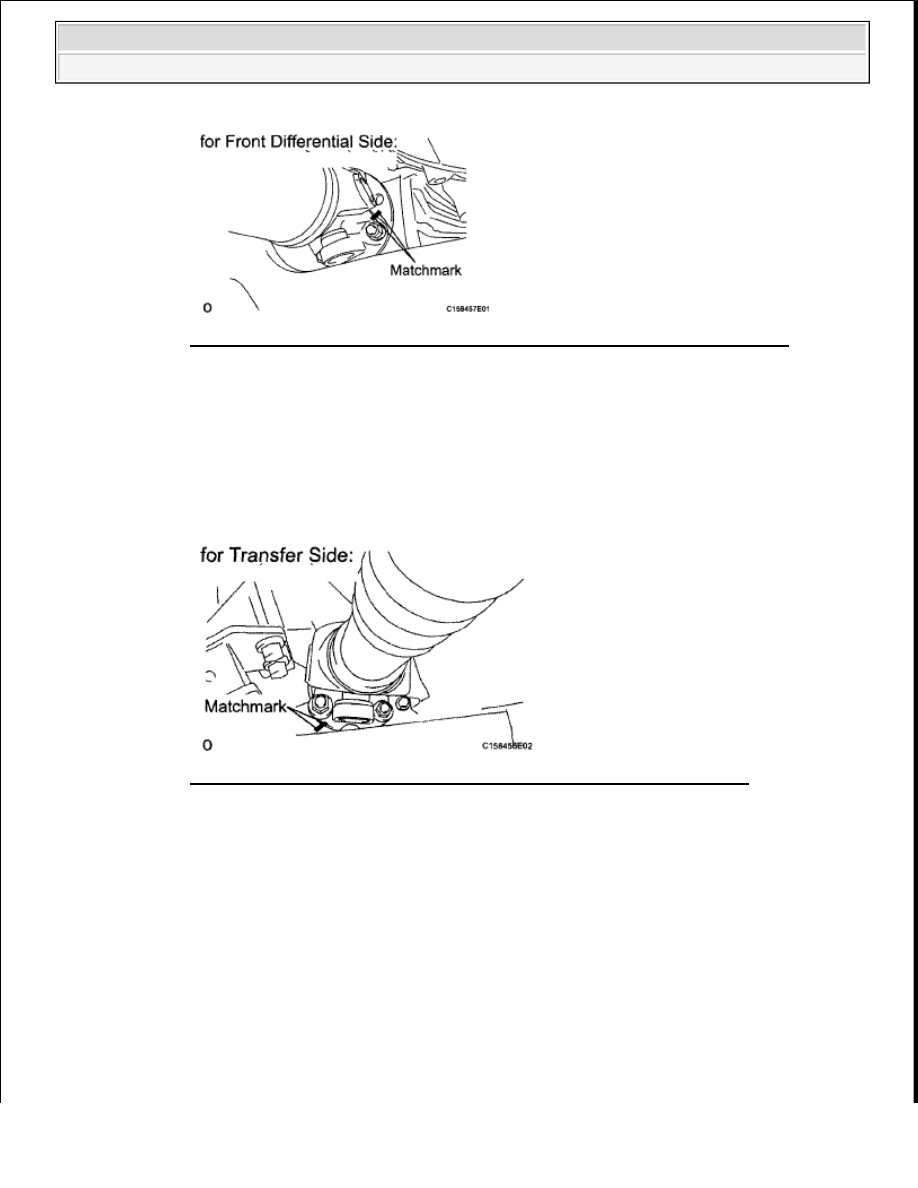

Fig. 151: Identifying Matchmarks On Differential And Propeller Shaft Flange
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. Install the propeller shaft with the 4 washers and 4 nuts.

Torque: 80 N*m (816 kgf*cm, 59 ft.*lbf)

b. for Transfer Side:

1. Align the matchmarks on the transfer and propeller shaft flange.

Fig. 152: Aligning Matchmarks On Transfer And Propeller Shaft Flange
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. Connect the propeller shaft with the 4 washers and 4 nuts.

Torque: 80 N*m (816 kgf*cm, 59 ft.*lbf)

2. INSTALL PROPELLER SHAFT HEAT INSULATOR BRACKET SUB-ASSEMBLY

a. Install the heat insulator bracket to the crossmember with the 2 bolts.

Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

3. INSTALL PROPELLER SHAFT HEAT INSULATOR

a. Install the heat insulator to the heat insulator bracket with the 2 bolts.

2009 Toyota Tundra

2009 DRIVELINE/AXLES Propeller Shaft - Tundra

Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

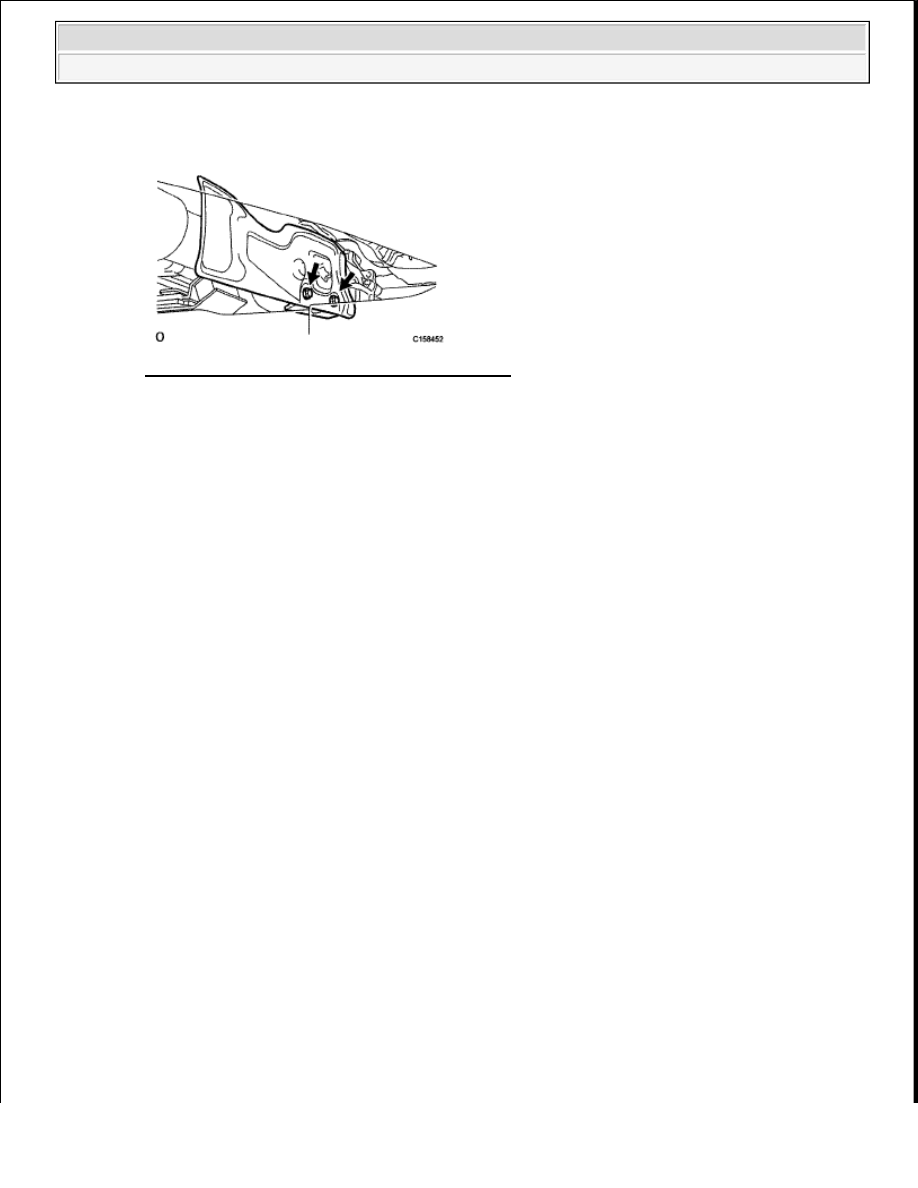

Fig. 153: Locating Heat Insulator Bracket Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 DRIVELINE/AXLES Propeller Shaft - Tundra

2009 ELECTRICAL

Charging (1GR-FE) - Tundra

CHARGING SYSTEM

PRECAUTION

1. PRECAUTION

a. Check that the battery cables are connected to the correct terminals.

b. Disconnect the battery cables when the battery is given a quick charge.

c. Do not perform tests with a high voltage insulation resistance tester.

d. Never disconnect the battery while the engine is running.

e. Check that the charging cable nut is tightly installed in terminal B of the generator and the fuse

box.

PARTS LOCATION

2009 Toyota Tundra

2009 ELECTRICAL Charging (1GR-FE) - Tundra

2009 Toyota Tundra

2009 ELECTRICAL Charging (1GR-FE) - Tundra

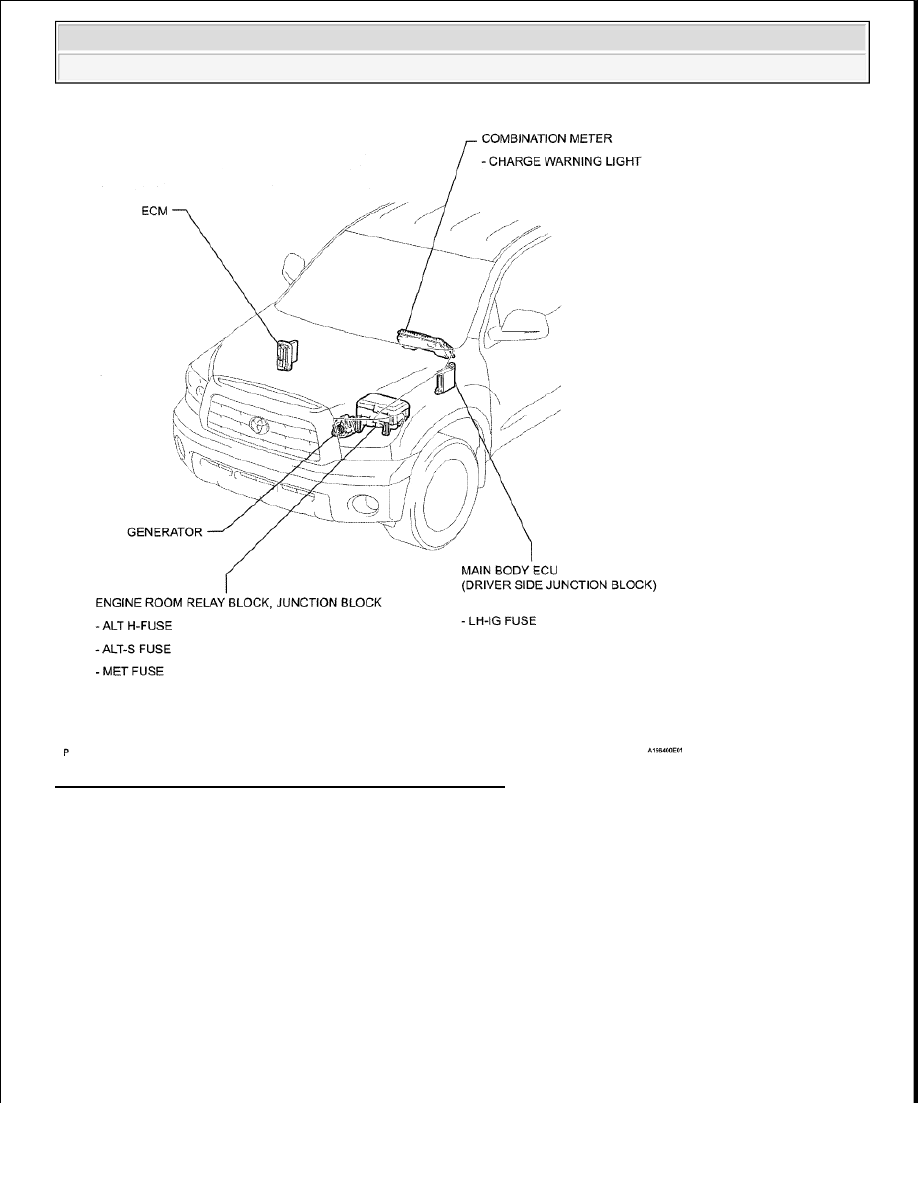

Fig. 1: Identifying Charging System Components Location
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

SYSTEM DIAGRAM

2009 Toyota Tundra

2009 ELECTRICAL Charging (1GR-FE) - Tundra
