1-2. Child safety

1

Fo
r s

afe
ty a
nd

 se
cu

rity

■

When removing the head restraint to install a child restraint system
After removing the child restraint system, make sure to reinstall the head
restraint.

WARNING

■

When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.

●

After securing a child restraint system, never adjust the seat.

●

When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system.

●

Follow all installation instructions provided by the child restraint system
manufacturer.

104

1-2. Child safety

■

Anchor bracket (for top strap)
Anchor bracket are provided for the outboard rear seat.
Use anchor bracket when fixing
the top strap.

■

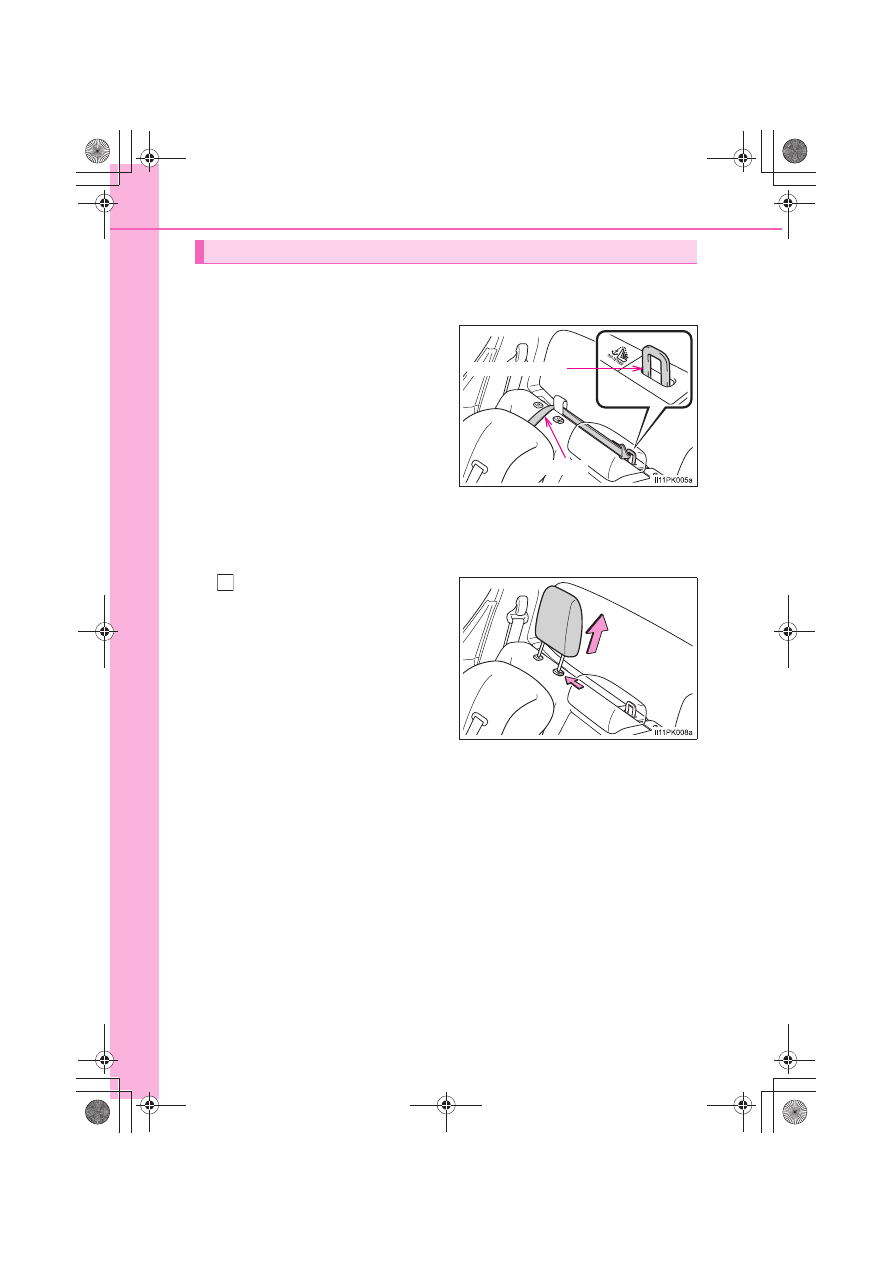

Fixing the top strap to the anchor bracket
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.

Remove the head restraint.

Using an anchor bracket (for top strap) (if equipped)

Anchor bracket

Top strap

1

105

1-2. Child safety

1

Fo
r s

afe
ty a
nd

 se
cu

rity

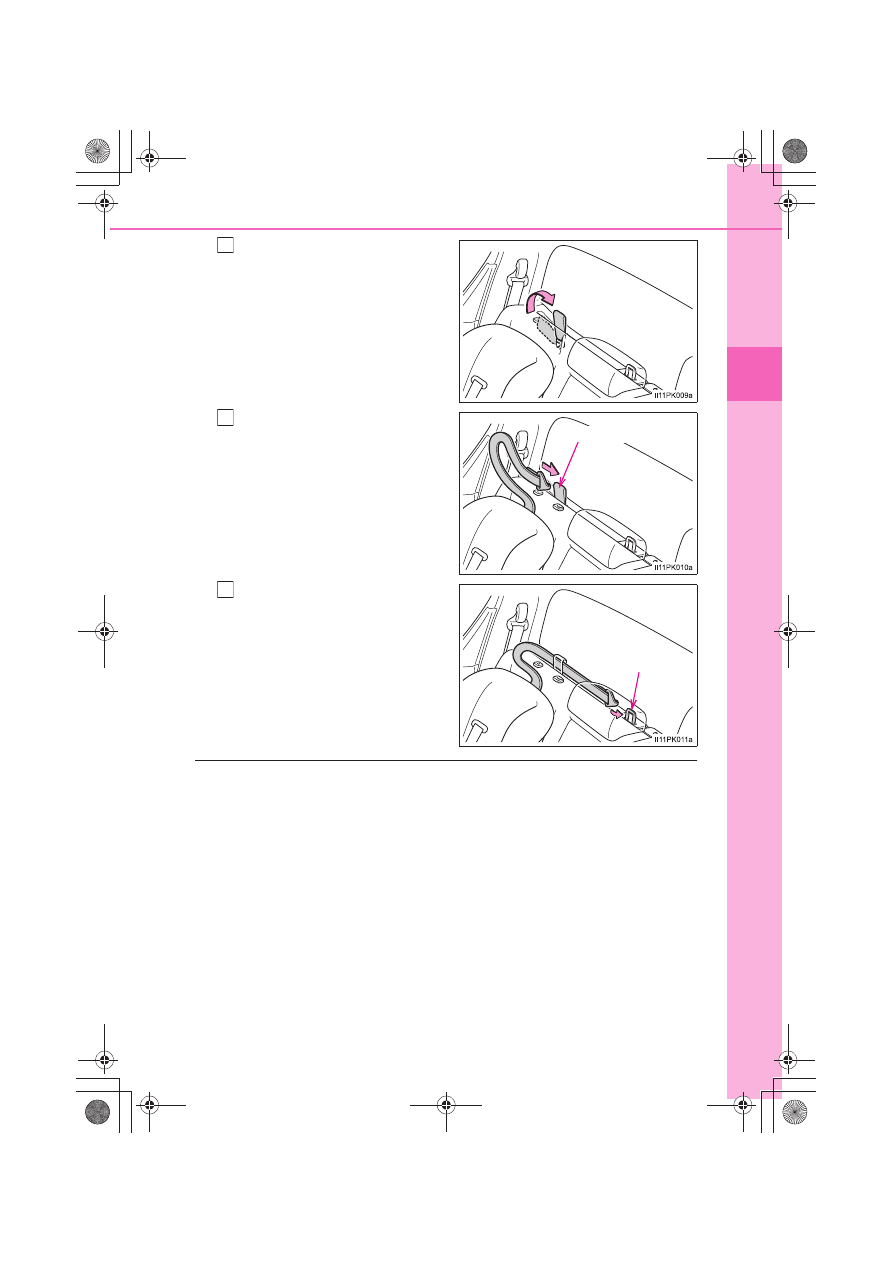

Pull up the anchor strap
router.

Route the top strap through
the anchor strap router as
shown in the illustration.

Latch the hook onto the
anchor bracket and tighten
the top strap.

Make sure the top strap is
securely latched. (

→P. 81)

■

When removing the head restraint to install a child restraint system
After removing the child restraint system, make sure to reinstall the head
restraint.

2

Anchor strap router

3

Anchor bracket

4

106

1-2. Child safety

WARNING

■

When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Firmly attach the top strap.

●

Do not attach the top strap to anything other than the anchor bracket.

●

After securing a child restraint system, never adjust the seat.

●

Follow all installation instructions provided by the child restraint system
manufacturer.

●

When installing the child restraint system, do not install the head restraint.
