71

1-2. Child safety

1

Fo
r s

afe
ty a
nd

 se
cu

rity

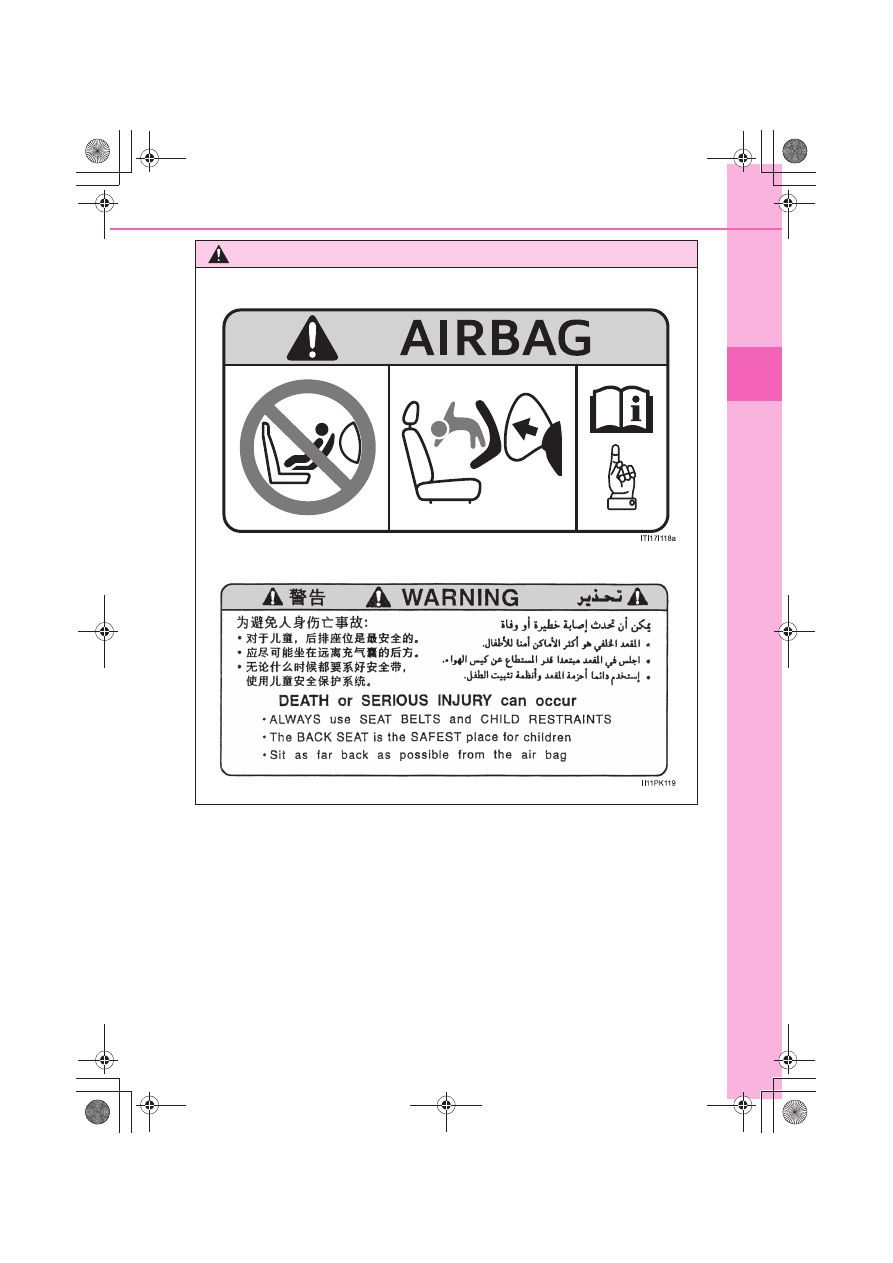

WARNING

X

Type A

X

Type B

72

1-2. Child safety

WARNING

■

When using a child restraint system

●

Vehicles with SRS side and curtain shield airbags: Do not allow the child to
lean his/her head or any part of his/her body against the door or the area
of the seat, front or rear pillars, or roof side rails from which the SRS side
airbags or SRS curtain shield airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags and cur-
tain shield airbags inflate, and the impact could cause death or serious
injury to the child.

●

When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.

●

Use child restraint system suitable to the age and size of the child and
install it to the rear seat.

●

Vehicles with SRS front passenger air-
bag: Only put a forward-facing child
restraint system on the front seat when
unavoidable. When installing a forward-
facing child restraint on the front pas-
senger seat, move the seat as far back
as possible. Failing to do so may result
in death or serious injury if the airbags
deploy (inflate).

●

Double-cab models: If the driver’s seat
interferes with the child restraint system
and prevents it from being attached cor-
rectly, attach the child restraint system
to the right-hand rear seat (left-hand
drive vehicles) or the left-hand rear seat
(right-hand drive vehicles). (

→P. 79, 93)

●

Double-cab models: Adjust the front
passenger seat so that it does not inter-
fere with the child restraint system.

73

1-2. Child safety

1

Fo
r s

afe
ty a
nd

 se
cu

rity

◆

Confirming the possible installation seating positions and the
Mass Group for the seat belt installation type child restraint
systems.

Confirm the corresponding [Mass group] from the weight of the
child (

→P. 68)

(Ex. 1) When the weight is 12 kg, [Mass group 0+]
(Ex. 2) When the weight is 15 kg, [Mass group I]
Confirm and select the appropriate possible seating position for
the child restraint system and the corresponding type of system
from the [Child restraint systems fastened with SEAT BELT -
Compatibility and Recommended child restraint systems table].
(

→P. 73)

◆

Child restraint systems fastened with SEAT BELT - Compatibil-
ity and Recommended child restraint systems table

If your child restraint system is of “universal” category, you can
install it on the positions mentioned by U or UF in the table below
(UF is for forward-facing child restraint systems only). Child
restraint systems category and mass group can be found in the
child restraint system manual.
If your child restraint system is not of the “universal” category (or if
you cannot find information in the table below), please refer to the
child restraint system “vehicle list” for compatibility information or
ask the retailer of your child seat.

Child restraint system fixed with a seat belt (except for
Kazakhstan)

1

2

74

1-2. Child safety

X

Single-cab models

Key of letters inserted in the above table:
X: Not suitable seat position for children in this mass group.
U: Suitable for “universal” category child restraint systems approved

for use in this mass group.

UF: Suitable for forward-facing “universal” category child restraint sys-

tems approved for use in this mass group.

L: Suitable for “specific vehicles”, “restricted”, or “semi-universal”,

category child restraint systems approved for use in this mass
group.

*

1

: Adjust the seatback angle to the most upright position. Move the front seat

fully rearward. If the passenger seat height can be adjusted, move it to the
upper most position.

Mass groups

Seating position

Recommended

Child Restraint

Systems

Front passenger seat

Vehicles with front

passenger occupant

classification system

Passenger airbag

indicator light

ON

OFF

*

3

0
Up to 10 kg
(22 lb.)

X

U

*

1

L

*

1

“TOYOTA G 0+, BABYSAFE
PLUS”
“TOYOTA MINI”
“TOYOTA G 0+, BABYSAFE
PLUS with SEAT BELT
FIXATION, BASE PLATFORM”

0+
Up to 13 kg
(28 lb.)

X

U

*

1

L

*

1

I
9 to 18 kg
(20 to 39 lb.)

Rearward-

facing —

X

U

*

1, 2

“TOYOTA DUO+”

Forward-
facing —

UF

*

1, 2

II, III
15 to 36 kg
(34 to 79 lb.)

UF

*

1, 2

U

*

1, 2

“TOYOTA KIDFIX XP SICT”
