386

5-4. Other interior features

Operation indicator light status

*

: Depending on the portable device, the operation indicator light may stay

illuminated (orange) after charging has completed.

● If the operation indicator light blinks

If an error is detected, the operation indicator light will blink
(orange). Take the appropriate measures according to the table
below.

Operation indicator light

State

Off

The Wireless charger is off

Green (illuminated)

Standby (charging is possible)

Charging is complete

*

Orange (illuminated)

A portable device has been placed on the
charging area (identifying the portable
device)

Charging in progress

Operation indicator light

Suspected causes

Measure

Blinks (orange) at a
one second interval
continuously

Vehicle to charger com-
munication failure.

Contact your Toyota
dealer.

Blinks (orange) 3 times
repeatedly

A foreign object exists
between the portable
device and charging
area.

Remove the foreign
object.

Portable device is not
positioned properly on
the charging area.

Move the portable
device toward the cen-
ter of the charging
area.

Blinks (orange) 4 times
repeatedly

The temperature of the
wireless charger is
excessively high.

Stop charging immedi-
ately and continue
charging after a while.

387

5-4. Other interior features

In

te

rior fe

atures

■

The wireless charger can be operated when
The engine switch is in ACCESSORY or IGNITION ON mode.

■

Portable devices that can be charged

●

Portable devices compatible with the Qi wireless charging standard can be
charged by the wireless charger. However, compatibility with all devices
which meet the Qi wireless charging standard is not guaranteed.

●

The wireless charger is designed to supply low power electricity (5 W or
less) to a cellular phone, smartphone, or other portable device.

■

If a cover or accessory is attached to the portable device
Do not charge a portable device if a cover or accessory which is not Qi com-
patible is attached. Depending on the type of cover and/or accessory
attached, it may not be possible to charge the portable device. If the portable
device is placed on the charging area and does not charge, remove the cover
and/or accessories.

■

If interference is heard in AM radio broadcasts while charging
Turn off the wireless charger and check if the noise is reduced. If noise is
reduced, press and hold the power supply switch of the wireless charger for 2
seconds. The frequency of the wireless charger is changed and noise may be
reduced. When the frequency is changed, the operation indicator light will
blink (orange) 2 times.

■

Charging precautions

●

If the electronic key cannot be detected in the cabin, charging cannot be
performed. When a door is opened and closed, charging may be temporarily
suspended.

●

While charging, the wireless charger and the portable device will become
warm. This is not a malfunction.
If a portable device becomes warm while charging and charging stops due
to the protection function of the portable device, wait until the portable
device cools down and charge it again.

■

Sound generated during operation
When the power supply switch is turned on or while a portable device is being
identified, operation sounds may be heard. This is not a malfunction.

■

Cleaning the wireless charger
→P. 418

388

5-4. Other interior features

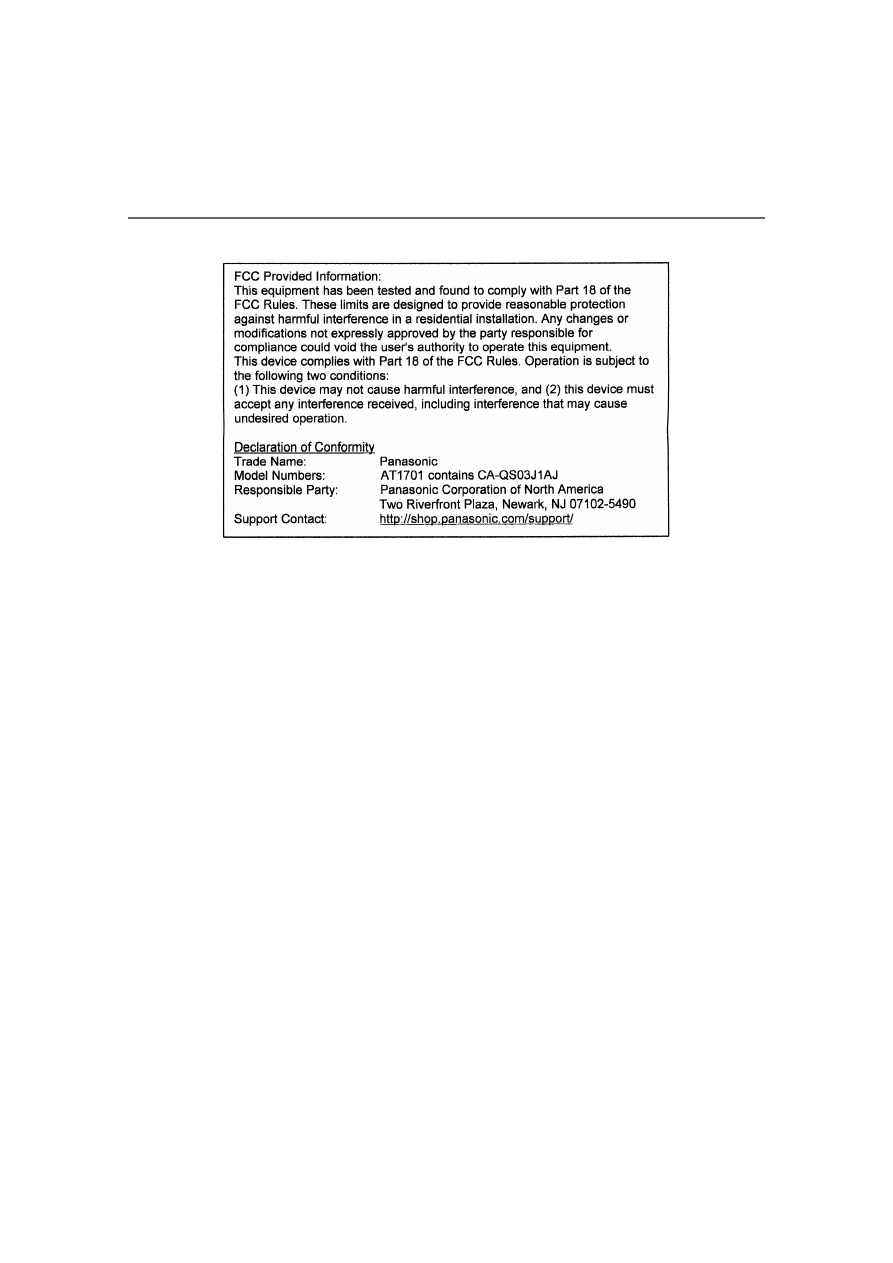

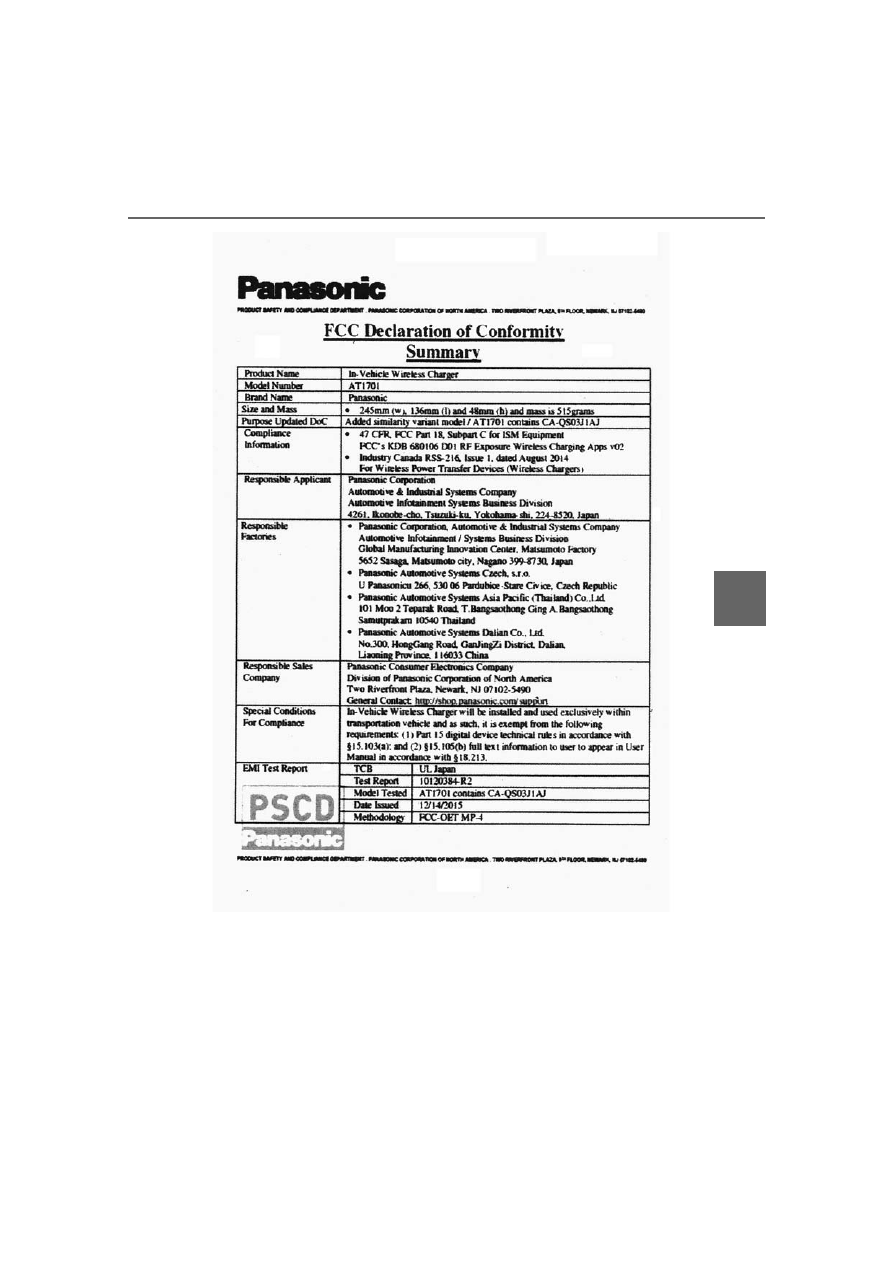

Certification for the wireless charger

389

5-4. Other interior features

In

te

rior fe

atures
