Toyota Camry (2018 year). Manual - part 73

302

4-5. Using the driving support systems

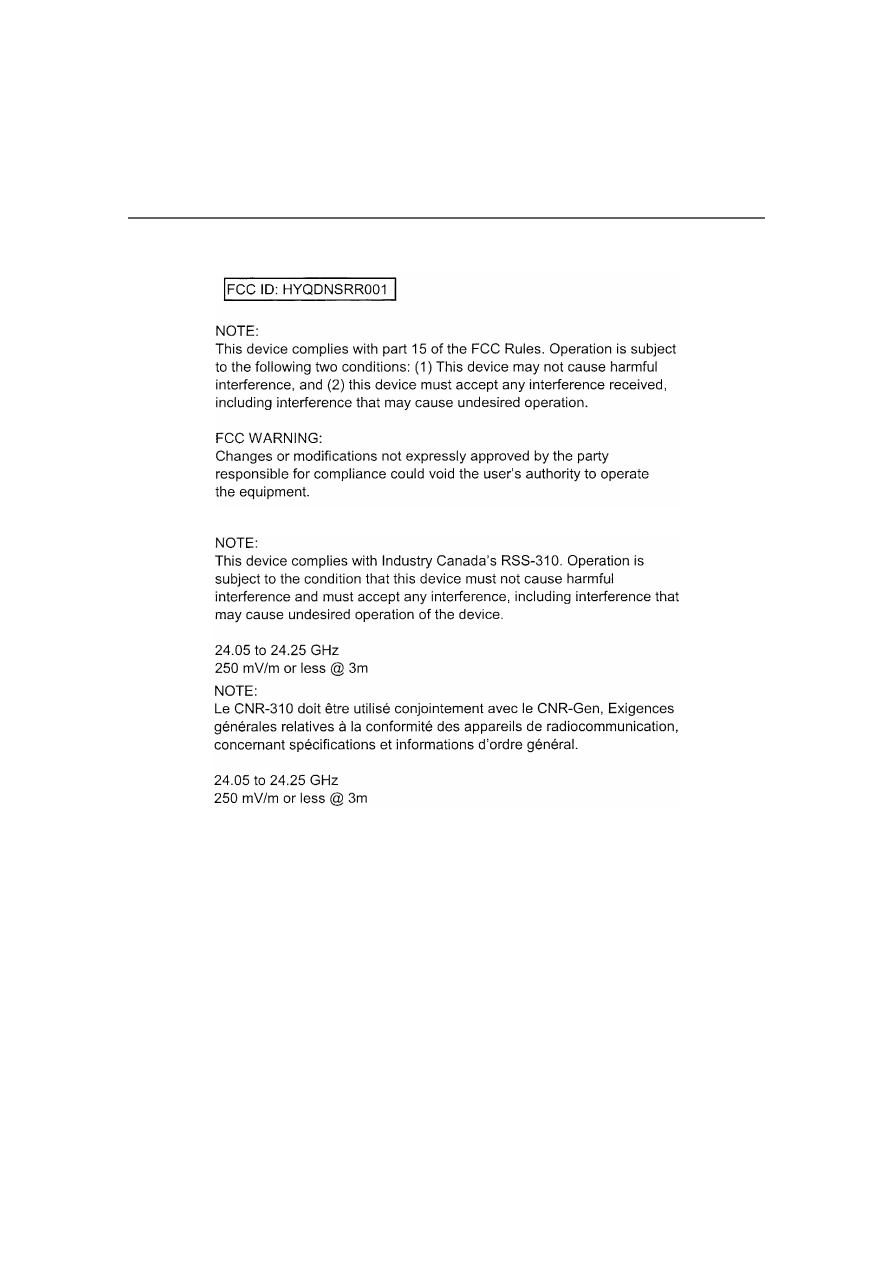

Certification for the Blind Spot Monitor



For vehicles sold in the U.S.A.



For vehicles sold in Canada

303

4-5. Using the driving support systems

4

Drivin

g

■

Handling the radar sensor
One Blind Spot Monitor sensor is installed inside the left and right side of
the vehicle rear bumper respectively. Observe the following to ensure the
Blind Spot Monitor can function correctly.

If the warning message does not disappear, have the vehicle inspected
by your Toyota dealer

●

Do not subject a sensor or its surrounding area on the rear bumper to a
strong impact.
If a sensor is moved even slightly off position, the system may malfunction
and vehicles may not be detected correctly.
In the following situations, have your vehicle inspected by your Toyota
dealer.
• A sensor or its surrounding area is subject to a strong impact.
• If the surrounding area of a sensor is scratched or dented, or part of

them has become disconnected.

●

Do not disassemble the sensor.

●

Do not attach accessories or stickers to the sensor or surrounding area on
the bumper.

●

Do not modify the sensor or surrounding area on the bumper.

●

Do not paint the rear bumper any color other than an official Toyota color.

●

Keep the sensor and its surrounding
area on the bumper clean at all times. If
a sensor or its surrounding area on the
rear bumper is dirty or covered with
snow, the Blind Spot Monitor may not
operate and a warning message (

→P.

301) will be displayed.
In this situation, clear off the dirt or
snow and drive the vehicle with the
operation conditions of the BSM func-
tion (

→P. 304) satisfied for approxi-

mately 10 minutes.

304

4-5. Using the driving support systems

The areas that vehicles can be detected in are outlined below.
The range of the detection area
extends to:

Approximately 11.5 ft. (3.5 m)
from the side of the vehicle

The first 1.6 ft. (0.5 m) from the
side of the vehicle is not in the
detection area

Approximately 9.8 ft. (3 m) from
the rear bumper
Approximately 3.3 ft. (1 m) for-
ward of the rear bumper

■

The BSM function is operational when

●

The BSM function is turned on

●

Vehicle speed is greater than approximately 10 mph (16 km/h).

■

The BSM function will detect a vehicle when

●

A vehicle in an adjacent lane overtakes your vehicle.

●

Another vehicle enters the detection area when it changes lanes.

BSM function

BSM function detection areas

1

2

3

WARNING

■

Cautions regarding the use of the system
The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
The BSM function is a supplementary function which alerts the driver that a
vehicle is present in the blind spot. Do not overly rely on the BSM function.
The function cannot judge if it is safe to change lanes, therefore over reli-
ance could cause an accident resulting in death or serious injury.
According to conditions, the system may not function correctly. Therefore
the driver’s own visual confirmation of safety is necessary.

305

4-5. Using the driving support systems

4

Drivin

g

Conditions under which the BSM function will not detect a vehicle
The BSM function is not designed to detect the following types of vehicles
and/or objects:

●

Small motorcycles, bicycles, pedestrians, etc.

*

●

Vehicles traveling in the opposite direction

●

Guardrails, walls, signs, parked vehicles and similar stationary objects

*

●

Following vehicles that are in the same lane

*

●

Vehicles driving 2 lanes across from your vehicle

*

*

: Depending on the conditions, detection of a vehicle and/or object may

occur.

■

Conditions under which the BSM function may not function correctly

●

The BSM function may not detect vehicles correctly in the following condi-
tions:
• When the sensor is misaligned due to a strong impact to the sensor or its

surrounding area

• During bad weather such as heavy rain, fog, snow, etc.

• When ice or mud, etc., is attached to the rear bumper

• When driving on a road surface that is wet due to rain, standing water,

snow, etc.

• When there is a significant difference in speed between your vehicle and

the vehicle that enters the detection area

• When a vehicle is in the detection area from a stop and remains in the

detection area as your vehicle accelerates

• When driving up or down consecutive steep inclines, such as hills, a dip

in the road, etc.

• When driving on roads with sharp bends, consecutive curves, or uneven

surfaces

• When multiple vehicles approach with only a small gap between each

vehicle

• When vehicle lanes are wide, and the vehicle in the next lane is too far

away from your vehicle

• When the vehicle that enters the detection area is traveling at about the

same speed as your vehicle

• When there is a significant difference in height between your vehicle and

the vehicle that enters the detection area

• Directly after the BSM function is turned on

●

Instances of the BSM function unnecessarily detecting a vehicle and/or
object may increase under the following conditions:
• When the sensor is misaligned due to a strong impact to the sensor or its

surrounding area

• When there is only a short distance between your vehicle and a guardrail,

wall, etc.

• When there is only a short distance between your vehicle and a following

vehicle

• When vehicle lanes are narrow and a vehicle driving 2 lanes across from

your vehicle enters the detection area

• When items such as a bicycle carrier are installed on the rear of the vehi-

cle
