Terex BACKHOE LOADER 860SX. Parts Manual (2010) - page 12

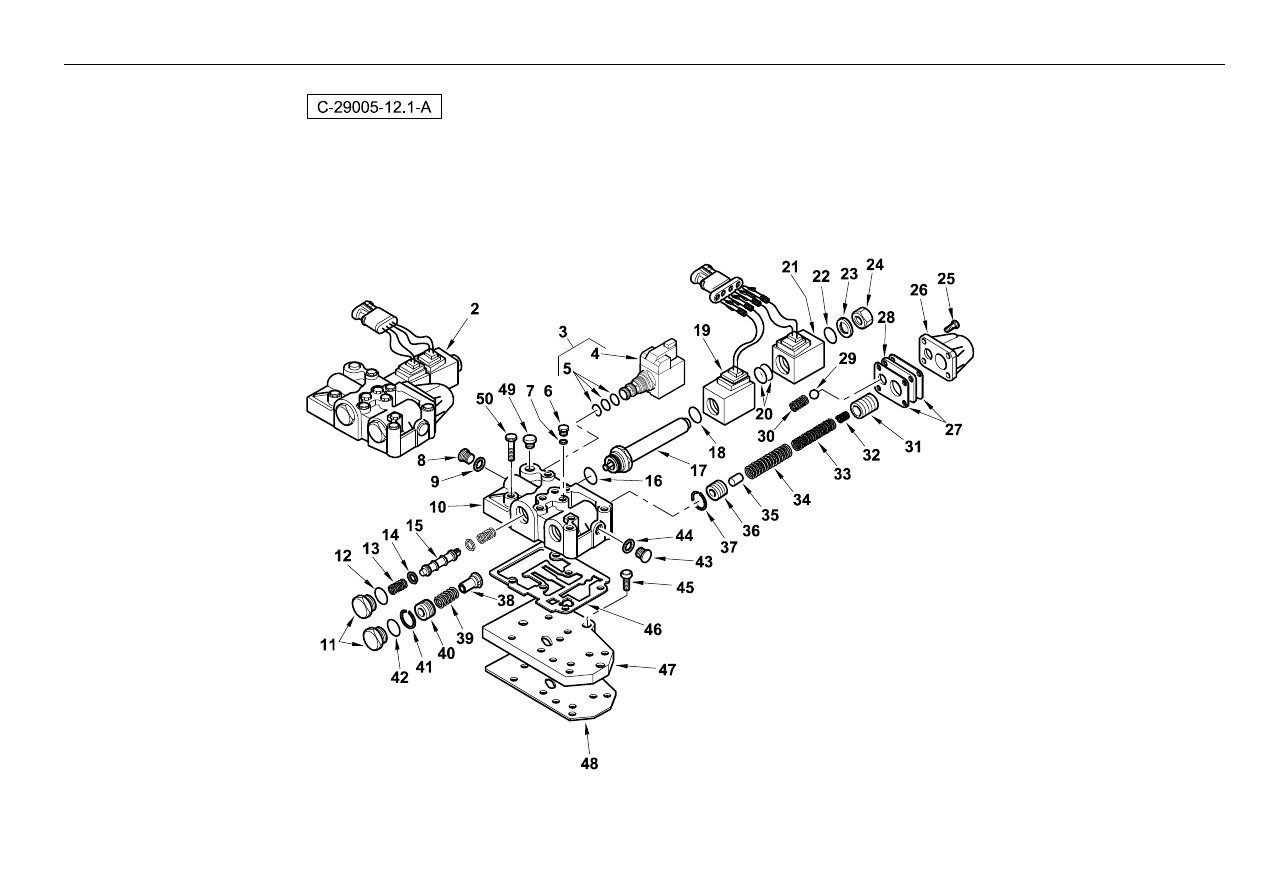

Transmission

- Control Valve 4 Wheel Drive

4067 29005

Part No.

Qty.

English

French

German

Spanish

Remarks

31

6194475M1

1

Outward Piston

Piston

Kolben

Pistón

32

6194474M1

1

Spring

Ressort

Feder

Muelle

33

6194473M1

1

Spring

Ressort

Feder

Muelle

34

6194472M1

1

Spring

Ressort

Feder

Muelle

35

6194471M1

1

Pin D8 X 27

Goupille

Bolzen

Pasador

36

6194470M1

1

Inward Piston

Piston

Kolben

Pistón

37

6194487M1

1

Snap Ring Dia 24

Fermoir

Sprengring

Anillo De Resorte

38

6194465M1

1

Bush

Douille

Büchse

Casquillo

39

6194464M1

1

Spring

Ressort

Feder

Muelle

40

6194463M1

1

Piston

Piston

Kolben

Pistón

41

6194462M1

1

Snap Ring Dia 22

Fermoir

Sprengring

Anillo De Resorte

42

6194460M1

1

O Ring

Joint Torique

O Ring

Junta De Tipo O

43

6194454M1

1

Plug

Bouchon

Verschlstopfen

Tapón

44

6194455M1

1

Copper Washer

Rondelle Cuivre

Kupferscheibe

Arandela, Cobre

45

6194469M1

3

Bolt M8 X 20

Boulon M8 X 20

Maschschraube M8

Perno

46

6194466M1

1

Gasket

Joint

Dichtscheibe

Empaquetadura

47

6194467M1

1

Feeding Plate

Plaque

Platte

Placa

48

6194468M1

1

Gasket

Joint

Dichtscheibe

Empaquetadura

49

6193381M1

1

Plug - Diff. Lock

Bouchon

Stopfen

Tapón

50

6193380M1

6

Bolt - M8 X 80

Goupille

Bolzen

Perno

®

353

Transmission

- Control Valve 4 Wheel Drive

4067 29005

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6111347M92

1

Trans Assy 2ws

Transmission

Getriebe

Transmision

2

6194733M91

1

Valve - Control

Valve Commande

Steuerventil

Distribuidor, Conj.

3

6194452M91

1

Electro-Valve

Electrovalve

Magnetventil

Electroválvula

4

#VALVE

1

Valve

Soupape

Ventil

Válvula

Ref. 3

5

6194453M91

1

Seal Kit

Jeu Etancheite

Dichtringsatz

Juego De Juntas

6

#O-RING

1

O-Ring

Joint Torique

O-Ring

Junta Tórica

7

6194486M1

1

Solenoid Pipe

Canalisation

Rohrleitung

Tubo

8

#O-RING

1

O-Ring

Joint Torique

O-Ring

Junta Tórica

9

6194483M1

1

Solenoid

Electroaimant

Magnetspule

Magnetspule

10

#O-RING

1

O-Ring

Joint Torique

O-Ring

Junta Tórica

11

6194483M1

1

Solenoid

Electroaimant

Magnetspule

Magnetspule

12

#O-RING

1

O-Ring

Joint Torique

O-Ring

Junta Tórica

13

6194481M1

1

Washer

Rondelle

Unterlegscheibe

Arandela

14

6194482M1

1

Plug

Bouchon

Verschlstopfen

Tapón

15

#BOLT

4

Bolt

Boulon

Schraubbolzen

Perno

16

6194479M1

1

Valve Cover

Cache Culbuteurs

Ventildeckel

Cubre Válvula

17

6194742M91

1

Body Valve Assy

Corps De Valve

Ventilgehause

Distribuidor, Conj.

18

6194740M91

1

Kit - Plate

Jeu Plaque

Plattensatz

Juego De Piezas

19

#GASKET

2

Gasket

Gasket

Gasket

Gasket

Ref. 18

20

#PLATE

1

Plate

Plaque

Platte

Plato

Ref. 18

21

#BALL

1

Ball

Ball

Ball

Ball

Ref. 18

22

#SPRING

1

Spring

Ressort

Feder

Muelle

Ref. 18

23

6194739M91

1

Kit - Modulation Valve

Jeu Soupapes

Ventilsatz

Válvula, Conj.

24

#PISTON

1

Piston

Piston

Piston

Piston

Ref. 23

25

#SPRING

1

Spring

Ressort

Feder

Muelle

Ref. 23

26

#SPRING

1

Spring

Ressort

Feder

Muelle

Ref. 23

27

#SPRING

1

Spring

Ressort

Feder

Muelle

Ref. 23

28

#PIN

1

Pin

Goupille

Bolzen

Pasador

Ref. 23

29

#PISTON

1

Piston

Piston

Piston

Piston

Ref. 23

30

6194741M91

1

Kit - Control Valve Body

Jeu Distributeur

Satzsteuerventil

Cuerpo, Conj.

®

355

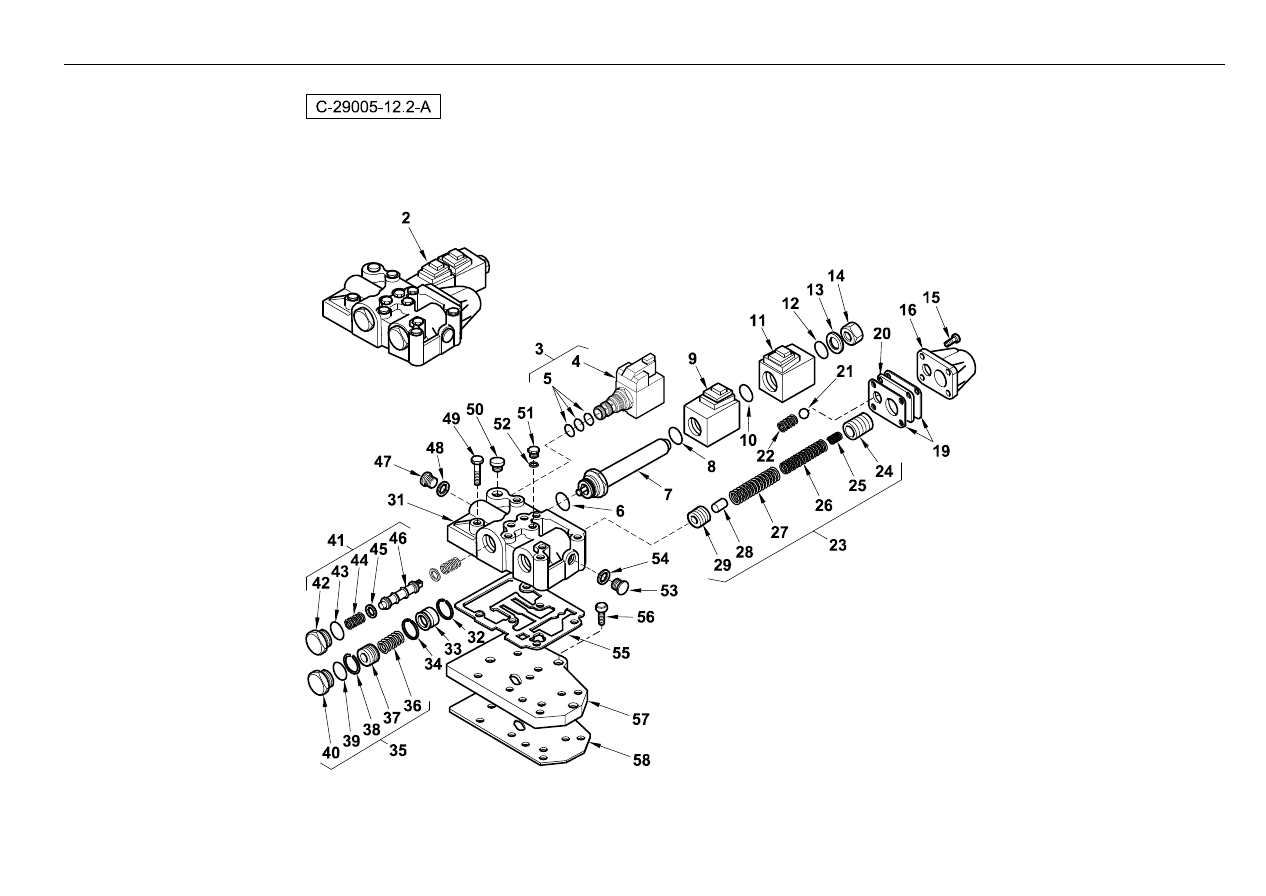

Transmission

- Control Valve 4 Wheel Drive

4067 29005

Part No.

Qty.

English

French

German

Spanish

Remarks

31

#BODY

1

Body

Body

Body

Body

32

#RING, SNAP

1

Ring, Snap

Ring, Snap

Ring, Snap

Ring, Snap

33

#BUSHING

1

Bushing

Douille

Busche

Boccola

34

#RING, SNAP

1

Ring, Snap

Ring, Snap

Ring, Snap

Ring, Snap

35

6194735M91

1

Kit - Flow Divider Piston

Jeu Cde Debit

Mengendosiersatz

Juego De Piezas

36

#SPRING

1

Spring

Ressort

Feder

Muelle

Ref. 35

37

#RING, SNAP

1

Ring, Snap

Ring, Snap

Ring, Snap

Ring, Snap

Ref. 35

38

#RING, SNAP

1

Ring, Snap

Ring, Snap

Ring, Snap

Ring, Snap

Ref. 35

39

#O-RING

1

O-Ring

Joint Torique

O-Ring

Junta Tórica

Ref. 35

40

#PLUG

1

Plug

Plug

Plug

Plug

Ref. 35

41

6194734M91

1

Kit - Spool Fwd/Rvs

Jeu Tiroir

Schieber, Satz

Cajoncillo, Conj.

42

#PLUG

1

Plug

Plug

Plug

Plug

Ref. 41

43

#O-RING

1

O-Ring

Joint Torique

O-Ring

Junta Tórica

Ref. 41

44

#SPRING

2

Spring

Ressort

Feder

Muelle

Ref. 41

45

#WASHER

2

Washer

Rondelle

Unterlegscheibe

Arandela

Ref. 41

46

#SPOOL

1

Spool

Spool

Spool

Spool

Ref. 41

47

#PLUG

1

Plug

Plug

Plug

Plug

48

#WASHER, COPPER

1

Washer, Copper

Washer, Copper

Washer, Copper

Washer, Copper

49

#BOLT

6

Bolt

Boulon

Schraubbolzen

Perno

50

#PLUG

1

Plug

Plug

Plug

Plug

51

#PLUG

4

Plug

Plug

Plug

Plug

52

#WASHER, COPPER

4

Washer, Copper

Washer, Copper

Washer, Copper

Washer, Copper

53

#PLUG

1

Plug

Plug

Plug

Plug

54

#WASHER, COPPER

1

Washer, Copper

Washer, Copper

Washer, Copper

Washer, Copper

55

#GASKET

1

Gasket

Gasket

Gasket

Gasket

56

#BOLT

3

Bolt

Boulon

Schraubbolzen

Perno

57

6194467M1

1

Feeding Plate

Plaque

Platte

Placa

58

#GASKET

1

Gasket

Gasket

Gasket

Gasket

®

357

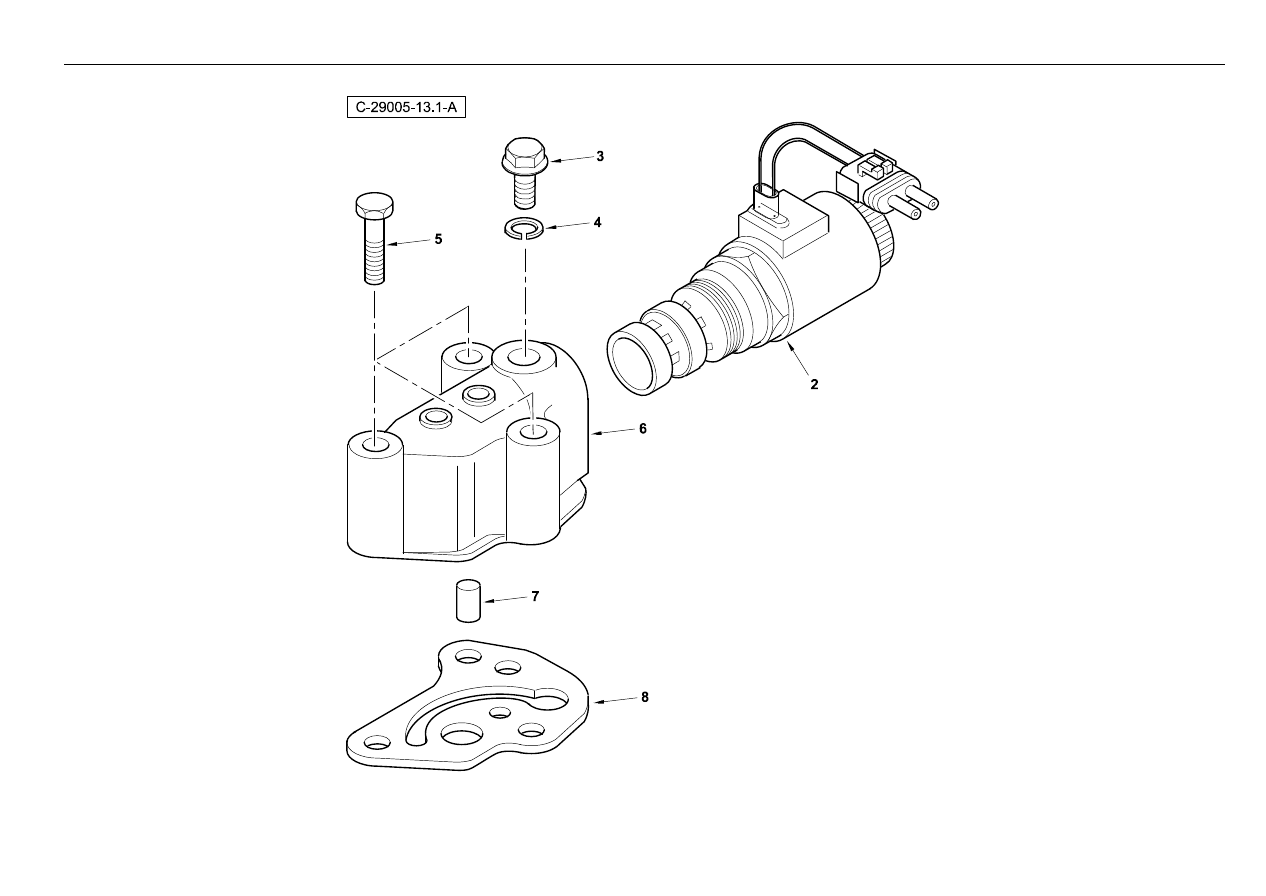

Transmission

- Solenoid Valve 4 Wheel Drive

4067 29005

Part No.

Qty.

English

French

German

Spanish

Remarks

1

6110549M91

1

Trans Assy 2ws/4wd Carraro (641868)
Sync

Boite De Vitesses

Getriebe

Caja De Velocidades

Continued

1

6111347M92

1

Trans Assy 2ws

Transmission

Getriebe

Transmision

2

6194488M1

1

4wd Electro-Valve

Electrovalve

Magnetventil

Electroválvula

3

6194328M1

1

Plug

Bouchon

Verschlstopfen

Tapón

4

6194329M1

1

Copper Washer 10 X 14 X 1.5

Rondelle

Unterlegscheibe

Arandela, Cobre

5

6194308M1

3

Screw M8 X 60

Vis Metrique M8 X 60

Schraube Met M8 X 60

Tornillo

6

6194490M1

1

Housing

Carter

Gehause

Cárter

7

6194491M1

1

Valve

Soupape

Ventil

Válvula

8

6194489M1

1

Gasket

Joint

Dichtscheibe

Empaquetadura

®

359

Consumable

4067 30001

Not Illustrated

Non Illustrée

Nicht Abgebildet

Non Illustrato

No Ilustrado

Part No.

Qty.

English

French

German

Spanish

Remarks

®

361

Consumables

4067 30012

Not Illustrated

Non Illustrée

Nicht Abgebildet

Non Illustrato

No Ilustrado

Part No.

Qty.

English

French

German

Spanish

Remarks

®

363

Not Serviced

4067 30003

Not Serviced
