Suzuki SX4 (2010 year). Manual

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OTHER CONTROLS AND EQUIPMENT

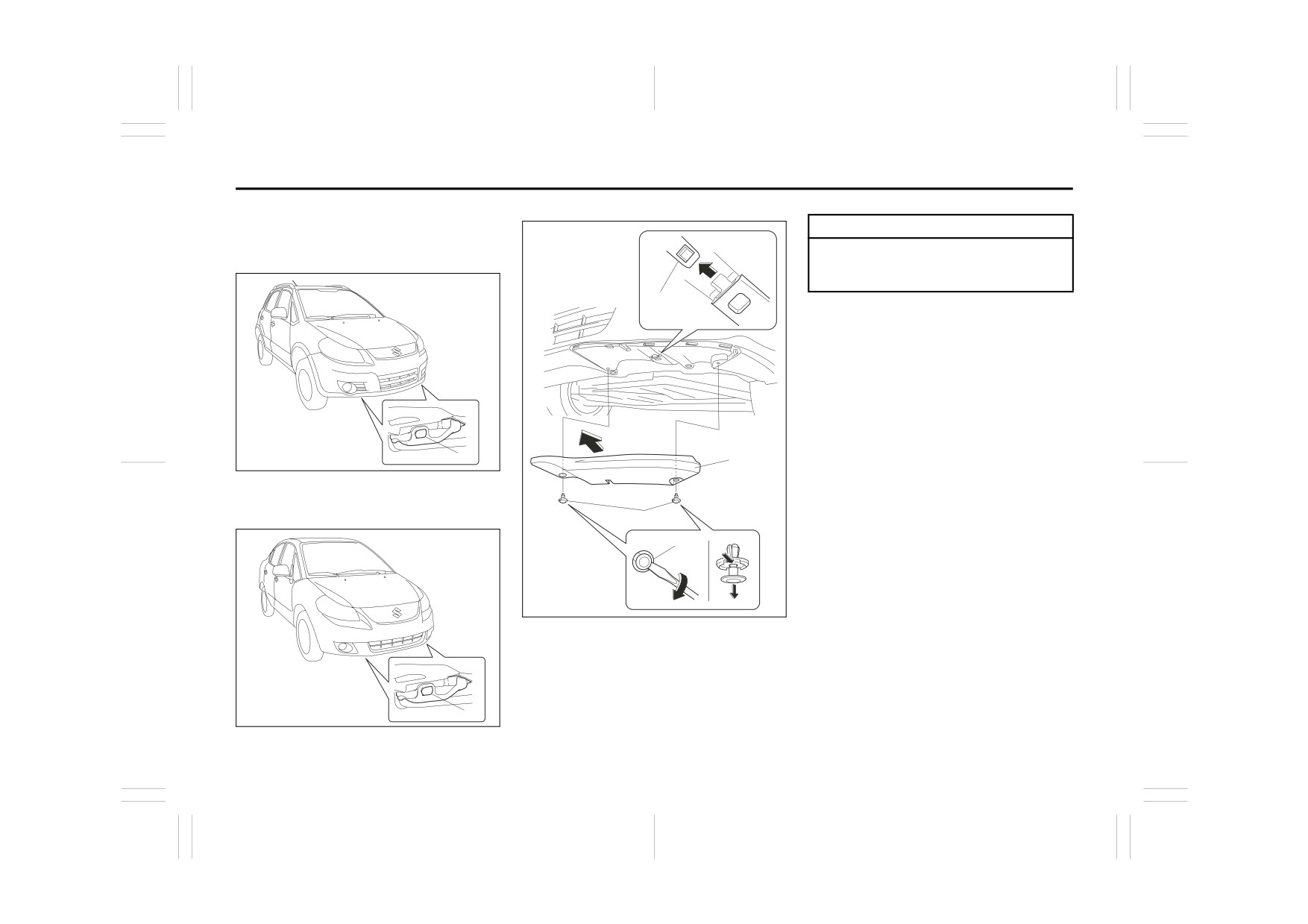

Frame Hooks

Front bumper cover (if equipped)

CAUTION

SX4

If towing your vehicle, use the frame

Front (1)

hook of removed bumper cover side

to prevent damage to the vehicle.

(d)

NOTE:

When return the cover, make sure the

ungual (d) of the cover securely fit to the

slit on under the front bumper of vehicle.

EXAMPLE

(1)

(c)

80J2049

SX4 SEDAN

Front (1)

(a)

(b)

EXAMPLE

80JM111

To use the frame hook:

1) Insert a flat blade screwdriver into the

hole (b) and remove the clips (a) by

twist the driver as shown in the illustra-

tion.

EXAMPLE

(1)

2) Remove the bumper cover (c).

80J2050

5-56

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OTHER CONTROLS AND EQUIPMENT

SX4

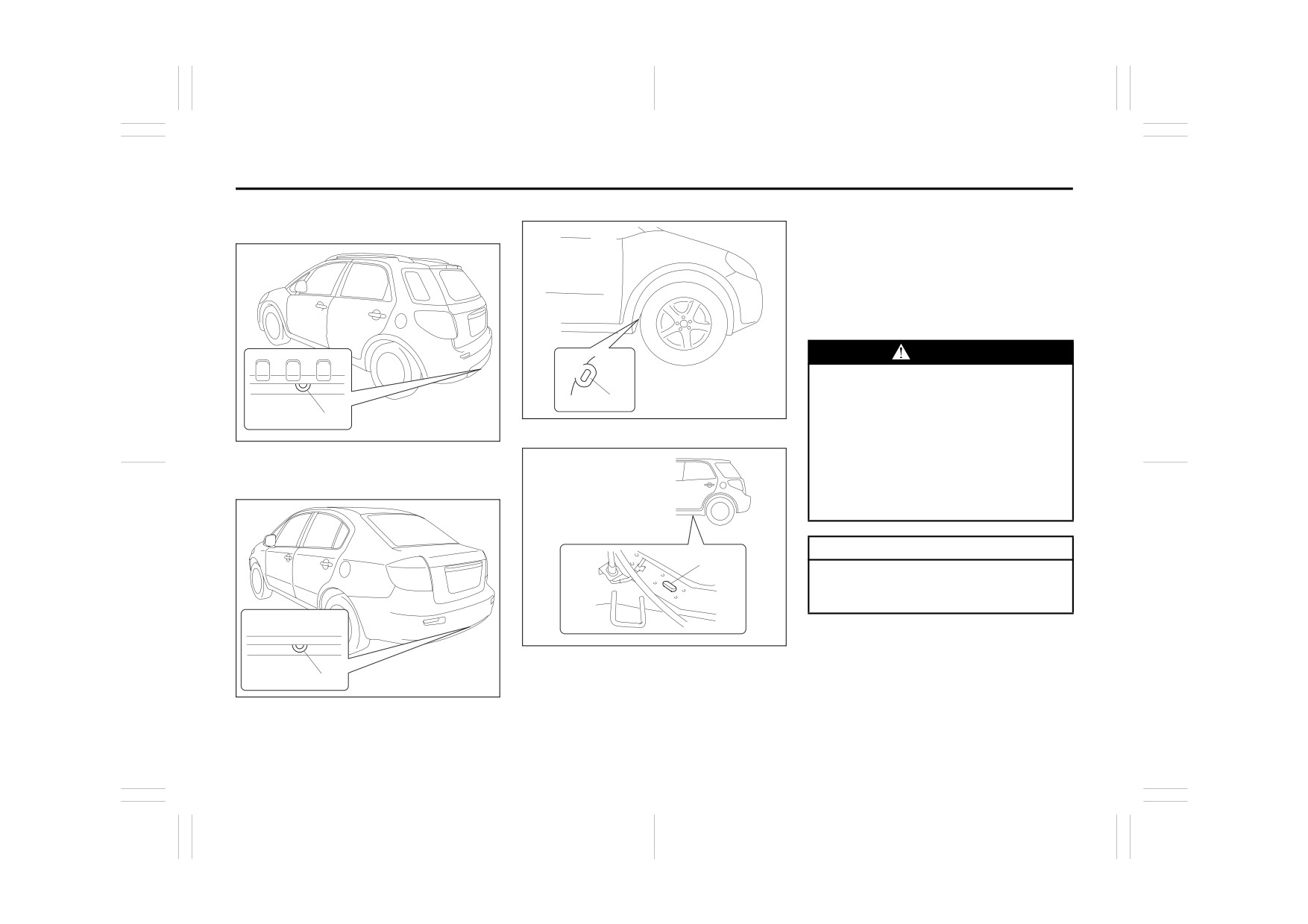

Side (3)

Frame hooks are provided on the front (1),

rear (2) and side (3) of the vehicle. The

Rear (2)

hooks (1) and (2) are used for emergency

situations. The hooks

(3) are used for

trailer/train shipping purposes.

To tow your vehicle on the road or highway,

follow the instruction of “Towing” in “EMER-

GENCY SERVICE” section.

WARNING

Do not use the frame hooks to tow

another vehicle or to have your vehi-

(3)

EXAMPLE

cle towed on the road or highway.

(2)

The hooks (1) and (2) are designed

EXAMPLE

80JC062

for use in emergency situations only,

80JC061

such as if your vehicle or another

EXAMPLE

vehicle gets stuck in deep mud or

SX4 SEDAN

snow.

Rear (2)

The hooks (3) are provided for trailer/

train shipping purposes.

CAUTION

(3)

Never use the hooks (1) and (2) for

trailer/train shipping purposes to pre-

vent damage to the vehicle.

79J132

(2)

EXAMPLE

56KN033

5-57

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Exhaust Gas Warning: NO

Daily Inspection Checklist: NO

VEHICLE LOADING AND TOWING

Vehicle Loading

Vehicle Capacity Weight - Maximum per-

missible load weight a vehicle can carry

WARNING

including the weight of all the occupants,

Never overload your vehicle. The

accessories and cargo.

gross vehicle weight

(sum of the

weights of the loaded vehicle, driver

The weight of any accessories already

and passengers) must never exceed

installed on your vehicle at the time of pur-

the Gross Vehicle Weight Rating

chase, or that you or the dealer install after

(GVWR) listed on the Safety Certifica-

purchase, must be subtracted from the

tion Label. In addition, never distrib-

Vehicle Capacity Weight to determine how

ute a load so that the weight on either

much capacity remains available for occu-

the front or rear axle exceeds the

pants and cargo. Contact your dealer for

Gross Axle Weight Rating (GAWR)

further information.

listed on the Safety Certification

Label.

Actual weight of the loaded vehicle and

actual loads at the front and rear axles can

80JS025

only be determined by weighing the vehicle

WARNING

Your vehicle was designed for specific

using a vehicle scale. To measure the

weight capacities. The weight capacities of

weight and load, try taking your vehicle to

• Always distribute cargo evenly.

your vehicle are indicated by the Gross

a highway weighing station, shipping com-

• To avoid personal injury or damage

Vehicle Weight Rating (GVWR), the Gross

pany or inspection station for trucks, etc.

to your vehicle, always secure

Axle Weight Rating (GAWR, front and rear)

Compare these weights to the GVWR and

cargo to prevent it from shifting if

and the Vehicle Capacity Weight. The

GAWR (front and rear) listed on the Safety

the vehicle moves suddenly.

GVWR and GAWR (front and rear) are

Certification Label. If the gross vehicle

• Place heavier objects on the floor

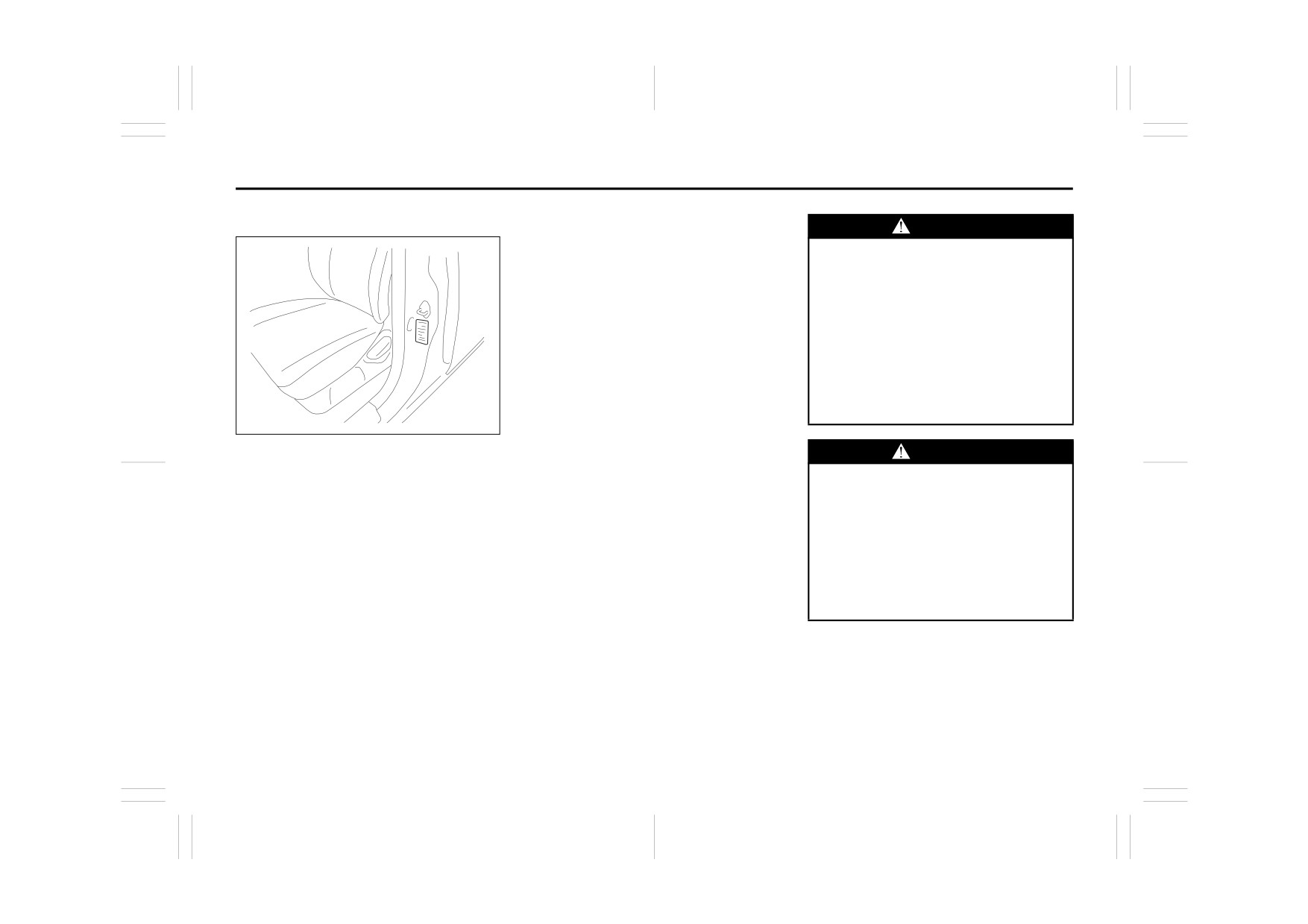

listed on the Safety Certification Label

weight or the load on either axle exceeds

and as far forward in the trunk or in

which is located below the driver’s side

these ratings, you must remove enough

the cargo area as possible.

door latch striker. The Vehicle Capacity

weight to bring the load down to the rated

• Never pile cargo higher than the

Weight is listed on the Tire Information

capacity.

top of the seat backs.

Label which is located below the Safety

Certification Label.

GVWR - Maximum permissible overall

weight of the fully loaded vehicle (including

all the occupants, accessories and cargo).

GAWR - (Front and Rear) Maximum per-

missible weight on an individual axle.

6-1

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Daily Inspection Checklist: NO

Starting the Engine: 1

VEHICLE LOADING AND TOWING

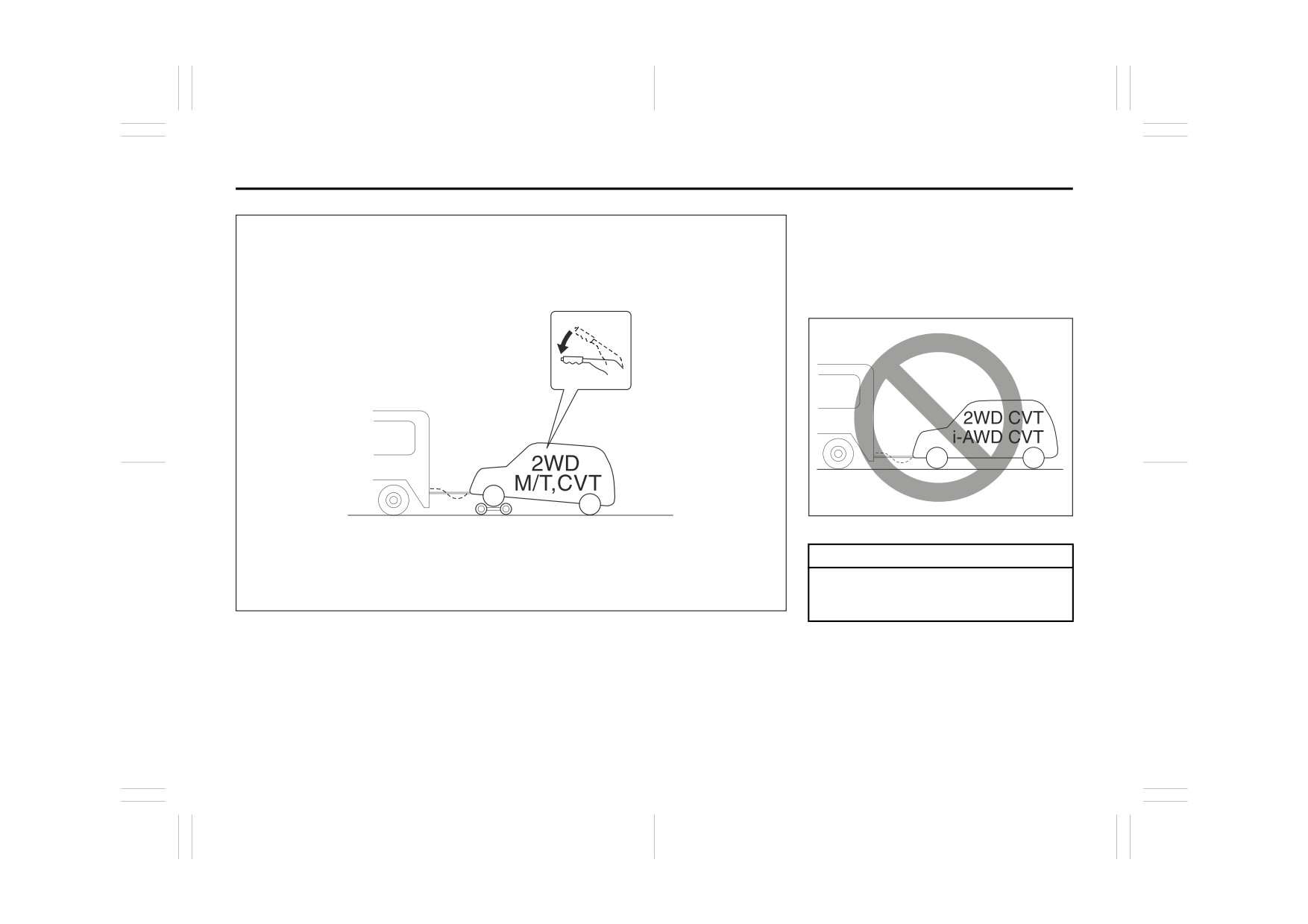

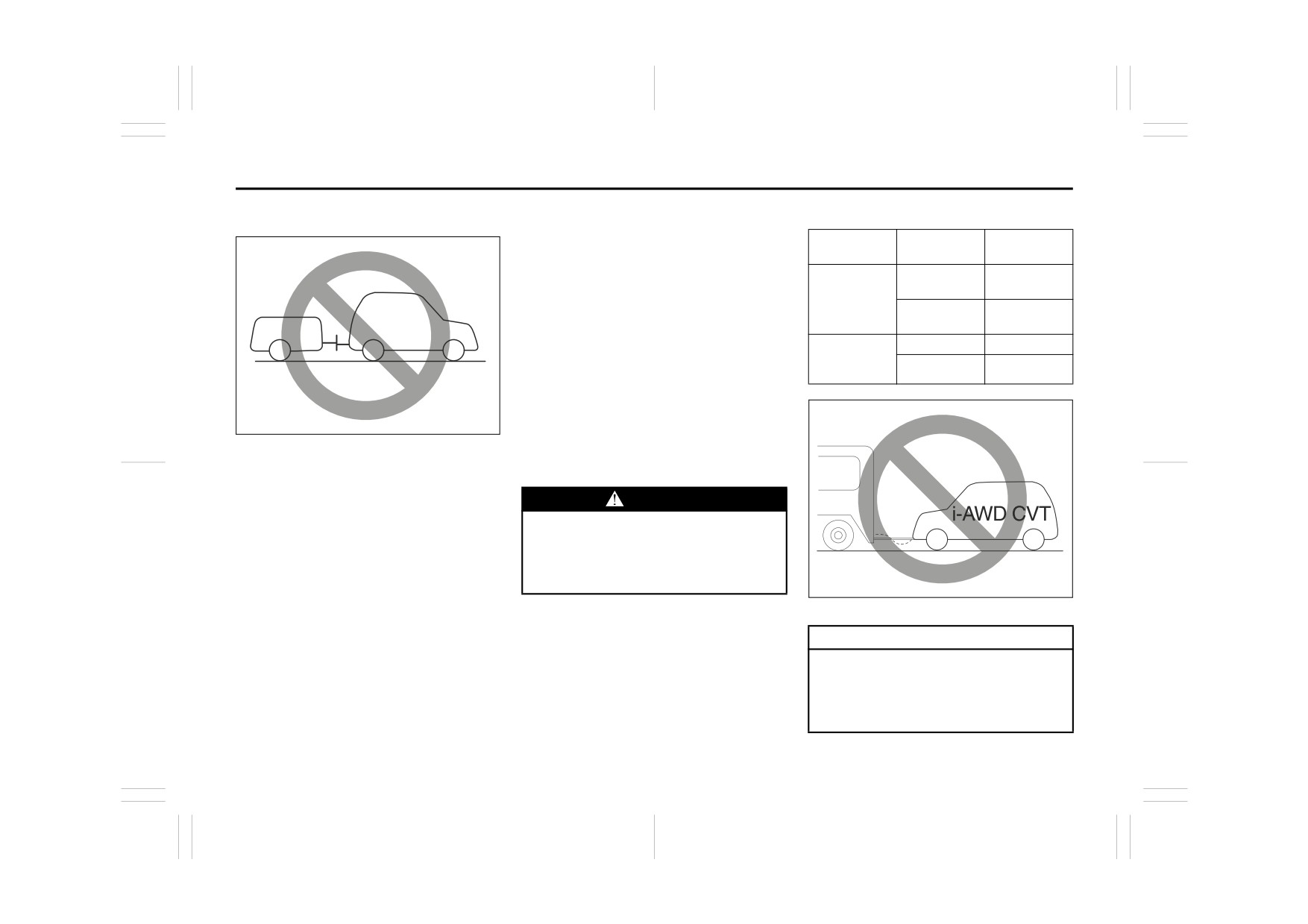

Trailer Towing

Towing Your Vehicle

TOWING INSTRUCTION TABLE

(recreational towing)

DRIVE

TRANS-

TOWING

Your vehicle may be towed behind another

TRAIN

AXLE

METHOD

vehicle (such as a motorhome), provided

CVT

you use the proper towing method speci-

(AUTO)

fied for your vehicle. The towing method

2WD

M/T

you must use depends on the specifica-

A B

(MANUAL)

tions of your vehicle: whether it is a

wheel drive (2WD) or intelligent All Wheel

i-AWD

CVT

none

Drive (i-AWD) vehicle.

including

M/T

2WD mode

Use the towing instruction table to select

the proper towing method for your vehicle,

and carefully follow the corresponding

instructions. Be sure to use proper towing

54G639

equipment designed for recreational tow-

ing and make sure that towing speed does

Do not use your vehicle to tow a trailer. The

not exceed 90 km/h (55 mph).

vehicle is not designed or intended for

such use. Towing a trailer can adversely

WARNING

affect handling, durability and fuel econ-

omy.

Always use a safety chain when tow-

ing your vehicle and be sure to

observe federal, state, and local

requirements for trailer hitches, tow

bars, lights, etc.

80J2051

CAUTION

For the CVT of intelligent All Wheel

Drive (i-AWD) models, don’t tow your

vehicle behind another vehicle such

as a motorhome, or the drive train

may be seriously damaged.

6-2

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Using the Transaxle: 10

VEHICLE LOADING AND TOWING

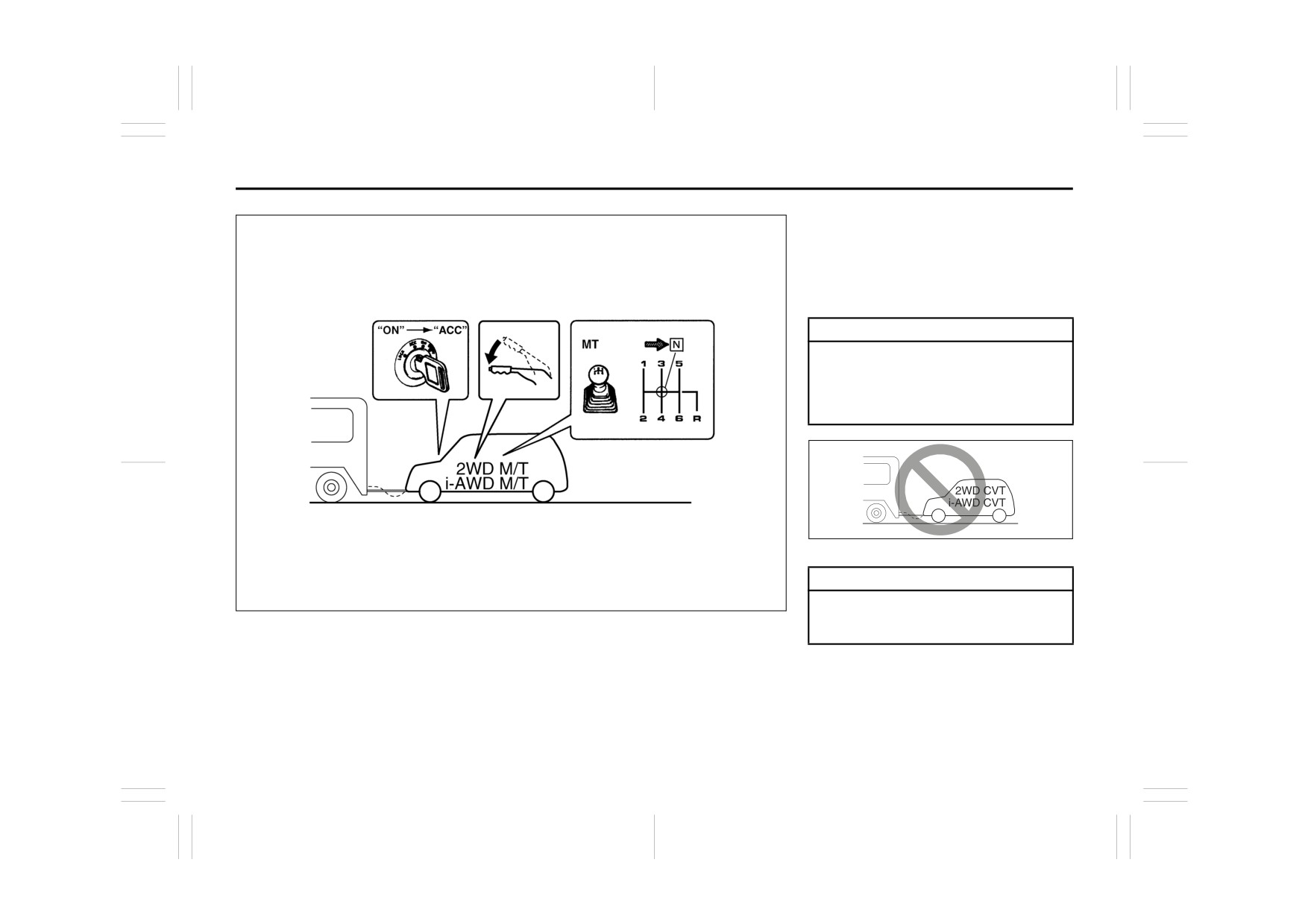

B: 2WD or i-AWD (including 2WD mode)

TOWING METHOD B

VEHICLES WITH MANUAL TRANSAXLE

1) Shift the manual transaxle lever into

FROM THE FRONT:

neutral.

FOUR WHEELS ON THE GROUND

2) Turn the ignition key to the “ACC” posi-

tion to unlock the steering wheel.

3) Release the parking brake.

CAUTION

The steering column is not strong

enough to withstand shocks trans-

mitted from the front wheels during

towing. Always unlock the steering

wheel before towing.

80J2054

CAUTION

Towing the 2WD or i-AWD CVT vehi-

80J2079

cles with four wheels on the ground

can result in damage to the CVT.

6-4

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

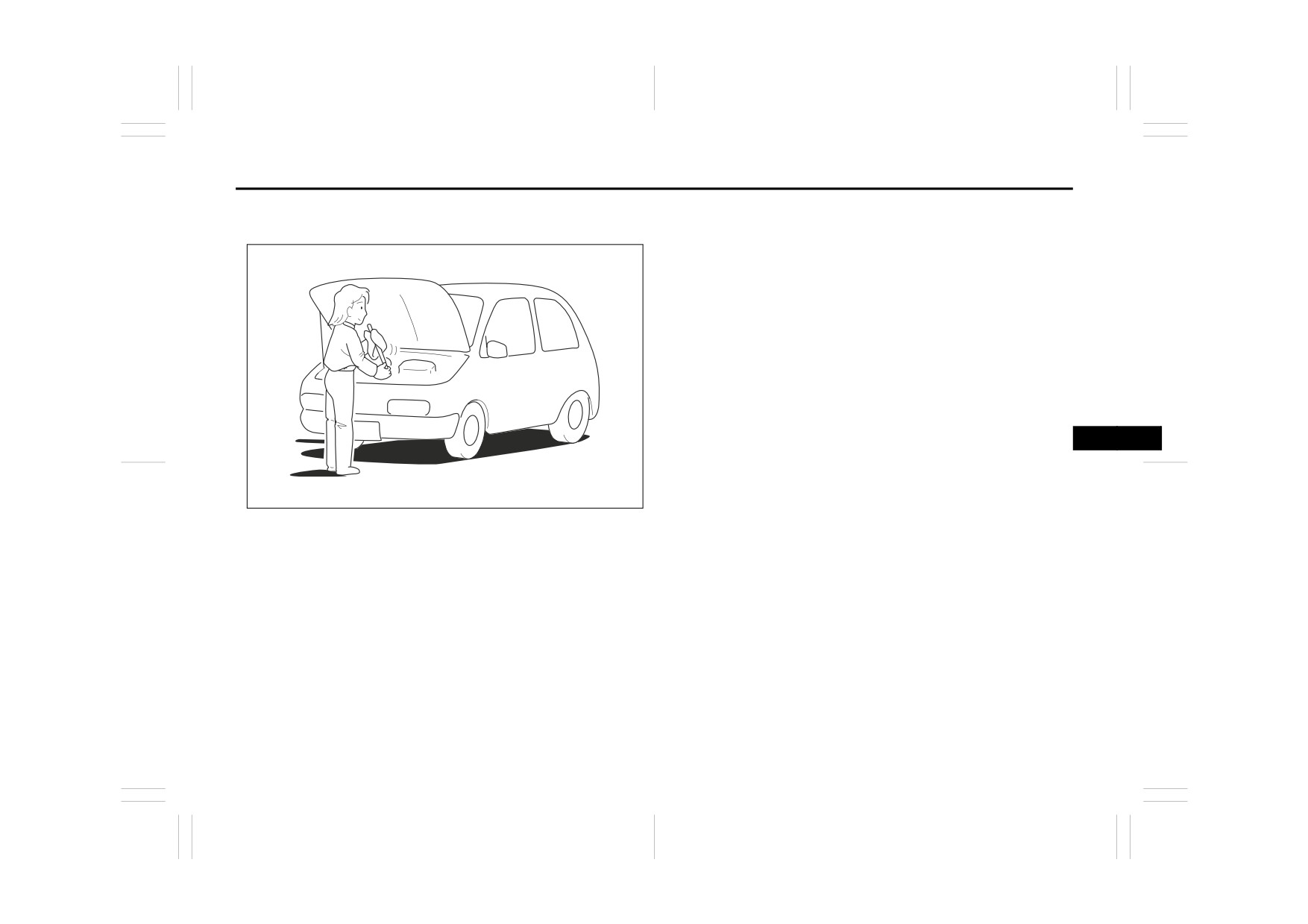

INSPECTION AND MAINTENANCE

Maintenance Schedule

7-2

Periodic Maintenance Schedule

7-3

Maintenance Recommended under Severe Driving

Conditions

7-7

Drive Belt

7-11

Engine Oil and Filter

7-11

Engine Coolant

7-14

Air Cleaner

7-16

Spark Plugs

7-16

Gear Oil

7-18

Clutch Pedal

7-19

Continuously Variable Transaxle (CVT) Fluid

7-20

Brakes

7-21

Steering Wheel

7-23

60G410

Tires

7-24

Battery

7-35

Fuses

7-36

Headlight Aiming

7-39

Bulb Replacement

7-40

Wiper Blades

7-46

Windshield Washer Fluid

7-50

Air Conditioning System

7-50

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Highway Driving: NO

Driving on Hills: NO

INSPECTION AND MAINTENANCE

WARNING

(Continued)

•

Do not leave the engine running in

•

Be careful not to cause accidental

garages or other confined areas.

short circuits between the positive

•

When the engine is running, keep

and negative battery terminals.

hands, clothing, tools and other

•

Keep used oil, engine coolant and

objects away from the moving fan

other fluids away from children and

and drive belt.

pets. Dispose of used fluids prop-

•

When it is necessary to do service

erly; never pour them

the

work with the engine running, make

ground, into sewers, etc.

sure that the parking brake is set

fully and the transaxle is in Neutral

(for manual transaxle vehicles) or

60A187S

Park (for CVT vehicles).

•

Do not touch ignition wires or other

WARNING

ignition system parts when starting

the engine or when the engine is

You should take extreme care when

running, or you could receive an

working on your vehicle to prevent

electric shock.

accidental injury. Here are a few pre-

•

Be careful not to touch a hot

cautions that you should be espe-

engine, exhaust manifold and

cially careful to observe:

pipes, muffler, radiator and water

• To prevent damage or unintended

hoses.

inflation of the air bag system, be

•

Do not allow smoking, sparks or

sure the battery is disconnected

flames around fuel or the battery.

and the ignition switch has been in

Flammable fumes are present.

the “LOCK” position for at least 90

•

Do not get under your vehicle if it is

seconds before performing any

supported only with the portable

electrical service work on your

jack provided in your vehicle.

SUZUKI. Do not touch air bag sys-

(Continued)

tem components or wires. The

wires are wrapped with yellow tape

or yellow tubing, and the couplers

are yellow for easy identification.

(Continued)

7-1

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving on Hills: NO

Driving on Slippery Roads: NO

INSPECTION AND MAINTENANCE

NOTICE (for U.S.A.)

Maintenance Schedule

Maintenance, replacement or repair of

WARNING

The following table shows the times when

the emission control devices and sys-

you should perform regular maintenance

The shock absorbers are filled with

tems may be performed by any automo-

on your vehicle. This table shows in miles,

high pressure gas. Never attempt to

bile repair establishment or individual

kilometers and months when you should

disassemble them or throw them into

using any part which has been certified

perform inspections, adjustments, lubrica-

a fire. Avoid storing them near a

under the provisions in the Clean Air

tion and other services. These intervals

heater or heating device. When

Act sec. 207. (a) (2).

should be shortened if driving is usually

scrapping the absorber, the gas must

done under severe conditions

(refer to

be released from the absorber safely.

“Maintenance Recommended Under

Ask your dealer for assistance.

Severe Driving Conditions”).

WARNING

SUZUKI recommends that mainte-

nance on items marked with an aster-

isk

(*) be performed by your

authorized SUZUKI dealer or a quali-

fied service technician. If you are

qualified, you may perform mainte-

nance on the unmarked items by

referring to the instructions in this

section. If you are not sure whether

you can successfully complete any of

the unmarked maintenance jobs, ask

your authorized SUZUKI dealer to do

the maintenance for you.

CAUTION

Whenever it becomes necessary to

replace parts on your vehicle, it is

recommended that you use genuine

SUZUKI replacement parts or their

equivalent.

7-2

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving on Slippery Roads: NO

INSPECTION AND MAINTENANCE

Periodic Maintenance Schedule

R: Replace or change

I : Inspect, clean, adjust, lubricate or replace as necessary

Interval: This interval should be judged by

miles (x 1000)

7.5

22.5

37.5

52.5

67.5

odometer reading or months, whichever comes

km (x 1000)

12.5

37.5

62.5

87.5

100

112.5

125

first.

months

7.5

22.5

37.5

52.5

67.5

ENGINE & EMISSION CONTROL

1. Drive belt

Inspect for damage

*2. Valve lash (clearance)

3. Engine oil and oil filter

*4. Cooling system hoses and connections

5. Engine coolant

SUZUKI LLC: Standard (Green)

SUZUKI LLC: Super (Blue) (#1)

First time only: Replace at 150000 km (90000 miles) or 90 months

Second time and after: Replace every 75000 km (45000 miles) or 45 months

*6. Exhaust pipes and mountings

*7. EVAP canister

Replace every 250000 km (150000 miles) or 180 months

*8. Emission-related hoses & tubes

9. Spark plugs

*10. Ignition coil (plug cap)

*11. Fuel tank & cap

12. Air cleaner filter element (paved road)

*13. Fuel filter

*14. Fuel lines and connections

*15. Canister air suction filter

Replace every 250000 km (150000 miles) or 180 months

#1: Be sure to perform the engine coolant level check under the daily inspection in “OPERATING YOUR VEHICLE” section.

If you replace the engine coolant other than the SUZUKI LLC: Super (Blue), follow the schedule of SUZUKI LLC: Standard (Green).

7-3

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving on Slippery Roads: NO

INSPECTION AND MAINTENANCE

R: Replace or change

I : Inspect, clean, adjust, lubricate or replace as necessary

Interval: This interval should be judged by

miles (x 1000)

82.5

97.5

105

112.5

120

127.5

135

142.5

150

odometer reading or months, whichever comes

km (x 1000)

137.5

150

162.5

175

187.5

200

212.5

225

237.5

250

first.

months

82.5

97.5

105

112.5

120

127.5

135

142.5

150

ENGINE & EMISSION CONTROL

1. Drive belt

Inspect for damage

*2. Valve lash (clearance)

3. Engine oil and oil filter

*4. Cooling system hoses and connections

5. Engine coolant

SUZUKI LLC: Standard (Green)

SUZUKI LLC: Super (Blue) (#1)

First time only: Replace at 150000 km (90000 miles) or 90 months

Second time and after: Replace every 75000 km (45000 miles) or 45 months

*6. Exhaust pipes and mountings

*7. EVAP canister

Replace every 250000 km (150000 miles) or 180 months

*8. Emission-related hoses & tubes

9. Spark plugs

*10. Ignition coil (plug cap)

*11. Fuel tank & cap

I (#2)

12. Air cleaner filter element (paved road)

*13. Fuel filter

*14. Fuel lines and connections

I (#2)

*15. Canister air suction filter

Replace every 250000 km (150000 miles) or 180 months

#1: Be sure to perform the engine coolant level check under the daily inspection in “OPERATING YOUR VEHICLE” section.

If you replace the engine coolant other than the SUZUKI LLC: Super (Blue), follow the schedule of SUZUKI LLC: Standard (Green).

#2: Inspect at 250000 km (150000 miles) or 180 months.

NOTE:

The maintenance services enclosed with rectangle are recommended maintenance items.

The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform recom-

mended maintenance items enclosed with a rectangle will not nullify the emission warranty or limit recall liability prior to the completion

of the vehicle’s useful life. SUZUKI, however, urges that all recommended maintenance services be performed at the indicated inter-

vals and the maintenance recorded.

7-4

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE

R: Replace or change

I : Inspect, clean, adjust, lubricate or replace as necessary

miles (x 1000)

7.5

22.5

37.5

52.5

67.5

Interval: This interval should be judged by odometer

km (x 1000)

12.5

37.5

62.5

87.5

100

112.5

125

reading or months, whichever comes first.

months

7.5

22.5

37.5

52.5

67.5

CHASSIS AND BODY

1. Clutch (for manual transaxle)

Pedal and fluid level

*2. Brake discs and pads

(front, rear)

Brake drums and shoes

(rear)

*3. Brake hoses and pipes

4. Brake fluid level check, *replacement

5. Brake pedal stroke check, *adjustment

6. Parking brake lever and *cable

Lever movement check, *adjustment

7. Tires (including tire rotation)

8. Wheel discs

*9. Suspension system

*10. Propeller shafts (i-AWD)/Drive axle boots

*11. Manual transaxle oil

Level check, *replacement

12. Continuously variable transaxle (CVT)

Fluid level

*Fluid hose

*13. Transfer oil (i-AWD)

*14. Rear differential oil (i-AWD)

15. Steering system

Steering wheel movement,

*linkage

16. Power steering (if equipped)

17. All latches, hinges and locks

18. Air conditioner filter element (if equipped)

7-5

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE

R: Replace or change

I : Inspect, clean, adjust, lubricate or replace as necessary

miles (x 1000)

82.5

97.5

105

112.5

120

127.5

135

142.5

150

Interval: This interval should be judged by odometer

km (x 1000)

137.5

150

162.5

175

187.5

200

212.5

225

237.5

250

reading or months, whichever comes first.

months

82.5

97.5

105

112.5

120

127.5

135

142.5

150

CHASSIS AND BODY

1. Clutch (for manual transaxle)

Pedal and fluid level

*2. Brake discs and pads

(front, rear)

Brake drums and shoes

(rear)

*3. Brake hoses and pipes

4. Brake fluid level check, *replacement

5. Brake pedal stroke check, *adjustment

6. Parking brake lever and *cable

Lever movement check, *adjustment

7. Tires (including tire rotation)

8. Wheel discs

*9. Suspension system

*10. Propeller shafts (i-AWD)/Drive axle boots

*11. Manual transaxle oil

Level check, *replacement

12. Continuously variable transaxle (CVT)

Fluid level

*Fluid hose

*13. Transfer oil (i-AWD)

*14. Rear differential oil (i-AWD)

15. Steering system

Steering wheel movement,

*linkage

16. Power steering (if equipped)

17. All latches, hinges and locks

18. Air conditioner filter element (if equipped)

NOTE:

This table shows the service schedule up to 250000 km (150000 miles).

Beyond 250000 km (150000 miles), perform the same services at the same intervals shown in the chart.

Beyond 250000 km (150000 miles), the maintenance services enclosed with a rectangle are required.

7-6

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE

Maintenance Recommended under Severe Driving Conditions

Follow this schedule if your car is mainly operated under one or more of the following conditions:

• When most trips are less than 6 kilometers (4 miles)

• When most trips are less than 16 kilometers (10 miles) and outside temperature remain below freezing.

• Idling and/or low-speed operation in stop-and-go traffic.

• Operating in dusty areas.

Schedule should also be followed if the car is used for delivery service, police, taxi or other commercial applications.

R: Replace or change

I : Inspect, clean, adjust, lubricate or replace as necessary

Interval: This interval should be judged by

miles (x 1000)

odometer reading or months, whichever

km (x 1000)

comes first.

months

ENGINE & EMISSION CONTROL

1. Drive belt

Inspect for damage

*2. Valve lash (clearance)

3. Engine oil and oil filter

*4. Cooling system hoses and connections

5. Engine coolant

SUZUKI LLC: Standard (Green)

SUZUKI LLC: Super (Blue) (#1) First time only: Replace at 150000 km (90000 miles) or 90 months

Second time and after: Replace every 75000 km (45000 miles) or 45 months

*6. Exhaust pipes and mountings

*7. EVAP canister

Replace every 250000 km (150000 miles) or 180 months

*8. Emission-related hoses & tubes

9. Spark plugs

*10. Ignition coil (plug cap)

*11. Fuel tank & cap

12. Air cleaner filter element (paved road)

*13. Fuel filter

Replace every 250000 km (150000 miles) or 150 months

*14. Fuel lines and connections

*15. Canister air suction filter

#1: Be sure to perform the engine coolant level check under the daily inspection in “OPERATING YOUR VEHICLE” section.

If you replace the engine coolant other than the SUZUKI LLC: Super (Blue), follow the schedule of SUZUKI LLC: Standard (Green).

7-7

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE

R: Replace or change

I : Inspect, clean, adjust, lubricate or replace as necessary

Interval: This interval should be judged by

miles (x 1000)

odometer reading or months, whichever

km (x 1000)

100

105

110

115

120

125

comes first.

months

ENGINE & EMISSION CONTROL

1. Drive belt

Inspect for damage

*2. Valve lash (clearance)

3. Engine oil and oil filter

*4. Cooling system hoses and connections

5. Engine coolant

SUZUKI LLC: Standard (Green)

SUZUKI LLC: Super (Blue) (#1) First time only: Replace at 150000 km (90000 miles) or 90 months

Second time and after: Replace every 75000 km (45000 miles) or 45 months

*6. Exhaust pipes and mountings

*7. EVAP canister

Replace every 250000 km (150000 miles) or 180 months

*8. Emission-related hoses & tubes

9. Spark plugs

*10. Ignition coil (plug cap)

*11. Fuel tank & cap

12. Air cleaner filter element (paved road)

*13. Fuel filter

Replace every 250000 km (150000 miles) or 150 months

*14. Fuel lines and connections

*15. Canister air suction filter

#1: Be sure to perform the engine coolant level check under the daily inspection in “OPERATING YOUR VEHICLE” section.

If you replace the engine coolant other than the SUZUKI LLC: Super (Blue), follow the schedule of SUZUKI LLC: Standard (Green).

7-8

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE

R: Replace or change

I : Inspect, clean, adjust, lubricate or replace as necessary

miles (x 1000)

Interval: This interval should be judged by odometer

km (x 1000)

reading or months, whichever comes first.

months

CHASSIS AND BODY

1. Clutch (for manual transaxle)

Pedal and fluid level

*2. Brake discs and pads

(front, rear)

Brake drums and shoes

(rear)

*3. Brake hoses and pipes

4. Brake fluid level check, *replacement

5. Brake pedal stroke check, *adjustment

6. Parking brake lever and *cable

Lever movement check, *adjustment

7. Tires (including tire rotation)

8. Wheel discs

*9. Wheel bearings

*10. Suspension system

*11. Propeller shafts (i-AWD)/Drive axle boots

*12. Manual transaxle oil

Level check, *replacement

13. Continuously variable transaxle (CVT)

Fluid level

*Fluid deterioration check*²

*Fluid hose

*14. Transfer oil (i-AWD)

*15. Rear differential oil (i-AWD)

16. Steering system

Steering wheel movement,

*linkage

17. Power steering (if equipped)

18. All latches, hinges and locks

19. Air conditioner filter element (if equipped)*

7-9

80J23-03E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE

R: Replace or change

I : Inspect, clean, adjust, lubricate or replace as necessary

miles (x 1000)

Interval: This interval should be judged by odometer

km (x 1000)

100

105

110

115

120

125

reading or months, whichever comes first.

months

CHASSIS AND BODY

1. Clutch (for manual transaxle)

Pedal and fluid level

*2. Brake discs and pads

(front, rear)

Brake drums and shoes

(rear)

*3. Brake hoses and pipes

4. Brake fluid level check, *replacement

5. Brake pedal stroke check, *adjustment

6. Parking brake lever and *cable

Lever movement check, *adjustment

7. Tires (including tire rotation)

8. Wheel discs

*9. Wheel bearings

*10. Suspension system

*11. Propeller shafts (i-AWD)/Drive axle boots

*12. Manual transaxle oil

Level check, *replacement

13. Continuously variable transaxle (CVT)

Fluid level

*Fluid deterioration check*²

*Fluid hose

*14. Transfer oil (i-AWD)

*15. Rear differential oil (i-AWD)

16. Steering system

Steering wheel movement,

*linkage

17. Power steering (if equipped)

18. All latches, hinges and locks

19. Air conditioner filter element (if equipped)*

NOTE:

This table shows the service schedule up to 125000 km (75000 miles).

Beyond 125000 km (75000 miles), perform the same services at the same intervals shown in the chart.

*¹ Clean more frequently if the air flow from the air conditioner decreases.

*² Check or replace as necessary if you usually drive with high speed or high engine revolutions.

7-10

80J23-03E

Suzuki SX4 (2010 year). Manual - part 12
